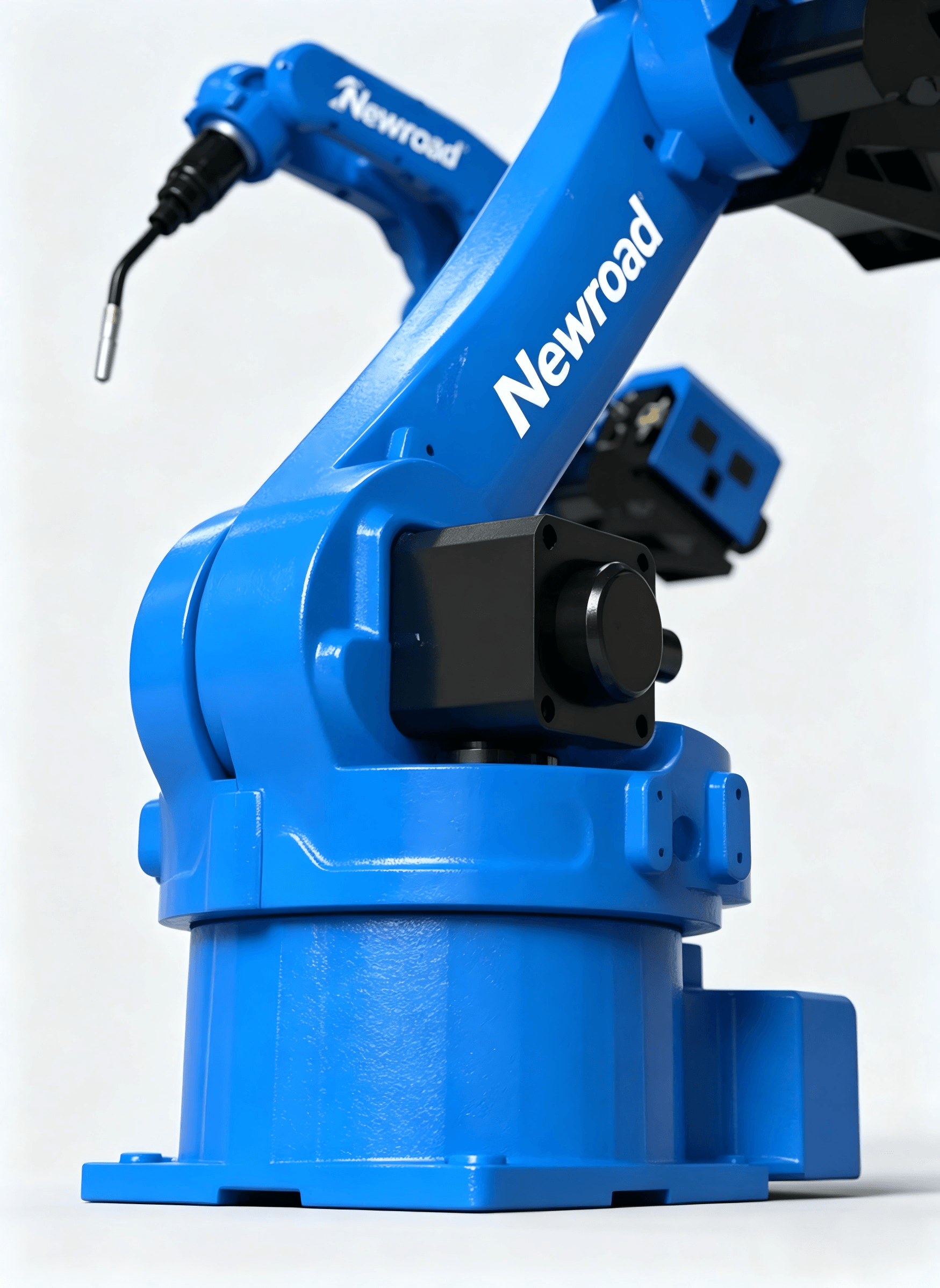

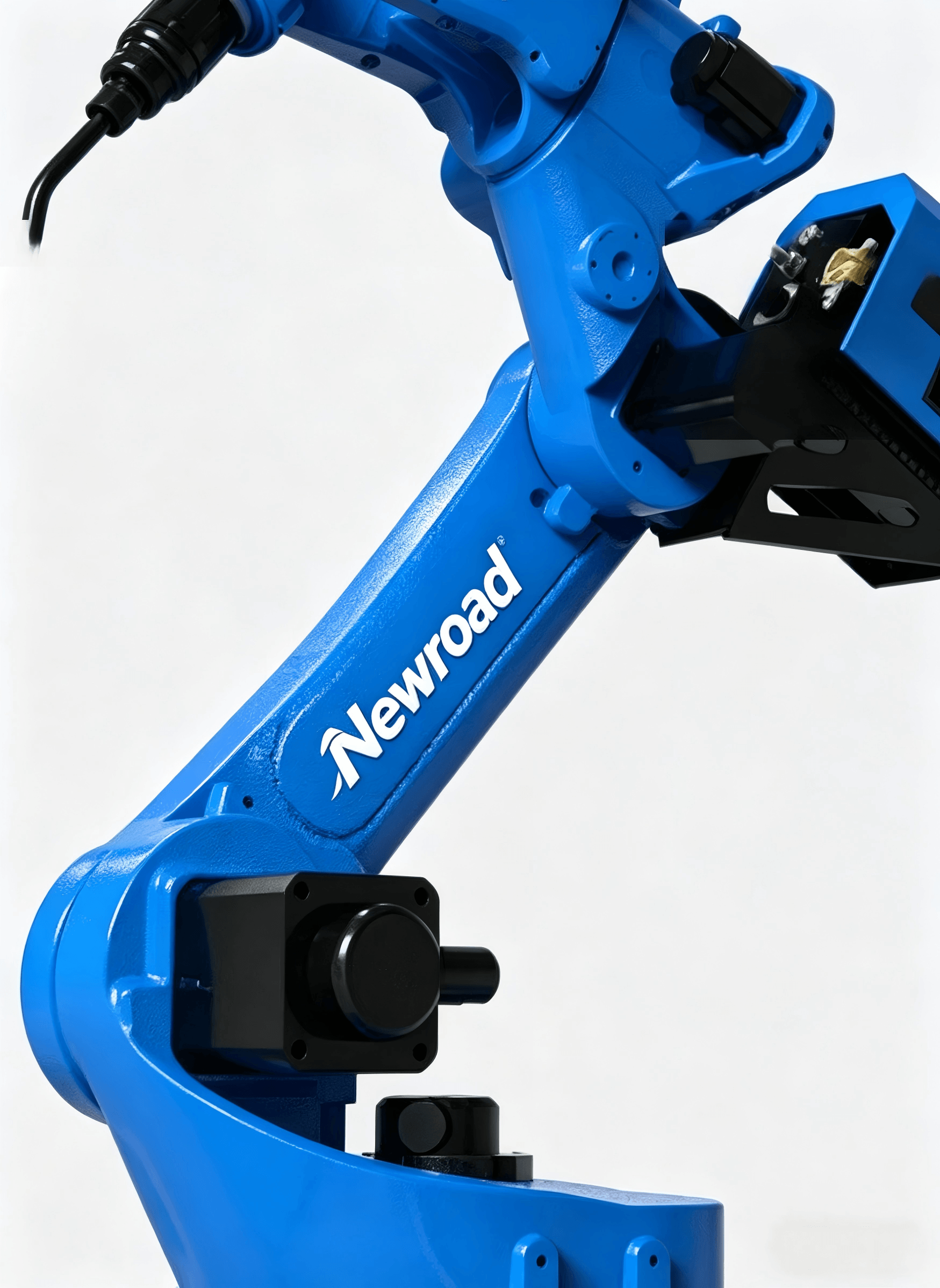

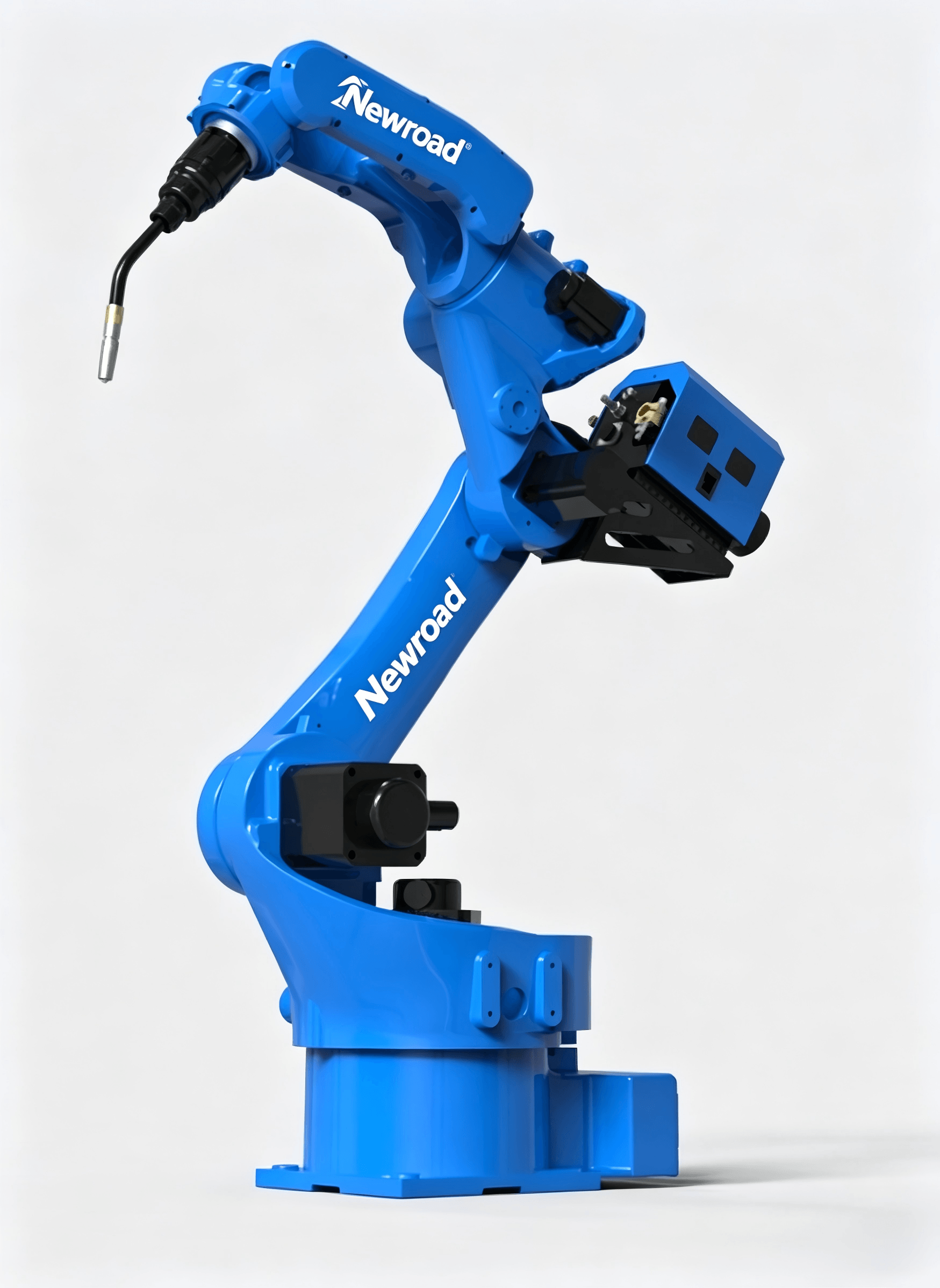

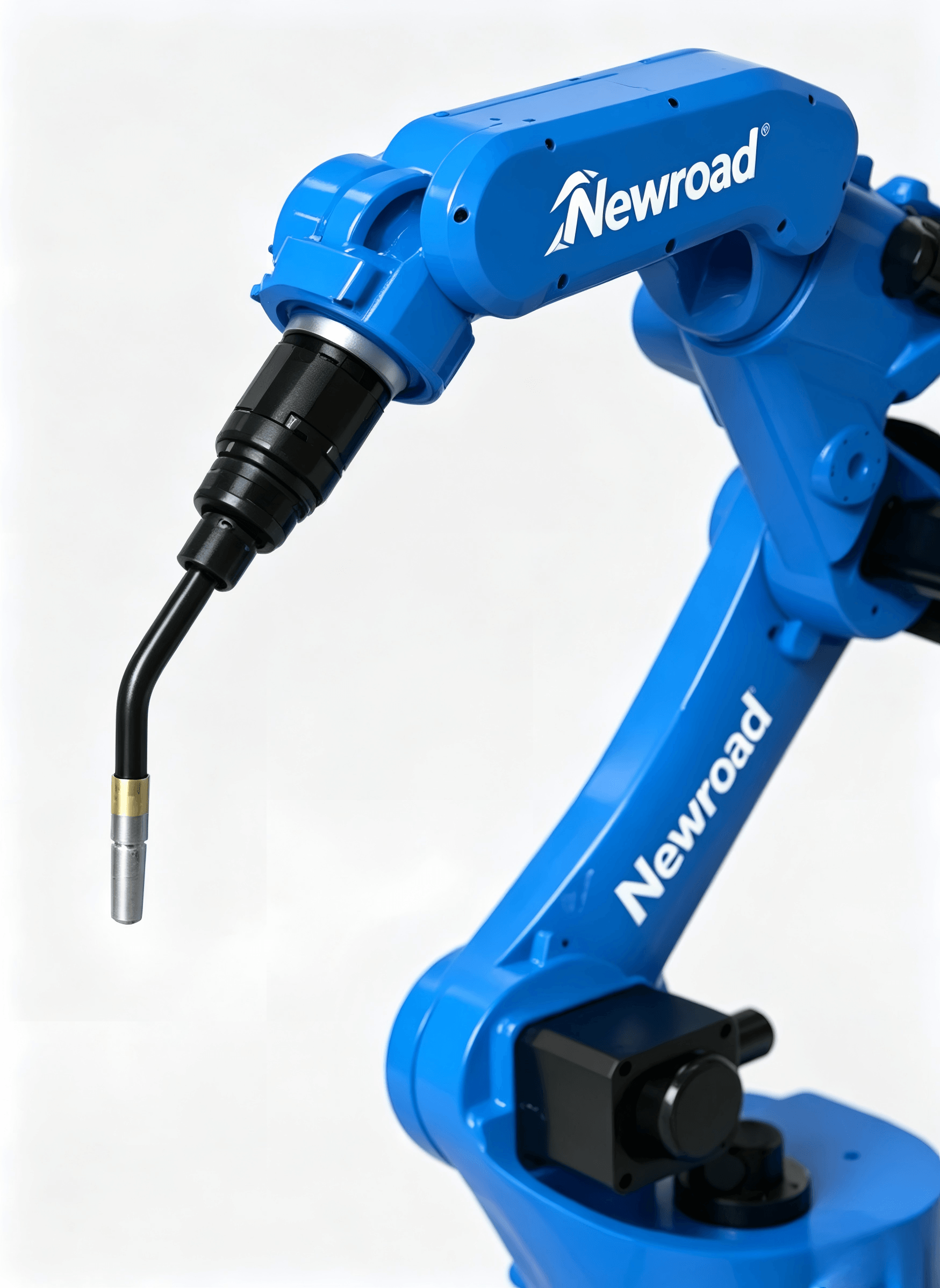

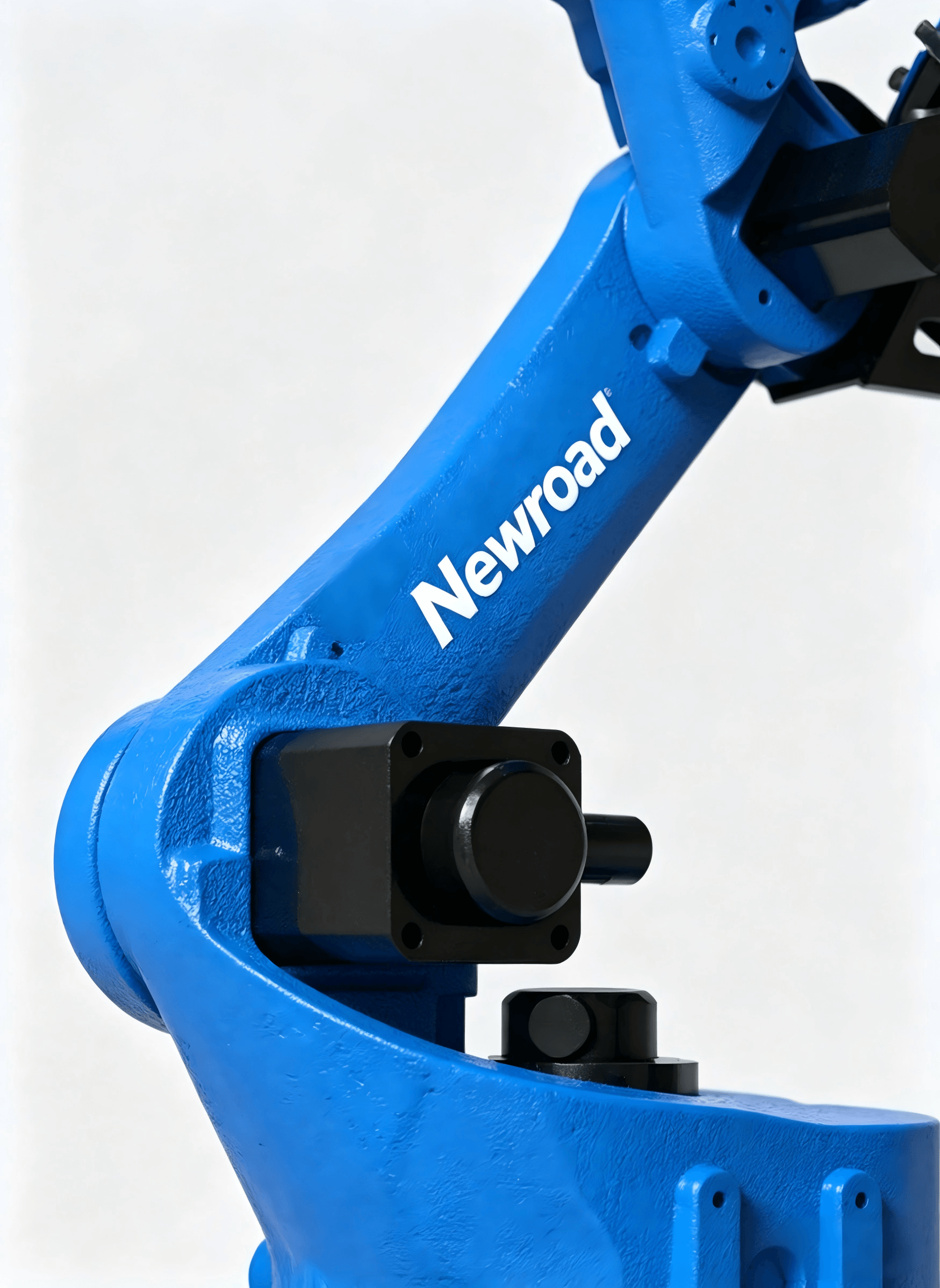

CH1463-10 6-Axis Arc Welding Robot
Product Overview
Core Advantages
- Hollow arm & wrist structure – Built-in welding cable for smooth movement in narrow spaces
- Ultra-high precision – Repeat positioning accuracy ±0.05mm
- Fast running speed – Large working space, high efficiency
- IP54 protection – Adapt to harsh working environments
- Flexible installation – Floor / wall / inverted mounting supported
Specification Parameters
| Item | Specification |
|---|---|
| Model | CH1463-10 |
| Number of axes | 6 axes |
| Max working radius | 1463 mm |
| Repeat positioning accuracy | ±0.05 mm |
| Rated wrist load | 10 kg |
| Vibration acceleration | 4.9 m/s² |
| Noise level | < 80 dB(A) |
| Protection class | Body IP54, Wrist IP54 |
| Weight | 220 kg |
| Installation | Floor, side, inverted (custom) |
| Ambient temperature | 0 ~ 40 ℃ |
| Ambient humidity | ≤75%RH (short-term 90%RH) |
| Power supply | Must be grounded |
| Standard control cabinet | CXR X6 |
Axis Speed & Range
| Axis | Speed | Range |
|---|---|---|
| J1 | 148 °/s | ±170° |
| J2 | 148 °/s | -90° ~ +140° |
| J3 | 247 °/s | -135° ~ +85° |
| J4 | 385 °/s | ±180° |
| J5 | 444 °/s | ±105° |
| J6 | 790 °/s | ±210° |
Wrist Performance
| Item | J4 | J5 | J6 |
|---|---|---|---|
| Permissible torque | 19.96 N·m | 19.96 N·m | 10.47 N·m |
| Max inertia | 0.28 kg·m² | 0.28 kg·m² | 0.096 kg·m² |
Product Features
-

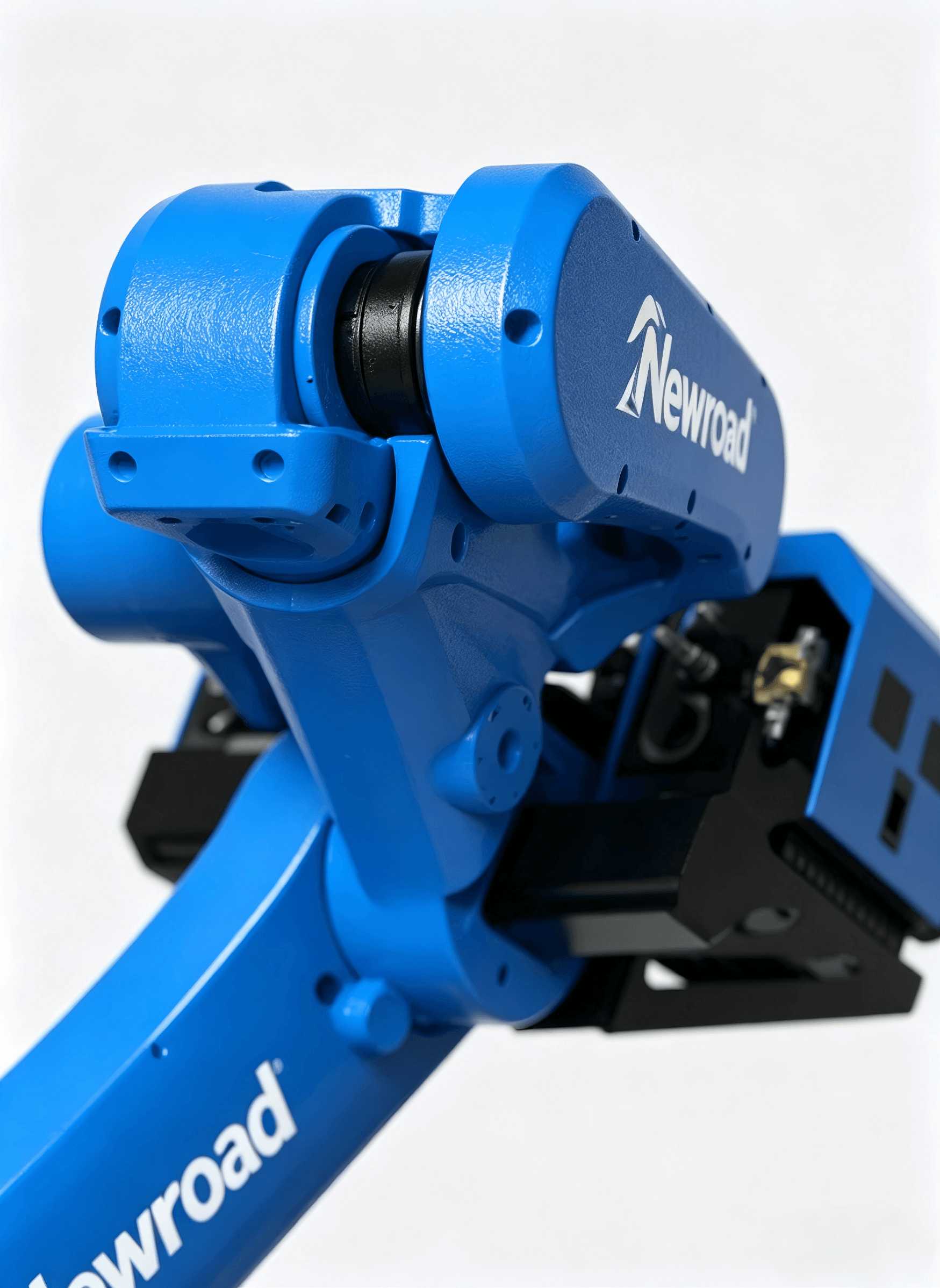

Hollow structure design
Arm and wrist adopt hollow structure, welding cable built-in, suitable for welding in narrow spaces, light weight and compact layout.
-
High protection & durability
IP54 protection, equipped with body cover, suitable for harsh industrial environments; internal high-flex special cables ensure long service life.
-
High precision & high speed
Large working space, fast running speed, positioning accuracy up to ±0.05mm, ideal for high-quality welding.
-
Flexible installation
Supports floor mounting, side mounting, inverted mounting (customizable), adaptable to various workstation layouts.
Main Applications
- Arc welding
- Laser welding
- Light handling
- Automated welding production lines
Standard Configuration
- 6-axis robot arm: CH1463-10
- Control cabinet: CXR X6
- High-flex internal cables
- IP54 protective cover
Notes
- Please ensure reliable grounding during installation.
- Product parameters are subject to change without prior notice due to continuous upgrade.
