SZU-650 Portable Collaborative Robot Palletizer | No Programming, High Safety Palletizing Solution
Product Overview

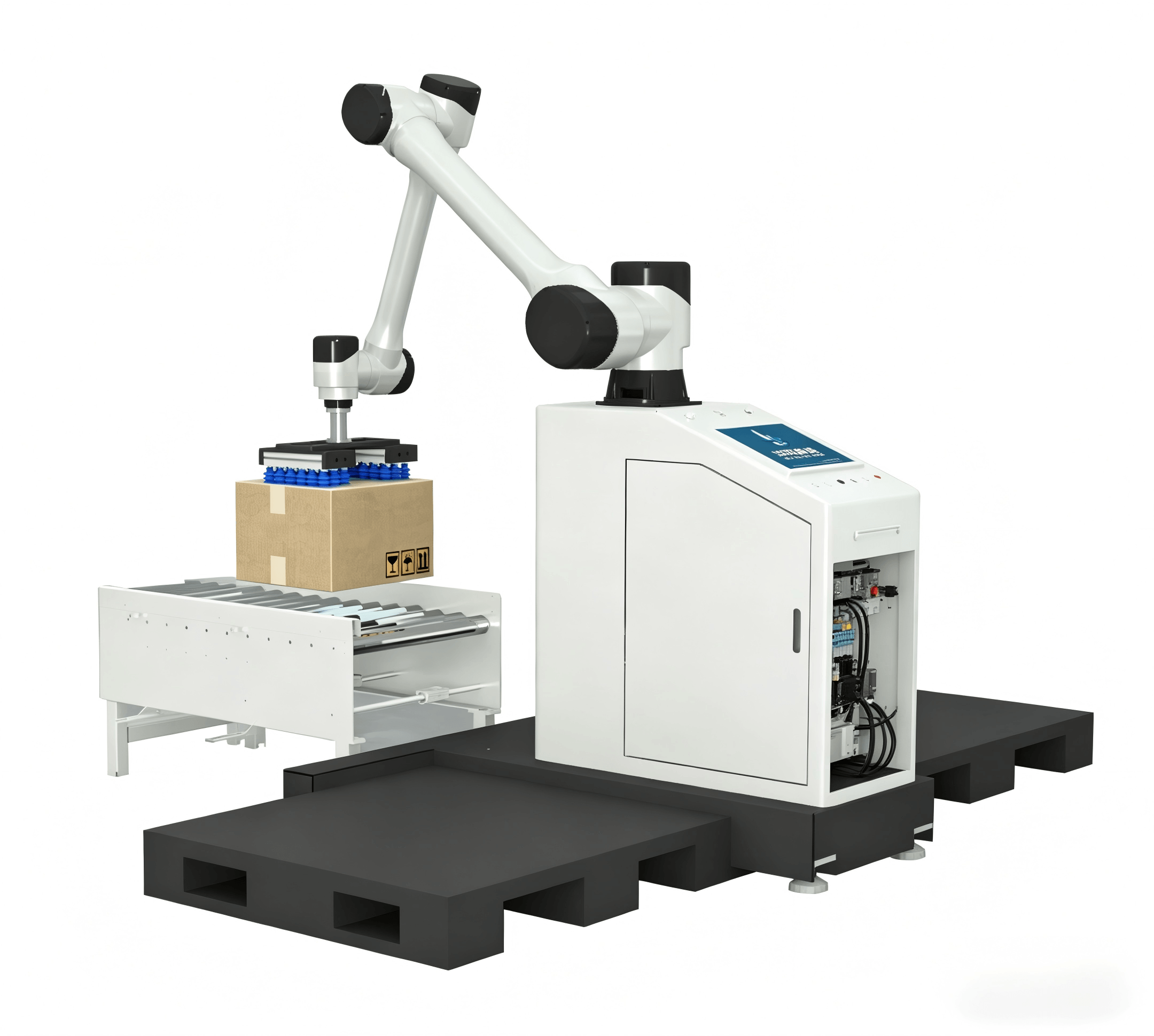

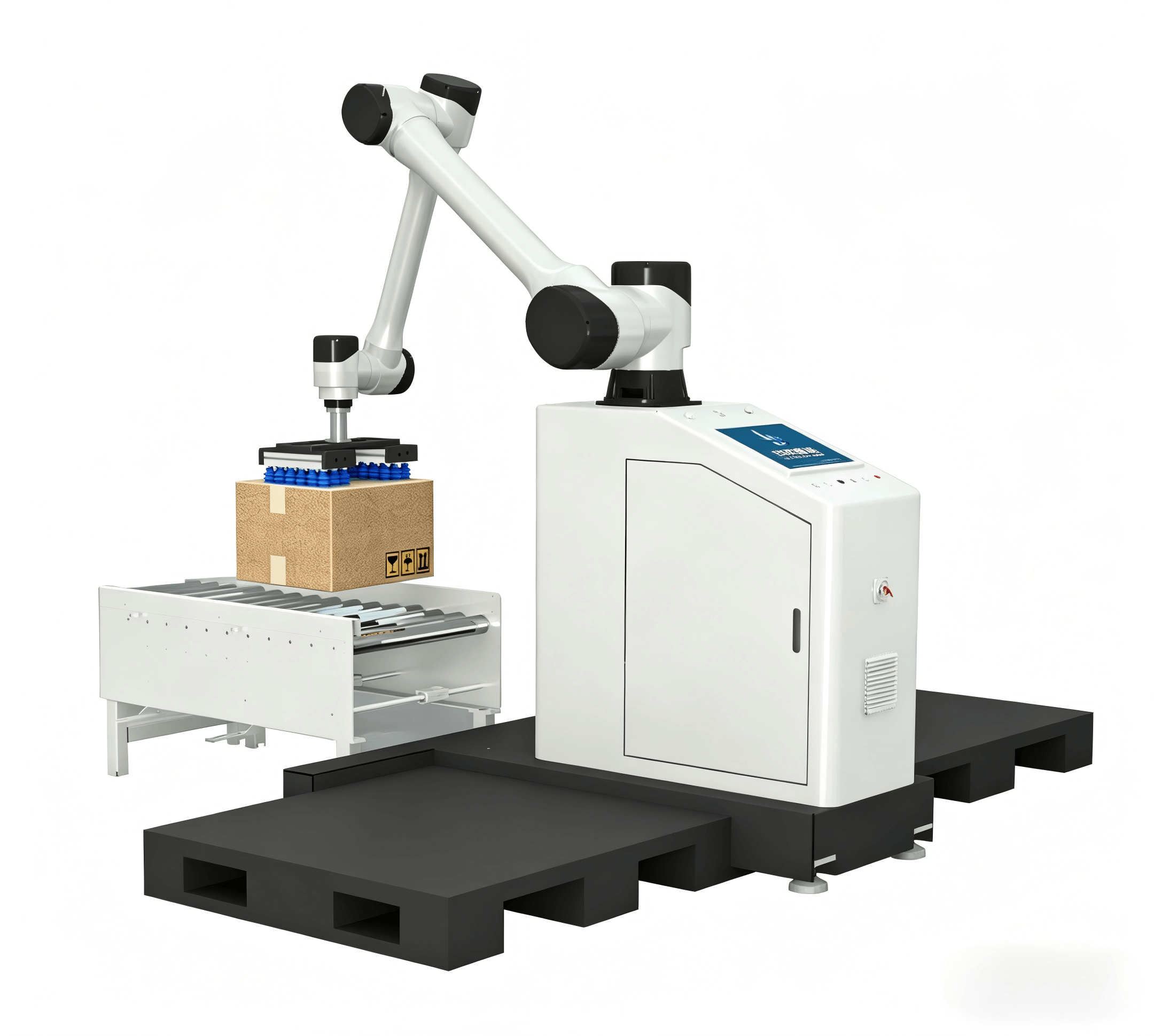

The SZU-650 Portable Collaborative Robot Palletizer is an intelligent, compact, and flexible integrated palletizing system designed for small and medium production lines. It adopts self-developed kernel operating system, supports visual operation and one-click startup without programming, and realizes fast switching between multiple working scenarios.
With a 50KG end payload, 1800mm working radius, and strong compatibility with various cartons and flat surfaces, this machine delivers high efficiency, stability, and safety. It features compact structure, small footprint, movable design, and 2-hour fast deployment, greatly reducing labor cost and improving production flexibility.
Equipped with CE-certified safety systems, optional LiDAR or grating protection, it enables safe human-machine collaboration. Widely used in food, beverage, daily chemicals, pharmaceuticals, hardware, carton manufacturing and other industries, it is an ideal cost-effective automated palletizing solution.
Key Features
- Intelligent collaboration with self-developed kernel system, supports redevelopment and multi-scenario switching
- No programming required, one-click startup, visual palletizing, new path setup within 5 minutes
- 50KG large end payload, compact structure, footprint only 6 square meters
- Portable and movable, manual tow for flexible relocation and multi-station use
- Fast deployment within 2 hours after arrival, high integration and strong adaptability
- CE safety certification, optional electronic fence for safe human-machine cooperation
- High compatibility for various carton sizes and palletizing structures
- Servo control, high precision positioning, low energy consumption and high performance
- 15-inch large touch screen, intuitive operation, real-time stack pattern visualization
- Rugged magnesium aluminum alloy body, corrosion-resistant for complex environments
Technical Specification
| Parameter | Specification |
|---|---|
| Model | SZU-650 |
| Type | Portable Collaborative Robot Palletizer |
| Packing Speed | 8–12 boxes per minute (dual-box suction available upon request) |
| End Payload | 50KG |
| Working Radius | 1800mm |
| Vertical Height H1 | 1800mm |
| Telescopic Height H2 | 2300mm |
| Palletizing Height | 1800–2300mm (including pallet) |
| Suitable Pallet | 1200mm × 1200mm × 140mm |
| Equipment Weight | ≈500KG |
| Ambient Temperature | -15°C ~ +55°C |
| Rated Voltage | Single-phase 220V 50Hz |
| Rated Power | 6700W |
| Protection Level | IP54 |
| Repeat Positioning Accuracy | ±0.1mm |
| Compatible Surfaces | Carton, metal and various smooth flat surfaces |
| Safety | CE certification; optional LiDAR / grating electronic fence |
| Operation | 15-inch touch screen, visual no-programming control |
| Deployment | Integrated design, 2-hour fast deployment |
| Movement | Manual towable, movable and flexible |
Product Details & Advantages
No Programming, Visual Operation
15-inch high-sensitivity capacitive touch screen enables easy input of box and pallet size to auto-generate palletizing path. No professional training required; new path can be set in 5 minutes.
Stack Visualization
Real-time display of stacking layout helps operators monitor effect and adjust parameters quickly, ensuring stable and neat palletizing.

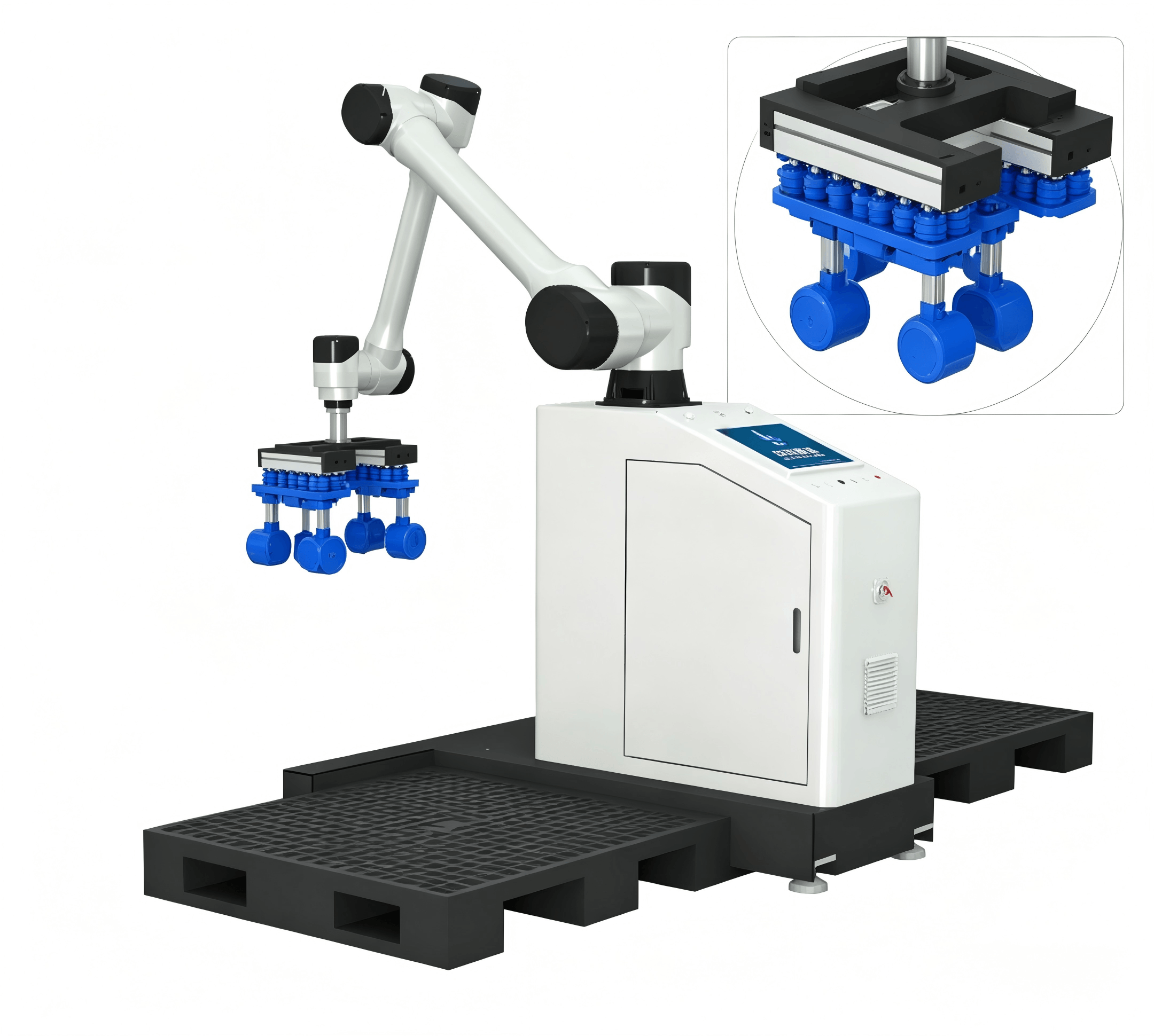

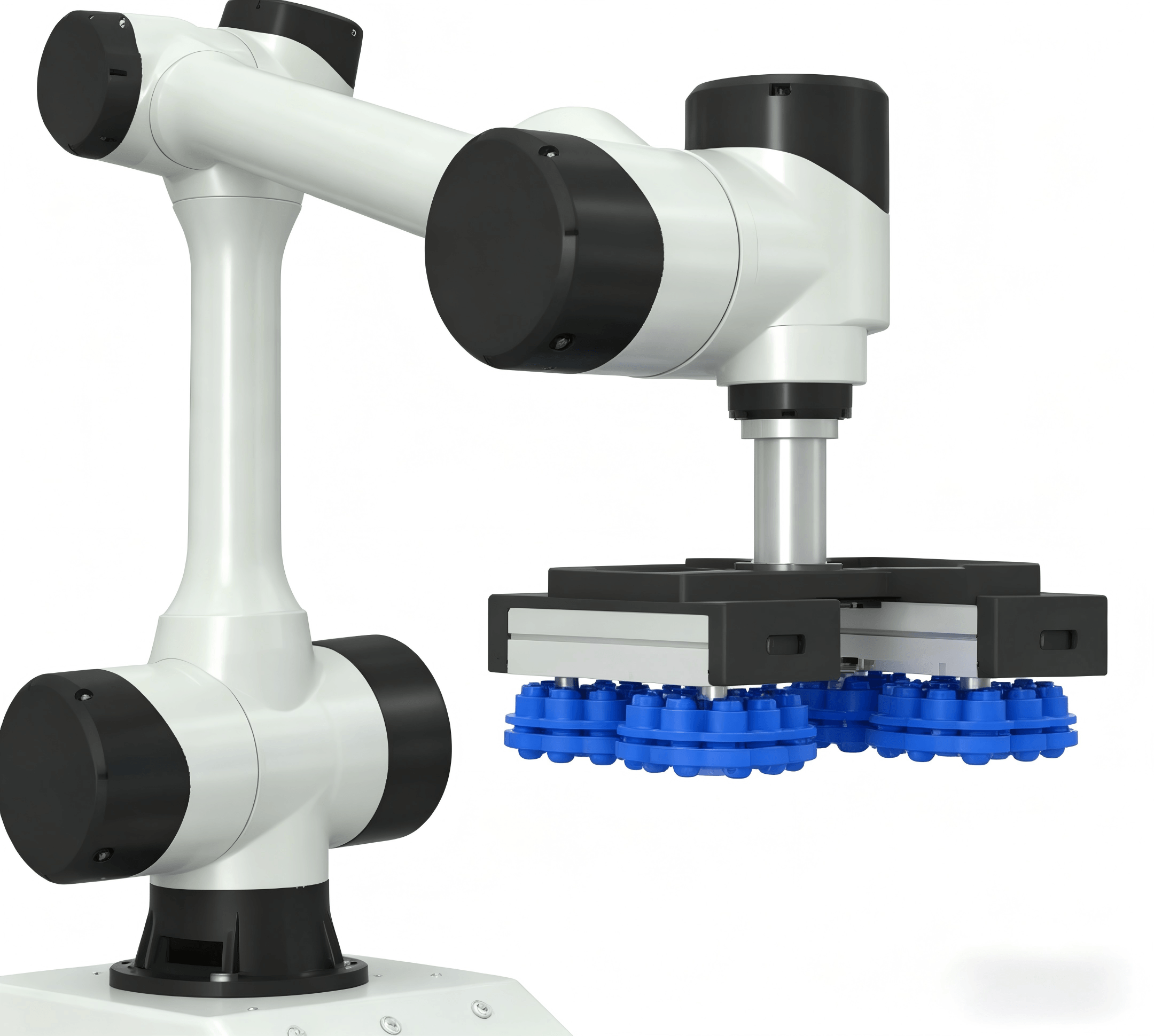

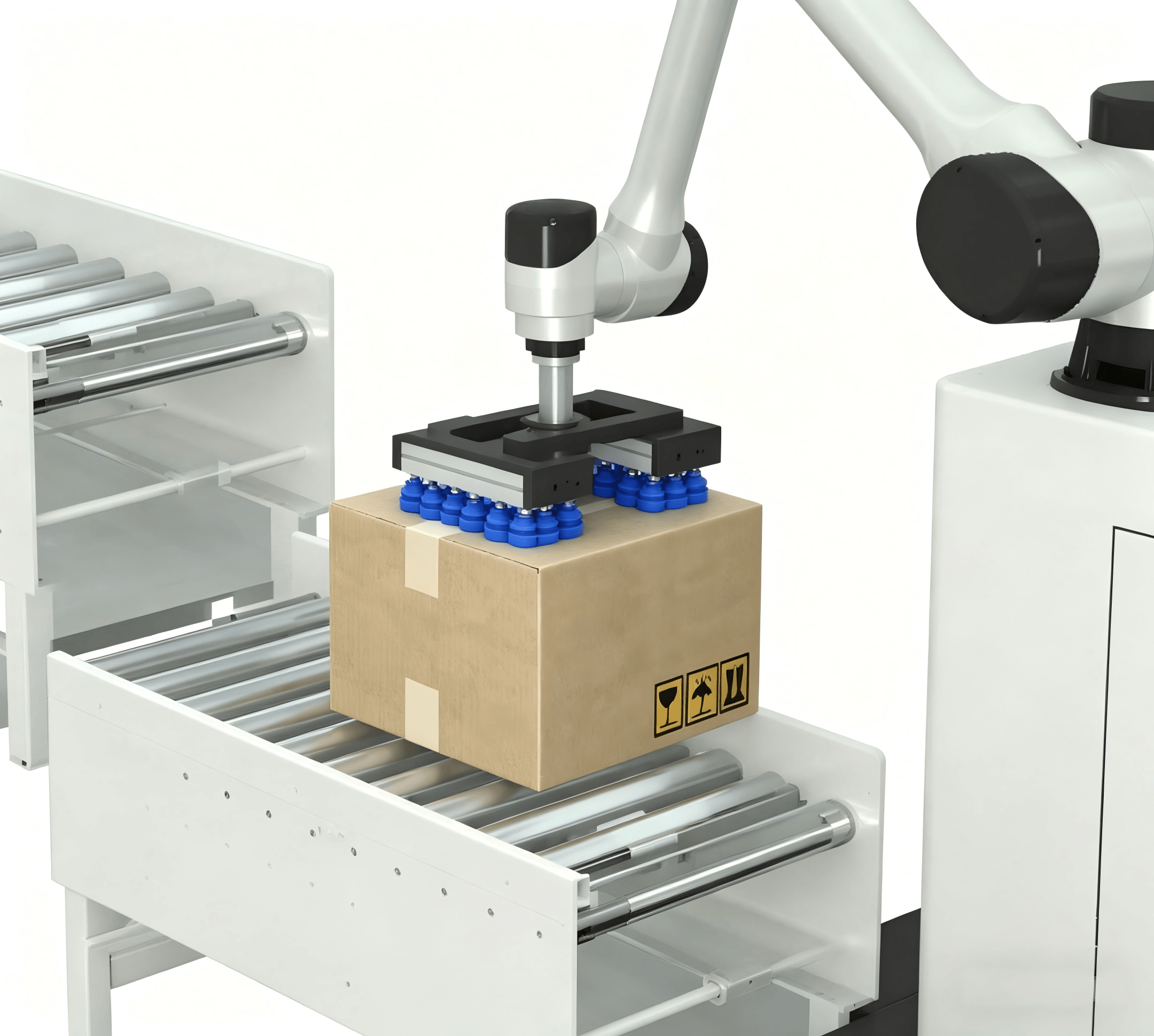

High-Performance End Effector
Equipped with durable silicone vacuum suction cup with long service life and low maintenance. Optional clamps or custom grippers are available for quick replacement.
Portable & Movable
Manual tow design supports free relocation between lines, upstairs use and multi-scenario applications, greatly improving equipment utilization.
Strong Environmental Adaptability
Magnesium aluminum alloy structure provides corrosion and oxidation resistance. High integration ensures stable operation in complex industrial environments.
Low Consumption, High Efficiency
Servo drive system delivers high speed, precise positioning, low energy consumption and strong stability, saving labor cost for up to 4 workers per line.
Application Industries
- Food & Beverage
- Daily Necessities & Cosmetics
- Pharmaceutical & Health Care
- Carton Manufacturing & Packaging
- Hardware & Metal Products
- Electronics & Light Industry
Product Configuration
- Motion Controller: China Domestic
- Servo Motor: China Domestic
- Reduction Box: China Domestic
- Switching Power Supply: Meanwell (Taiwan)
- Circuit Breaker: Zhengtai (China)
- Slide: Fure (Germany)
- Vacuum Suction Cup / Sponge Suction Cup: China Domestic
- Display Screen: China Domestic
- Sensors & Valves: China / AdTech (Taiwan)
