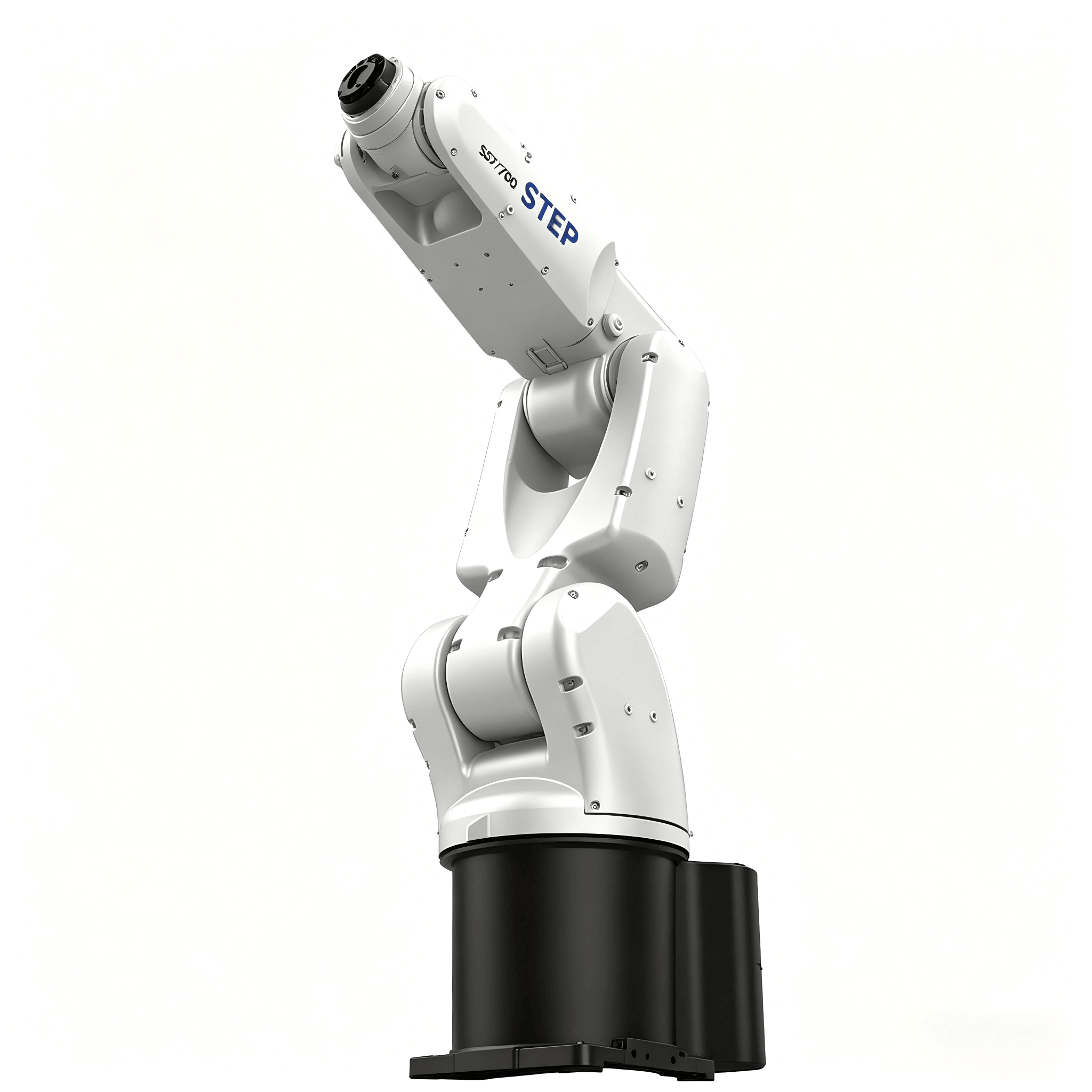

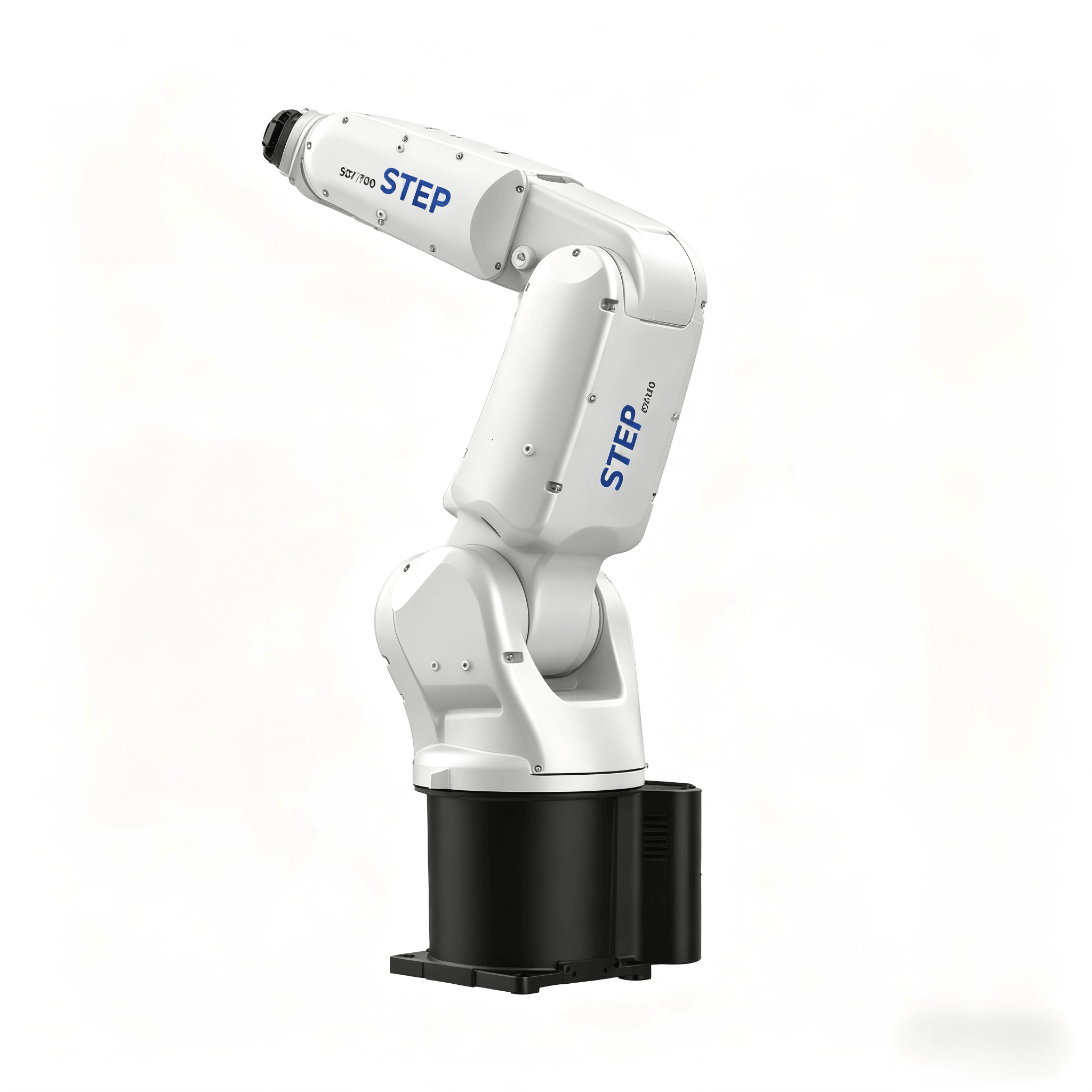

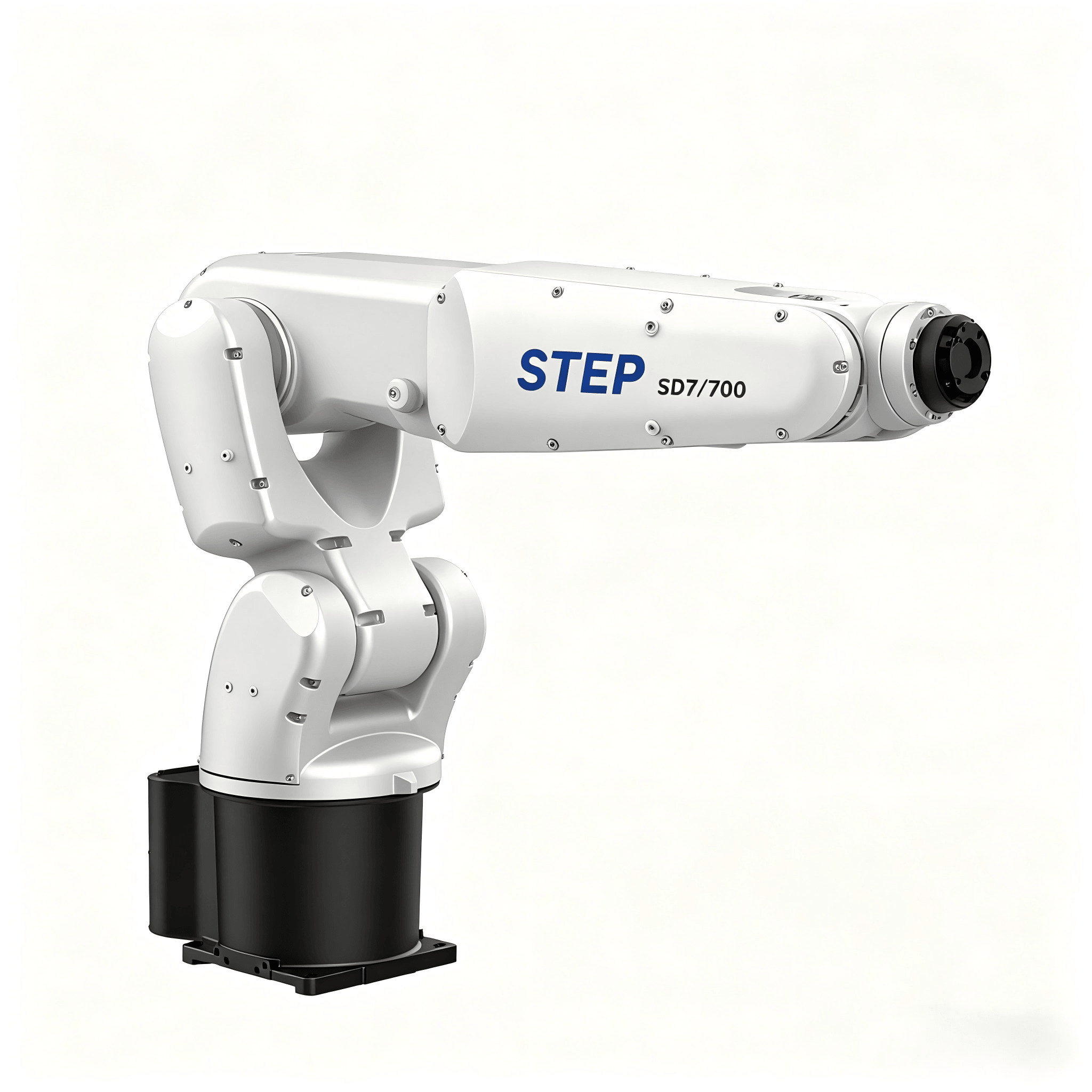

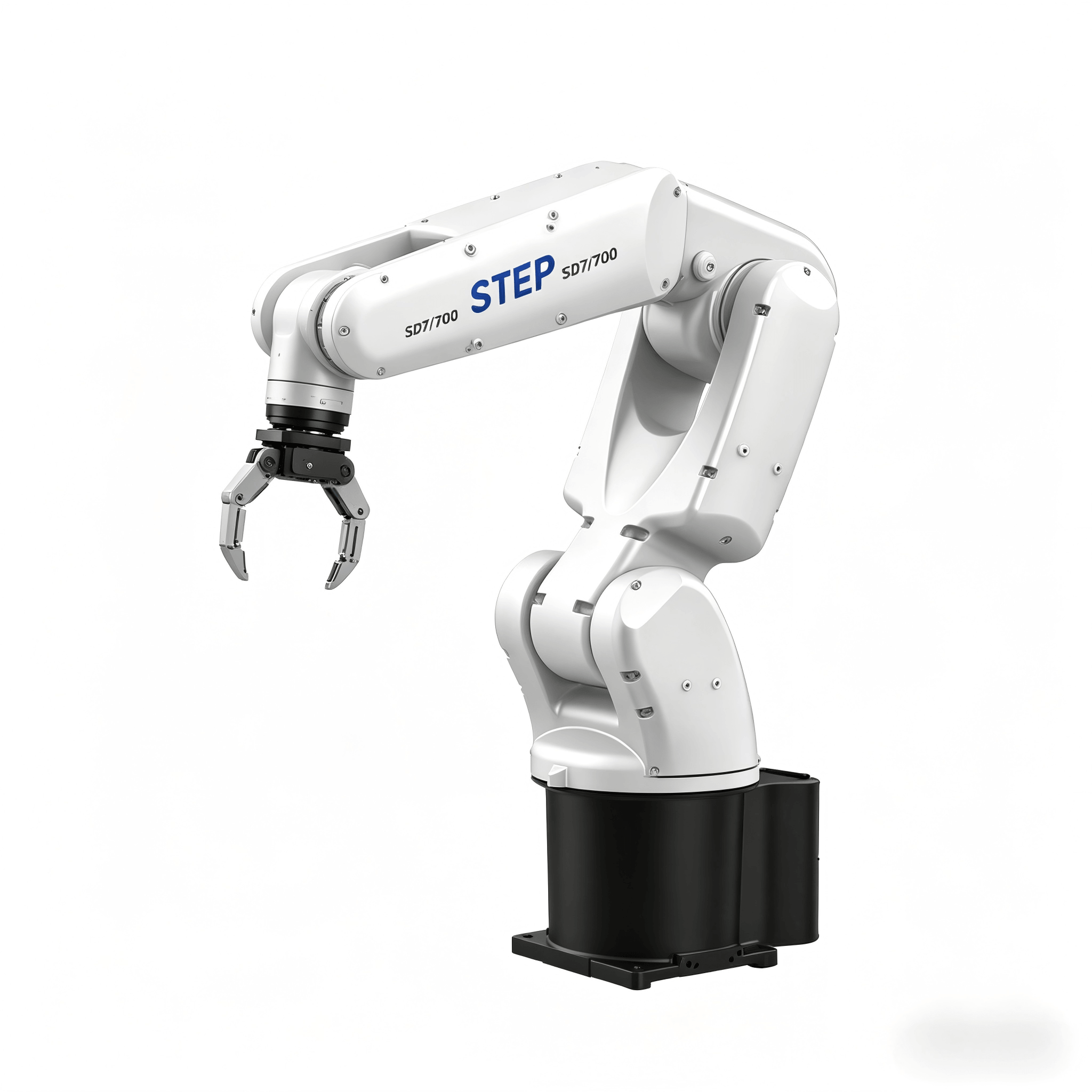

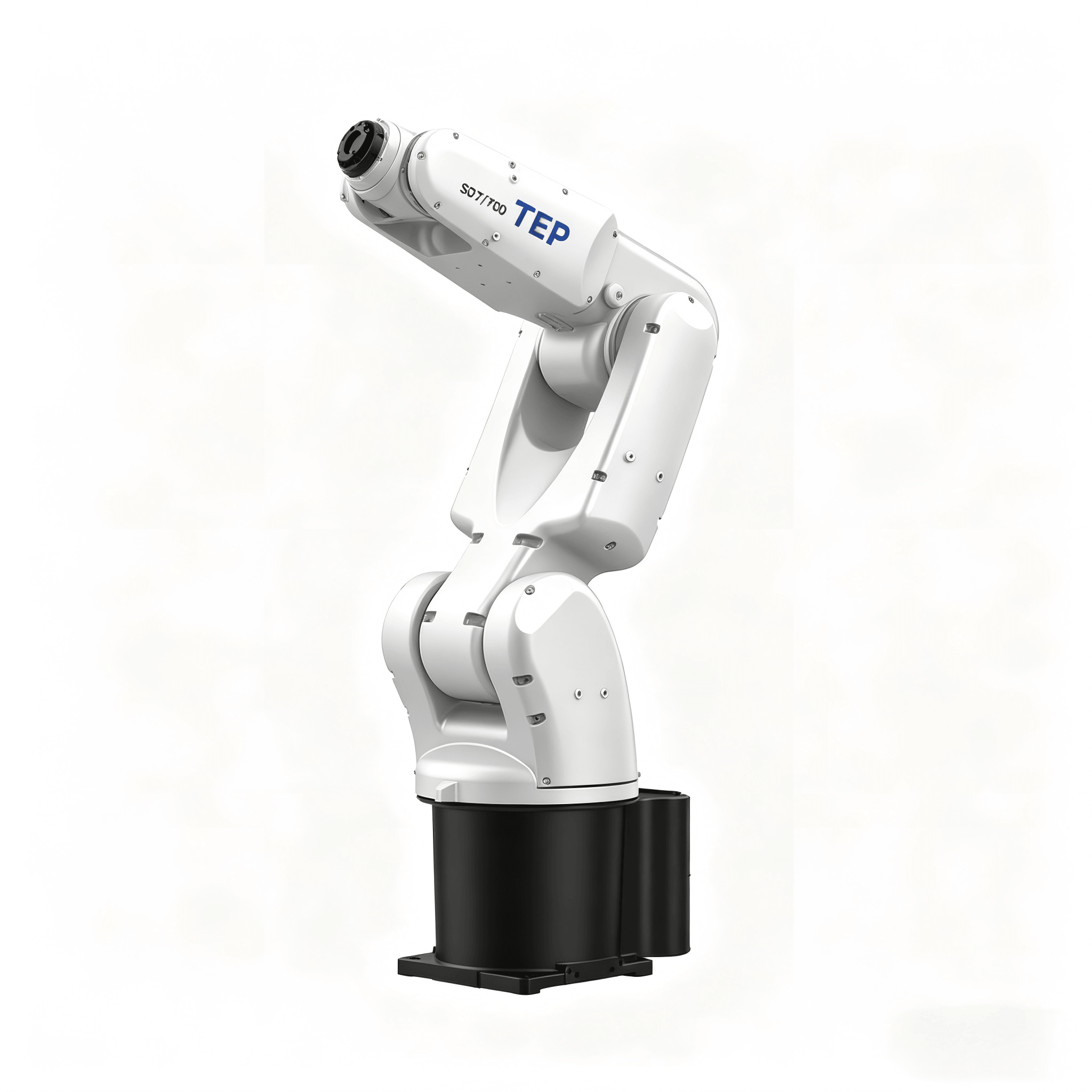

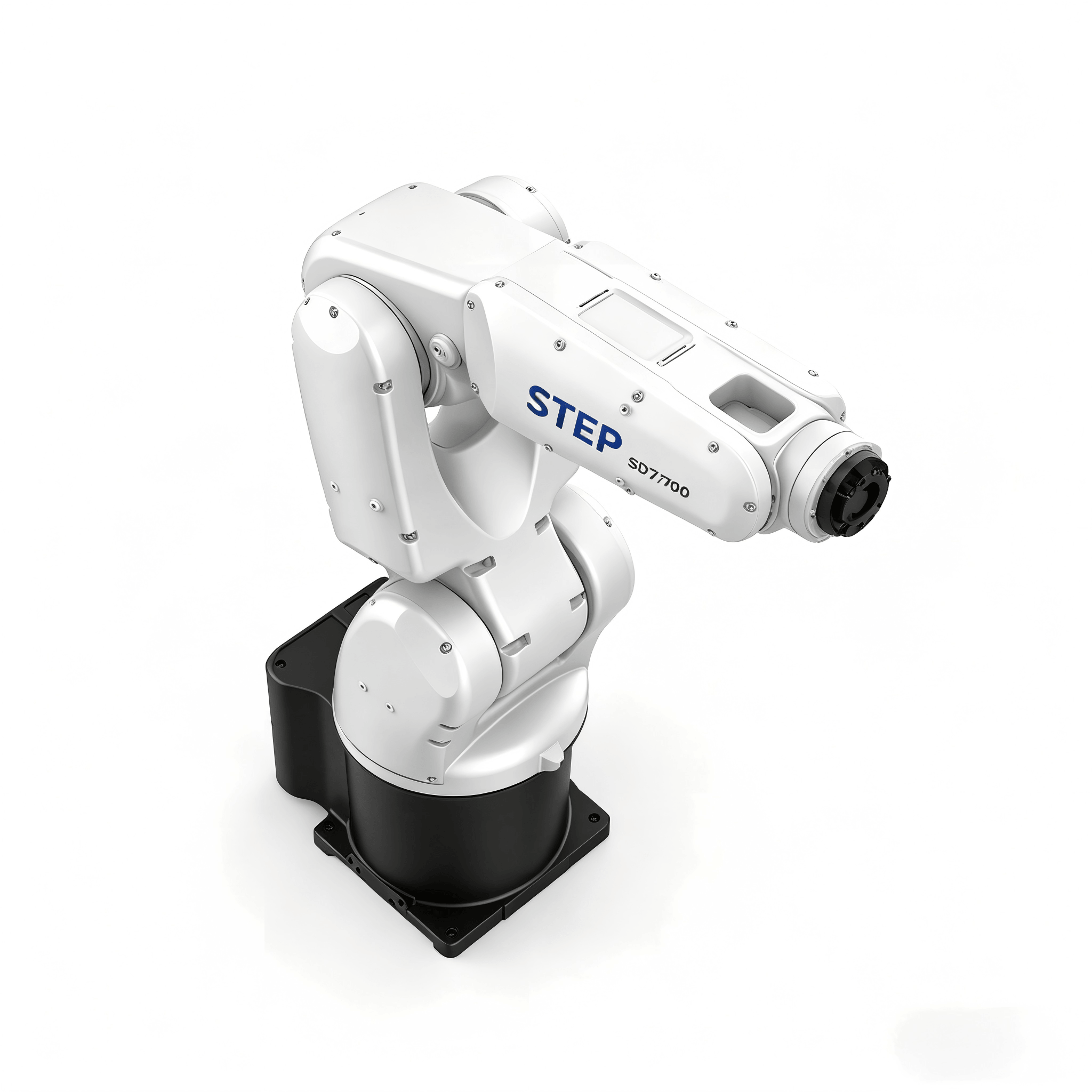

SD7/700 6-Axis High-Precision Industrial Robot
Ultra-Compact, High-Speed Automation for Precision Assembly & Inspection
Product Overview
The SD7/700 is a high-performance 6-axis vertical multi-joint industrial robot, engineered for ultra-precise, high-speed automation in compact manufacturing environments. Powered by an advanced AC servo drive system, this robot delivers industry-leading accuracy, speed, and flexibility for a wide range of precision applications, including sorting, assembly, labeling, dispensing, and visual inspection.
With a 7kg maximum wrist payload and 723mm maximum working radius, the SD7/700 is perfectly optimized for small-to-medium load tasks requiring micron-level precision. Its exceptional ±0.02mm repeat positioning accuracy ensures error-free operation in high-precision electronics, 3C, and medical device manufacturing. The robot features a robust IP65 whole-body protection (IP67-rated wrist) to withstand harsh industrial environments, including dust, oil mist, and water splashes, while its ultra-light 33kg body delivers exceptional maneuverability and space efficiency.
Designed for maximum deployment flexibility, the SD7/700 supports ground, wall-mounted, and upside-down installation, enabling seamless integration into compact workcells, automated production lines, and vision-guided systems. Its 4-way air pipe configuration and 10-core integrated signal cable simplify peripheral connections, while its modular design reduces maintenance downtime and lowers long-term operational costs, making it an ideal cost-effective automation solution for high-precision manufacturing.
Key Features & Advantages
1. Industry-Leading Ultra-High Precision
- ±0.02mm repeat positioning accuracy delivers micron-level consistency for the most demanding precision tasks
- High-rigidity aluminum alloy body with optimized joint structures minimizes vibration during high-speed operation
- Advanced closed-loop AC servo drive system ensures smooth, responsive motion across all 6 axes
2. Blazing Fast Speed & Efficiency
- Industry-leading joint speeds: up to 720°/s for J6 axis and 350°/s for J3, drastically reducing cycle time
- Optimized motion planning enables fast, smooth transitions between workstations, boosting production throughput
- 7kg payload capacity supports a wide range of small-to-medium workpieces and end-of-arm tools
3. Superior Environmental Adaptability
- IP65 whole-body protection resists dust, oil mist, and water splashes for harsh industrial environments
- IP67-rated wrist provides enhanced water and dust resistance, suitable for wet cleaning and food processing areas
- Ultra-low noise level ≤70dB(A) for a quiet, comfortable working environment in cleanrooms and labs
4. Ultra-Compact & Flexible Deployment
- 723mm working radius provides optimal coverage for compact workcells and multi-station operations
- 6-axis design enables full spatial freedom to reach complex positions and avoid obstacles
- Multi-mount options (ground, wall, upside down) adapt to any workshop layout and space constraints
- Ultra-light 33kg body enables easy relocation and integration into mobile automation systems
5. Easy Integration & Low Maintenance
- 4-way air pipe configuration (base Φ6mm, wrist Φ4mm) supports complex pneumatic gripper and tool systems
- 10-core integrated signal cable simplifies wiring for sensors, vision systems, and peripheral equipment
- Modular structural design shortens maintenance time and reduces service costs
- Compliant with international safety standards, with emergency stop and safety interlock functions
| Parameter | Specification |
|---|---|
| Model | SD7/700 |
| Structure | Vertical Multi-Joint |
| Number of Joints | 6 |
| Drive Mode | AC Servo Drive |
| Maximum Working Radius | 723mm |
| Repeat Positioning Accuracy | ±0.02mm |
| Maximum Wrist Payload | 7kg |
| Body Weight | 33kg |
| IP Protection Rating | Body IP65 (Wrist IP67) |
| Maximum Operating Speed | J1: 315°/s
J2: 250°/s J3: 350°/s J4: 450°/s J5: 450°/s J6: 720°/s |
| Maximum Motion Range | J1: ±170°
J2: +135°~-80° J3: +63°~-194° J4: ±190° J5: ±125° J6: ±360° |
| Joint Allowable Load Torque | J4: 16.6N·m
J5: 16.6N·m J6: 9.4N·m |
| Joint Allowable Load Inertia | J4: 0.45kg·m²
J5: 0.45kg·m² J6: 0.15kg·m² |
| Air Pipe Configuration | 4-way – Base Φ6mm, Wrist Φ4mm |
| Integrated Signal Cable | 10-core (1 way for grounding) |
| Installation Methods | Ground, Wall-mounted, Upside down |
| Working Environment | Temperature: 0~45°C
Humidity: ≤75%RH (short-term 95%RH, no condensation) Vibration: ≤0.5G (4.9m/s²) |
| Noise Level | ≤70dB(A) |
| Typical Applications | Sorting, Assembly, Labeling, Dispensing, Visual Inspection, Pick-and-Place
|
Typical Applications
The SD7/700 is a versatile precision automation solution ideal for multiple high-tech industries:
1. 3C Electronics & Semiconductor Manufacturing
- High-precision assembly of smartphones, tablets, and consumer electronics
- Automated dispensing, soldering, and screw driving for PCB boards
- Visual inspection and sorting of electronic components and semiconductors
- Ultra-clean operation suitable for cleanroom environments
2. Medical Device & Pharmaceutical Production
- Precision assembly of medical devices, surgical instruments, and diagnostic equipment
- Automated labeling, packaging, and sorting of pharmaceutical products
- Visual inspection for quality control in medical manufacturing
- IP67-rated wrist suitable for sterile and washdown environments
3. Automated Assembly & Processing
- High-speed pick-and-place for small components in consumer goods and hardware manufacturing
- Precision gluing, dispensing, and coating for automotive and aerospace components
- Automated labeling and marking for product traceability
- Flexible integration with vision systems for 无序抓取 and positioning
4. Laboratory & Life Science Automation
- Automated sample handling, testing, and analysis in clinical and research labs
- High-precision liquid handling and dispensing for biotech and pharmaceutical research
- Ultra-low noise operation suitable for laboratory environments
- Compact design for integration into lab automation workcells
Why Choose the SD7/700?
- Unmatched Precision: ±0.02mm repeatability delivers industry-leading accuracy for the most demanding tasks
- Blazing Fast Speed: 720°/s J6 axis ensures maximum productivity and minimal cycle time
- Ultra-Compact & Lightweight: 33kg body fits into the smallest workcells and enables flexible deployment
- Superior Protection: IP65/IP67 rating ensures reliable operation in harsh industrial environments
- Easy Integration: 4-way air pipes and 10-core signal cable simplify connection to complex tooling and vision systems
- Cost-Effective: High performance at a competitive price delivers fast ROI for automation projects
- Professional Support: Dedicated technical team provides one-stop service from design to on-site commissioning
