Product Overview

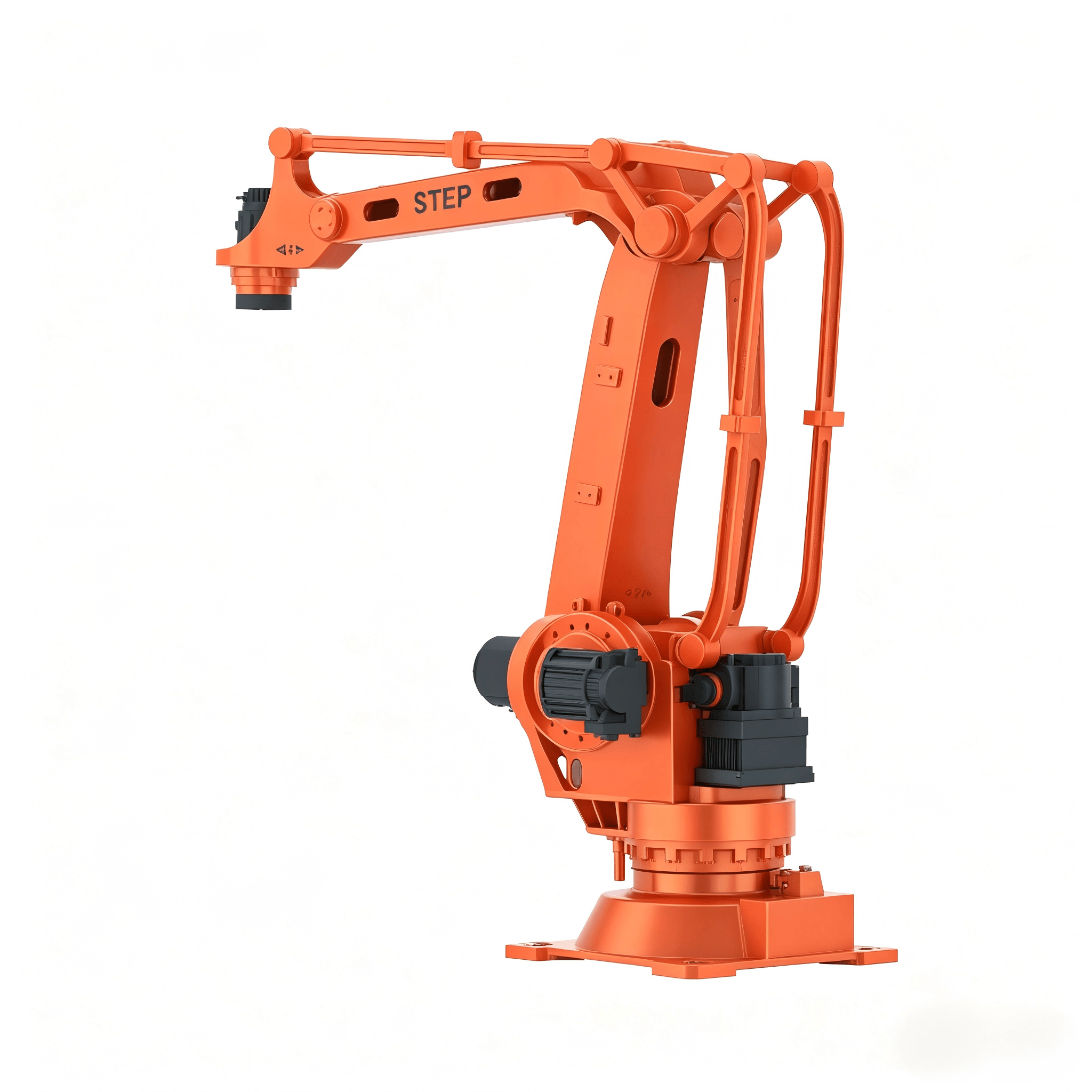

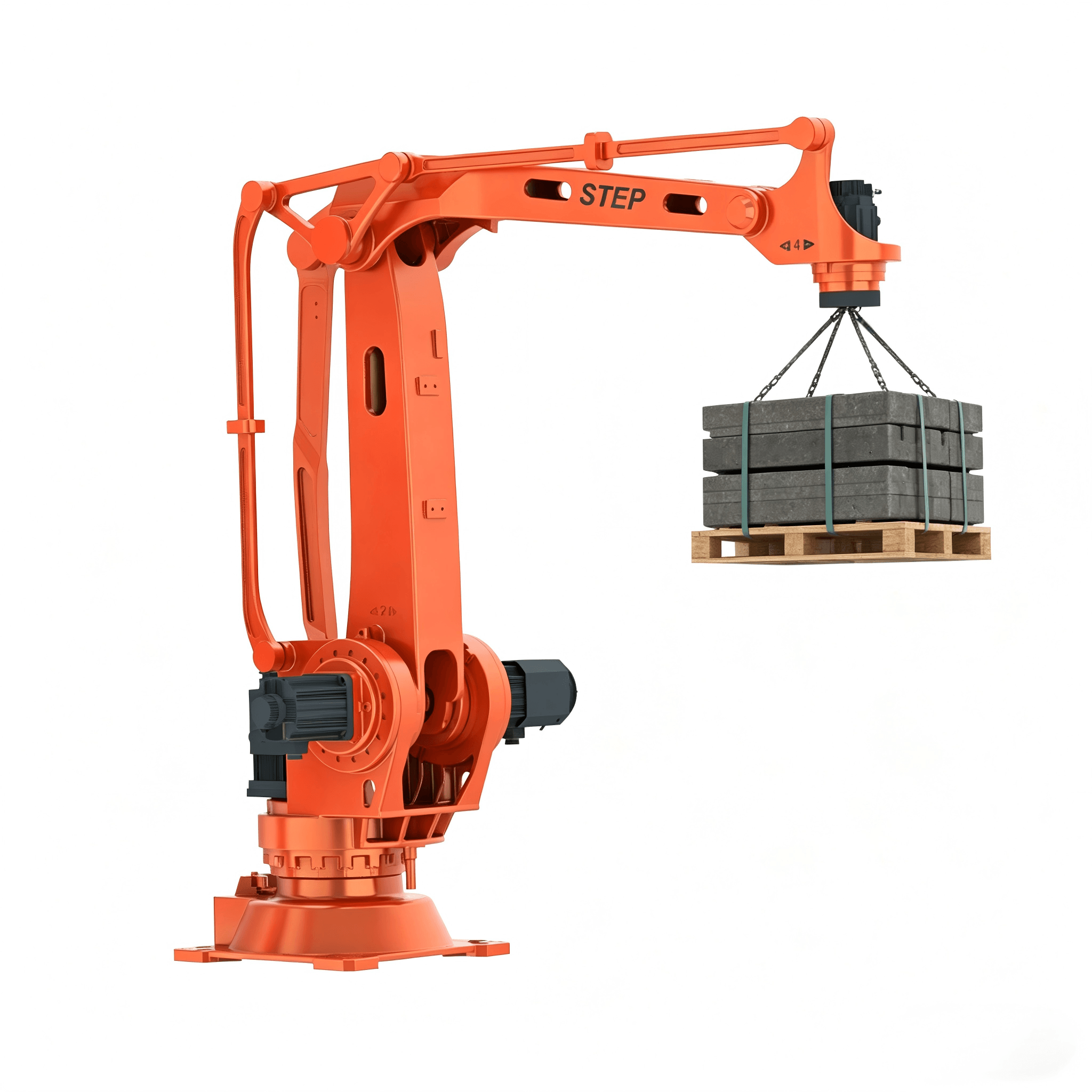

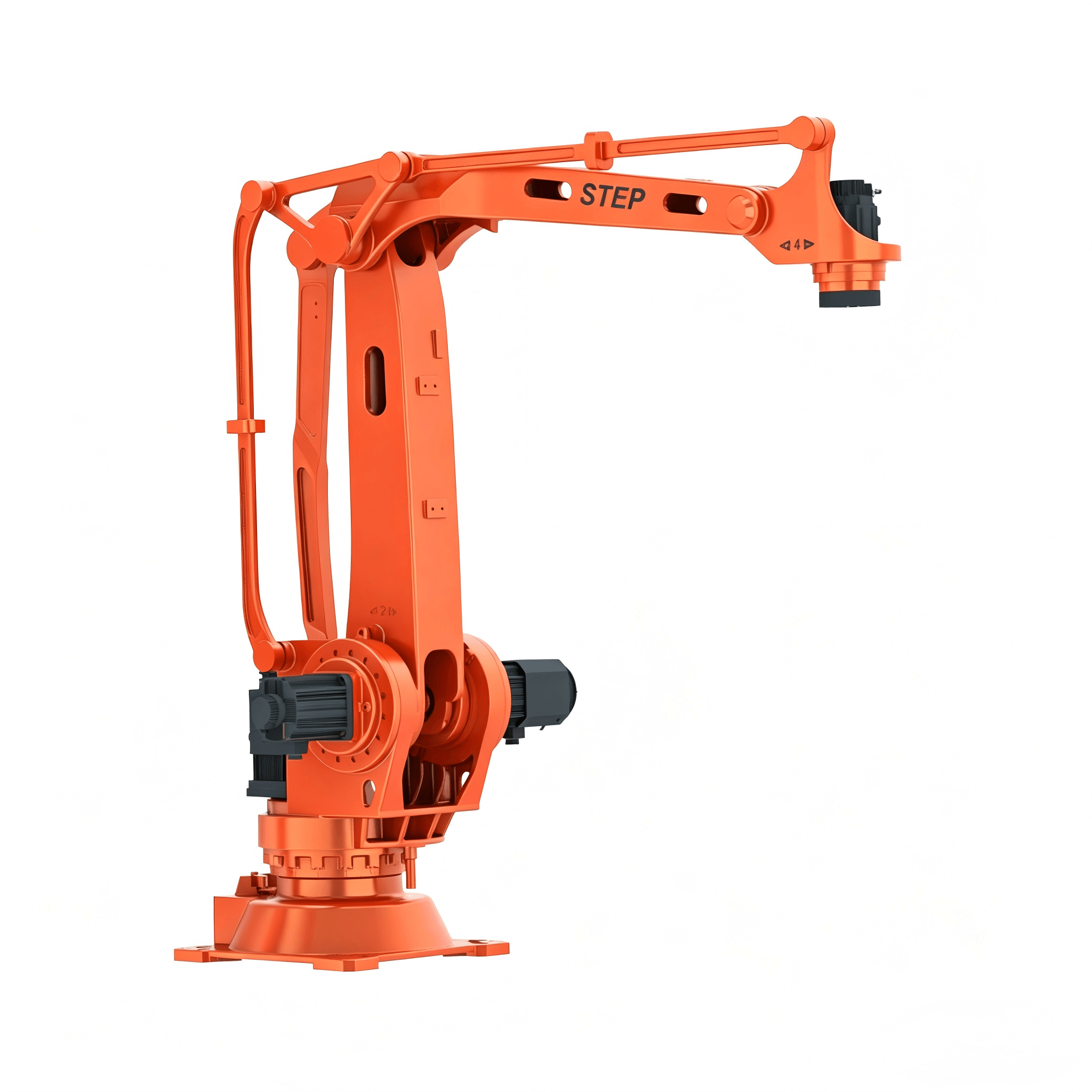

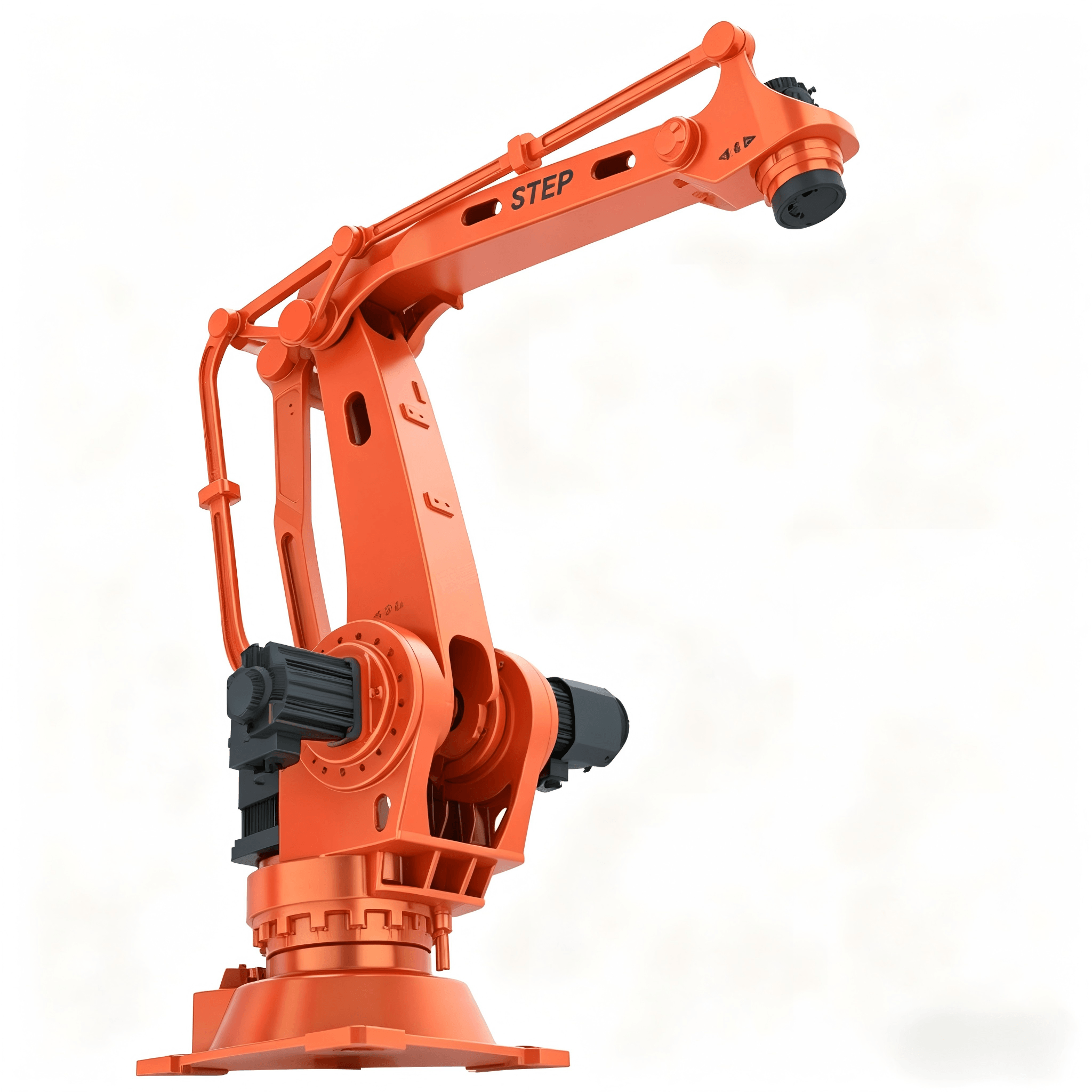

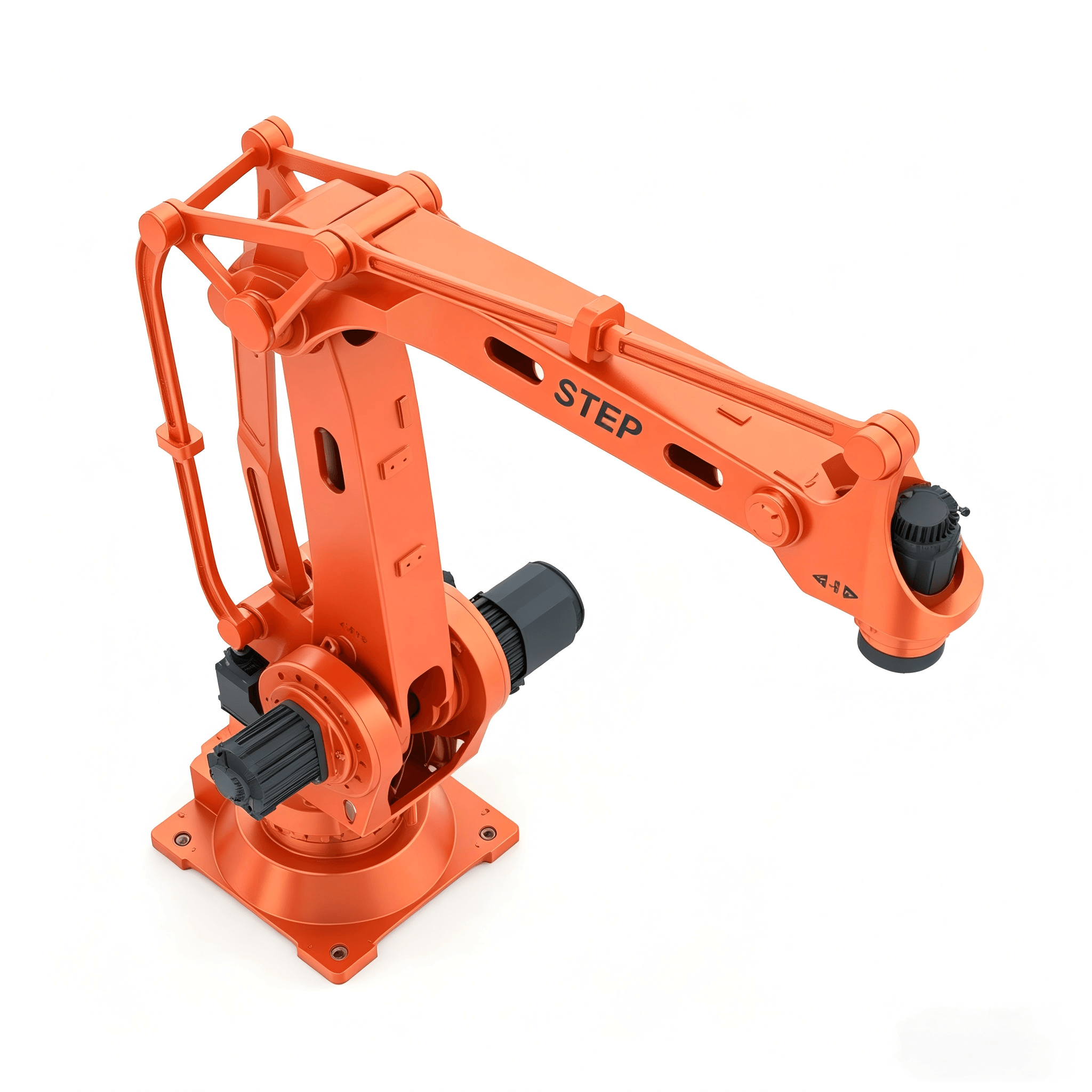

The SP180/3200 is a high-performance 4-axis industrial palletizing robot from STEP, engineered for heavy-load, high-efficiency automated material handling in logistics, manufacturing, food & beverage, chemical, and e-commerce industries.
With an impressive 180kg maximum wrist payload and 3200mm maximum working radius, it delivers exceptional throughput for palletizing, depalletizing, and loading/unloading of heavy cartons, bags, barrels, and bulk materials. Its optimized 4-axis mechanical structure ensures fast, stable movement, while the robust cast-iron frame provides outstanding rigidity and impact resistance for 24/7 continuous operation.
Equipped with a high-precision AC servo drive system and advanced motion control algorithm, it achieves industry-leading repeat positioning accuracy, ensuring consistent palletizing precision even at maximum load. The large-aperture hollow wrist design supports seamless integration of vacuum suction cups, mechanical grippers, and custom end-of-arm tools, reducing cable interference and extending service life.
Supporting multiple industrial communication protocols, it features easy integration with existing production lines, simple operation, and low maintenance costs, making it the ideal solution for heavy-load automated palletizing and material handling.
Key Features
- ✅ 180kg ultra-high payload capacity, 3200mm maximum reach for wide-range heavy-load handling
- ✅ Optimized 4-axis mechanical structure, high-speed operation with up to 1200 cycles/hour
- ✅ Robust cast-iron frame, exceptional rigidity and impact resistance for 24/7 continuous operation
- ✅ High-precision AC servo drive system, ±0.05mm repeat positioning accuracy for stable palletizing

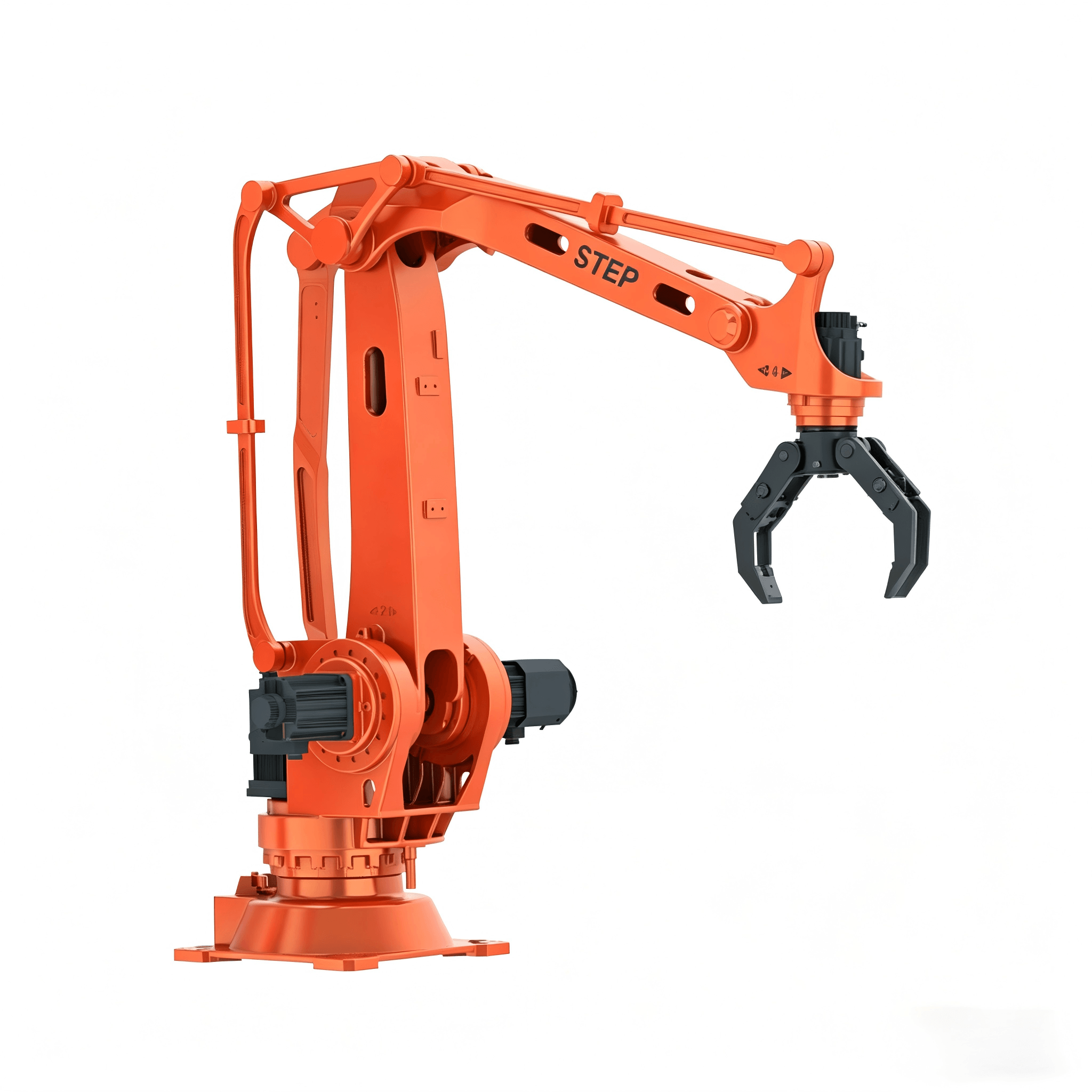

- ✅ Large-aperture hollow wrist, compatible with vacuum suction cups, mechanical grippers, and custom end-of-arm tools
- ✅ IP40 main body protection, suitable for harsh industrial environments
- ✅ Floor-mounted design, easy installation and line integration
- ✅ Supports multiple industrial communication protocols, easy to program and operate
- ✅ Low noise level (≤80dB(A)), energy-efficient operation
Application Scenarios
- Logistics & Warehousing: Automated palletizing and depalletizing of heavy cartons, boxes, and bulk materials
- Food & Beverage: Palletizing of large bags of food, beverage barrels, and packaged products
- Chemical Industry: Palletizing of chemical bags, barrels, and containers
- Manufacturing: Loading/unloading and palletizing of heavy finished products on production lines
- E-commerce & Express: High-speed sorting and palletizing of heavy express parcels
- Building Materials: Palletizing of cement bags, tile boxes, and other heavy building materials
| Parameter | Specification |
|---|---|
| Model | SP180/3200 |
| Structure | Vertical Multi-Joint |
| Number of Axes | 4 |
| Drive Method | AC Servo Drive |
| Maximum Working Radius | 3155mm |
| Repeat Positioning Accuracy | ±0.05mm |
| Maximum Wrist Payload | 180kg |
| Robot Weight | 1120kg |
| IP Protection Rating | IP54 |
| Maximum Operating Speed | J1: 125°/s
J2: 110°/s J3: 120°/s J4: 300°/s J5: / J6: / |
| Maximum Motion Range | J1: ±180°
J2: +85° ~ -40° J3: +62° ~ -64° J4: ±360° J5: / J6: / |
| Allowable Joint Torque | J4: /
J5: / J6: / |
| Allowable Joint Inertia | J4: 87kg·m²
J5: / J6: / |
| Air Pipe Configuration | 2-Φ12mm |
| Integrated Signal Cable | 16-Core |
| Installation Method | Floor Mount |
| Working Environment | Ambient Temperature: 0~45°C
Ambient Humidity: ≤75%RH (≤95%RH for short-term, no condensation) Vibration Requirement: ≤0.5G (4.9m/s²) |
| Noise Level | ≤80dB(A) |
| Typical Applications | Handling, Palletizing, Loading & Unloading |
For detailed quotation, customized automation solutions, or full technical datasheet of SA12/1490H, please feel free to contact us:
Phone: +86-18616229203
Email: info@sharpzu.com
WhatsApp/WeChat: +86 18616229203
We will provide professional technical support and respond within 24 hours.
