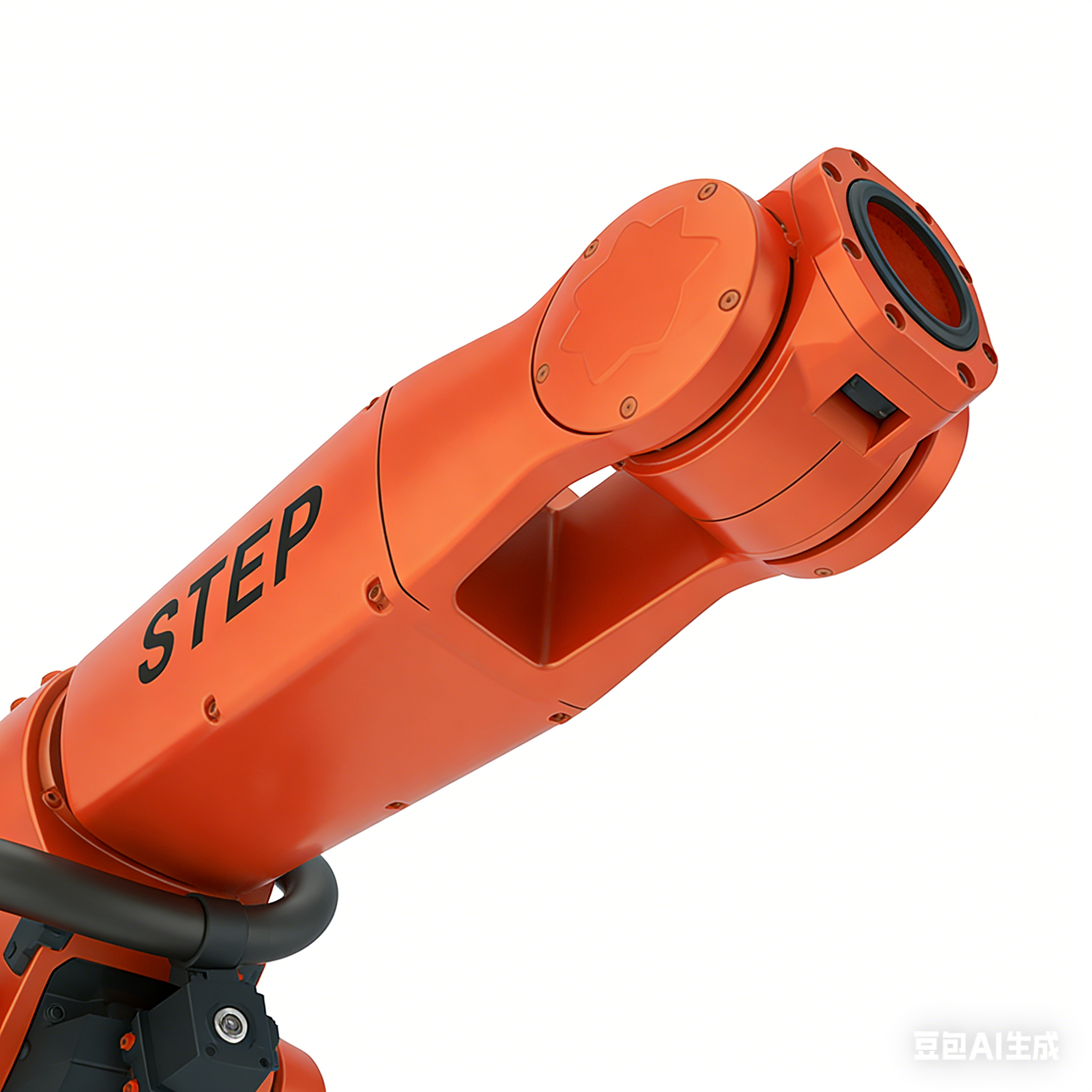

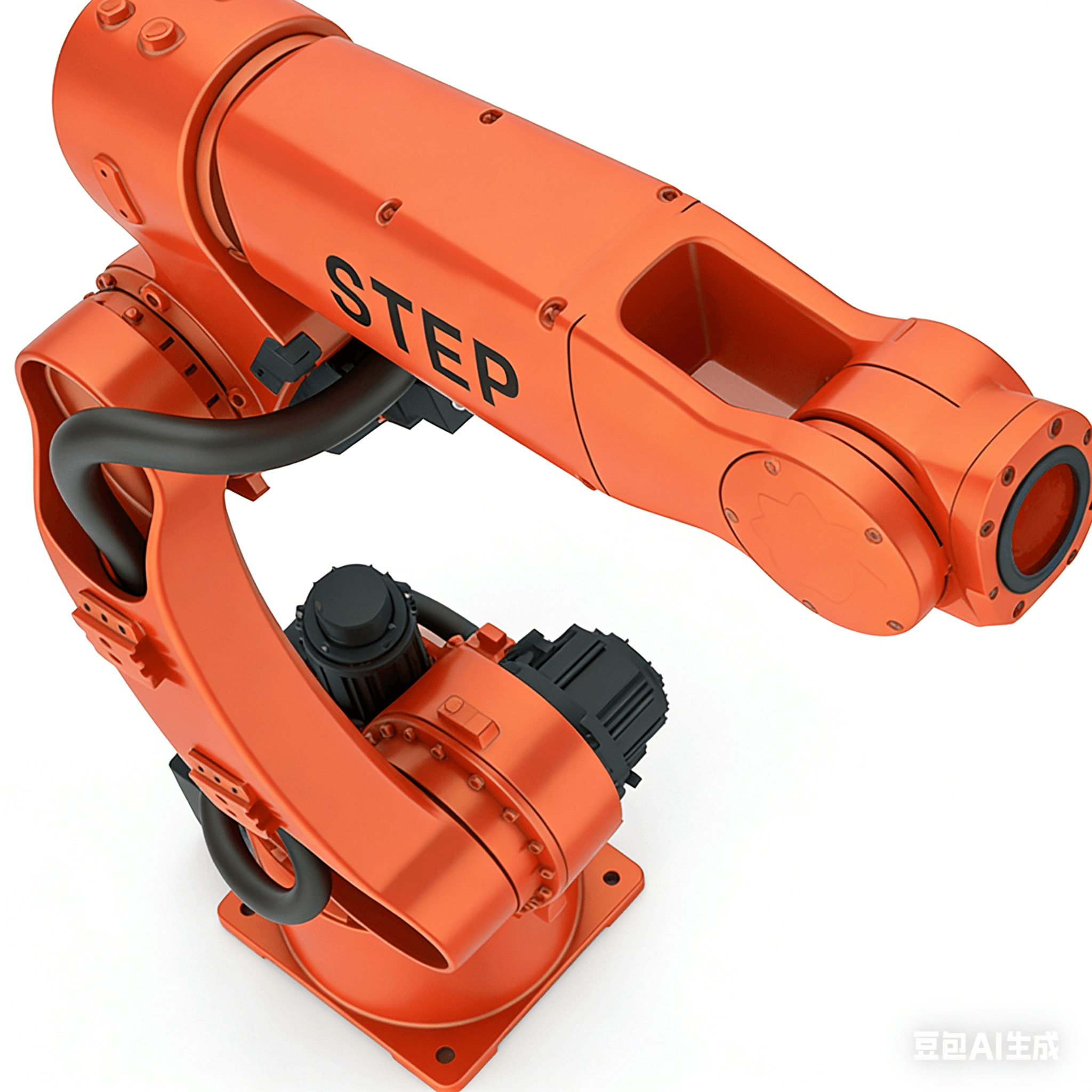

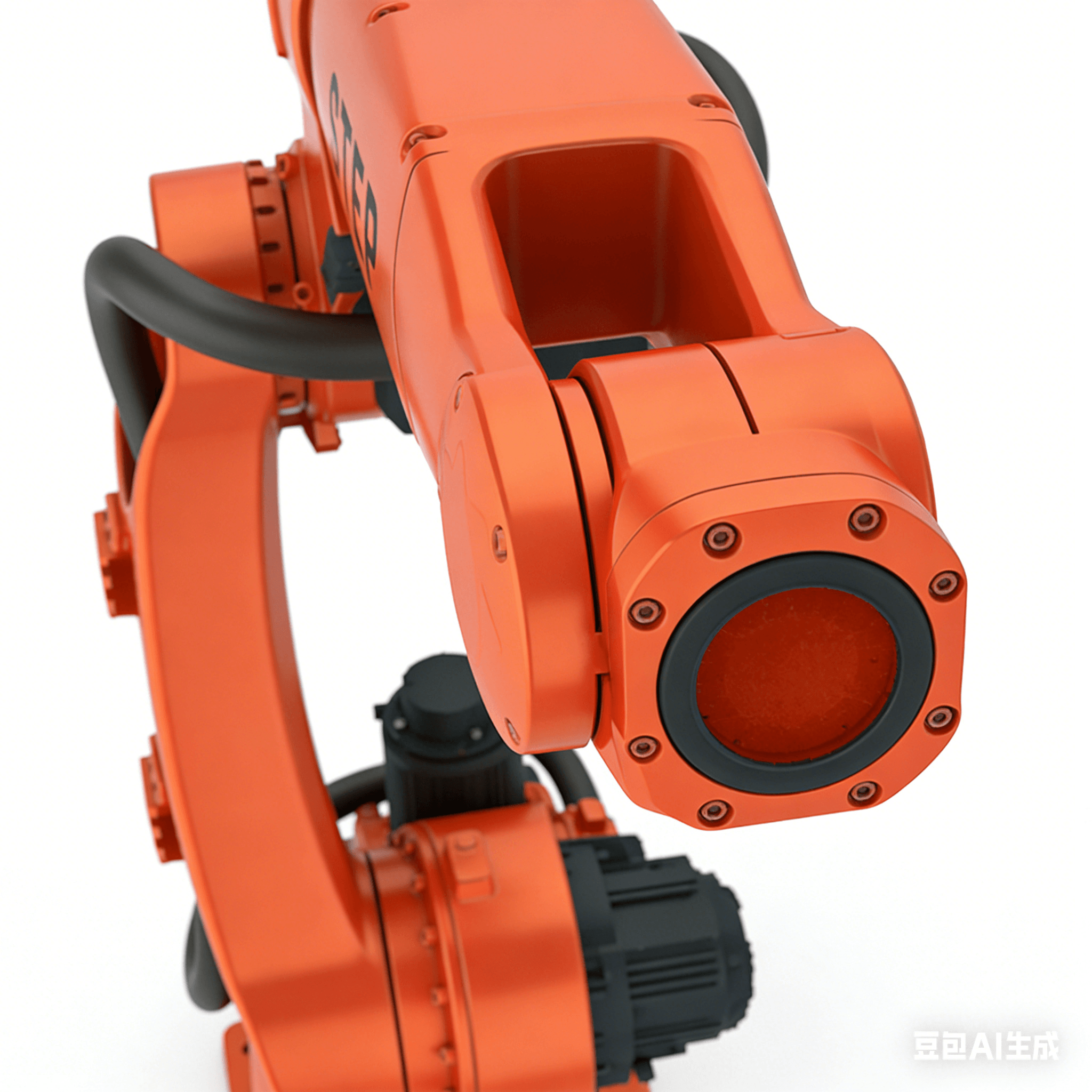

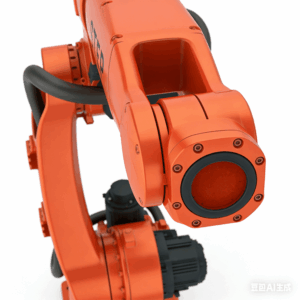

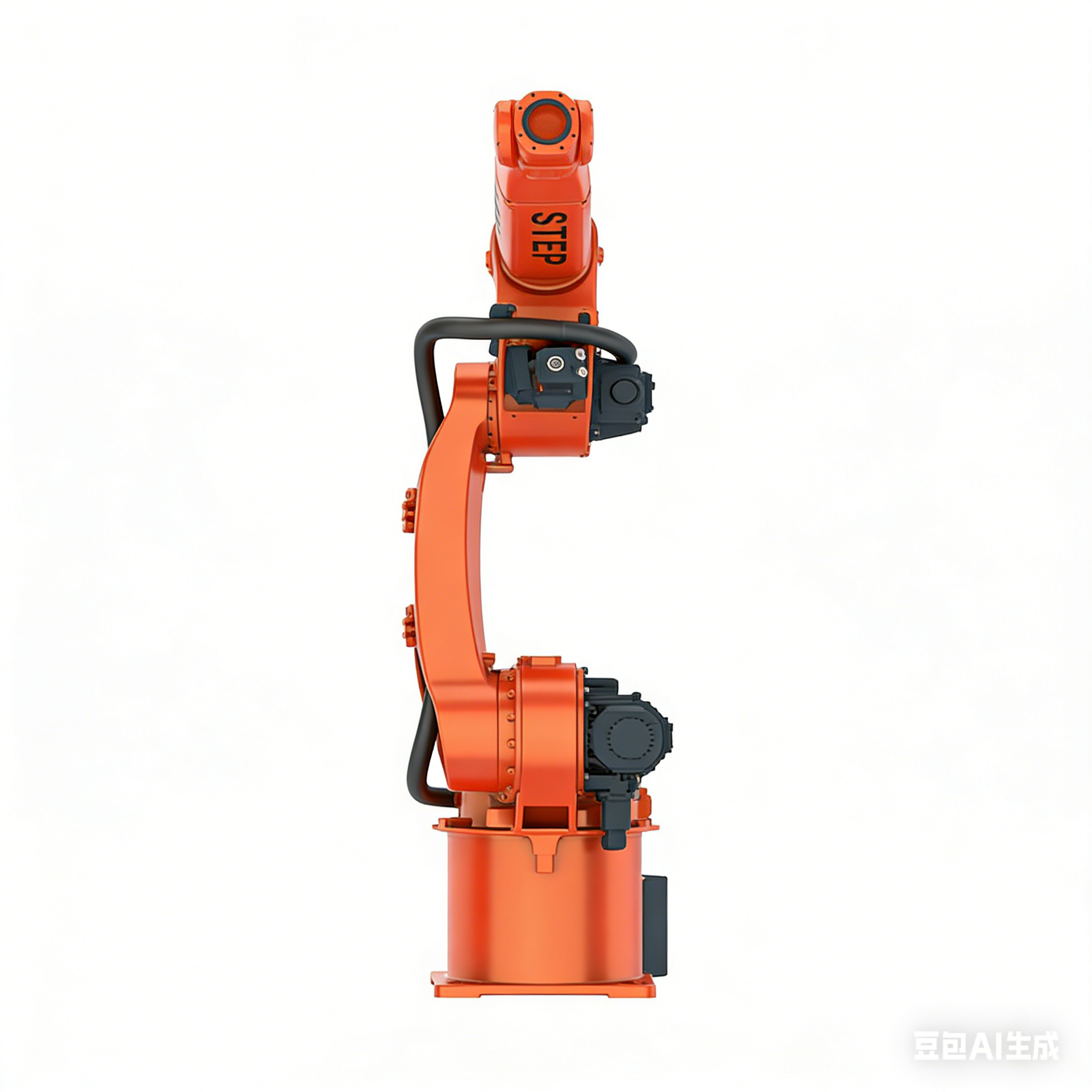

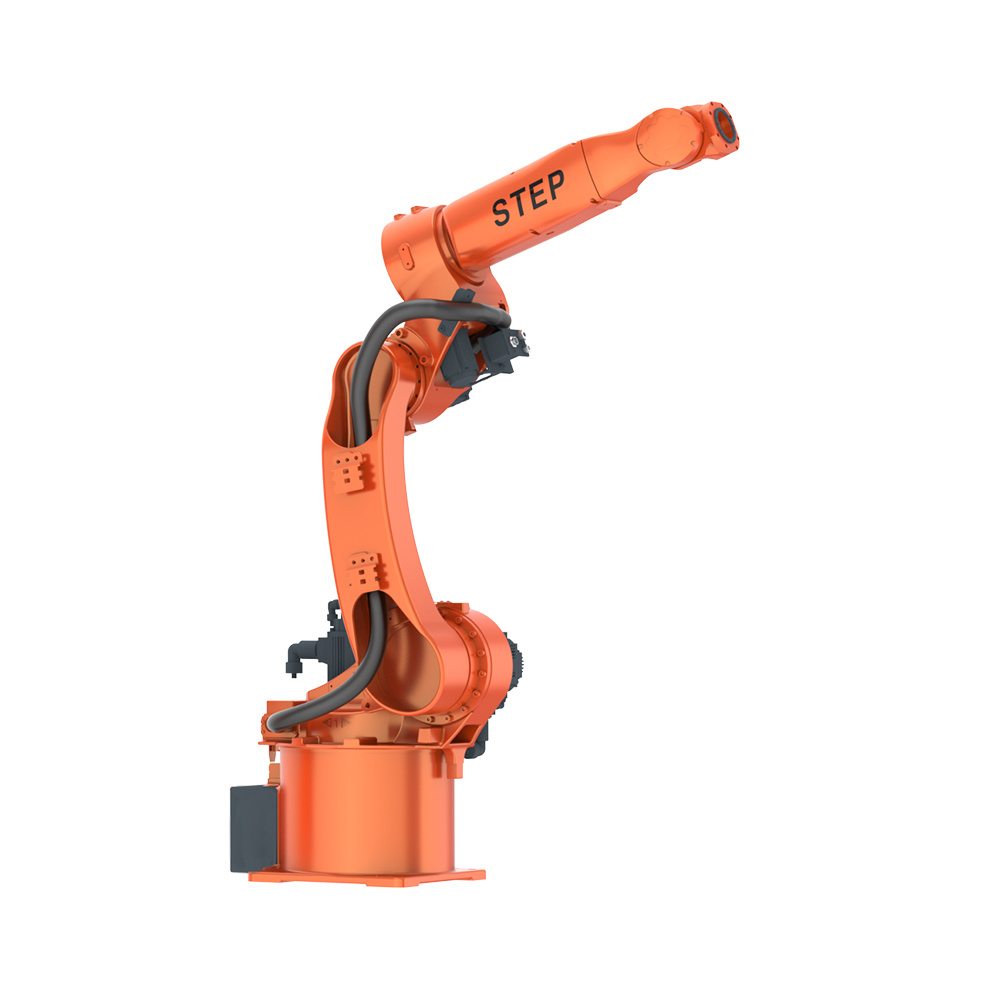

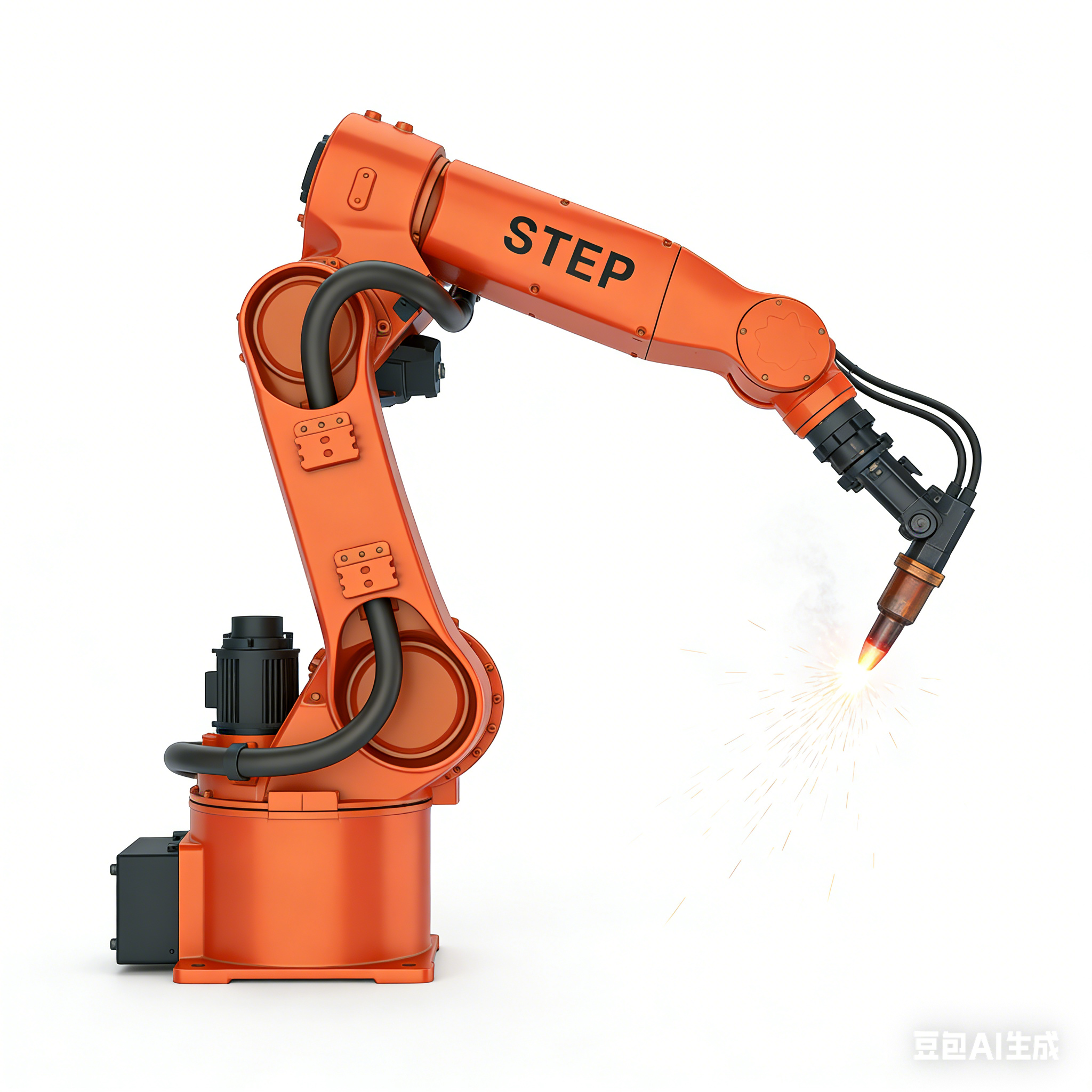

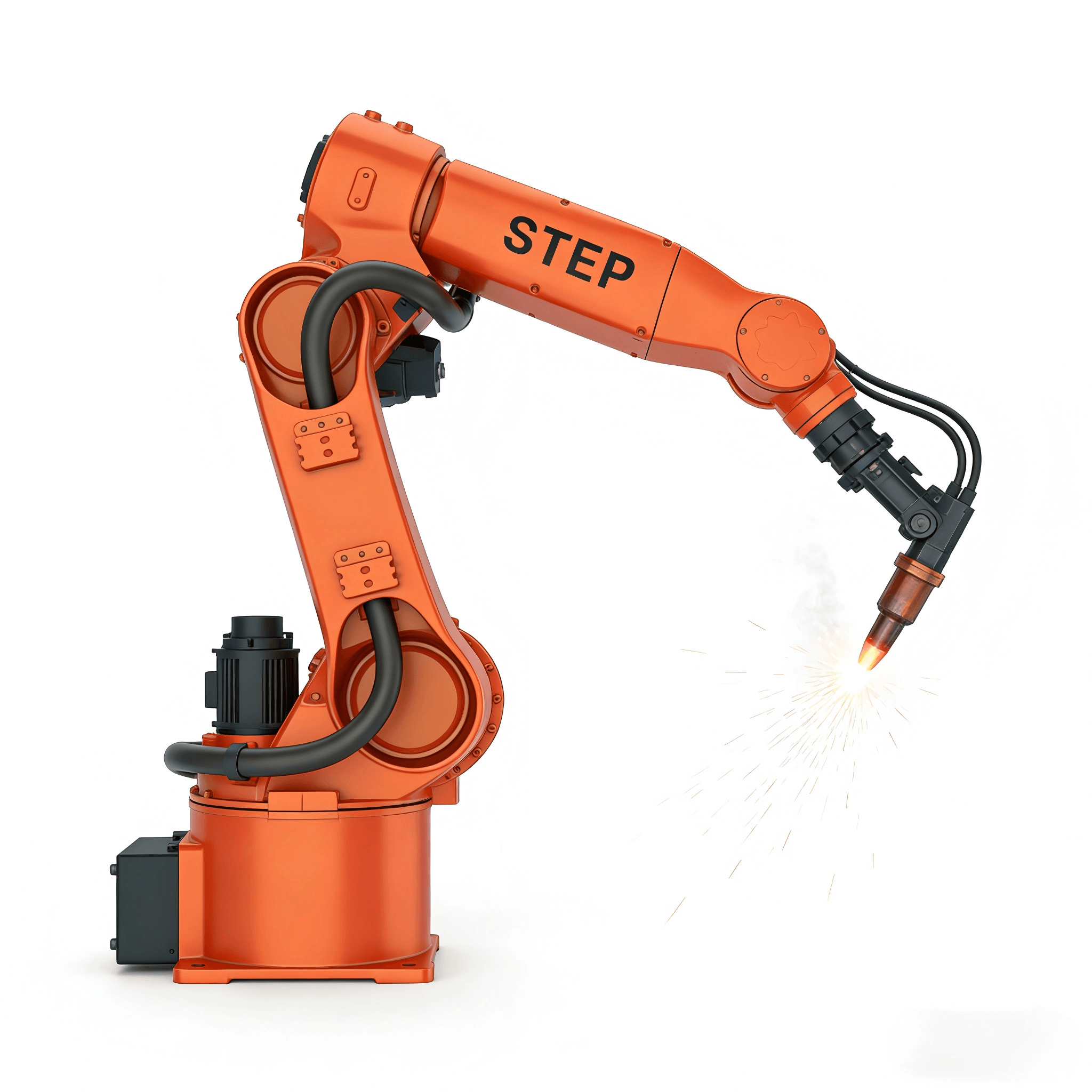

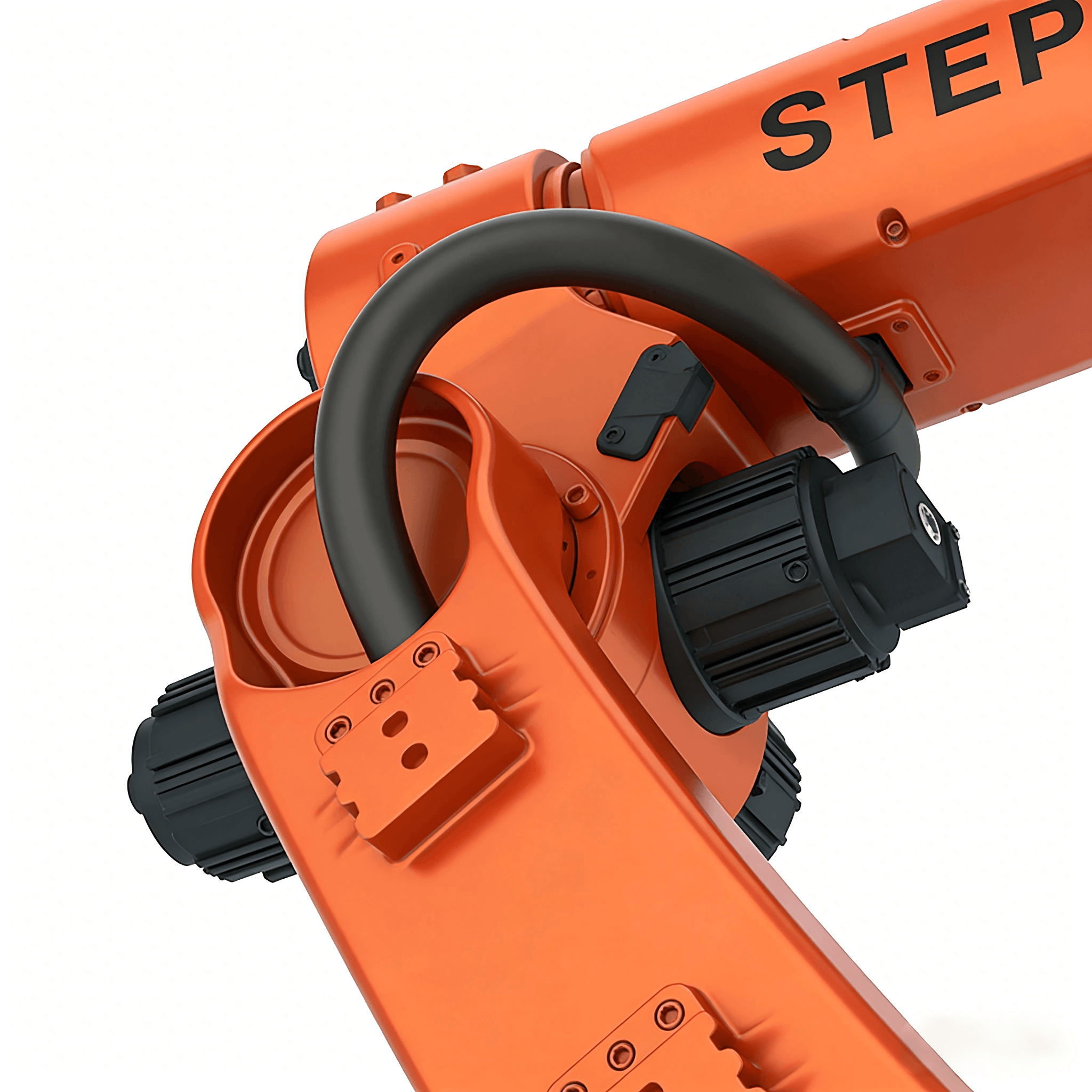

The SA12/1490H 6-axis industrial robot is a high-performance robotic arm designed for precision automation in manufacturing. Ideal for welding, material handling, machine tending, and grinding applications, it delivers stable operation, high repeatability, and flexible customization to meet diverse production needs.
– High repeatability up to ±0.03mm for ultra-precise positioning
– 12kg payload capacity with 1490mm maximum reach, perfect for medium-load automation tasks
– Supports Modbus, Ethernet/IP, PROFINET and other mainstream industrial communication protocols
– Compact and rigid structure, easy integration into existing production lines
– Free on-site installation, commissioning and operator training service
– 1-year full machine warranty and 7/24 global technical support
| Parameter | Specification |
|---|---|
| Model | SA12/1490H |
| Structure | Vertical Multi-Joint / Hollow Wrist |
| Number of Axes | 6 |
| Drive Method | AC Servo Drive |
| Maximum Working Radius | 1498.5mm |
| Repeat Positioning Accuracy | ±0.03mm |
| Maximum Wrist Payload | 12kg |
| Robot Weight | 210kg |
| IP Protection Rating | Main Body IP54 (Wrist IP67) |
| Maximum Operating Speed | J1: 260°/s
J2: 240°/s J3: 260°/s J4: 430°/s J5: 450°/s J6: 720°/s |
| Maximum Motion Range | J1: ±170°
J2: -80° ~ +163° J3: Handling: -193° ~ +80°; Welding: -80° ~ +80° J4: ±190° J5: Handling: ±180°; Welding: ±130° J6: Handling: ±450°; Welding: ±220° |
| Allowable Joint Torque | J4: 16.1N·m
J5: 16.1N·m J6: 5.9N·m |
| Allowable Joint Inertia | J4: 0.63Kgm²
J5: 0.63Kgm² J6: 0.061Kgm² |
| Air Pipe Configuration | 1-Φ6mm, 1-Φ8mm |
| Integrated Signal Cable | 16-Core |
| Installation Method | Floor, Wall Mount, Ceiling Mount |
| Working Environment | Ambient Temperature: 0~45°C
Ambient Humidity: ≤75%RH (≤95%RH for short-term, no condensation) Vibration Requirement: ≤0.5G (4.9m/s²) |
| Noise Level | ≤80dB (A) |
| Typical Applications | Welding, Loading/Unloading, Assembly |
For detailed quotation, customized automation solutions, or full technical datasheet of SA12/1490H, please feel free to contact us:
📞 Phone: +86-18616229203
📧 Email: info@sharpzu.com
💬 WhatsApp/WeChat: +86 18616229203
We will provide professional technical support and respond within 24 hours.
