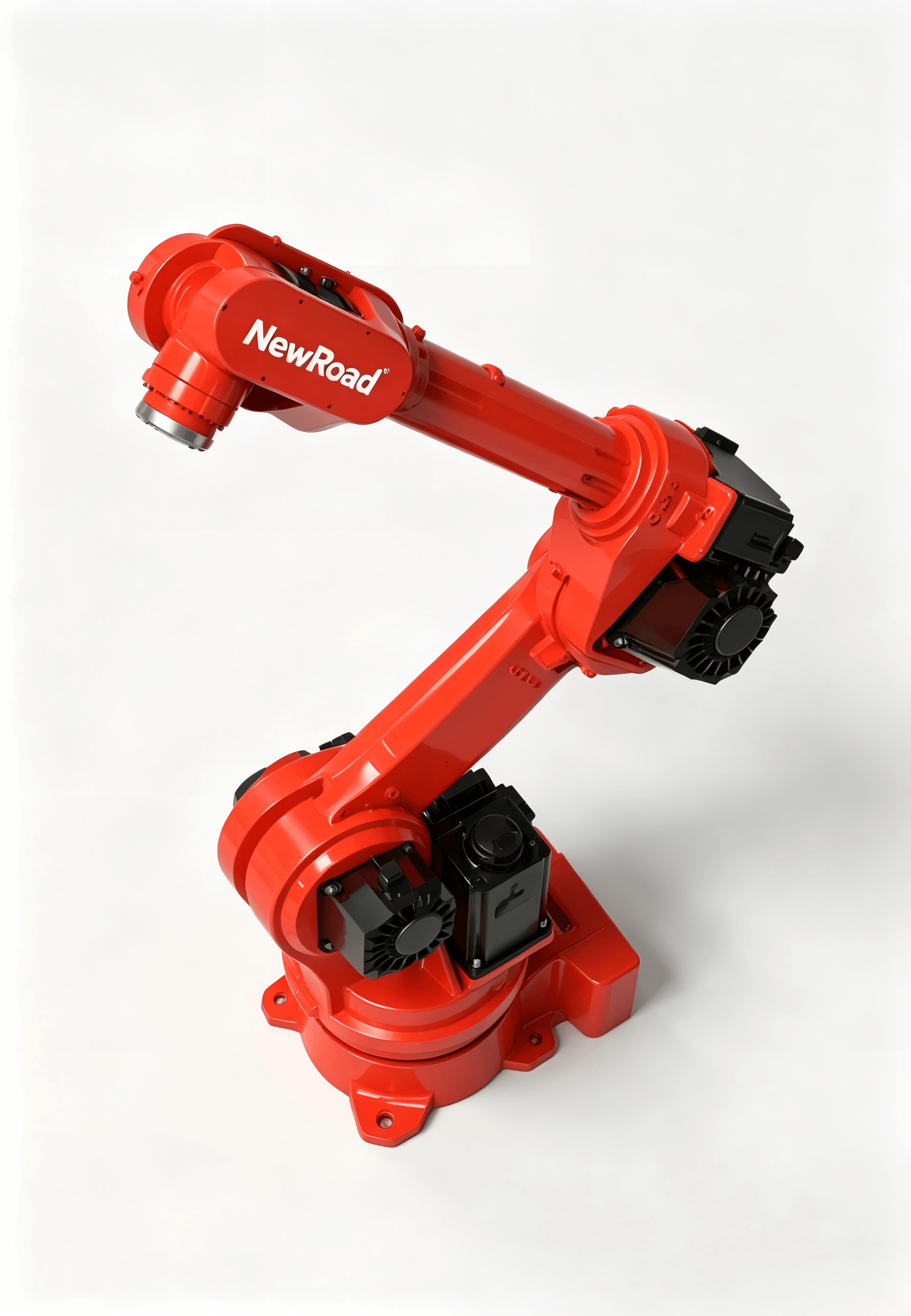

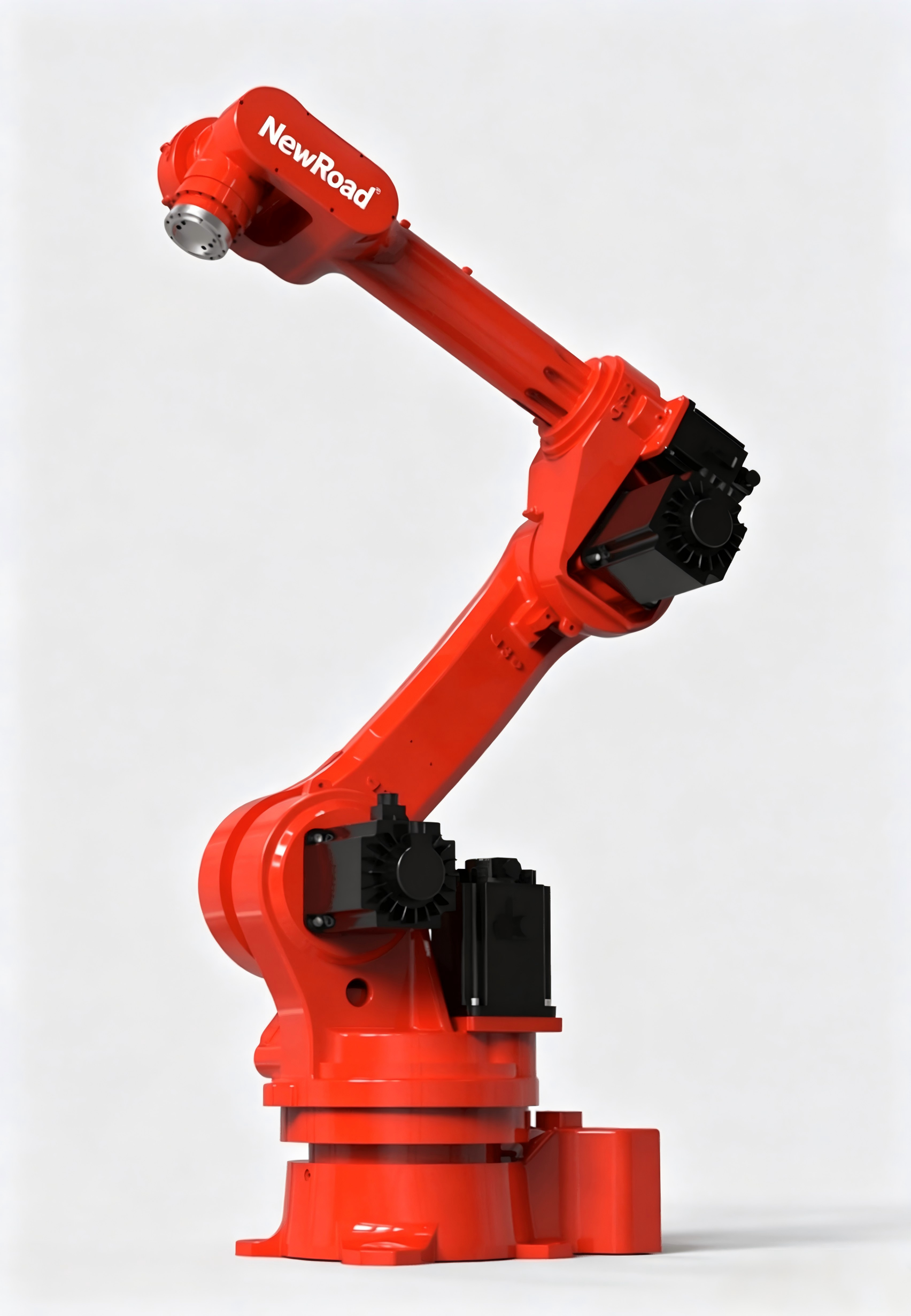

LJ2550-45 Medium Payload Handling Robot
Product Overview
LJ2550-45 is a special medium payload industrial robot dedicated for handling and automated production lines. It features large working envelope, fast running speed and high repeat positioning accuracy. With high-speed stable operation and low power output of all axes, the robot can be installed, taught and commissioned in a very short time and put into mass production quickly.
Product Characteristics
- Large working space, fast operating speed and high repeat positioning accuracy
- High-speed & stable performance with low power consumption on all axes
- Fast installation, teaching and debugging, ready for production in short time
- Flexible mounting methods to adapt to various workshop layouts
- Low noise operation, noise level below 80dB(A)
Main Applications

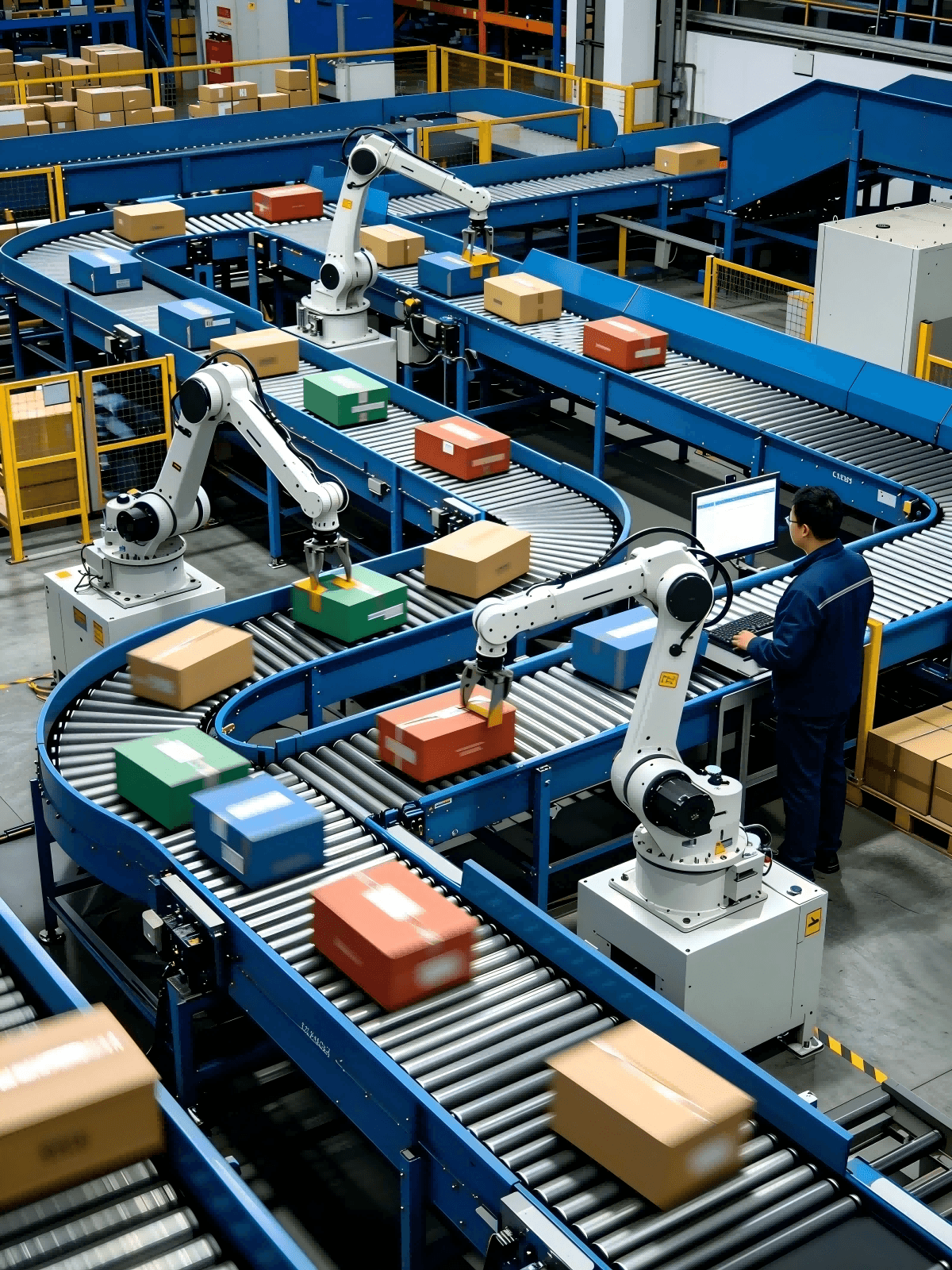

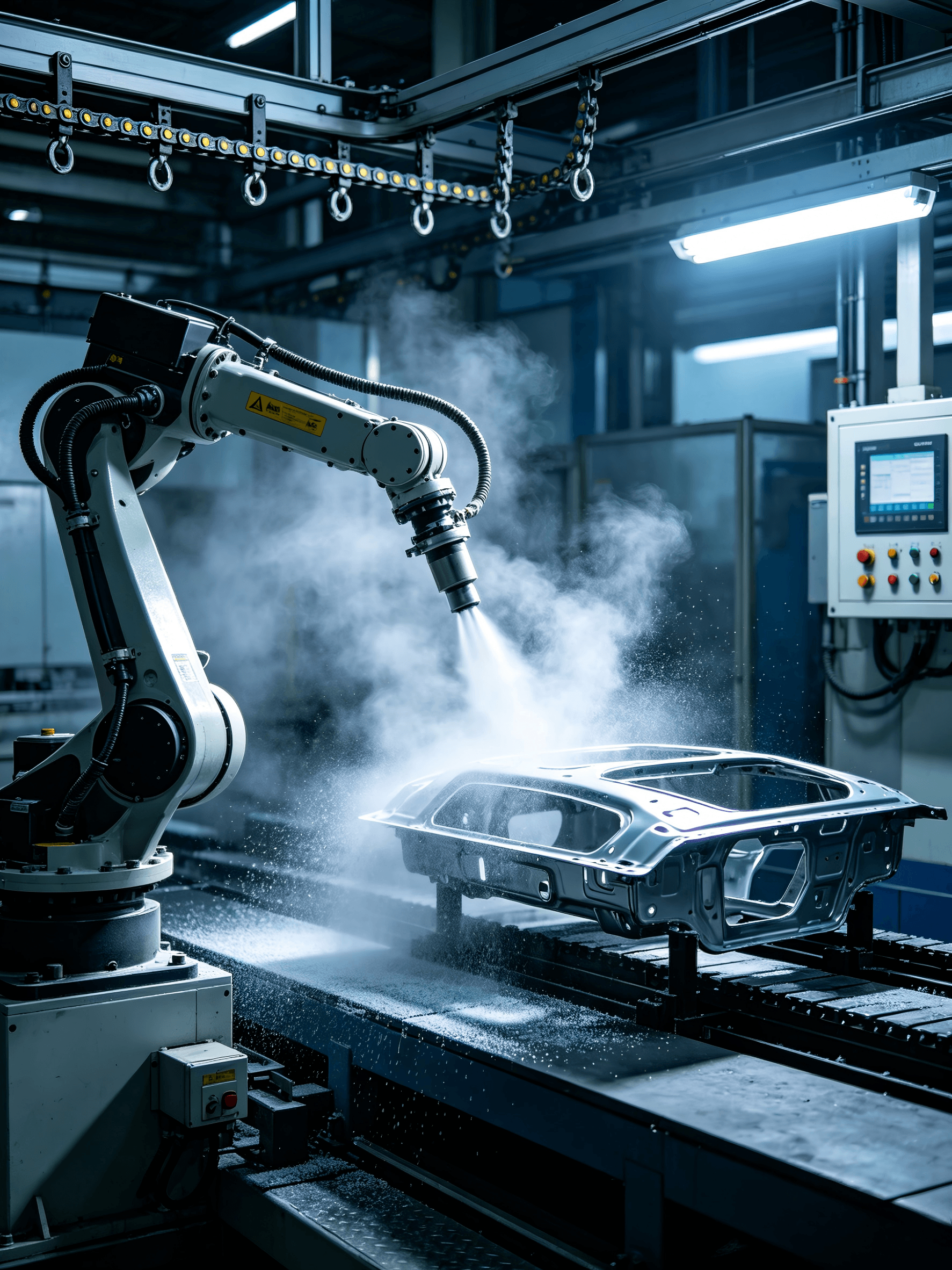

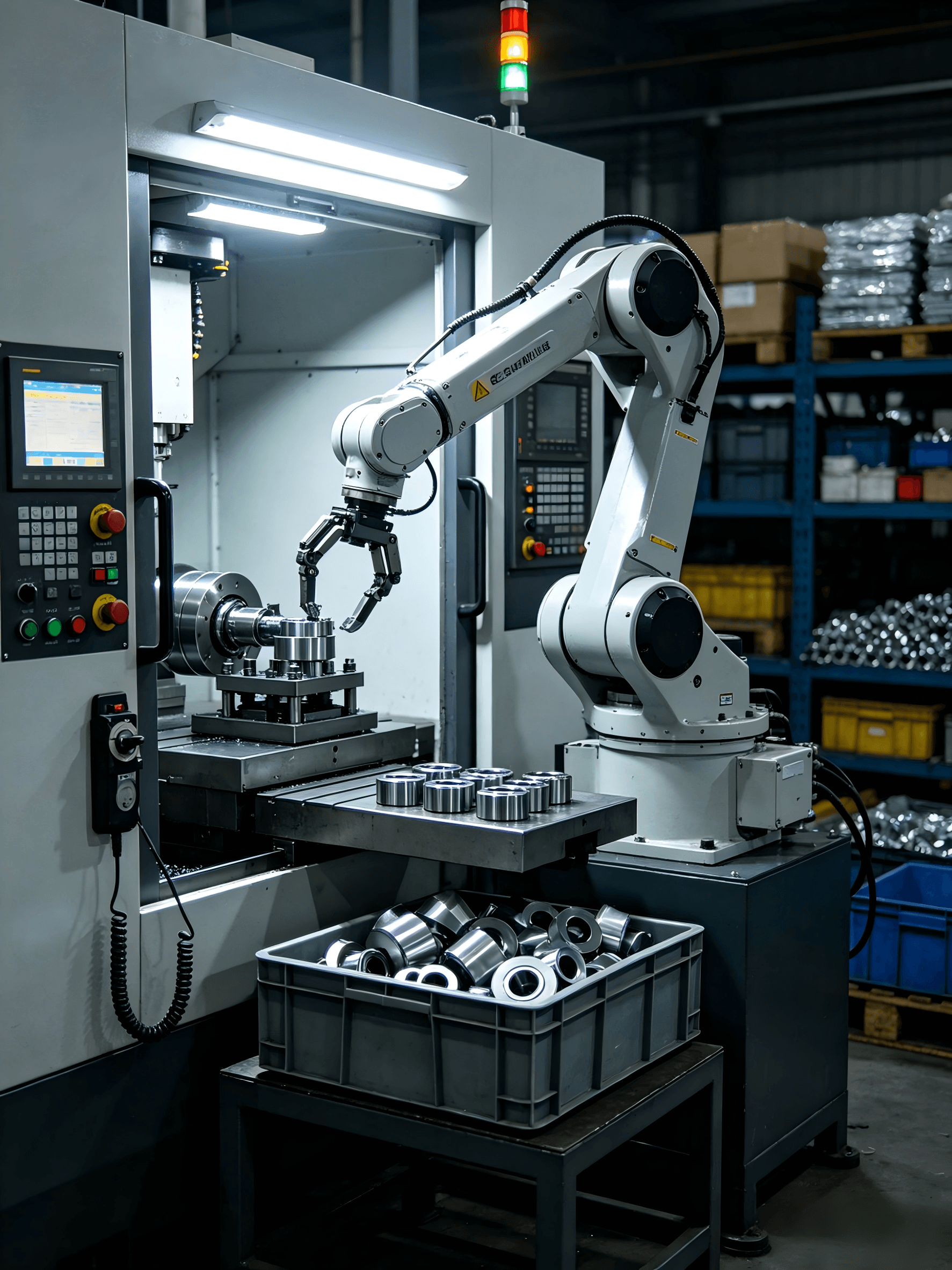

Welding | Material Handling | Loading & Unloading
Sorting | Polishing | Deburring
Standard Configuration
Standard Controller: CXR X9
Technical Specification Table
| Item | Parameter |
|---|---|
| Model | LJ2550-45 |
| Rated Wrist Payload | 45kg |
| Repeat Positioning Accuracy | ±0.05mm |
| Noise Level | ＜80dB(A) |
| Mounting Type | Floor mounted, Inverted (custom), Side mounted (custom) |
| J2 Axis Speed | 111°/s |
| J3 Axis Speed | 148°/s |
| J2 Axis Motion Range | -93° ~ +80° |
| J3 Axis Motion Range | -135° ~ +80° |
| J6 Axis Motion Range | -105° ~ +130° |
| Base Mounting Dimension | 417.50 mm |
Mounting Dimension
Base mounting dimension: 417.50 mm
Equipped with standard end flange size for welding torch and gripper mounting, easy to match with tooling, fixture and welding accessories.
