Newroad CH1463-10 6-Axis Arc Welding Robot
Product Overview

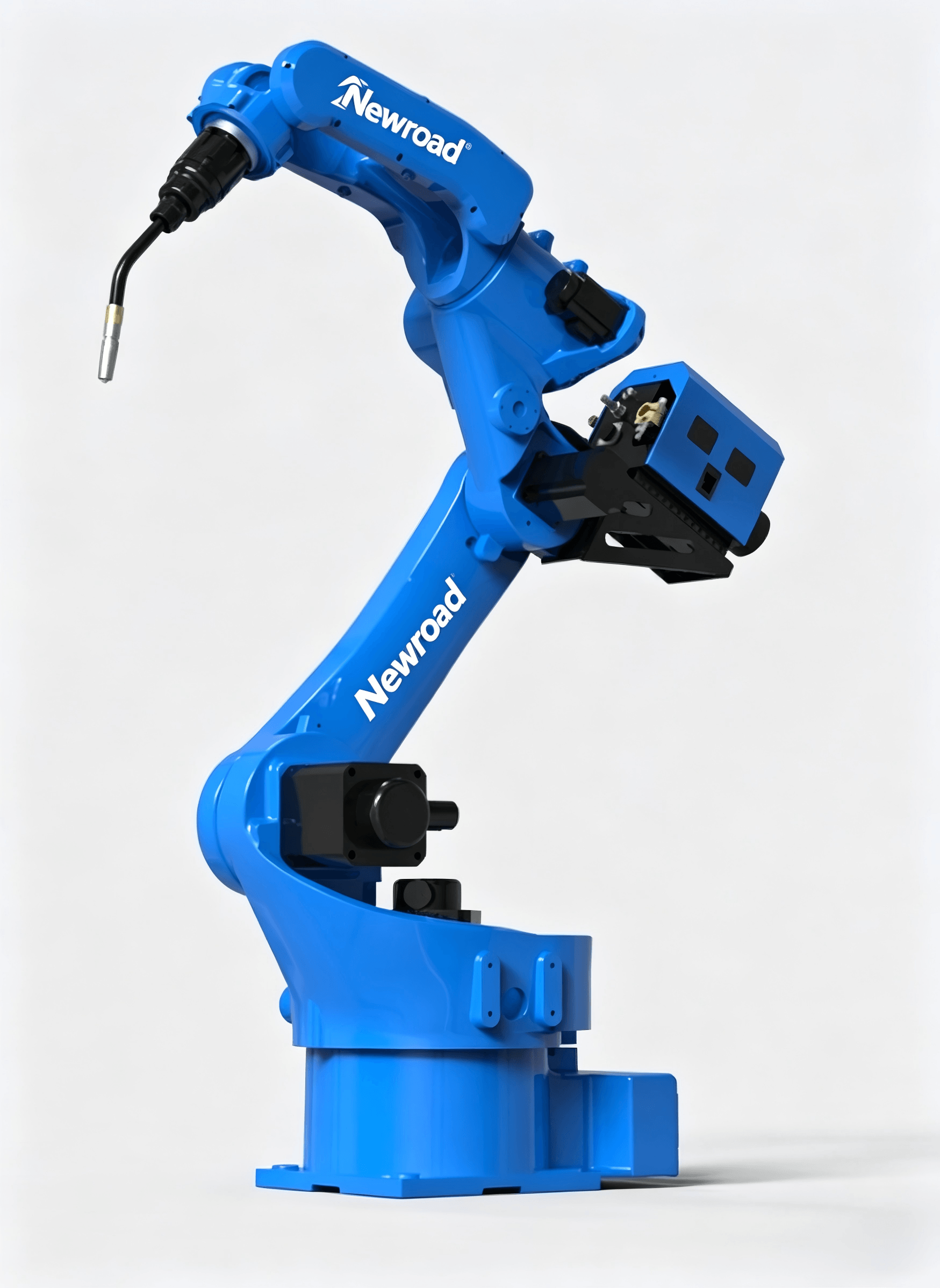

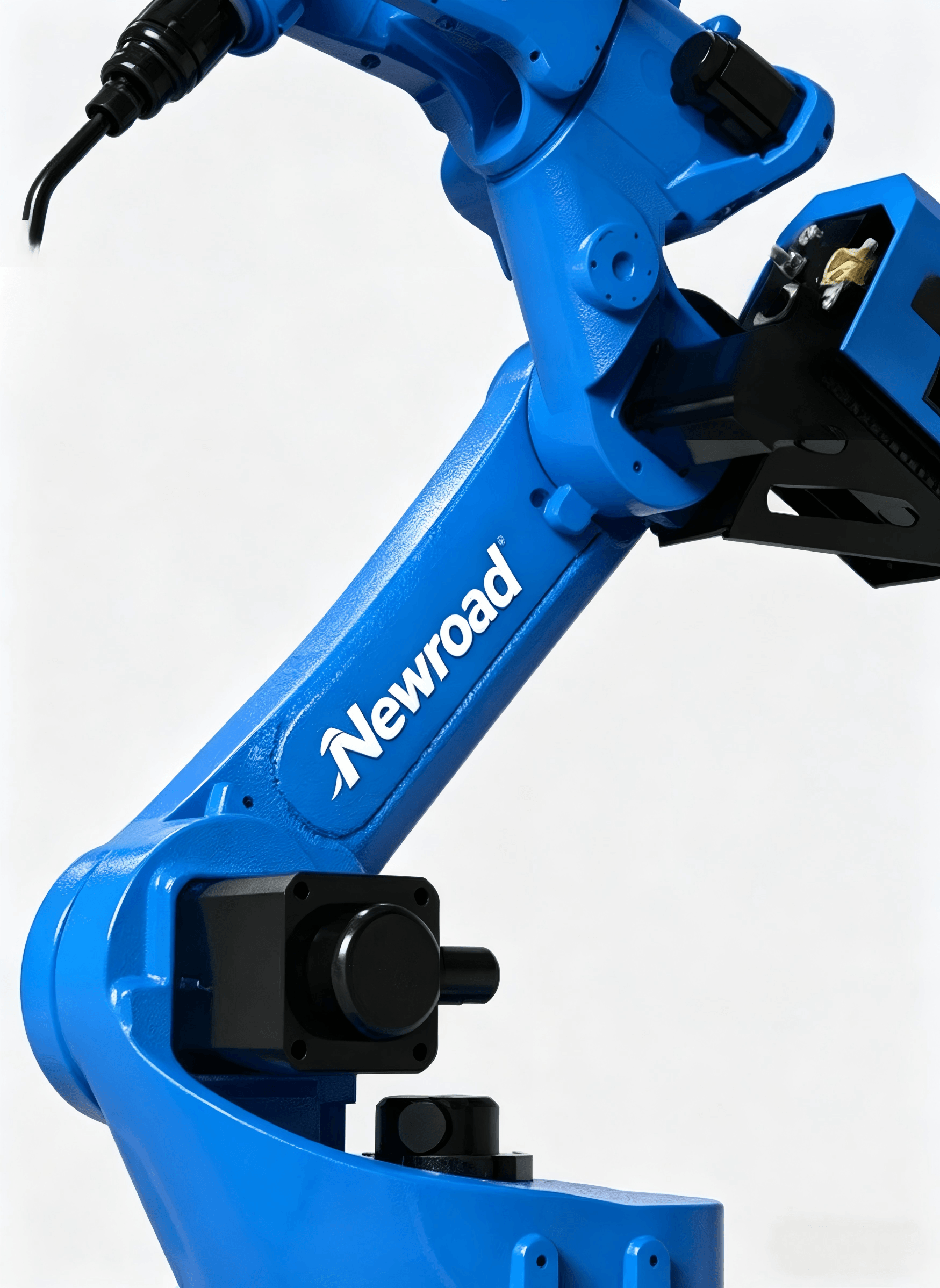

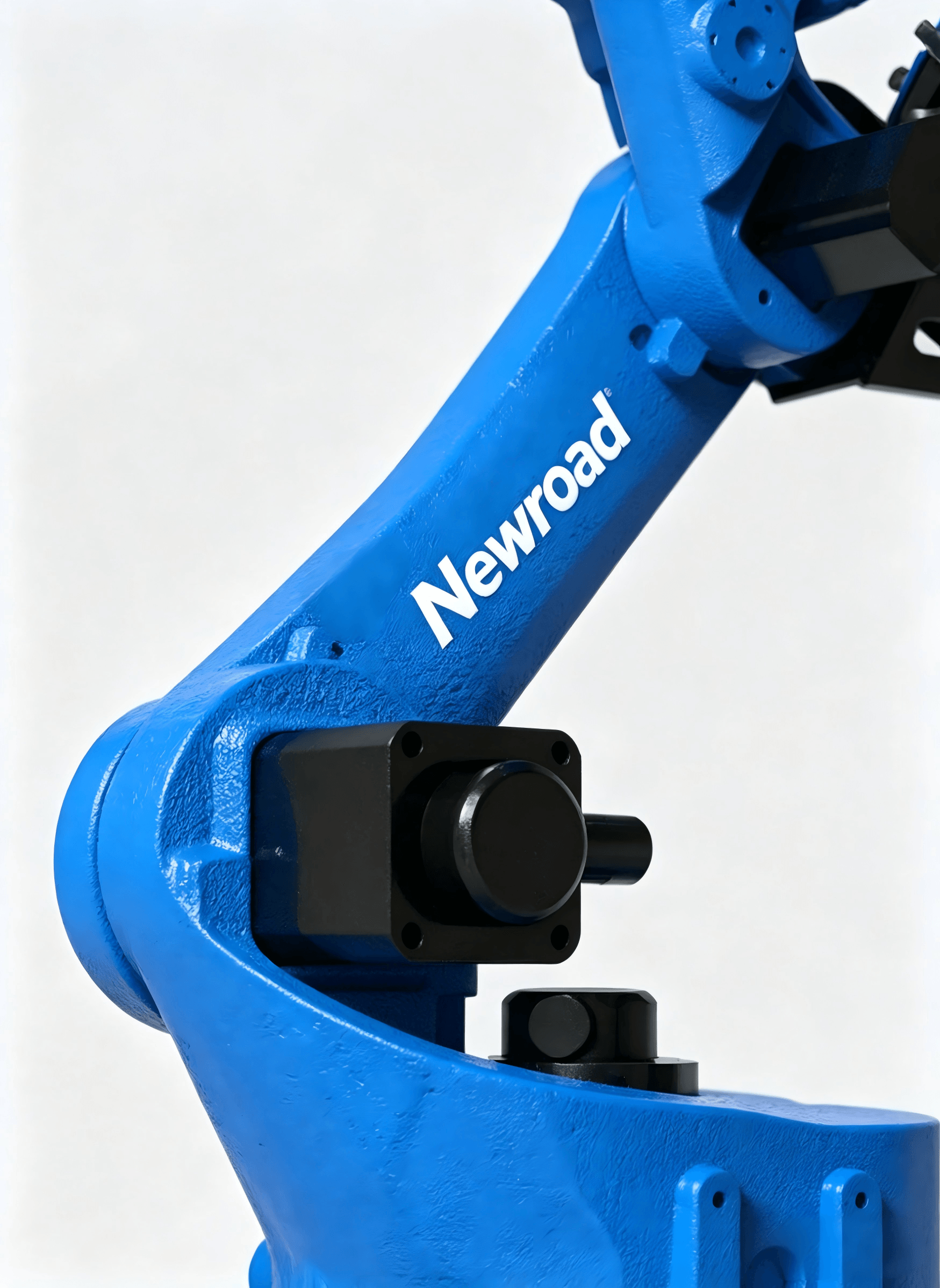

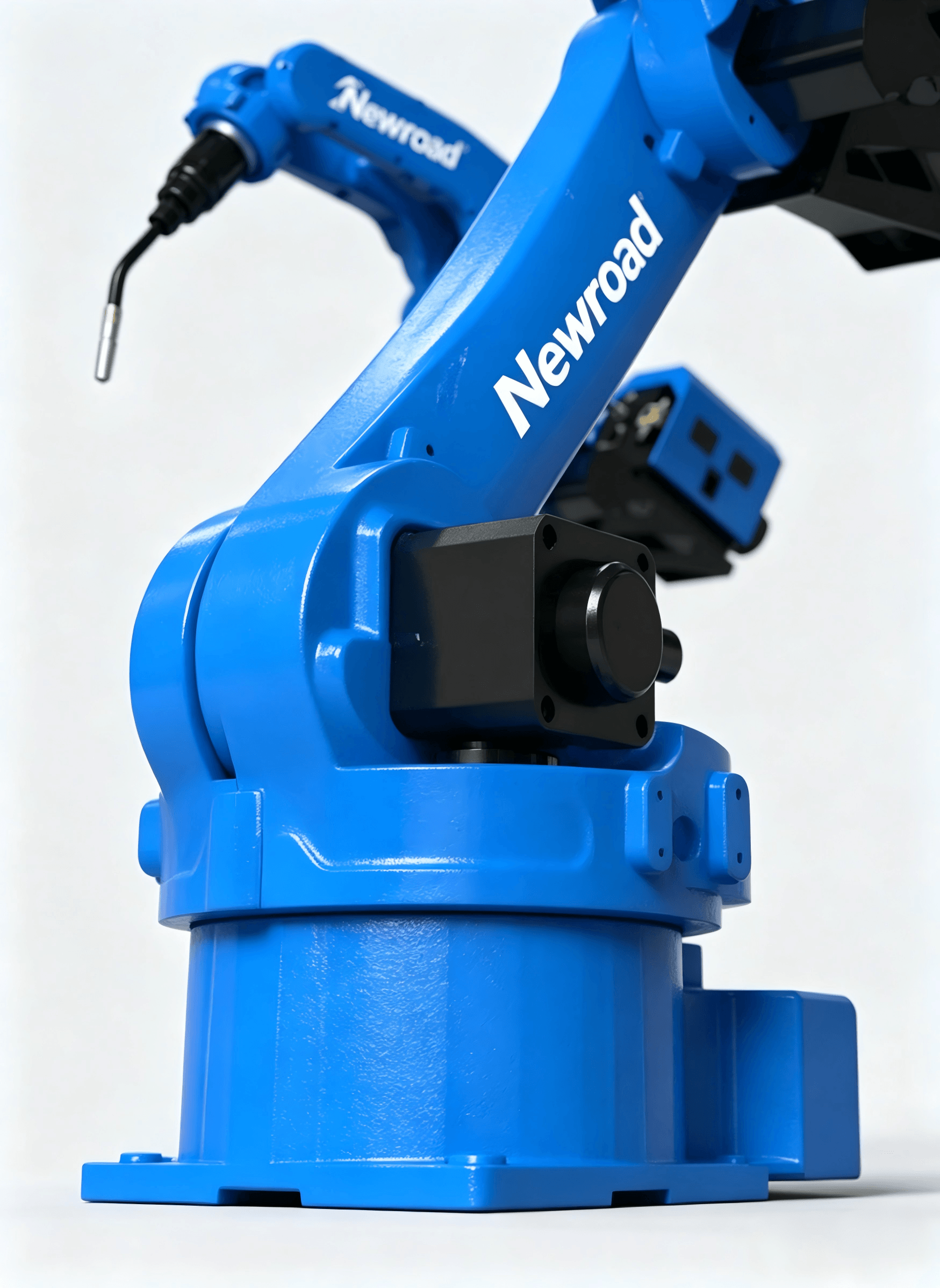

The Newroad CH1463-10 is a professional 6-axis arc welding robot with a hollow arm and wrist structure, built-in welding cables, and IP54 protection. It features ultra-high precision, fast movement, and flexible installation, widely used for arc welding, laser welding, and light handling in automotive, metal fabrication, and general industrial automation.
Core Advantages
- Hollow arm & wrist for cable built-in, no winding, ideal for narrow spaces
- Repeat positioning accuracy ±0.05mm for stable, high-quality welding
- Fast axis speed, large working radius, high production efficiency
- IP54 protection, suitable for harsh industrial environments
- Flexible installation: floor, side, inverted (custom)
- No structural changes needed; sensors can be added directly
Technical Specifications
表格
| Item | Specification |
|---|---|
| Model | CH1463-10 |
| Number of Axes | 6 axes |
| Max Working Radius | 1463 mm |
| Repeat Positioning Accuracy | ±0.05 mm |
| Rated Wrist Load | 10 kg |
| Robot Weight | 220 kg |
| Protection Grade | Body IP54, Wrist IP54 |
| Vibration Acceleration | 4.9 m/s² |
| Noise Level | < 80 dB(A) |
| Operating Temperature | 0–40 ℃ |
| Ambient Humidity | ≤75%RH (short-term 90%RH) |
| Installation | Floor, side, inverted (custom) |
| Standard Control Cabinet | CXR X6 |
| J1 Speed / Range | 148°/s / ±170° |
| J2 Speed / Range | 148°/s / -90°~+140° |
| J3 Speed / Range | 247°/s / -135°~+85° |
| J4 Speed / Range / Torque / Inertia | 385°/s / ±180° / 19.96 N·m / 0.28 kg·m² |
| J5 Speed / Range / Torque / Inertia | 444°/s / ±105° / 19.96 N·m / 0.28 kg·m² |
| J6 Speed / Range / Torque / Inertia | 790°/s / ±210° / 10.47 N·m / 0.096 kg·m² |
| Notes | Must be grounded |
Key Features

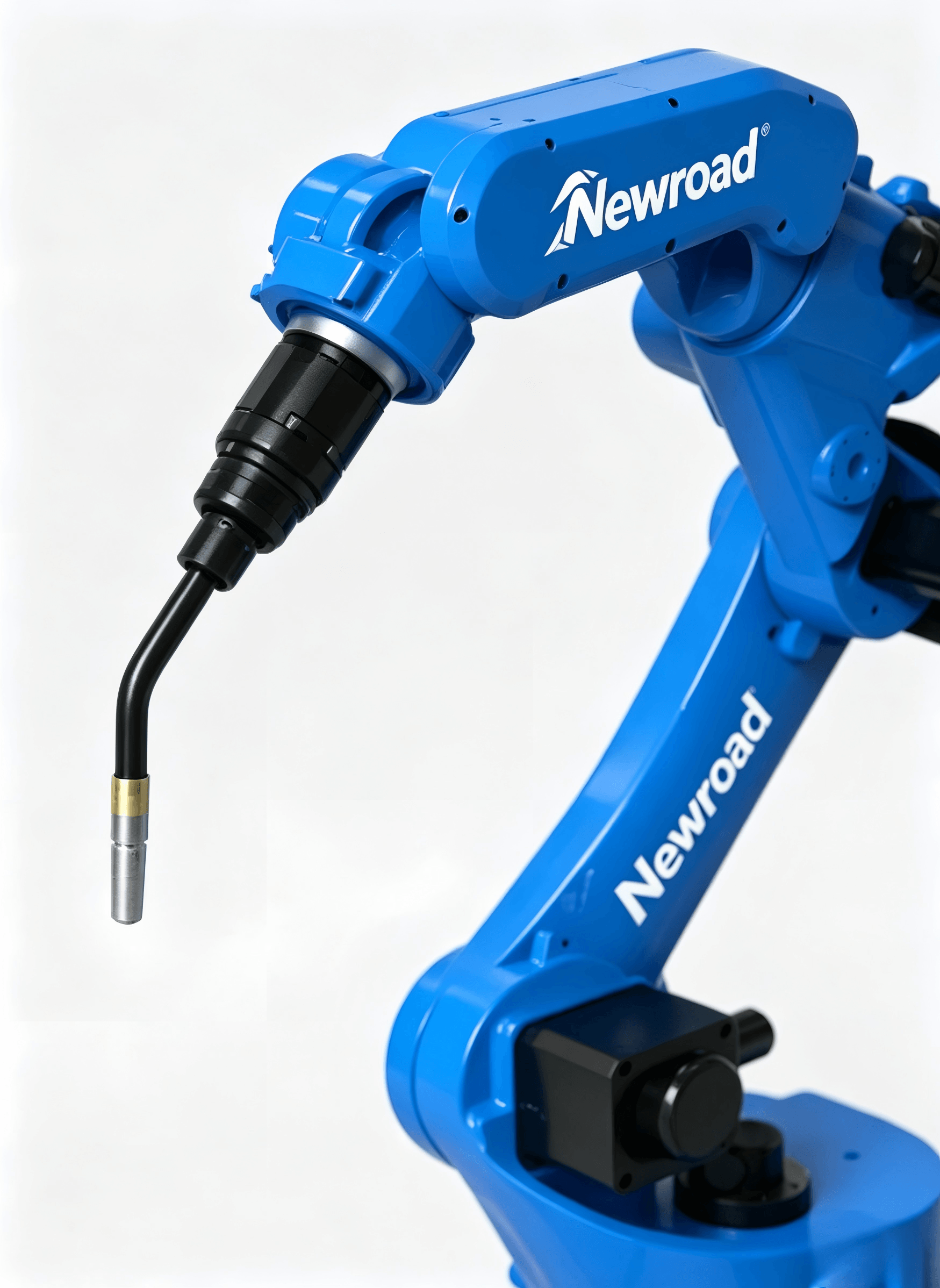

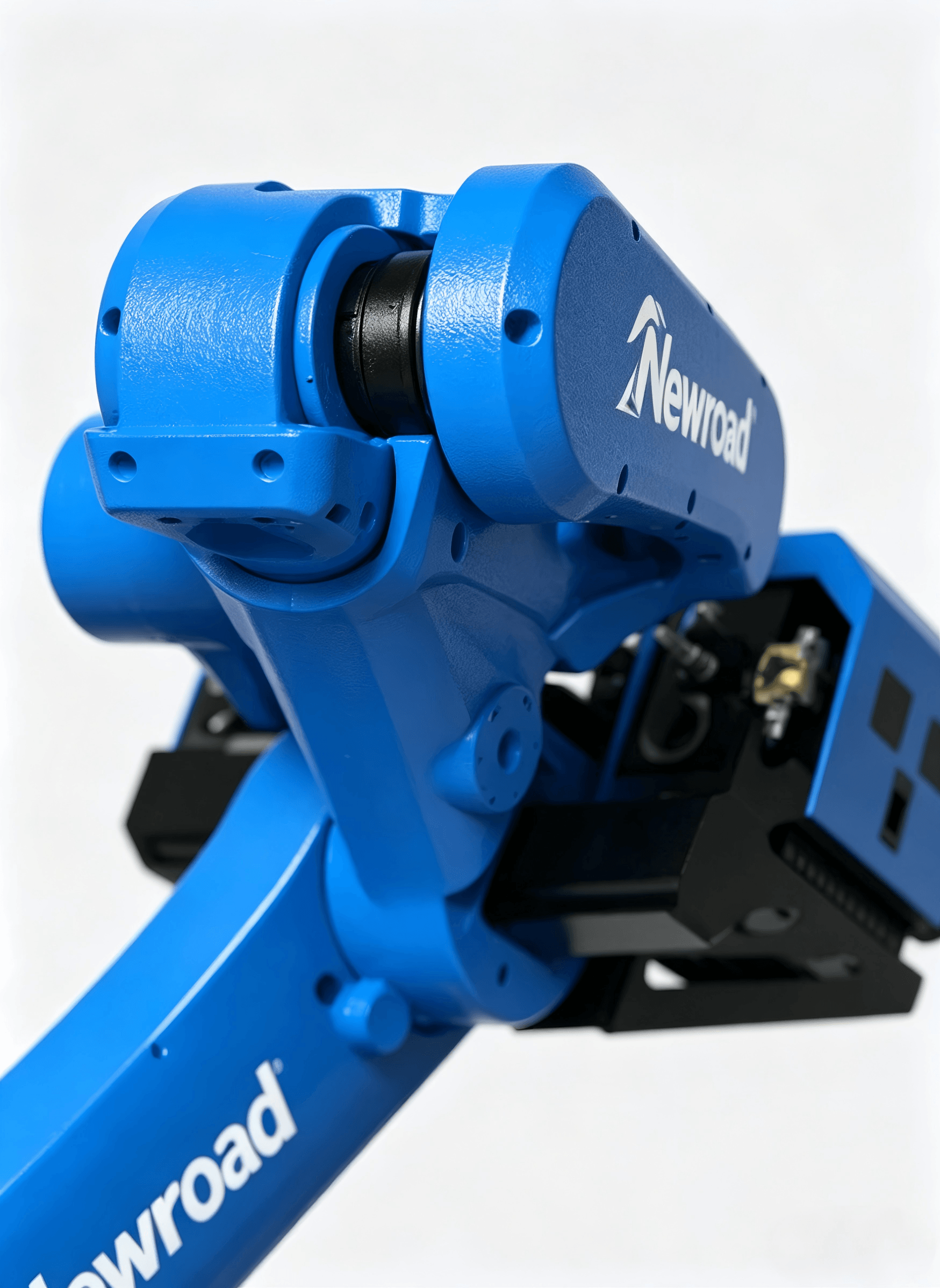

- Hollow structure arm and wrist, built-in welding cable
- Compact body, light weight, suitable for narrow space operation
- IP54 protection with full cover, reliable in harsh environment
- High-flex special robot cable inside for long service life
- High precision and high speed, perfect for welding applications
- Compatible with standard welding equipment and easy integration
Typical Applications
- Arc welding
- Laser welding
- Light material handling
- Metal fabrication, automotive parts, hardware, sheet metal
For detailed quotation, customized automation solutions, or full technical datasheet of SA12/1490H, please feel free to contact us:
Phone: +86-18616229203
Email: info@sharpzu.com
WhatsApp/WeChat: +86 18616229203
We will provide professional technical support and respond within 24 hours.
