SR12/1400 6-Axis Industrial Robot
High-Precision Palletizing & Handling Solution
Product Overview

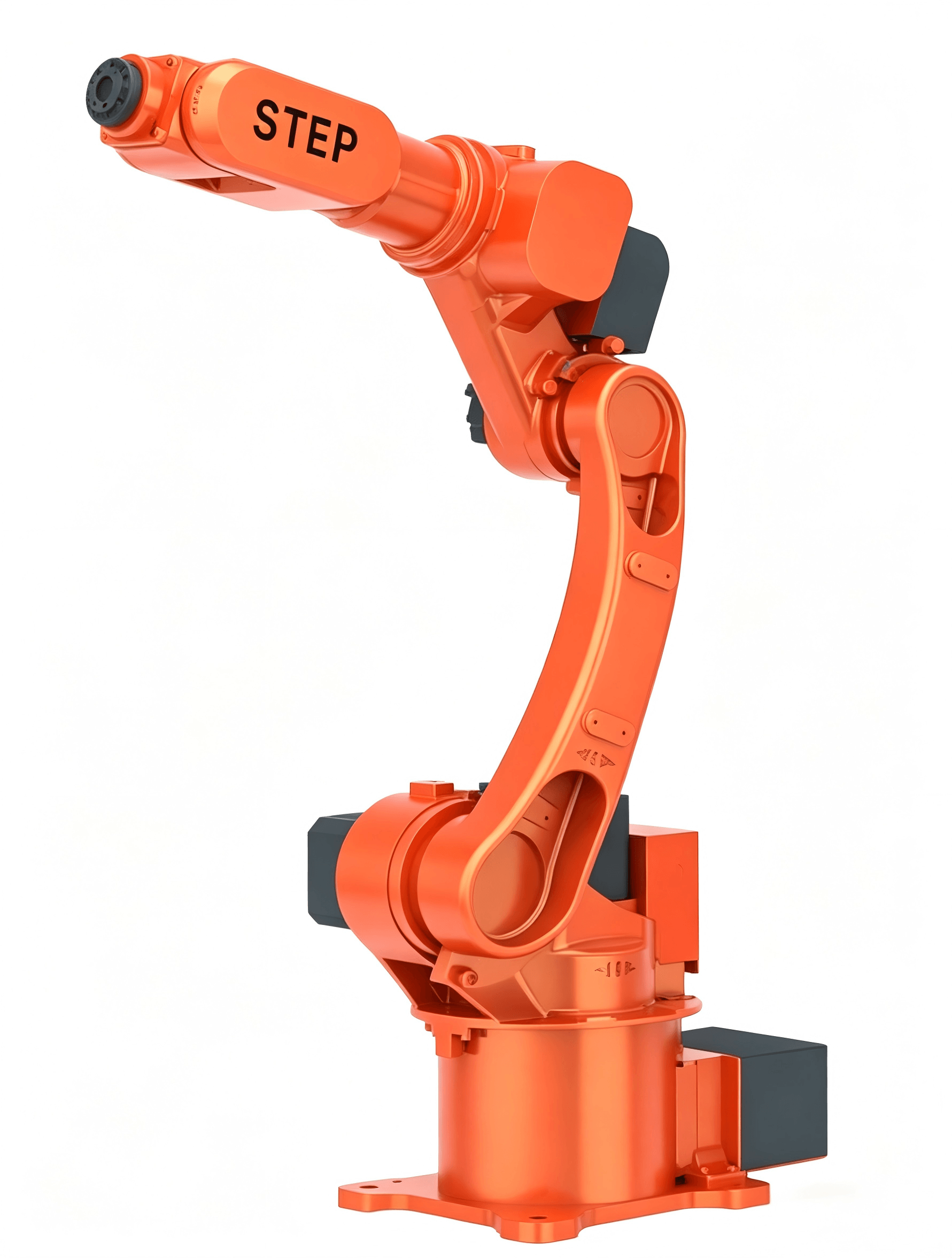

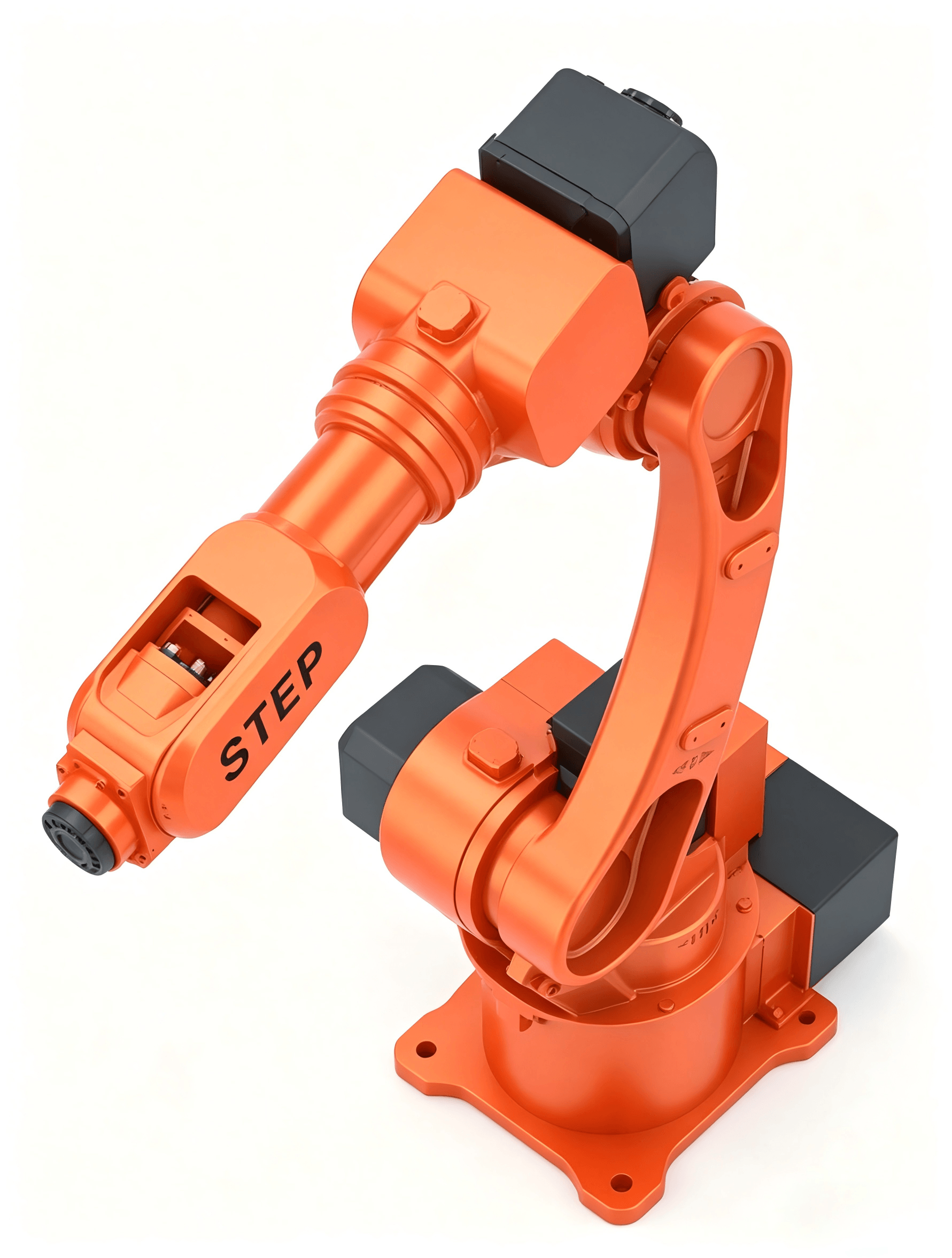

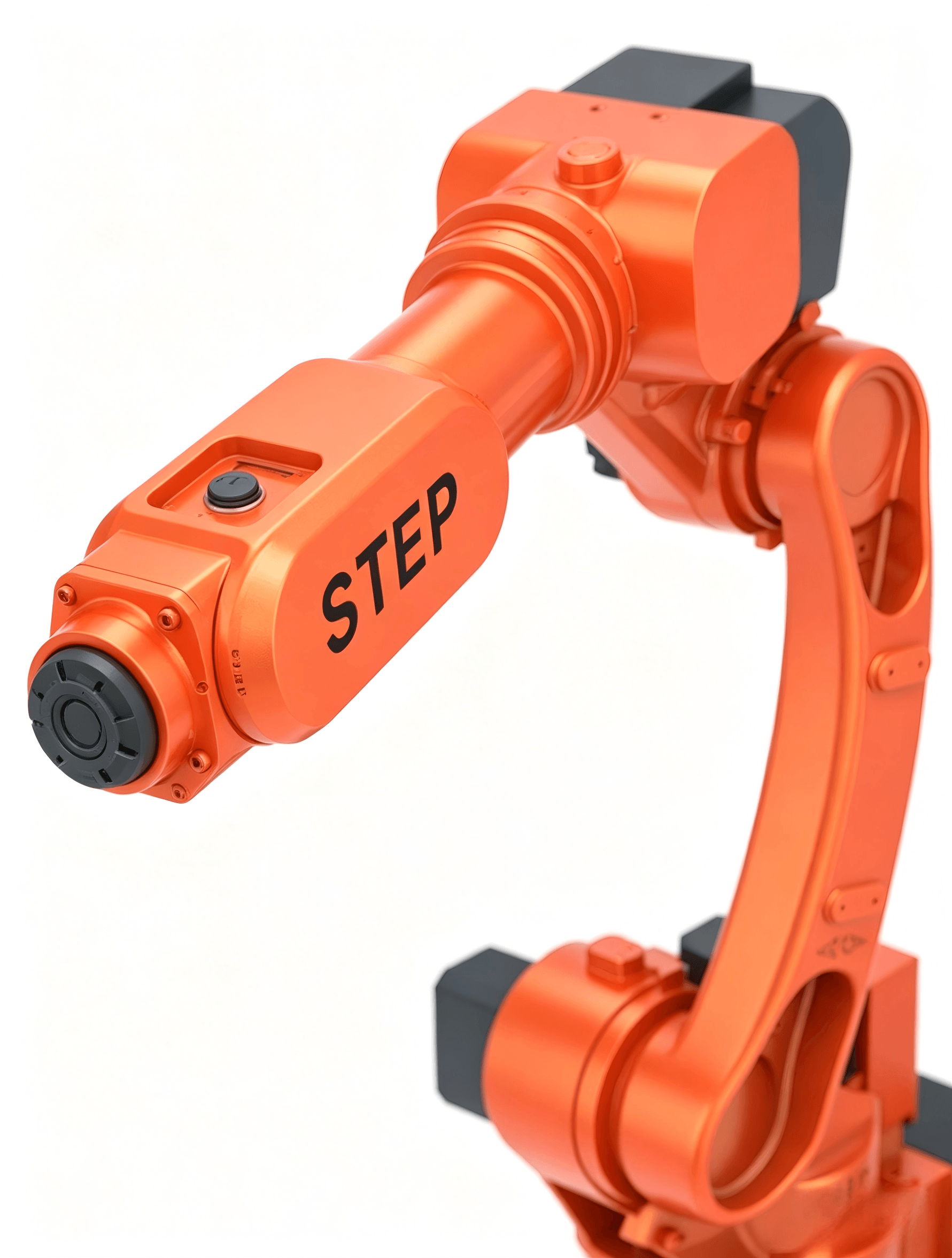

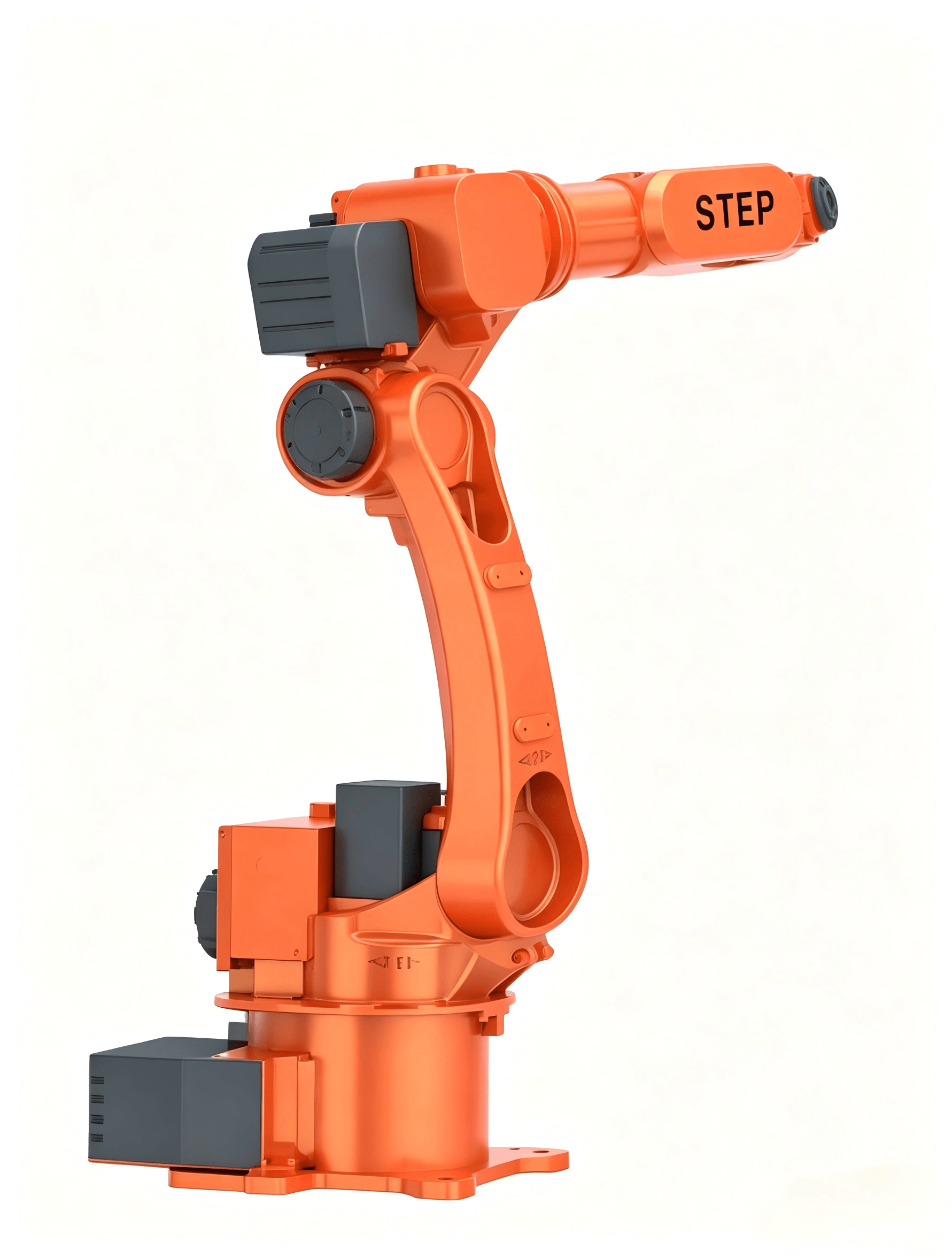

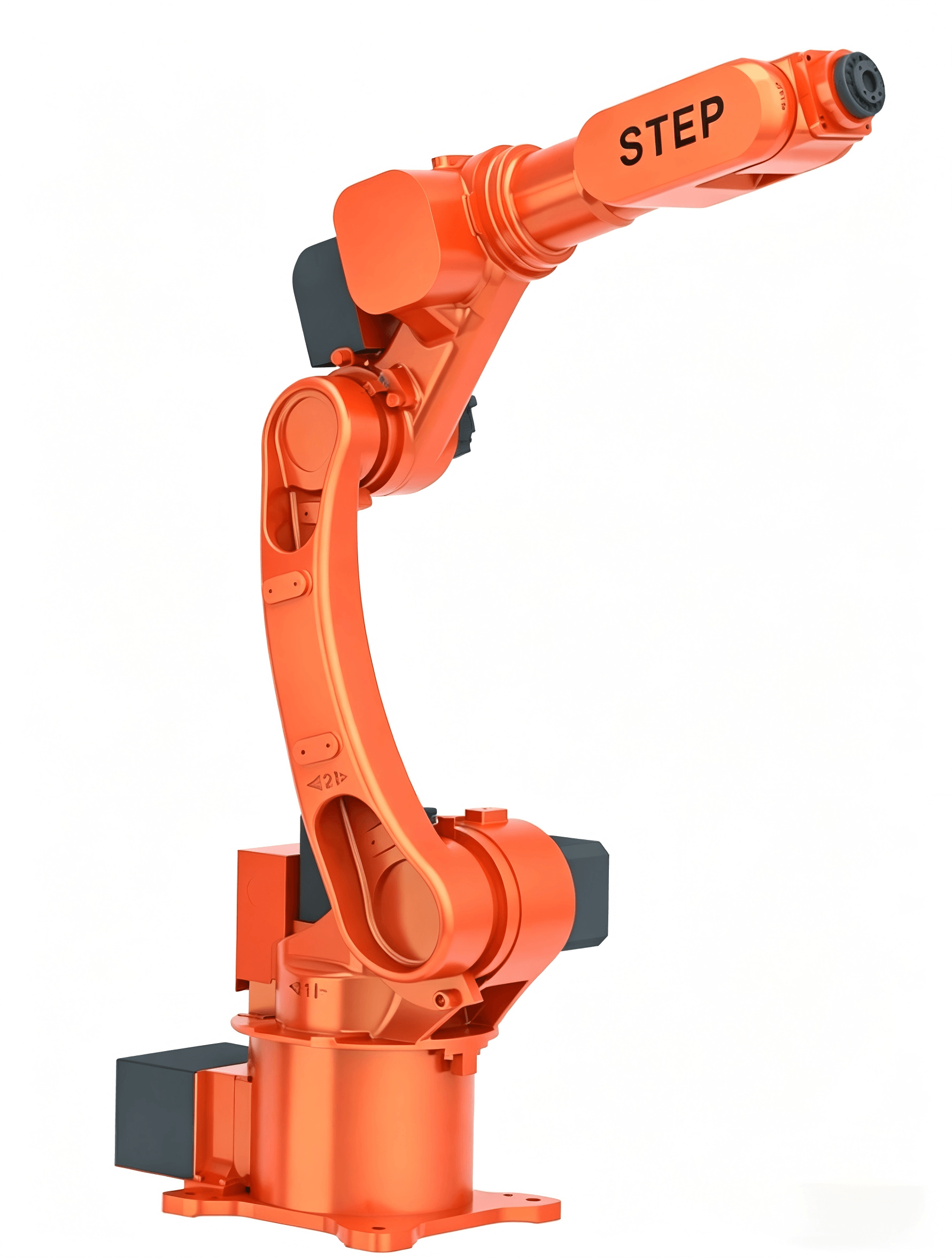

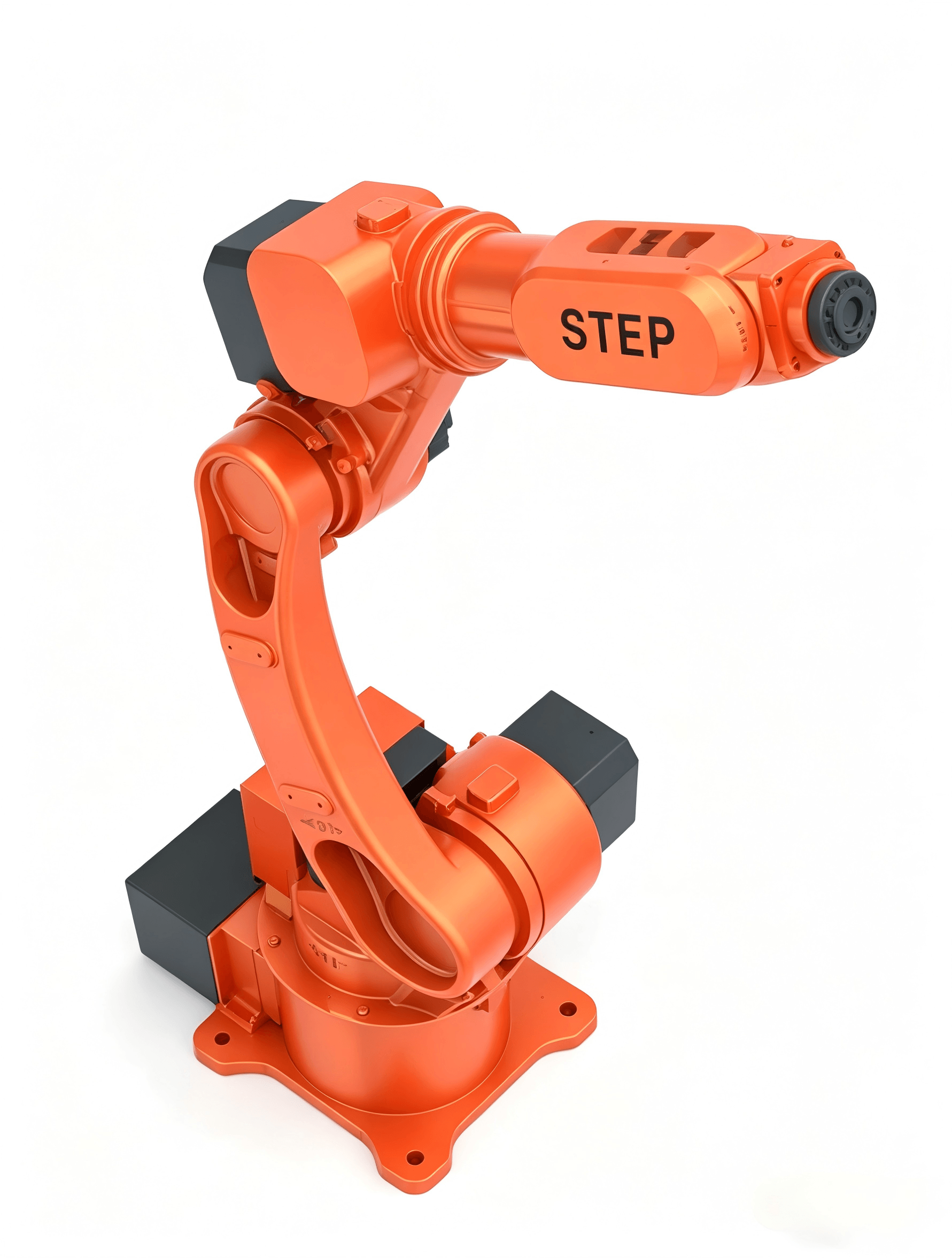

The SR12/1400 is a high-performance 6-axis vertical multi-joint industrial robot, engineered for ultra-precise, high-speed automation in modern manufacturing. Powered by an advanced AC servo drive system, this robot delivers exceptional accuracy, flexibility, and reliability for a wide range of industrial applications, including palletizing, material handling, and machine loading/unloading.
With a 12kg maximum wrist payload and 1460mm maximum working radius, the SR12/1400 is perfectly balanced for medium-load tasks requiring both speed and precision. Its industry-leading ±0.03mm repeat positioning accuracy ensures consistent, error-free operation in high-precision assembly, sorting, and automated production lines. The robot features a robust IP54 whole-body protection (with IP65-rated wrist) to withstand harsh industrial environments, while its lightweight 160kg body maintains excellent maneuverability and space efficiency.
Designed for maximum deployment flexibility, the SR12/1400 supports ground, wall-mounted, and upside-down installation, enabling seamless integration into any production line layout. Its modular design simplifies maintenance, reduces downtime, and lowers long-term operational costs, making it an ideal cost-effective automation solution for small to medium-sized enterprises.
Key Features & Advantages
1. Ultra-High Precision & Stability
- ±0.03mm repeat positioning accuracy guarantees micron-level consistency for high-precision tasks
- High-rigidity cast aluminum alloy body with reinforced joint structures minimizes vibration during high-speed operation
- Advanced closed-loop AC servo drive system delivers smooth, responsive motion across all 6 axes
2. High-Speed Operation & Efficiency
- Industry-leading joint speeds: up to 600°/s for J6 axis, drastically reducing cycle time for pick-and-place and palletizing tasks
- Optimized motion planning ensures fast, smooth transitions between workstations, boosting overall production efficiency
- 12kg payload capacity supports a wide range of medium-sized workpieces and end-of-arm tools
3. Superior Environmental Adaptability
- IP54 whole-body protection resists dust, oil mist, and minor water splashes for general industrial environments
- IP65-rated wrist provides enhanced water and dust resistance, suitable for wet processing and cleaning areas
- Reliable operation in temperatures from 0°C to 45°C and humidity up to 75%RH (95%RH short-term, no condensation)
4. Flexible Deployment & Easy Integration
- 1460mm working radius provides optimal coverage for compact to mid-sized workcells
- 6-axis design enables full spatial freedom to reach complex positions and avoid obstacles
- Multi-mount options (ground, wall, upside down) adapt to any workshop layout and space constraints
- 1-Φ8mm trachea configuration and 16-core integrated signal cable simplify peripheral wiring and connection
5. Low Maintenance & Operator Safety
- Modular structural design shortens maintenance time and reduces service costs
- Noise level ≤80dB(A) for a quieter, more comfortable working environment
- Compliant with international safety standards, with emergency stop and safety interlock functions
- Optimized joint load torque and inertia ratings ensure stable, safe operation under full load
| Parameter | Specification |
|---|---|
| Model | SR12/1400 |
| Structure | Vertical Multi-Joint |
| Number of Joints | 6 |
| Drive Mode | AC Servo Drive |
| Maximum Working Radius | 1460mm |
| Repeat Positioning Accuracy | ±0.03mm |
| Maximum Wrist Payload | 12kg |
| Body Weight | 160kg |
| IP Protection Rating | Whole Body IP54 (Wrist IP65) |
| Maximum Operating Speed | J1: 170°/s
J2: 170°/s J3: 200°/s J4: 400°/s J5: 360°/s J6: 600°/s |
| Maximum Motion Range | J1: ±165°
J2: +155°~-90° J3: +78°~-165° J4: ±185° J5: ±120° J6: ±360° |
| Joint Allowable Load Torque | J4: 22N·m
J5: 22N·m J6: 9.8N·m |
| Joint Allowable Load Inertia | J4: 0.65kg·m²
J5: 0.65kg·m² J6: 0.17kg·m² |
| Air Pipe Configuration | 1-Φ8mm |
| Integrated Signal Cable | 16-core |
| Installation Methods | Ground, Wall-mounted, Upside down |
| Working Environment | Temperature: 0~45°C
Humidity: ≤75%RH (short-term 95%RH, no condensation) Vibration: ≤0.5G (4.9m/s²) |
| Noise Level | ≤80dB(A) |
| Typical Applications | Handling, Palletizing, Loading/Unloading, Assembly, Sorting |
Typical Applications
The SR12/1400 is a versatile automation solution ideal for multiple industries and tasks:
1. Automated Palletizing & Packaging
- High-speed palletizing of cartons, boxes, and bags in food, beverage, and daily chemical production lines
- Seamless integration with conveyor systems for end-to-end packaging automation
- Reduces labor costs and improves stacking consistency for logistics and warehousing operations
2. CNC Machine Tool Loading/Unloading
- Automates loading of raw materials and unloading of finished parts for CNC lathes, machining centers, and grinding machines
- Supports multi-machine collaboration (1 robot serving 3-4 machines) to maximize production efficiency
- Ideal for automotive parts, hardware, and precision machining workshops
3. High-Precision Material Handling & Sorting
- Ultra-precise pick-and-place for small to medium workpieces in 3C electronics, consumer goods, and medical device manufacturing
- Handles various materials including metal parts, plastic components, and packaged products
- Enables flexible sorting and distribution according to production processes
4. Automated Assembly & Processing
- Executes complex assembly tasks requiring multi-angle positioning and orientation adjustment
- Supports dispensing, gluing, screw driving, and other secondary processing operations
- Suitable for electronics assembly, automotive component manufacturing, and precision instrument production
Why Choose the SR12/1400?
- Unmatched Precision: With ±0.03mm repeatability, it outperforms competitors in high-precision applications
- Blazing Fast Speed: The 600°/s J6 axis delivers industry-leading cycle times for maximum productivity
- Flexible Deployment: Multi-mount options and compact footprint fit any production line layout
- Robust & Reliable: IP54/IP65 protection ensures long-term operation in harsh industrial environments
- Cost-Effective: High performance at a competitive price delivers fast ROI for automation projects
- Professional Support: Dedicated technical team provides one-stop service from design to on-site commissioning
For detailed quotation, customized automation solutions, or full technical datasheet of SA12/1490H, please feel free to contact us:
Phone: +86-18616229203
Email: info@sharpzu.com
WhatsApp/WeChat: +86 18616229203
We will provide professional technical support and respond within 24 hours
