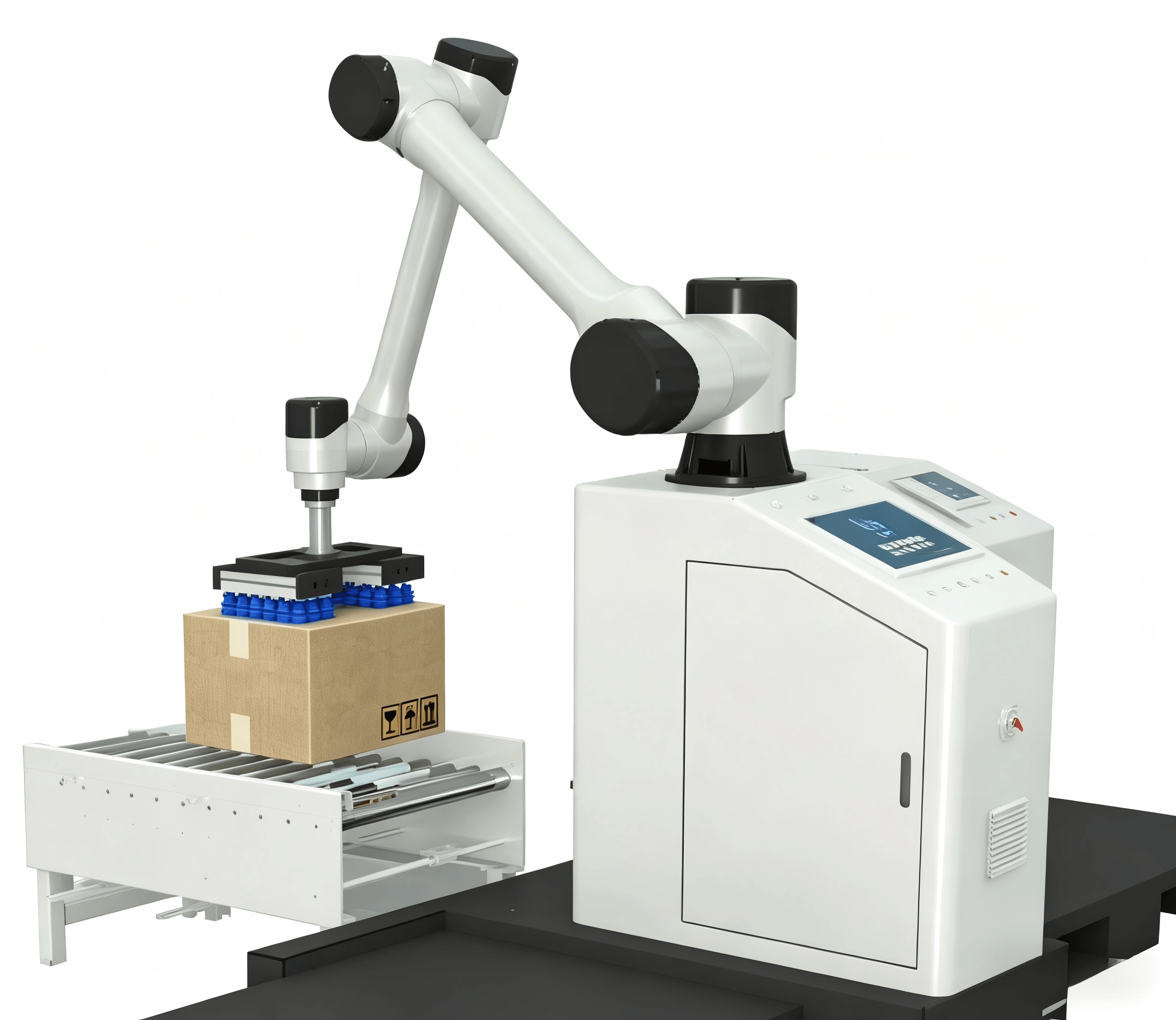

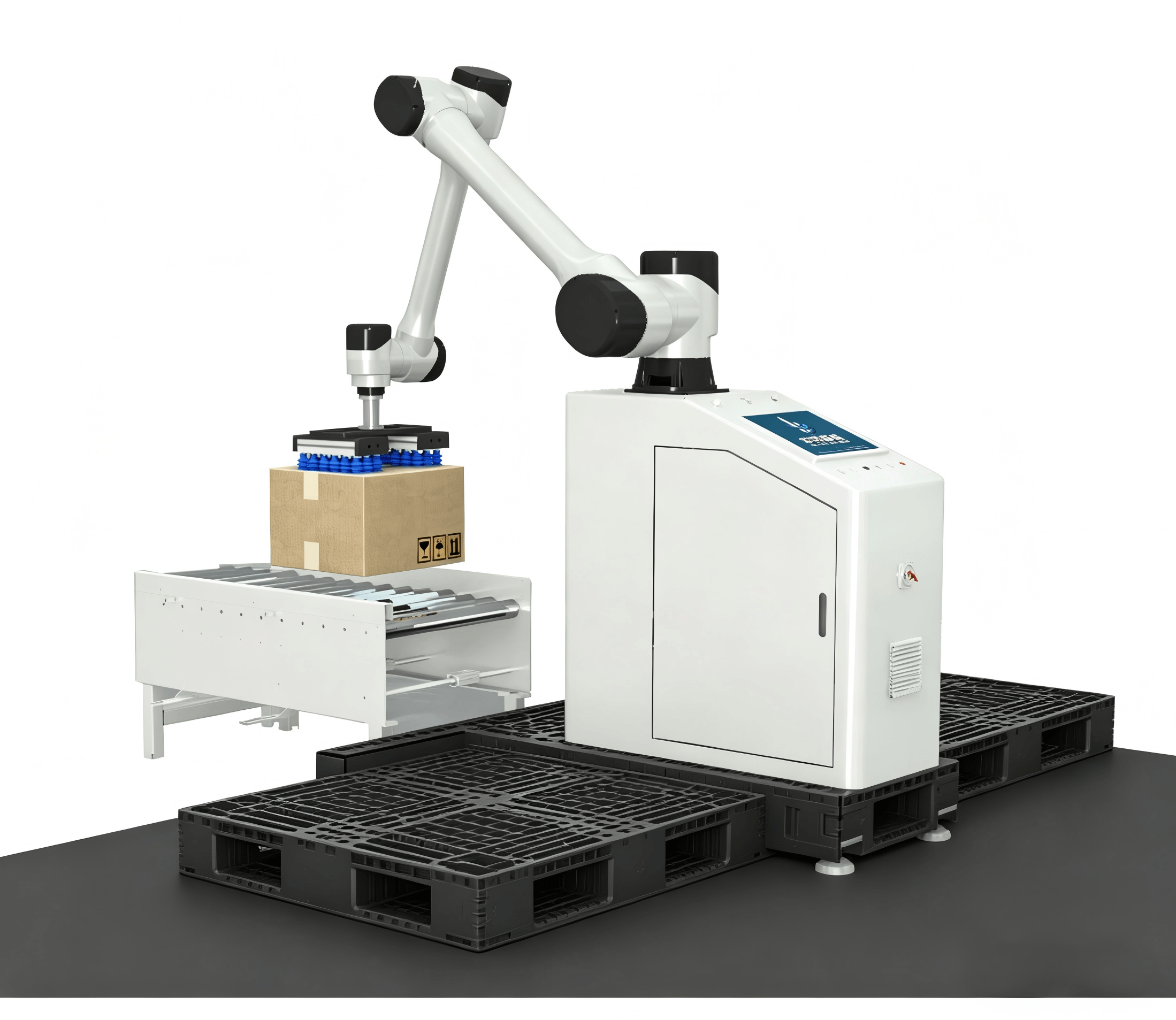

SZU‑630 Portable Collaborative Robot Palletizer
Product Overview
The SZU‑630 is a compact, mobile collaborative palletizing solution designed for small and medium‑output production lines. It requires no programming, supports fast deployment, and works safely alongside workers to automate carton palletizing. Ideal for food, beverage, daily chemicals, pharmaceuticals, and hardware industries.
Key Advantages
- No programming, 5‑minute setup – Visual touchscreen operation
- Safe & collaborative – CE certified, human‑machine safe working
- Small footprint – Only 6㎡, movable between lines
- High efficiency – Replaces 4 workers, stable 24/7 running
- Flexible end effector – Silicone vacuum cup for flat cartons
Core Features
Intelligent & Easy to Use
- Self‑developed control system

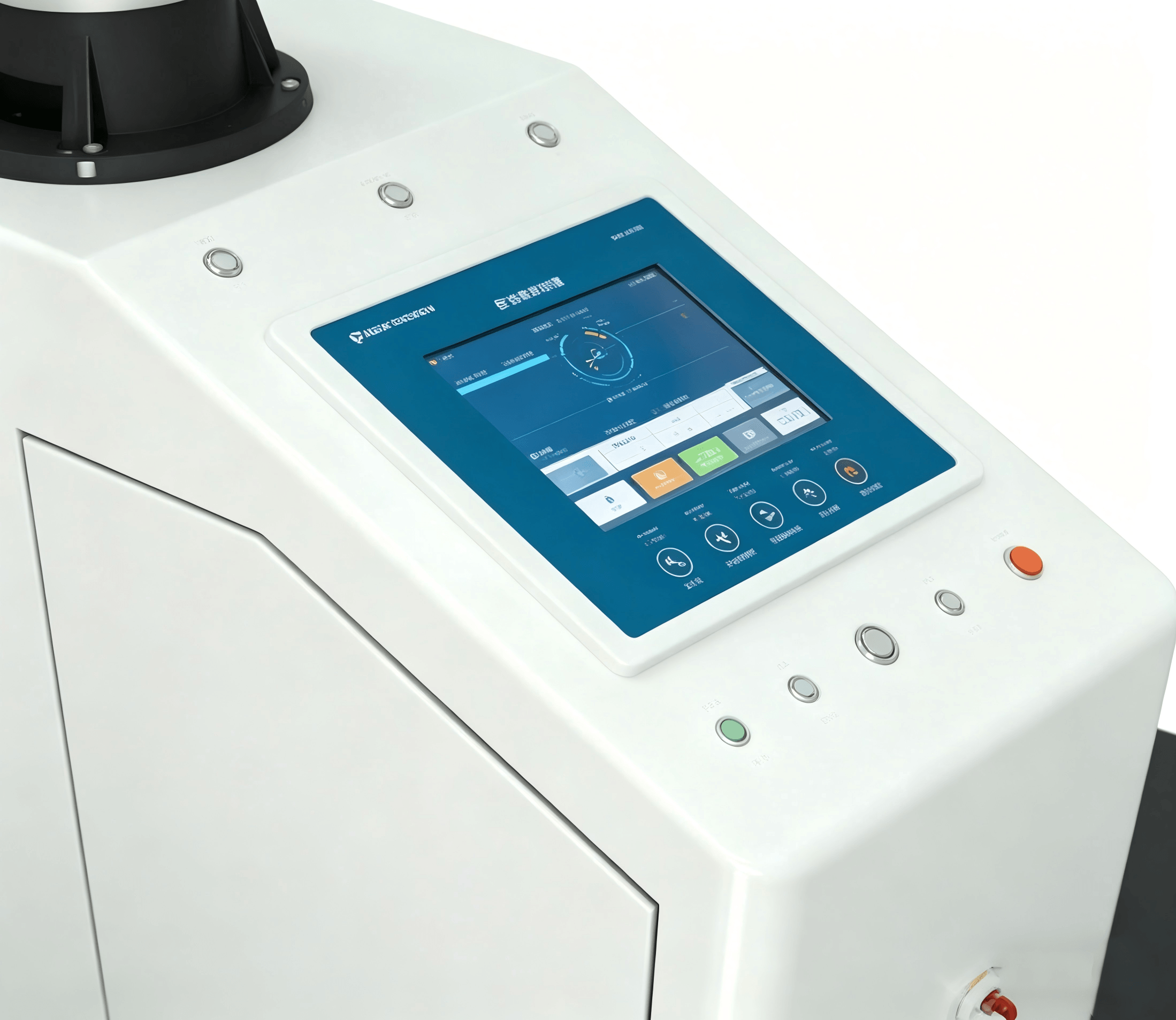

- 15‑inch capacitive touchscreen
- Visual pallet pattern simulation
- New path setup in 5 minutes
- One‑key start, multi‑box continuous palletizing
Strong Compatibility & Flexibility
- Supports various carton sizes
- Adjustable palletizing height and layout
- Quick format change for different products
- Works with standard 1200×1200mm pallets
Safe & Stable
- CE safety certification
- Optional LiDAR or grating protection
- Repeat positioning accuracy ±0.1mm
- IP54 protection, corrosion‑resistant magnesium‑aluminum alloy body
Mobile & Quick Deployment
- Manual tow‑away, movable to multiple lines
- All‑in‑one platform (robot + power + pneumatic + lift)
- On-site commissioning within 2 hours

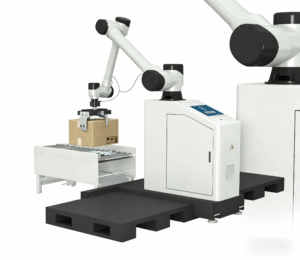

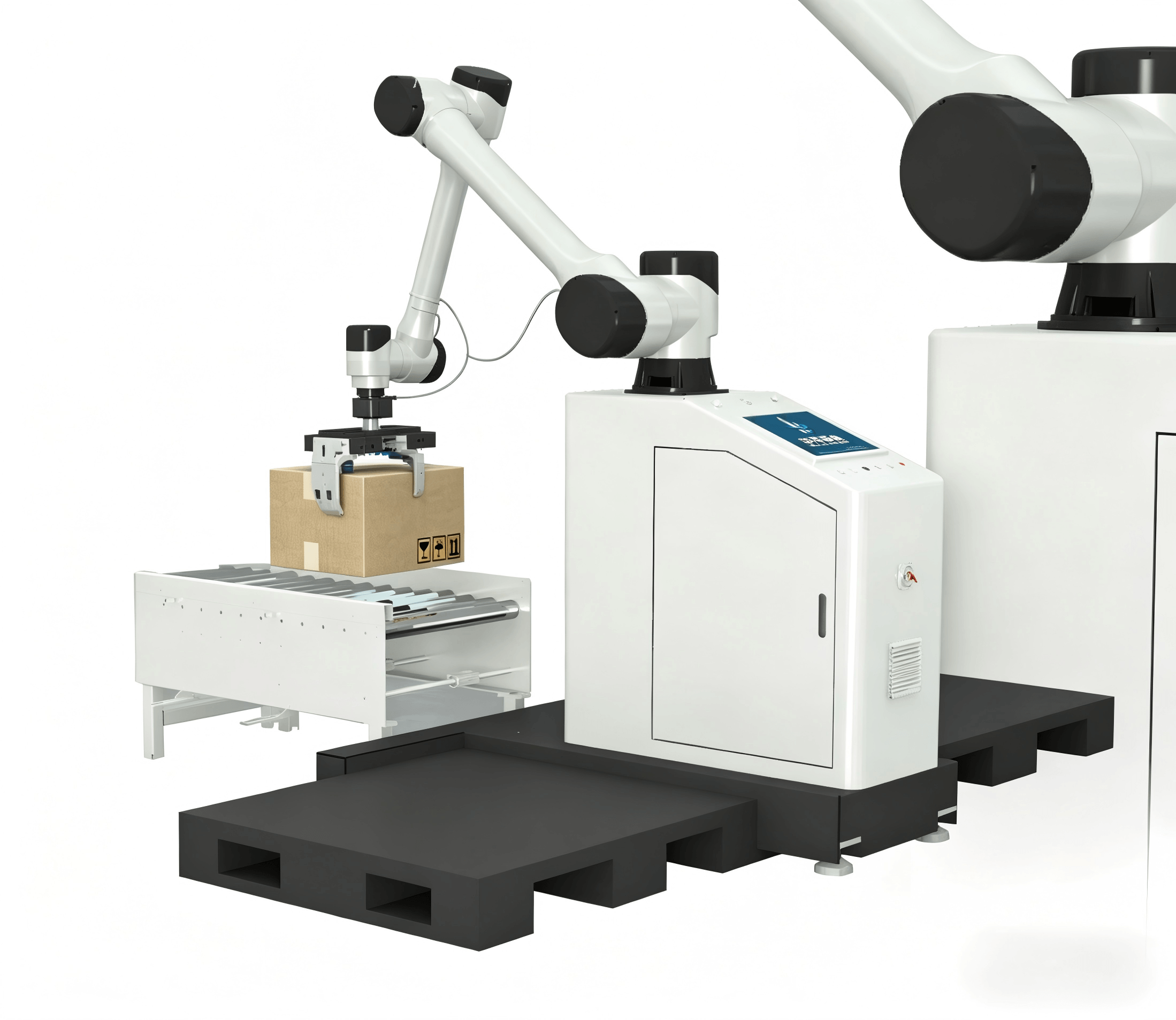

- Floor area: 6㎡ (including double pallet area)
Cost‑Effective
- Low energy consumption
- Long‑life silicone suction cup
- No extra sensors needed
- Minimal maintenance
Technical Parameters
| Item | Specification |
|---|---|
| Model | SZU‑630 |
| Palletizing speed | 8–12 boxes/min |
| End payload | 30 kg |
| Working radius | 2000 mm |
| Vertical height | H1=1800 mm, extendable H2=2400 mm |
| Pallet height | 1800–2400 mm (incl. pallet) |
| Suitable pallet | 1200×1200×140 mm |
| Repeat accuracy | ±0.1 mm |
| Power supply | Single‑phase 220V 50Hz |
| Power | 3300W |
| Weight | approx. 475 kg |
| Protection grade | IP54 |
| Operating temp | −15°C to +55°C |
| Compatible surfaces | Smooth carton / metal surfaces |

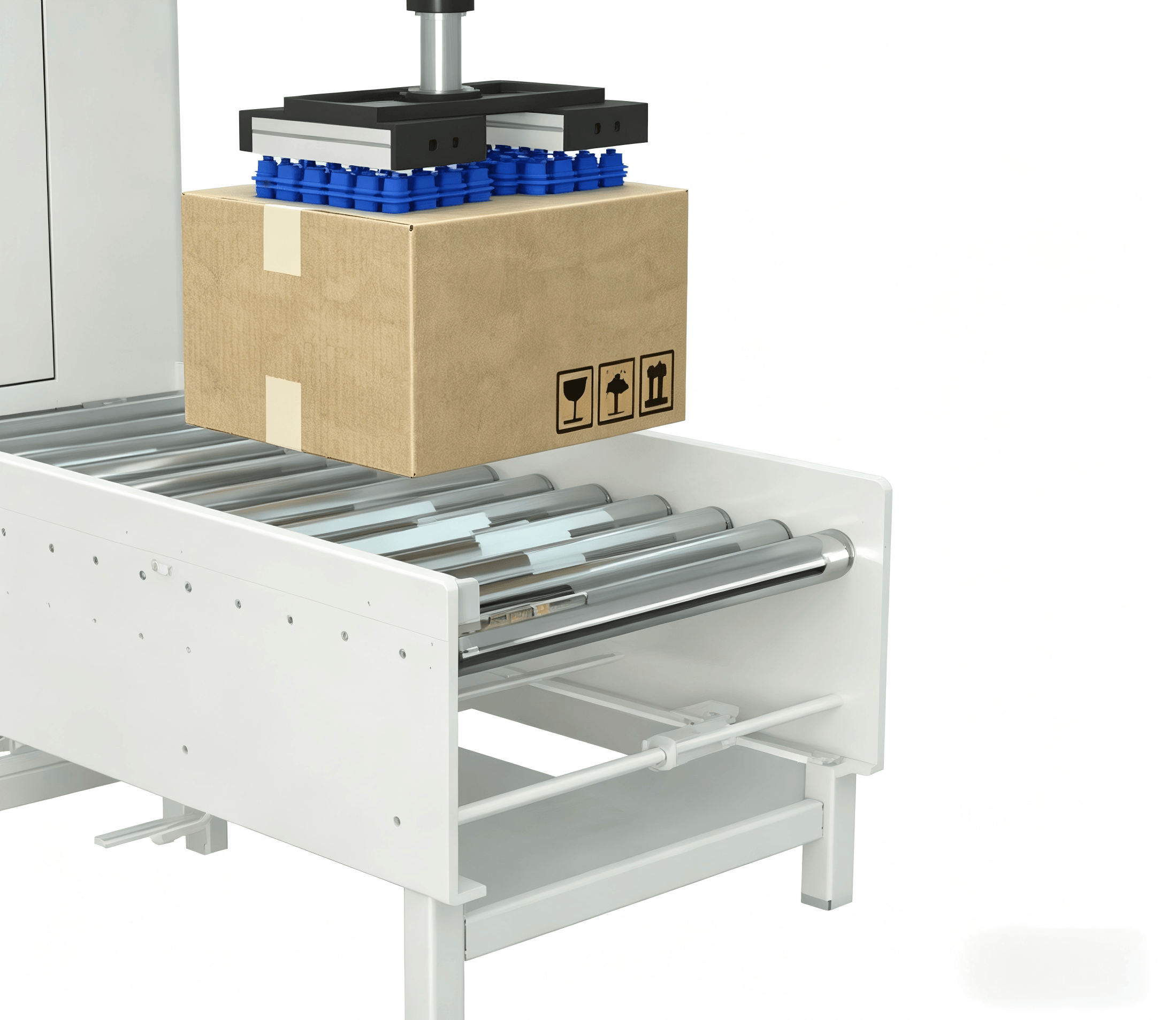

End Effector
- Silicone vacuum suction cup
- Durable, long service life, low maintenance
- Suitable for all flat‑surface cartons
- Optional clamps / special suction cups available
Typical Applications
- Food & beverage cartons
- Daily chemical & cosmetic boxes
- Pharmaceutical cartons
- Small hardware & metal product boxes
- Multi‑product, small‑batch production
Standard Configuration
- Motion controller: China
- Servo motor: China
- Gearbox: China
- Power supply: Mean Well (Taiwan)
- Linear guide: Füre (Germany)
- Circuit breaker: Zhengtai (China)
- Touch screen: China
- Vacuum cup: China
- Solenoid valve: AdTech (Taiwan)
Notes
- This product is continuously upgraded; actual configuration subject to contract.
- Customized solutions available based on customer requirements.
