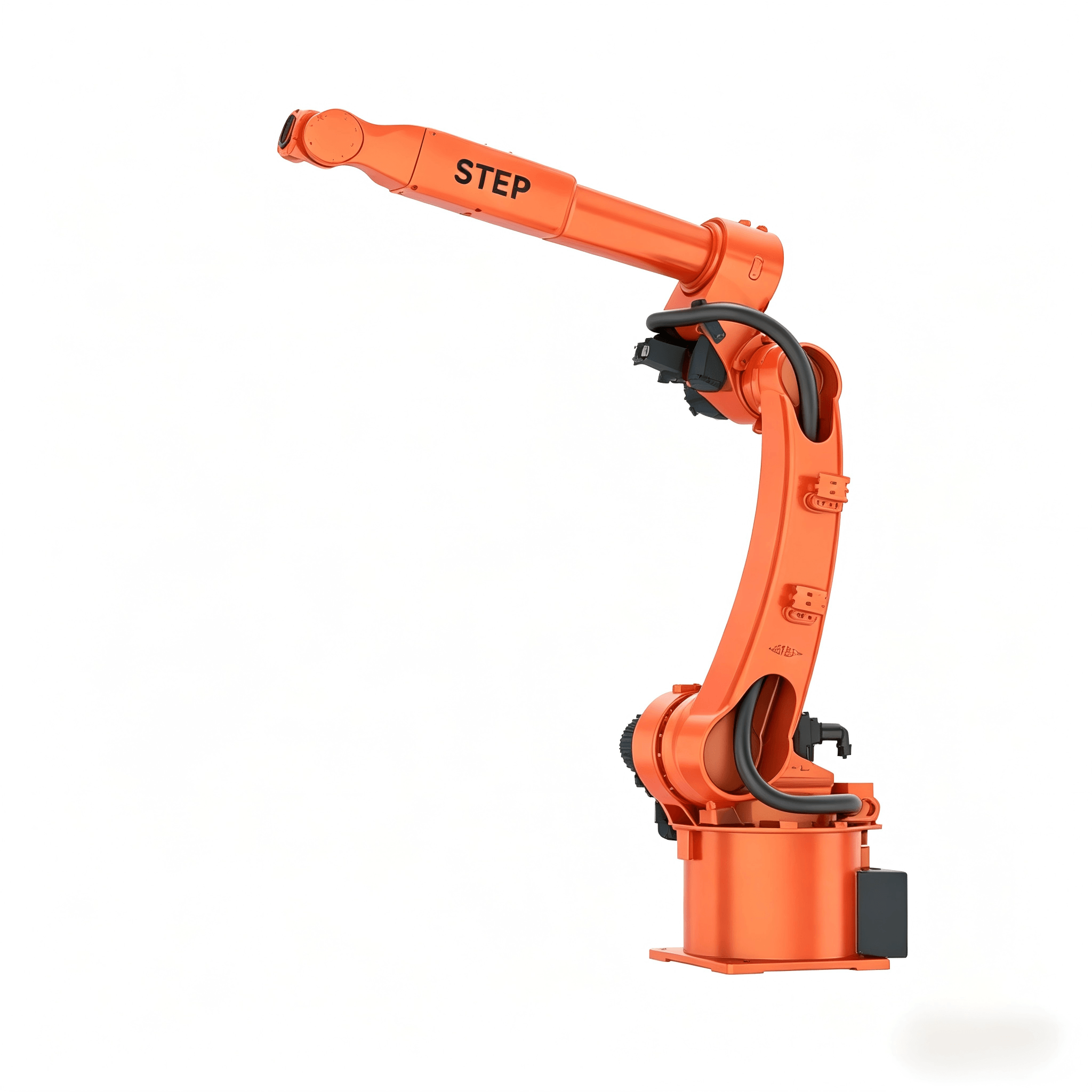

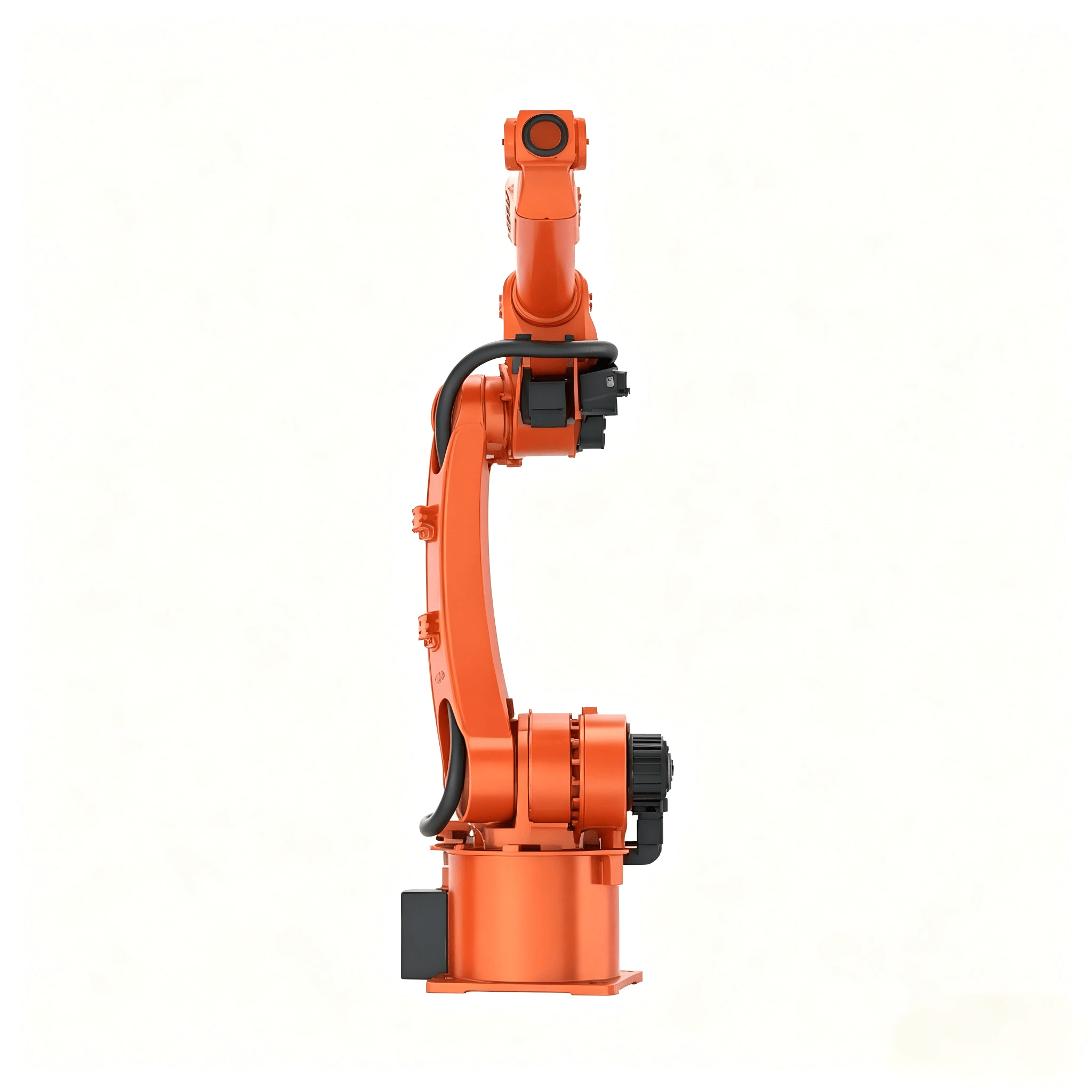

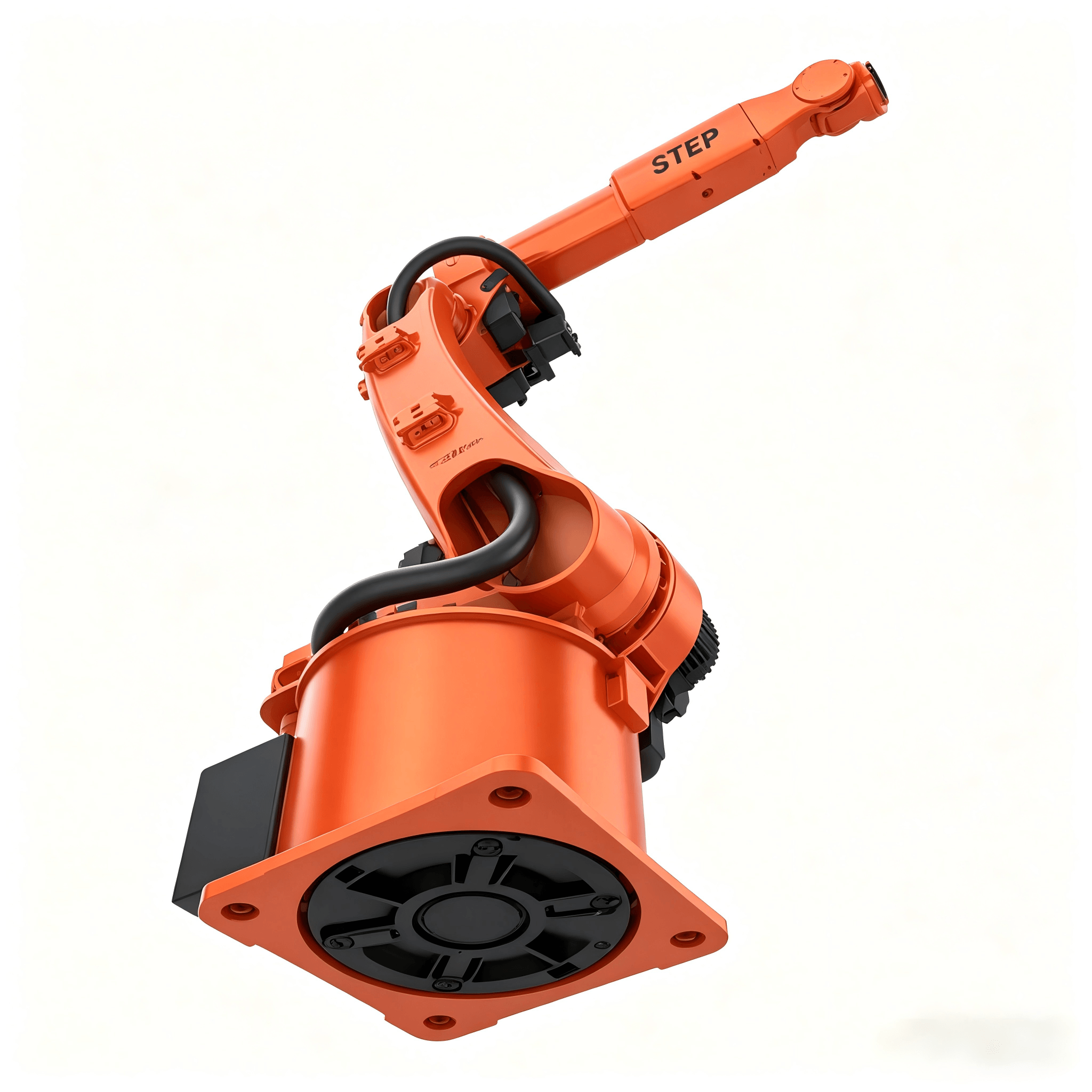

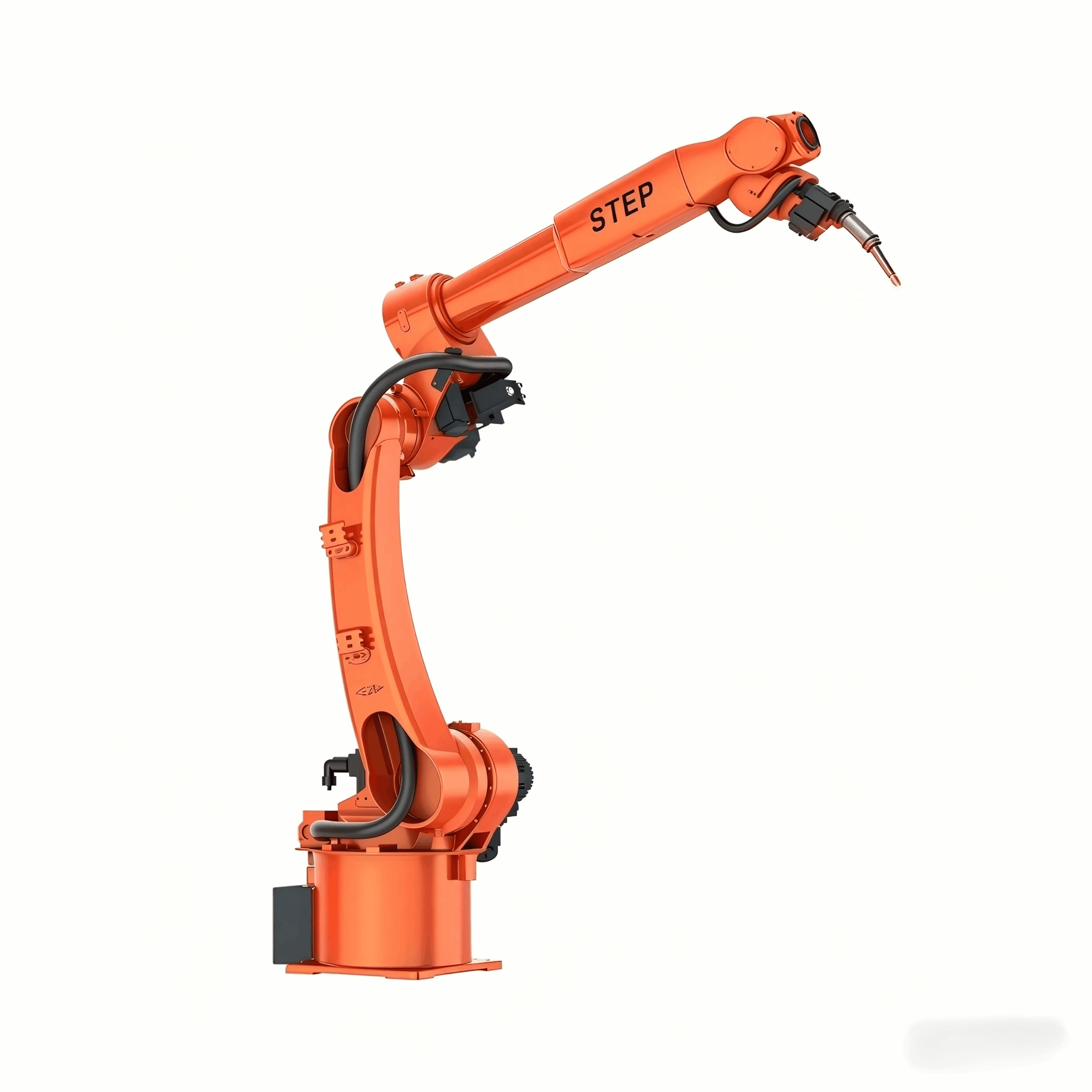

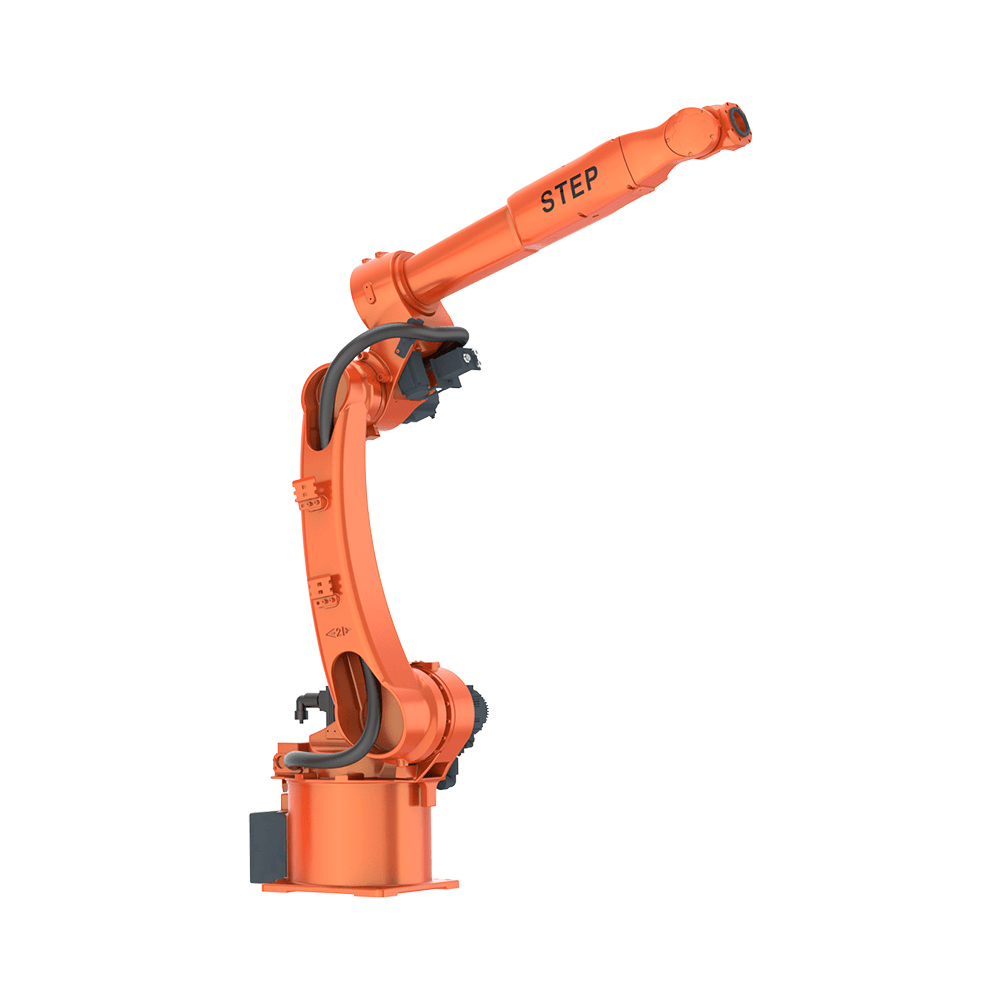

The SA12/2000H is a high-performance 6-axis industrial welding robot from STEP, specifically designed for automated welding of medium-to-large workpieces.
With a compact and agile design that supports full-position installation, it is ideal for automated production lines in industries including steel structure fabrication, construction machinery, shipbuilding, and automotive parts manufacturing.

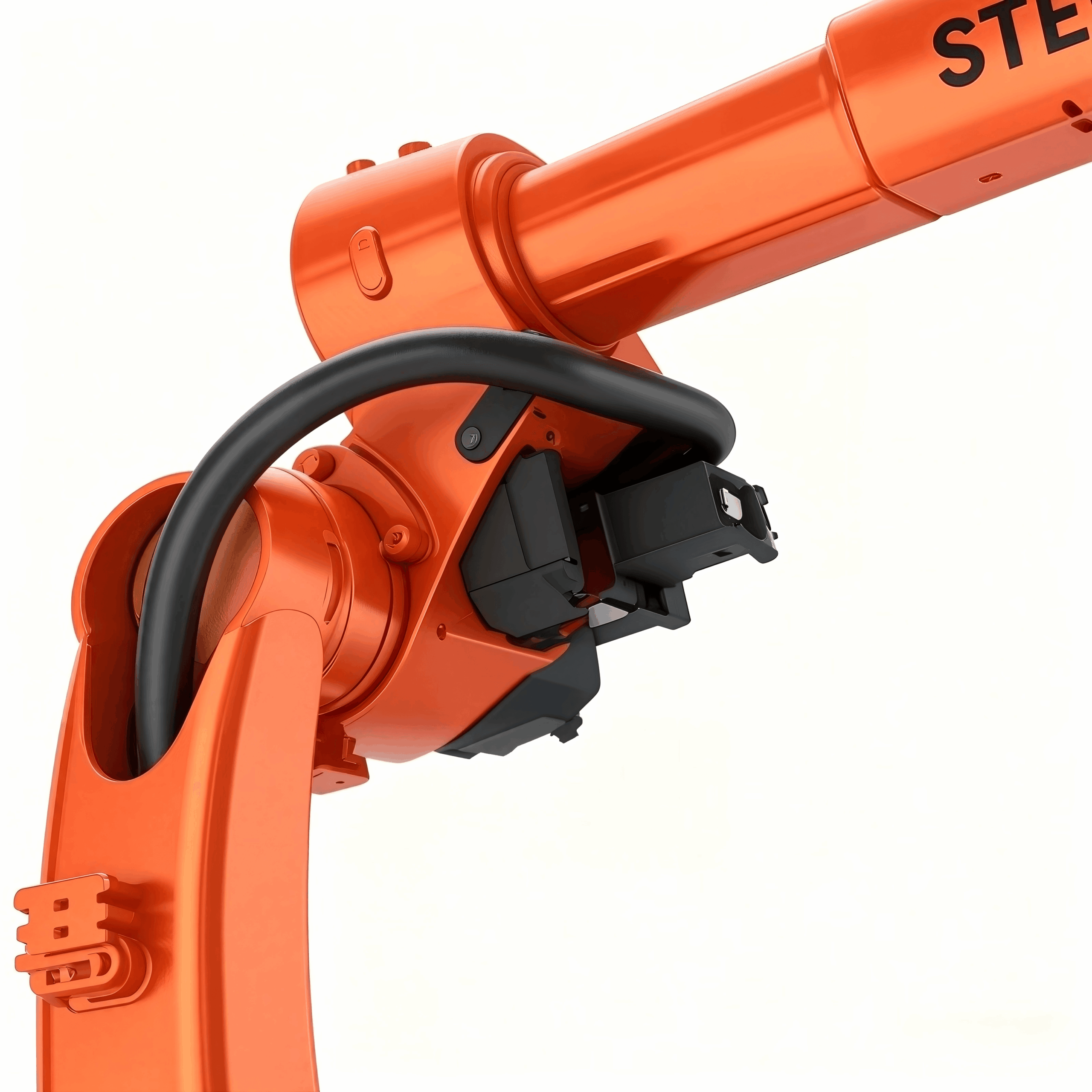

Its large-aperture hollow wrist design minimizes interference with built-in welding torch cables, significantly extending cable service life and reducing maintenance costs. Boasting an ultra-high repeat positioning accuracy of ±0.03mm and a maximum end linear speed of 2.5m/s, it delivers both precision and efficiency.
Equipped with full-parameter compensation and a high-order dynamic algorithm, it effectively improves motion trajectory accuracy to ensure consistent welding quality. The robust gear transmission structure provides excellent impact resistance, making it suitable for complex and harsh working environments.
Supporting multiple industrial communication protocols, it features easy integration and simple operation, making it the perfect choice for automated welding of medium-to-large workpieces.
- ✅ Compact and agile design, supports full-position installation for flexible production line integration
- ✅ Large-aperture hollow wrist reduces cable interference and extends service life
- ✅ ±0.03mm repeat positioning accuracy, maximum end linear speed up to 2.5m/s
- ✅ Full-parameter compensation & high-order dynamic algorithm for improved trajectory accuracy
- ✅ Robust gear transmission structure with strong impact resistance for complex working conditions
- ✅ Supports multiple industrial communication protocols, easy to operate and integrate
- ✅ 12kg payload + 2012mm maximum reach, ideal for medium-to-large workpiece welding
| Parameter | Specification |
|---|---|
| Model | SA12/2000H |
| Structure | Vertical Multi-Joint / Hollow Wrist |
| Number of Axes | 6 |
| Drive Method | AC Servo Drive |
| Maximum Working Radius | 2012mm |
| Repeat Positioning Accuracy | ±0.03mm |
| Maximum Wrist Payload | 12kg |
| Robot Weight | 210kg |
| IP Protection Rating | Main Body IP54 (Wrist IP67) |
| Maximum Operating Speed | J1: 190°/s
J2: 190°/s J3: 220°/s J4: 430°/s J5: 430°/s J6: 720°/s |
| Maximum Motion Range | J1: ±165°
J2: -80° ~ +163° J3: Handling: -193° ~ +80°; Welding: -80° ~ +80° J4: ±190° J5: Handling: ±180°; Welding: ±130° J6: Handling: ±450°; Welding: ±220° |
| Allowable Joint Torque | J4: 16.1N·m
J5: 16.1N·m J6: 5.9N·m |
| Allowable Joint Inertia | J4: 0.63Kgm²
J5: 0.63Kgm² J6: 0.061Kgm² |
| Air Pipe Configuration | 1-Φ6mm, 1-Φ8mm |
| Integrated Signal Cable | 16-Core |
| Installation Method | Floor, Wall Mount, Ceiling Mount |
| Working Environment | Ambient Temperature: 0~45°C
Ambient Humidity: ≤75%RH (≤95%RH for short-term, no condensation) Vibration Requirement: ≤0.5G (4.9m/s²) |
| Noise Level | ≤80dB (A) |
| Typical Applications | Welding, Loading/Unloading, Assembly |
For detailed quotation, customized automation solutions, or full technical datasheet of SA12/1490H, please feel free to contact us:
Phone: +86-18616229203
Email: info@sharpzu.com
WhatsApp/WeChat: +86 18616229203
We will provide professional technical support and respond within 24 hours.
