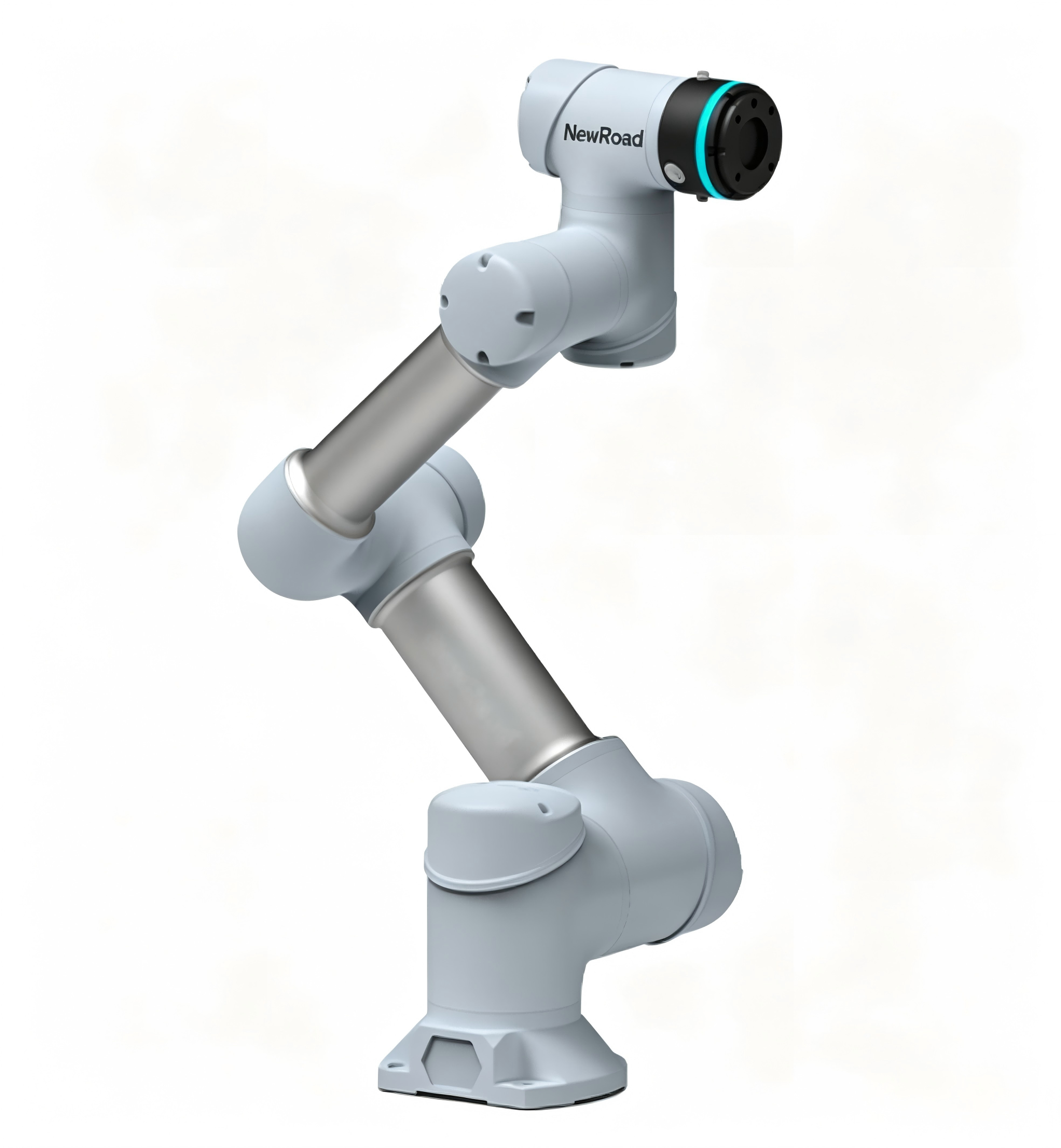

NewRoad GCR3-618 Collaborative Robot

Product Overview

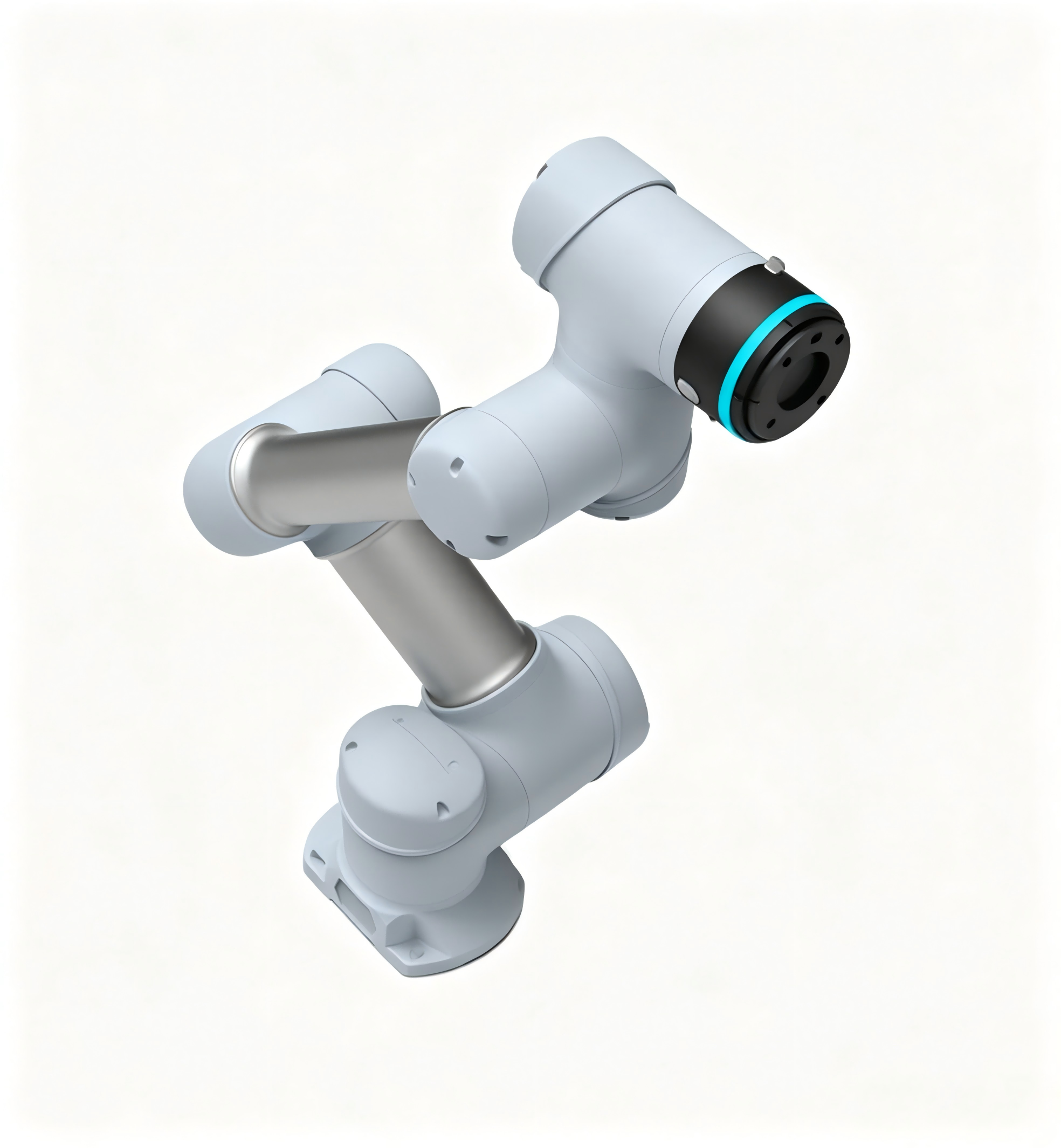

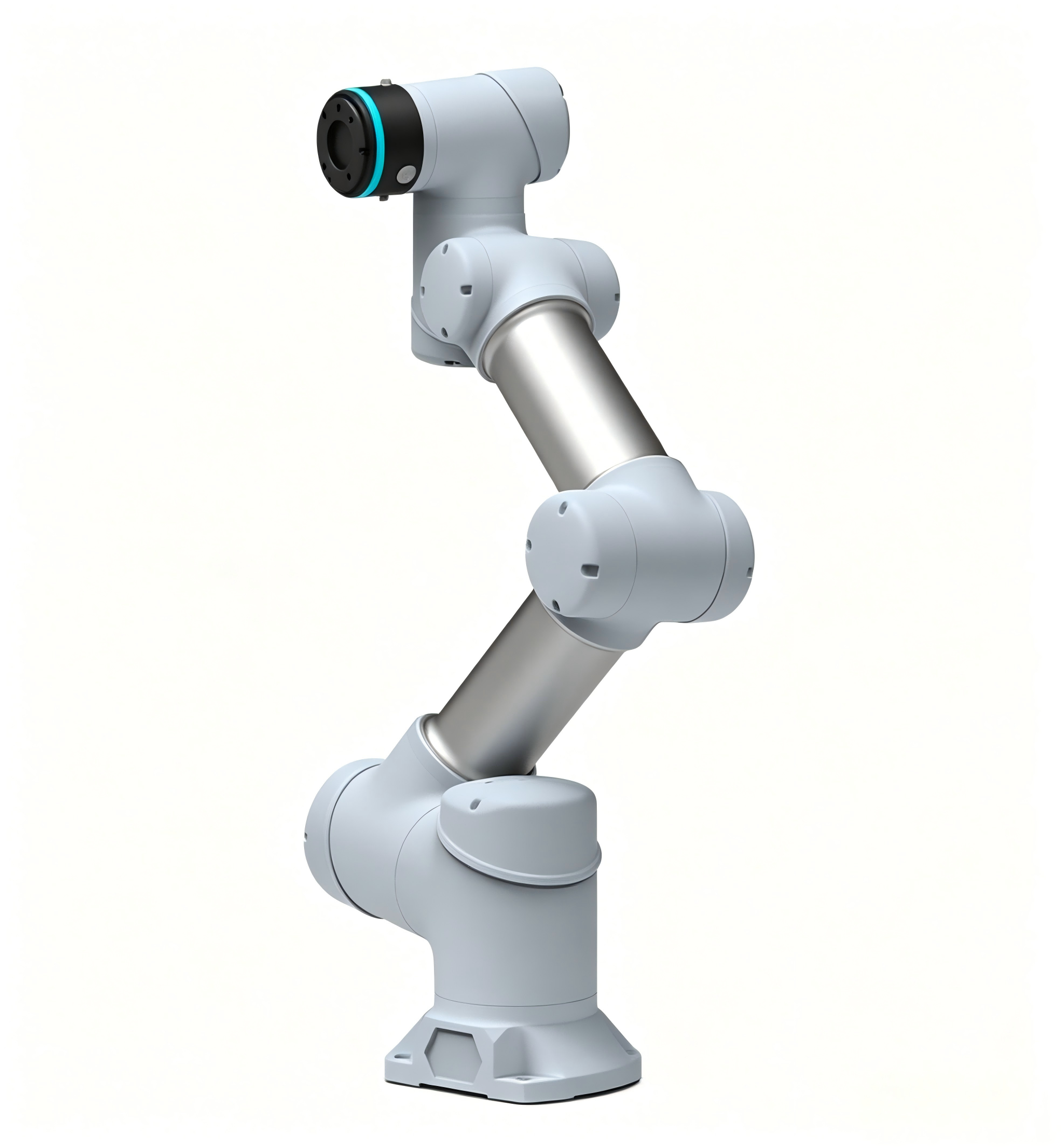

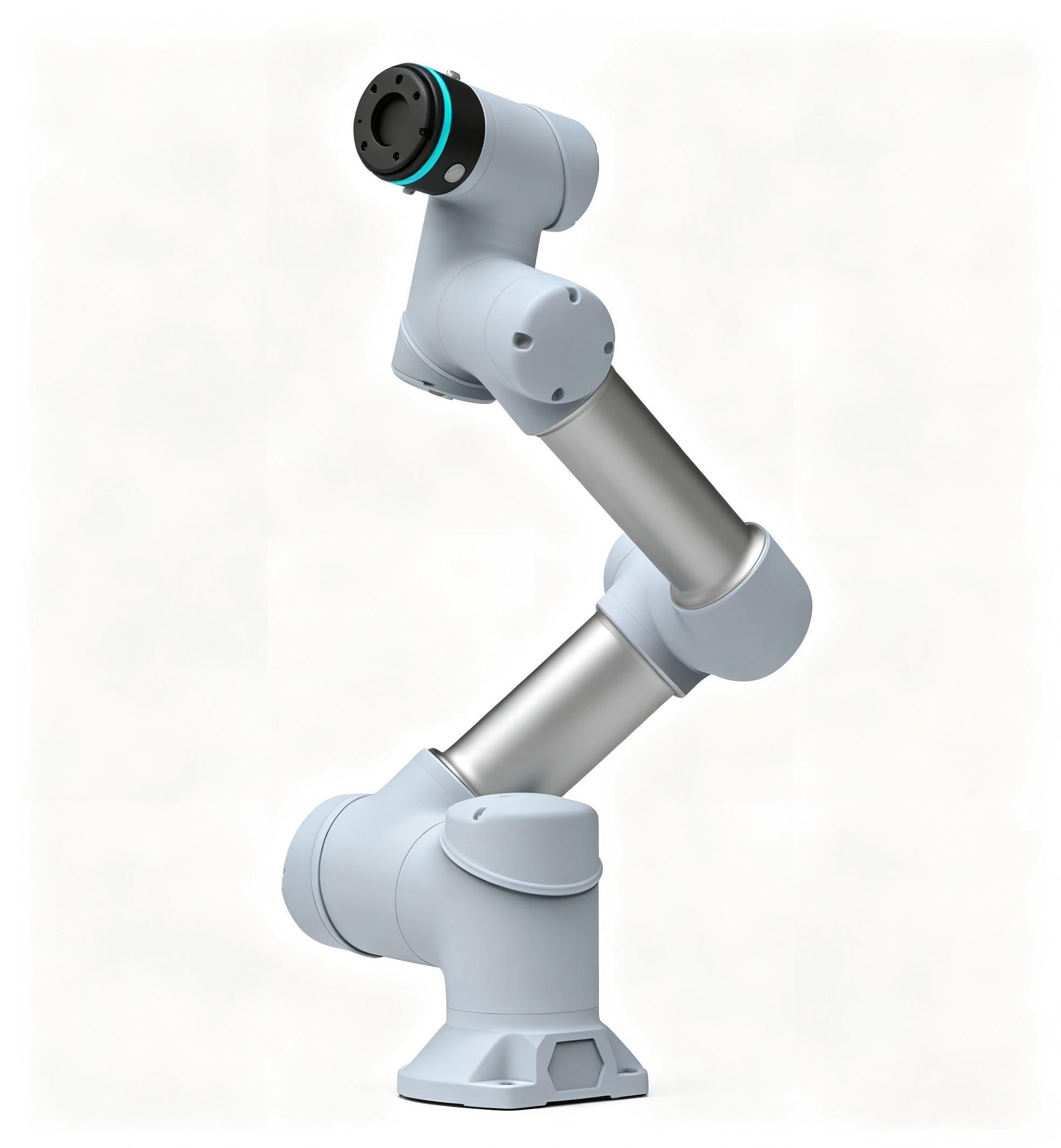

This 6-axis lightweight collaborative robot features cylindrical arm design, compact structure, high precision and flexible operation. It supports free installation without safety fences, realizes safe human-machine collaboration, and is widely used in mobile phone assembly, electronic parts fitting, precision picking and placing, testing and other automated production processes. Easy programming, fast deployment and strong universality perfectly meet small-batch and diversified production demands.

Technical Parameters

Item	Specification
Degree of Freedom	6 Axes
Rated Load	3kg
Max Working Radius	618mm
Repeat Positioning Accuracy	±0.02mm
Max Joint Speed	225°/s
End Linear Speed	0.8m/s
Installation Mode	Floor / Wall-mounted / Inverted installation
Protection Grade	IP54
Working Temperature	-10℃ ~ 50℃
Communication Protocol	Modbus, TCP/IP, Profinet
Power Supply	100-200V AC
Average Power Consumption	200W

Core Advantages

High Precision & Stable Performance

Ultra-high repeated positioning accuracy ensures consistent operation quality, ideal for delicate mobile phone assembly and micro-component processing.
Safe Human-machine Cooperation

Built-in collision detection function, automatically stop when touching obstacles, no safety fence required, save workshop space effectively.
Easy Operation & Quick Debugging

Hand drag teaching design, no complex professional programming needed. Workers can set running tracks quickly and complete production line switching in short time.
Flexible Layout & Wide Compatibility

Small body size fits narrow working stations. It can be matched with vision system, gripper and various auxiliary toolings to finish multiple working procedures.

Application Scenarios

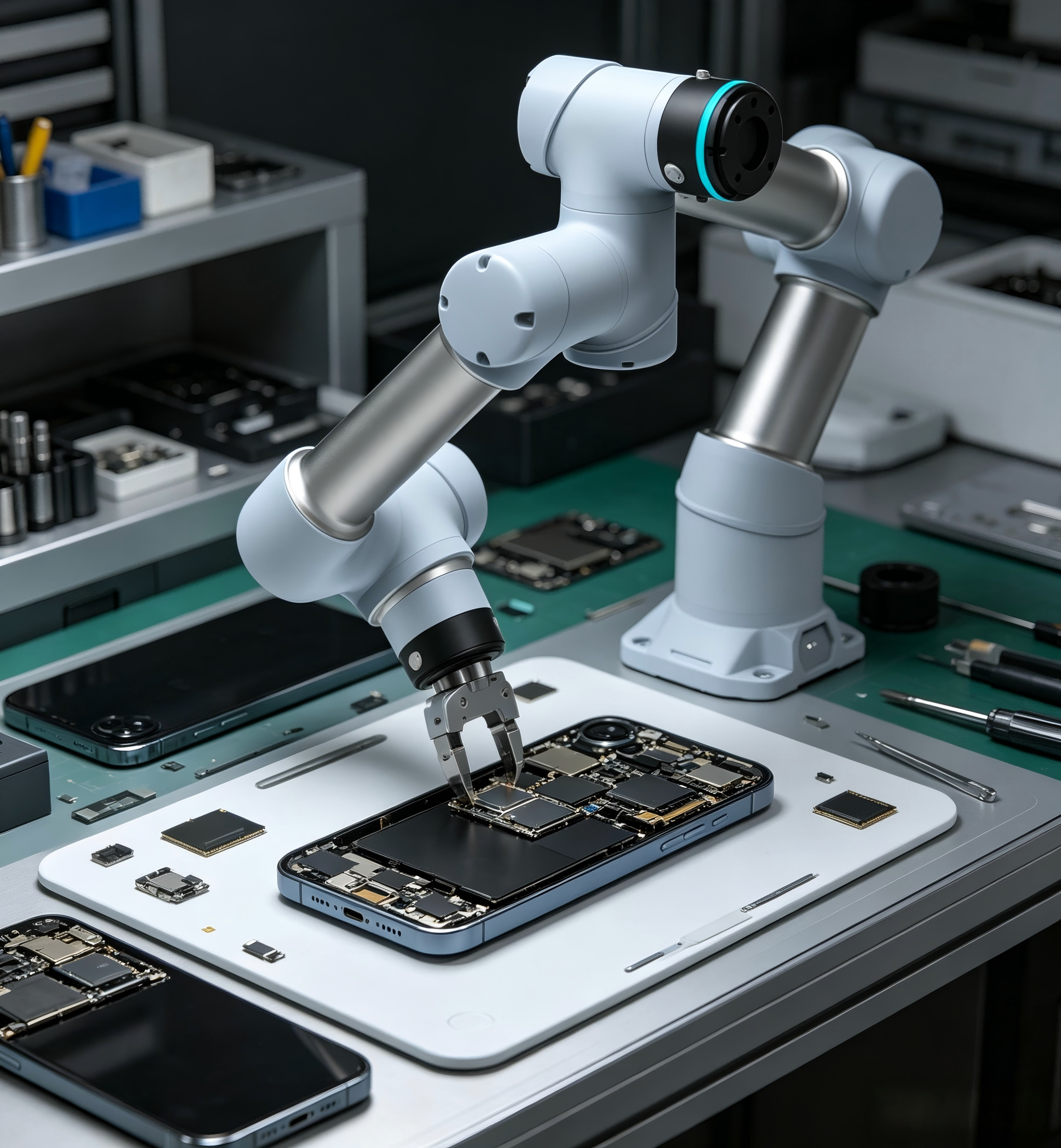

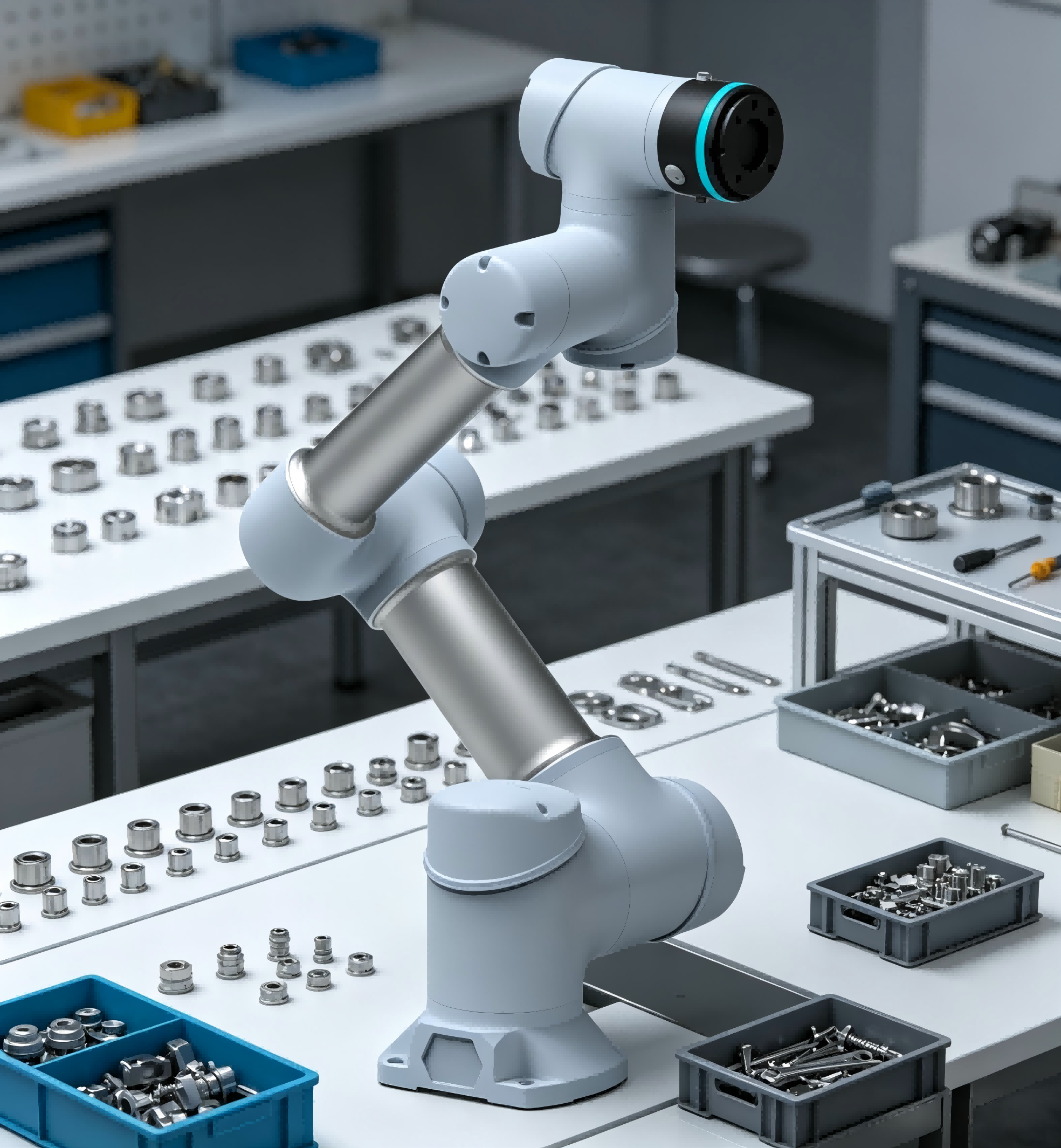

Mobile phone internal parts assembly, screen fitting, screw locking, electronic component sorting, product appearance inspection, small parts transferring and other 3C electronic industry automatic production works.

Portable Mobile Workstation Matching

Equipped with universal movable base, the whole workstation can be moved freely in the workshop. No ground reconstruction is needed, plug and play, greatly improve equipment utilization rate and reduce overall production input cost.
