GCR5-910 Collaborative Robot
Visual Design Style
Minimalist industrial style, dark grey & light grey with tech blue tone, neat hard lines and ample blank space.
Banner Section

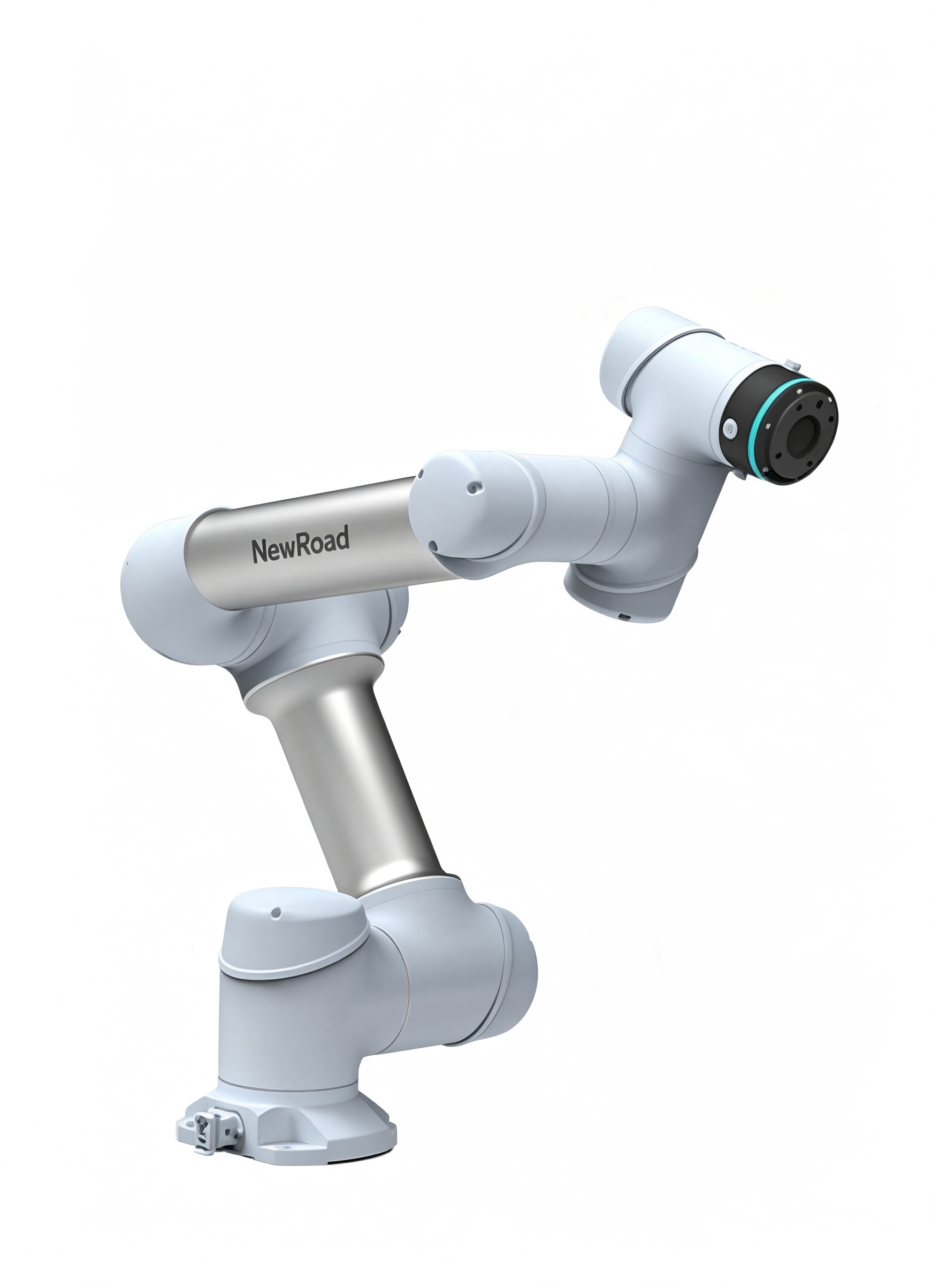

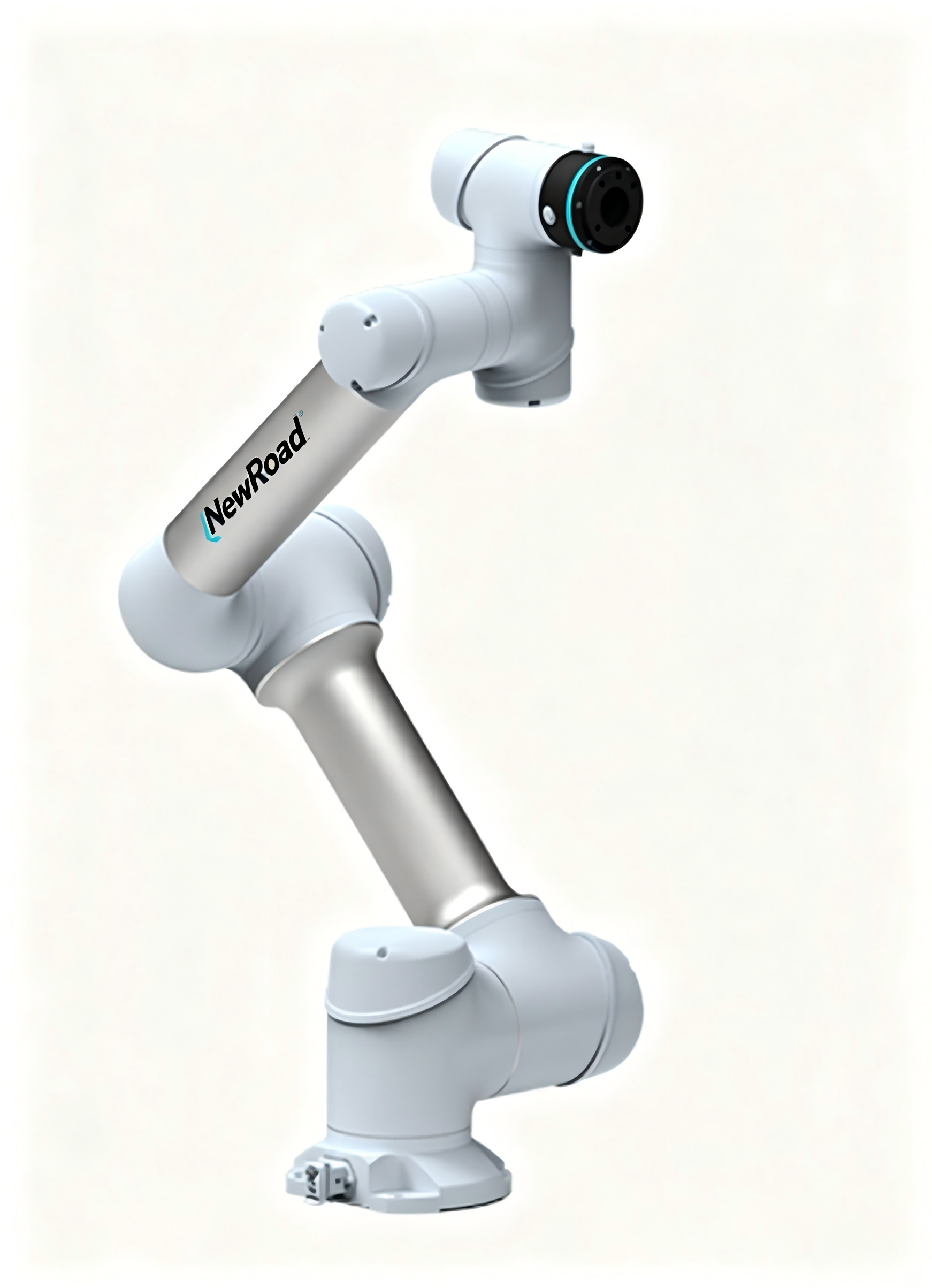

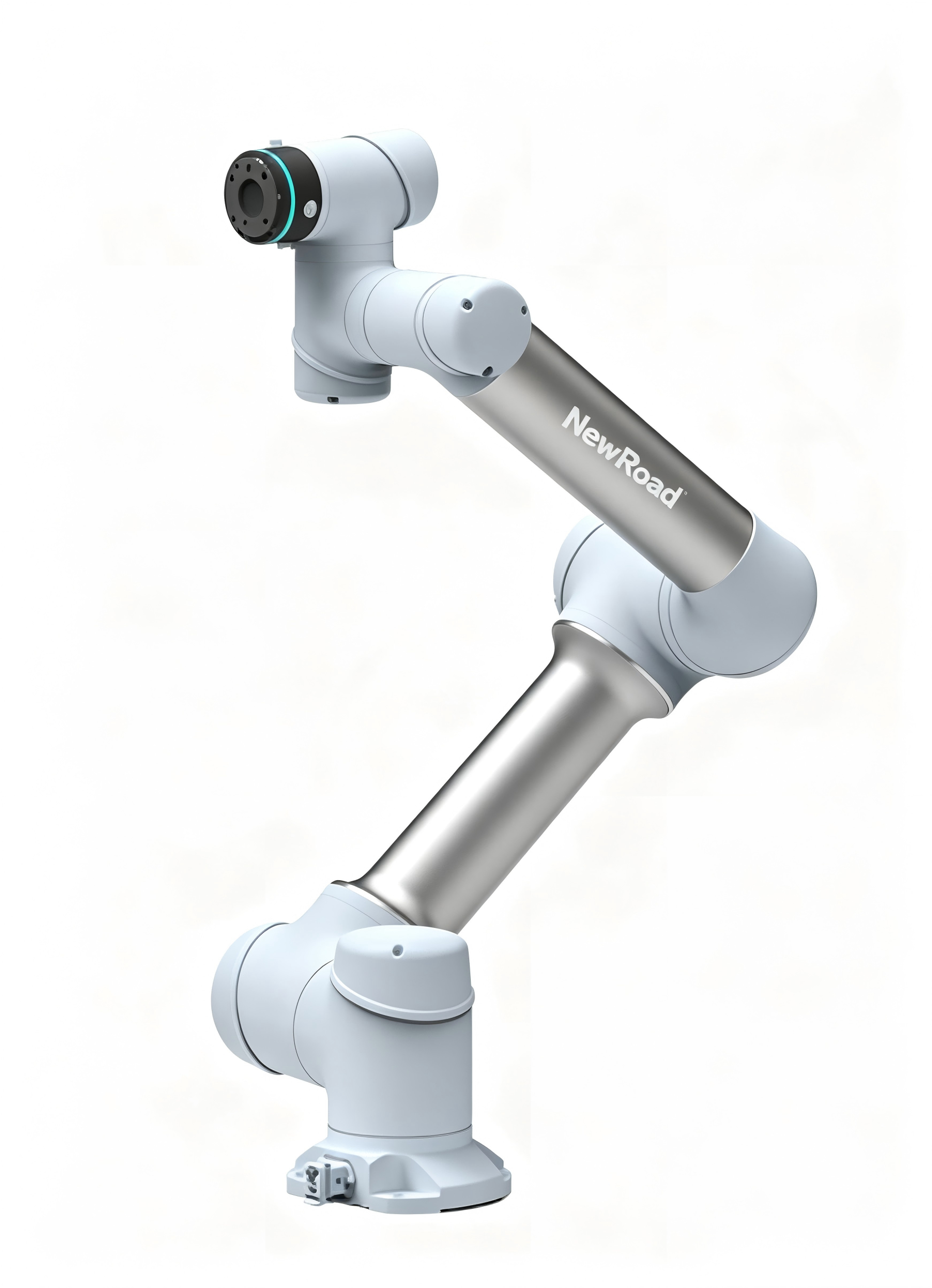

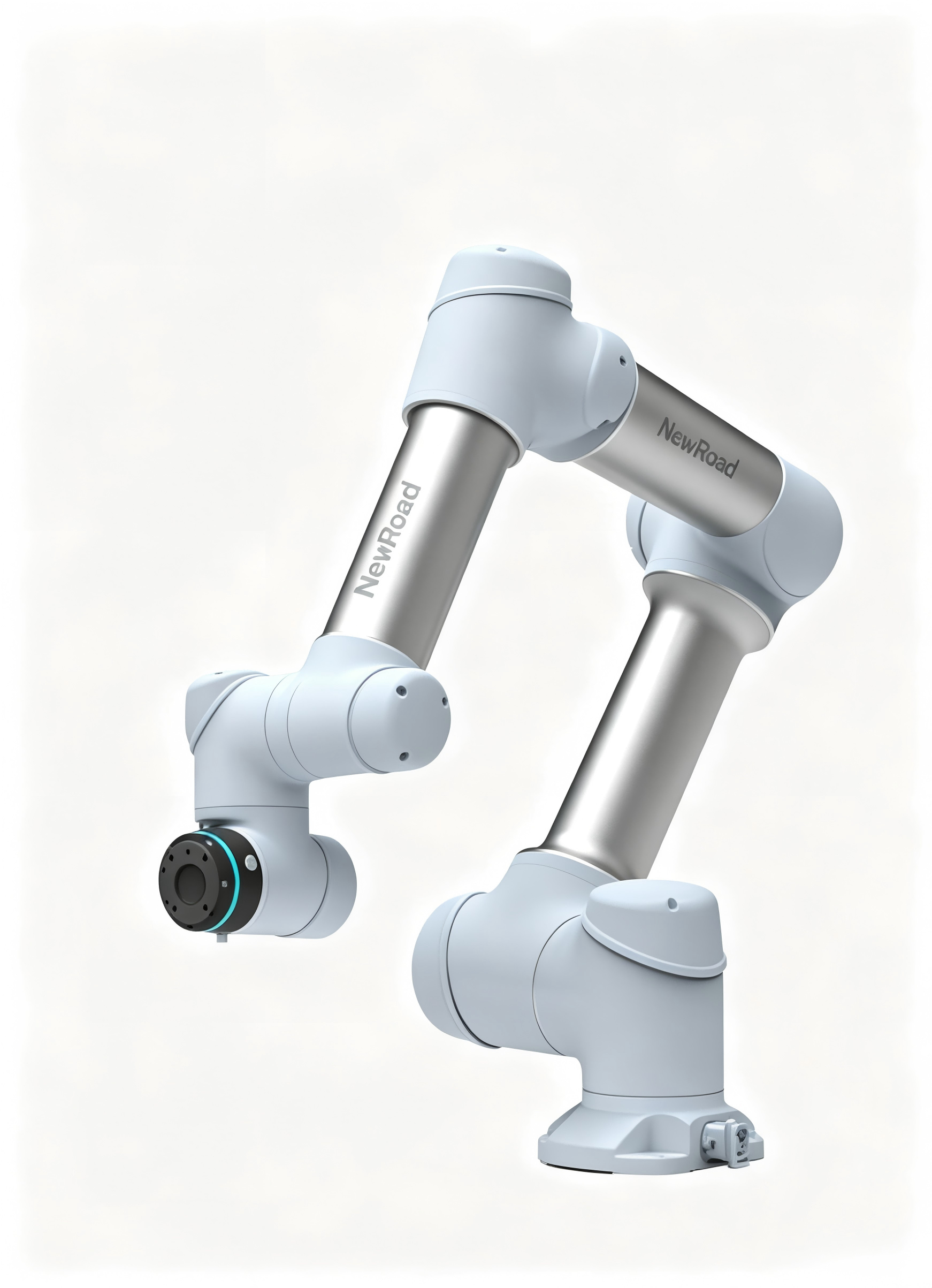

Visual: 4 multi-angle & working posture images in gluing workstation, NewRoad logo on arm, black shaft as flange
Title: GCR5-910 6-Axis Collaborative Robot
Subtitle: 5kg Payload | 917mm Reach | ±0.02mm Repeatability
Core Parameters
- Maximum Reach: 917mm
- Rated Payload: 5kg
- Repeat Positioning Accuracy: ±0.02mm
- Max End Speed: 3.6m/s
Product Overview
The GCR5-910 is a high-performance 6-axis collaborative robot. Compact and lightweight structure allows omnidirectional mounting. Full 360° rotation of all joints delivers outstanding flexibility. Rated IP54/IP65 protection adapts harsh workshop conditions. Compatible with mainstream industrial buses for easy line integration. Widely applied in gluing, loading & unloading, welding, inspection, assembly and screw fastening.
Key Advantages
- High Precision: ±0.02mm repeatability for precise processing
- Flexible Motion: 360° joint rotation without dead working angle
- High Efficiency: Fast movement improves production cycle
- Universal Communication: Supports Profinet, Modbus, EtherNet/IP
- Tough Adaptability: Stable operation from -10℃ to 50℃
- Easy Deployment: Floor, ceiling and side wall mounting available
Technical Specifications
Robot Main Body
| Item | Specification |
|---|---|
| Rated Payload | 5kg |
| Maximum Reach | 917mm |
| Max TCP Speed | 3.6m/s |
| Linear Speed | 1.5m/s |
| Repeatability | ±0.02mm |
| Degrees of Freedom | 6 |
| Protection Class | IP54/IP65 |
| Joint Rotation Range | ±360° |
| Max Joint Speed | 225°/s |
| Tool Flange Standard | GB/T14468.1-50-4-M6 |
| End I/O | 2DI, 24V, 0.6A |
| Power Supply | 100-200VAC, 47-63Hz |
| Power Consumption | 200W |
| Mounting Type | Omnidirectional |
| Operating Temperature | -10℃ ~ 50℃ |
| Storage Temperature | -40℃ ~ 55℃ |
Controller
| Parameter | DC30D | DC15S |
|---|---|---|
| Input Voltage | 100-240VAC | 100-240VAC |
| Rated Output | 48V 1000W | 48V 600W |
| Weight | 13.8kg | 13.6kg |
| Humidity Range | 20%-70%RH | 20%-70%RH |
| Protection Class | IP44 | IP44 |
| Noise Level | ≤55dB | ≤55dB |
| Interface | CAN, RS485, LAN, EtherCAT | Same |
| User I/O | 16DI / 16DO | Same |
Teach Pendant
10.4-inch capacitive touch screen, 800*600 resolution
Operating temp: 0℃~50℃, IP54 protection
Supporting Equipment
Robot arm multi-angle views, gluing working scene, controller and teach pendant display
Application Fields
- Gluing: Stable track ensures uniform coating
- Loading & Unloading: Automatic material handling
- Welding: Smooth path for fine welding effect
- Precision Inspection: Accurate dimension & appearance detection
- Assembly: Flexible fitting for various workpieces
- Screw Fastening: Stable force and positioning control
