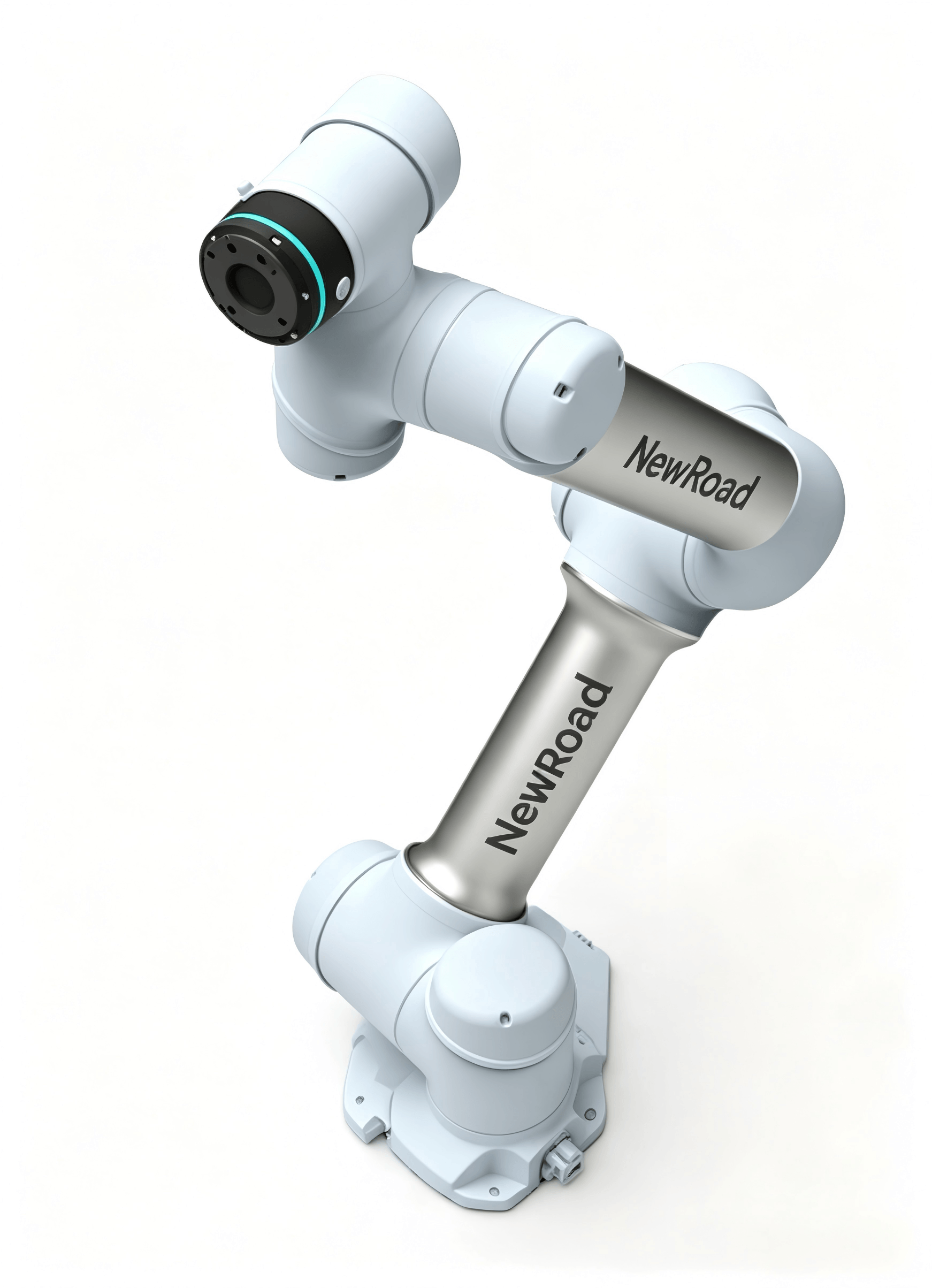

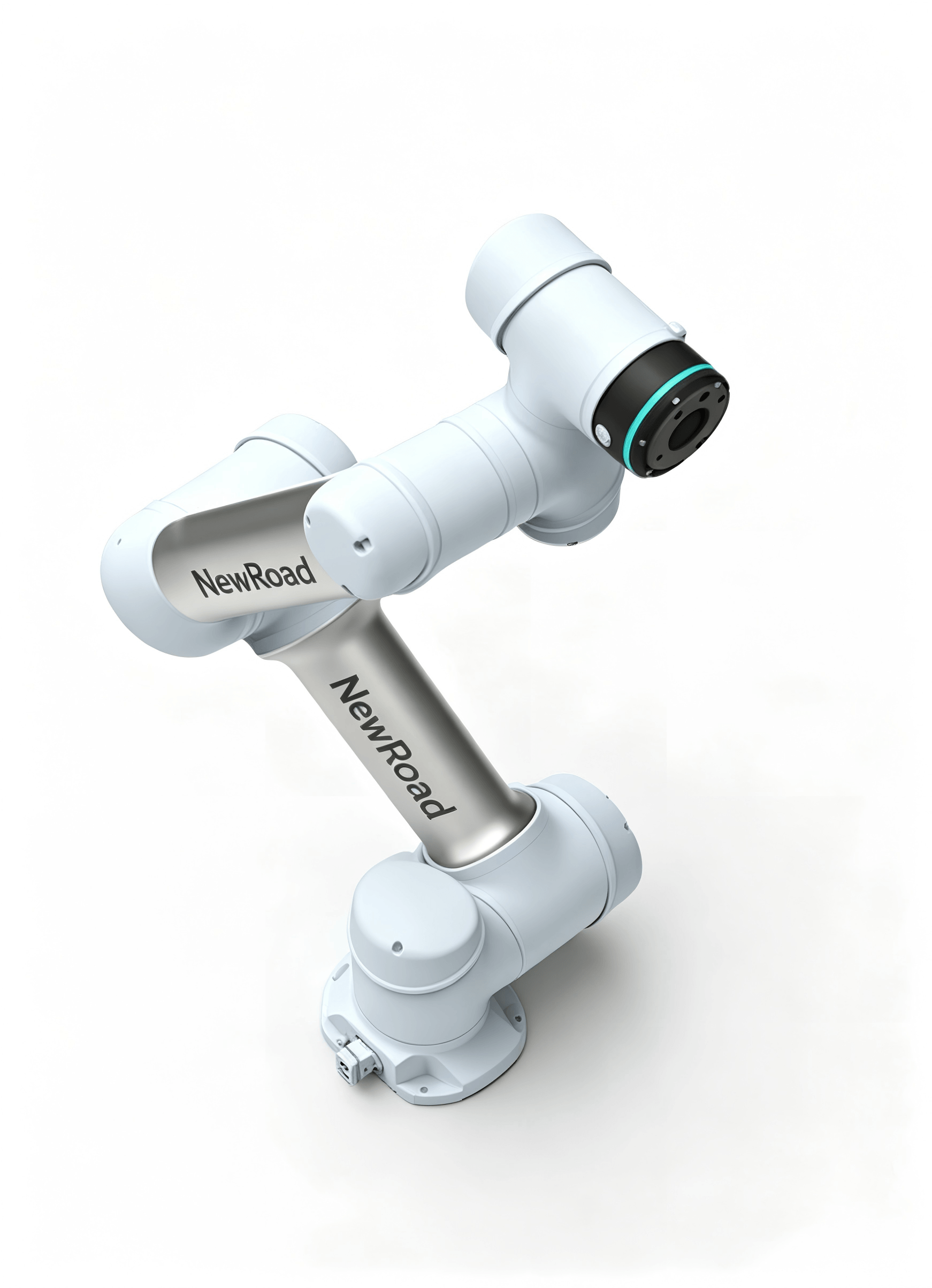

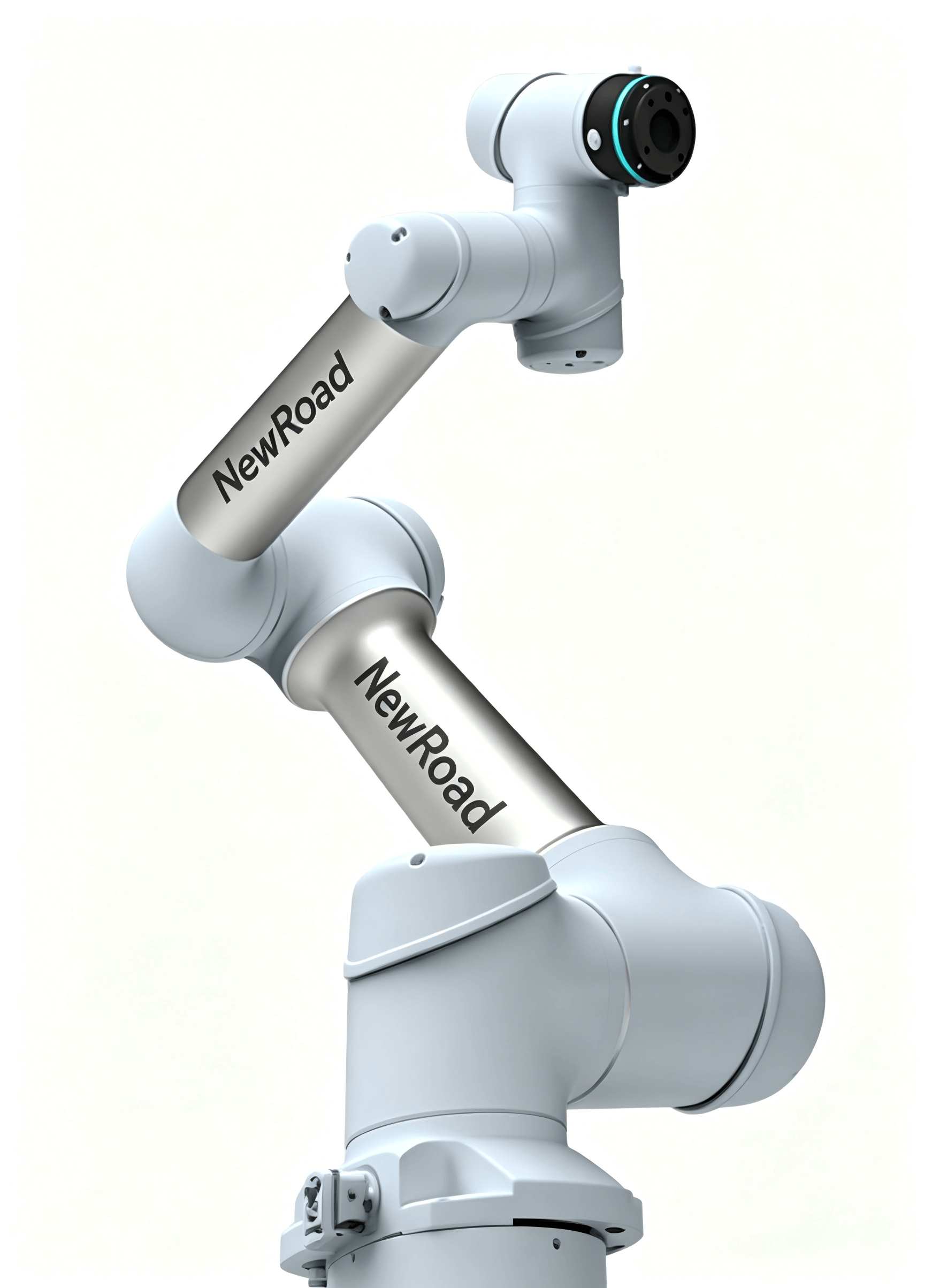

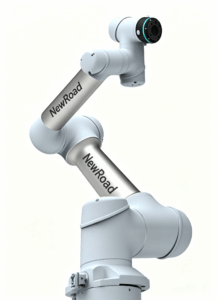

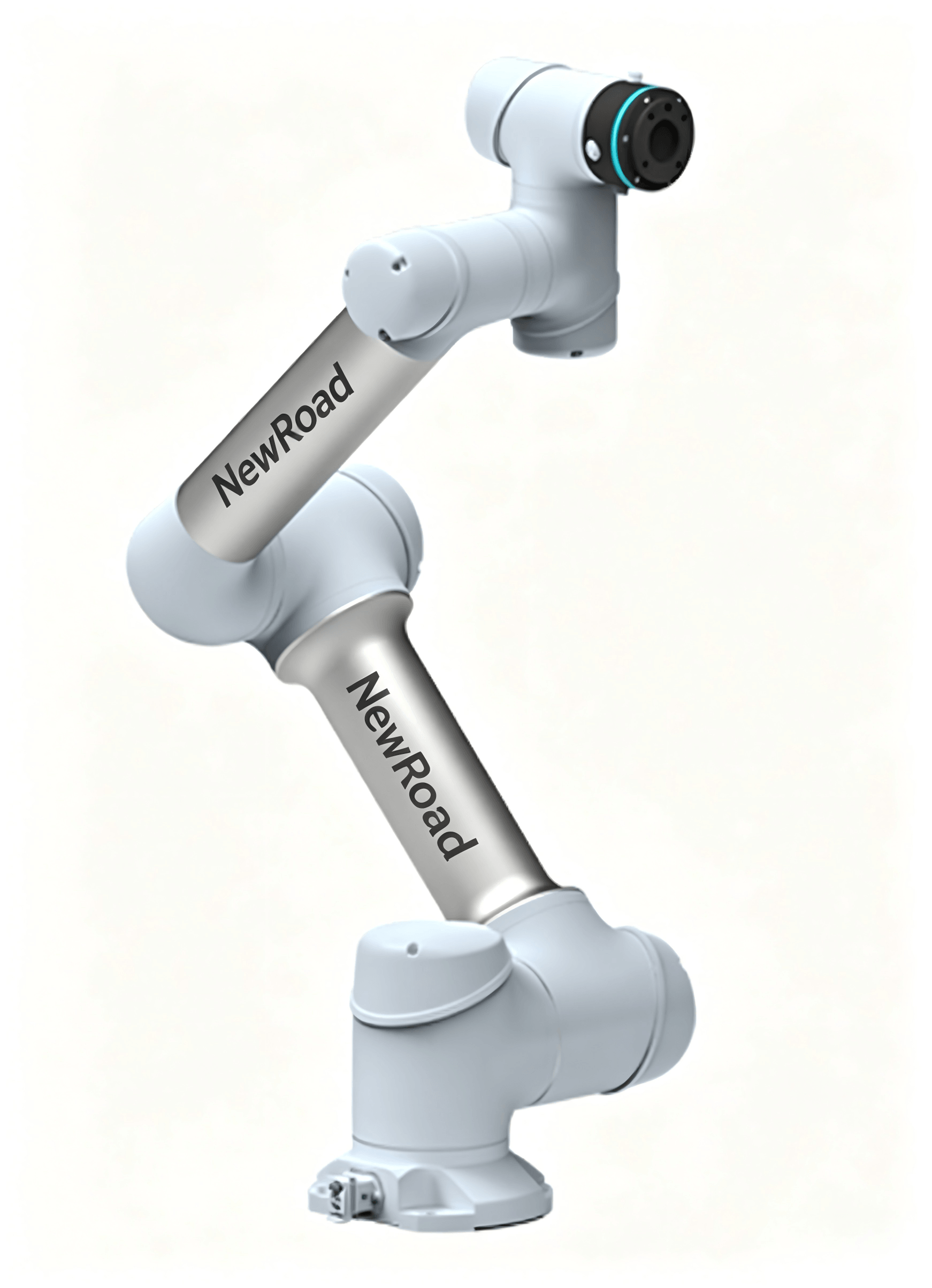

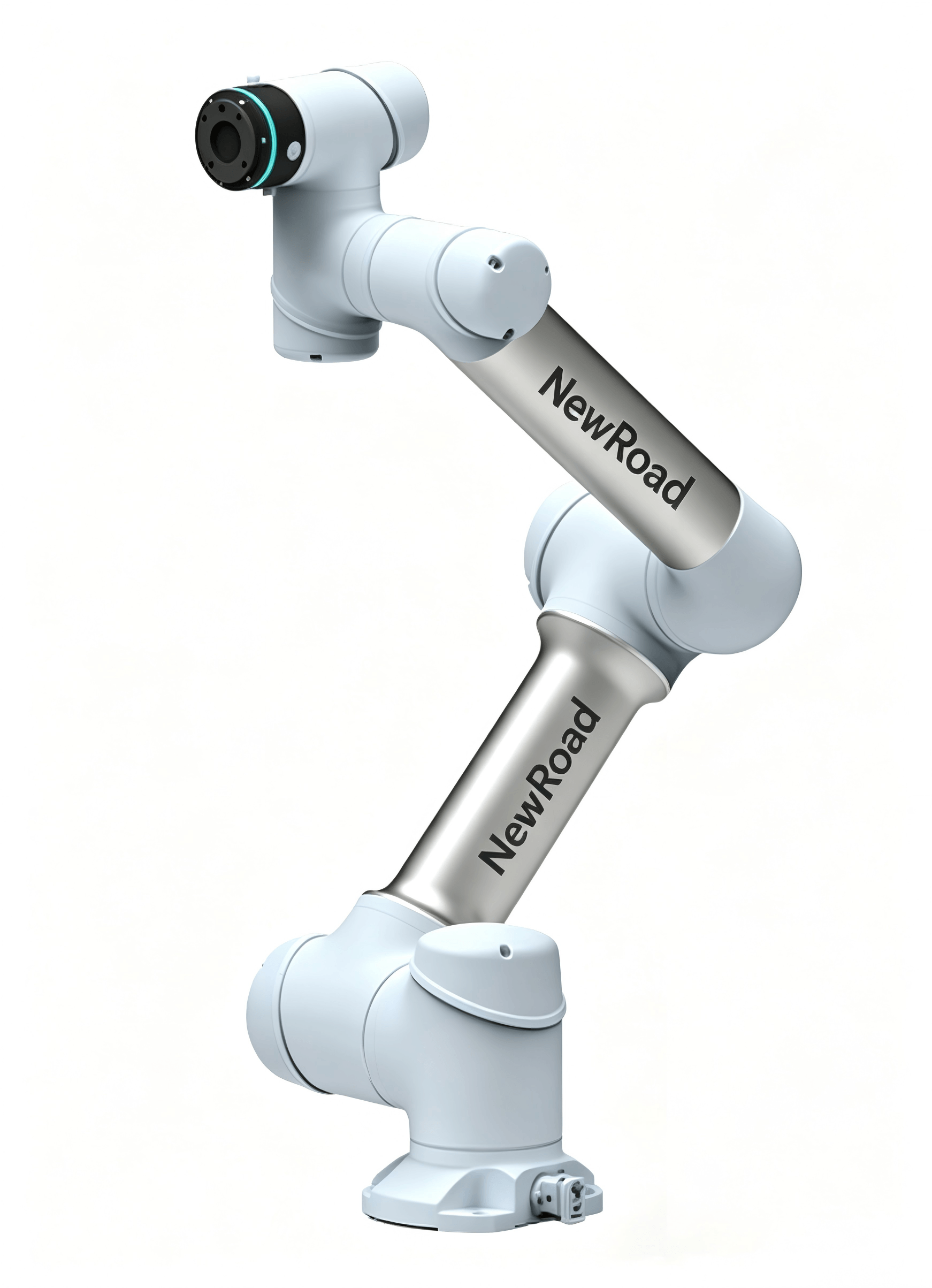

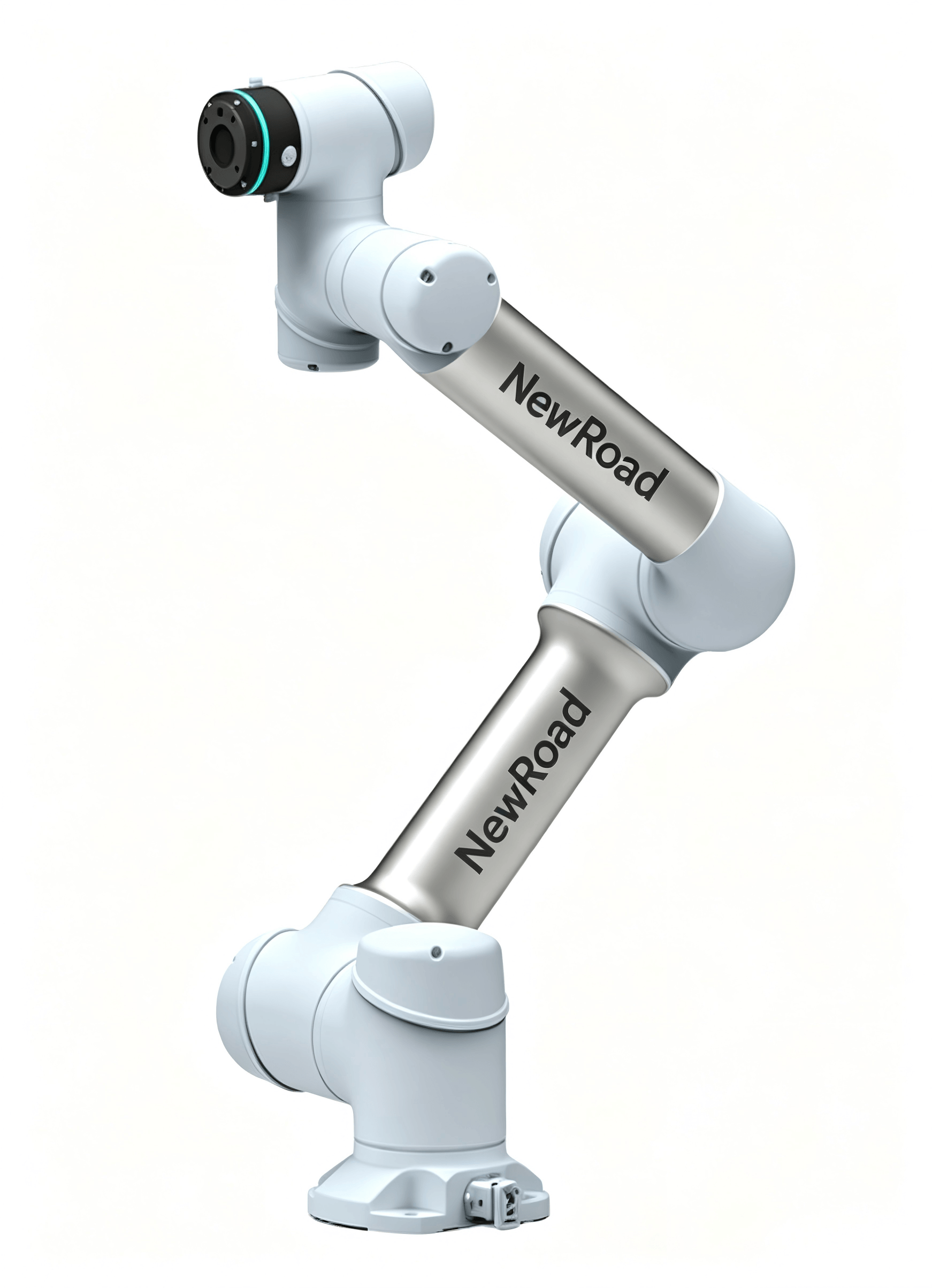

The GCR7-910 is a 7kg-class universal 6-axis collaborative robot. Adopting high-performance integrated joint design, it features a 917mm effective working radius and ultra-high repeat positioning accuracy of ±0.02mm. It combines high-speed operation, precise performance and inherent human-machine safety.

With a compact and lightweight body, it supports omni-directional mounting and enables fenceless human-robot collaboration. Compatible with multiple industrial protocols, it perfectly fits multi-variety and small-batch flexible production. Widely used in screw locking, CNC machine tending, welding, dispensing, precision inspection and component assembly, it features low power consumption and easy deployment to greatly reduce automation upgrading costs.

✅ Ultra-High Precision Positioning

Repeat positioning accuracy up to ±0.02mm, fully meeting high-precision requirements for assembly, screw fastening and inspection processes.

✅ High-Speed & Stable Motion

Max end speed 3.6m/s, linear speed 1.5m/s. All six joints support ±360° full-range rotation for higher working efficiency.

✅ Flexible Omni-Directional Installation

Available for floor, wall-mounted and inverted mounting. Small footprint, ideal for narrow workstations and production line renovation.

✅ Industrial-Grade Protection

Body IP54 and wrist IP65 dustproof & oil-proof design, stable operation under harsh workshop temperature and humidity conditions.

✅ Multi-Protocol Communication

Supports TCP/IP, Modbus/Tcp, Profinet and Ethernet/IP, seamlessly connecting with CNC machines, production lines, PLC and automation peripherals.

✅ Low Power & Easy Maintenance

Typical power consumption only 200W. Modular structure ensures simple maintenance and stable 24/7 operation.

Main Technical Specifications
