COBOT Payload 10KG Reach 1300MM GCR10-1300

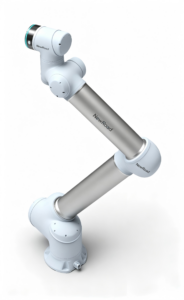

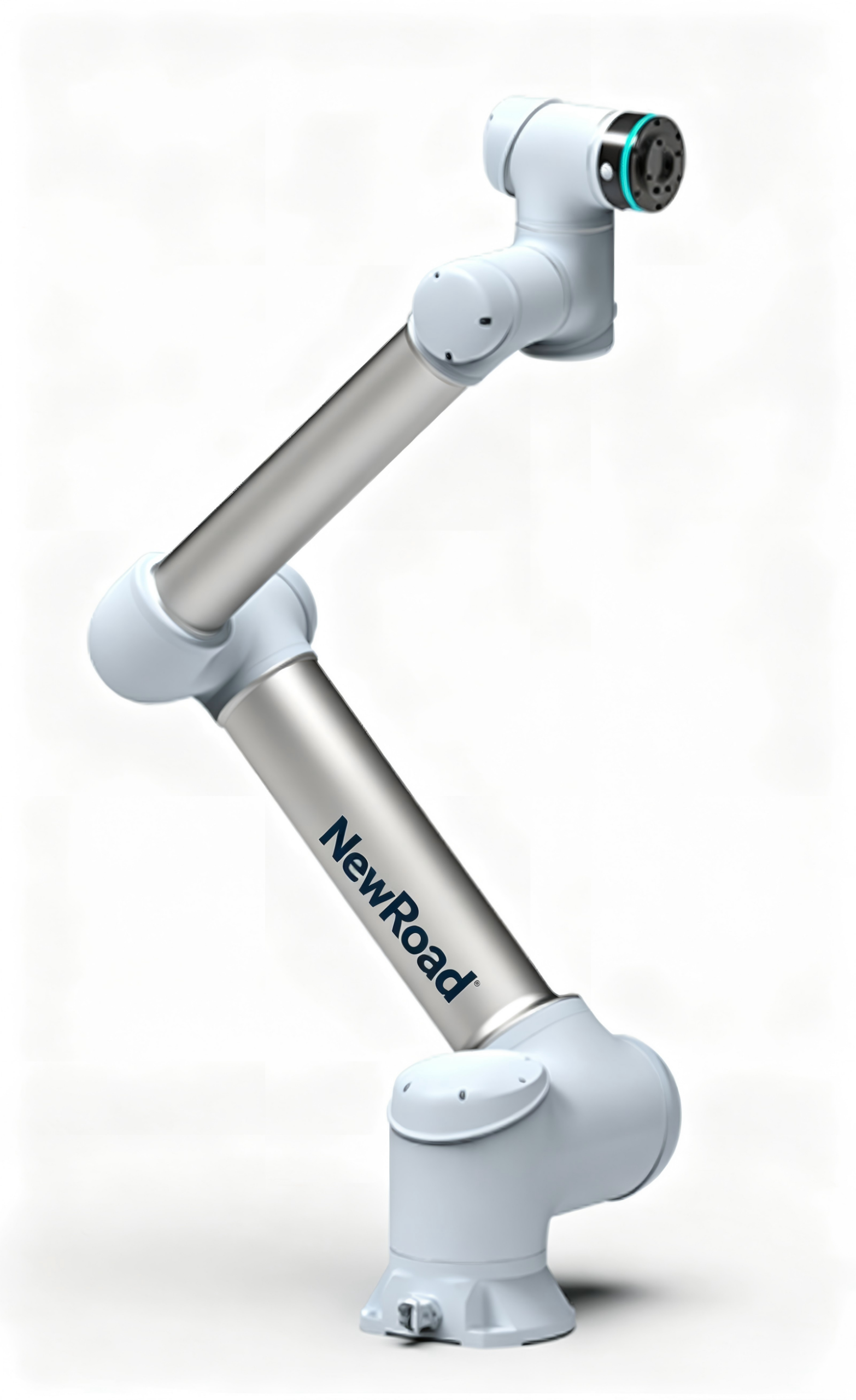

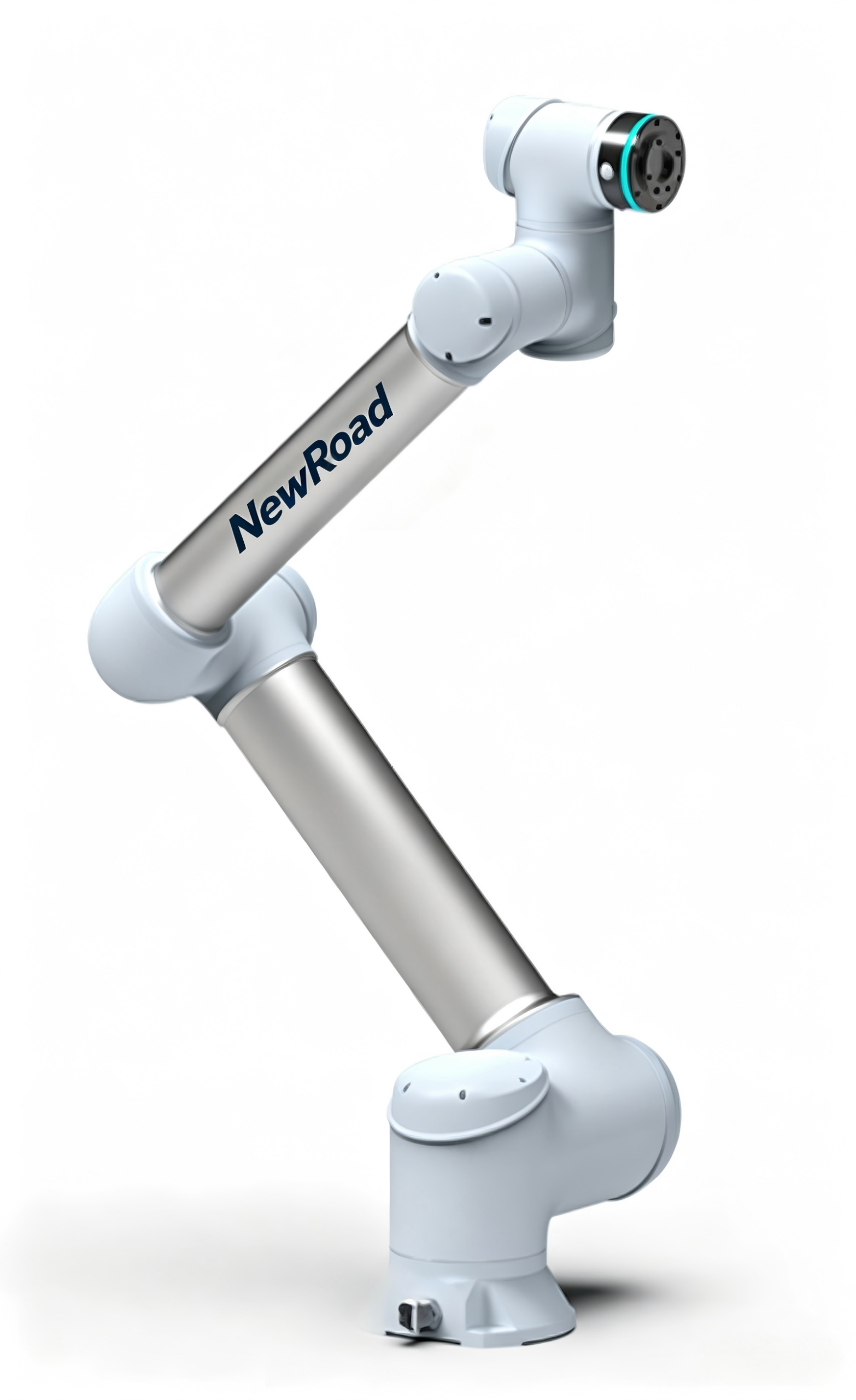

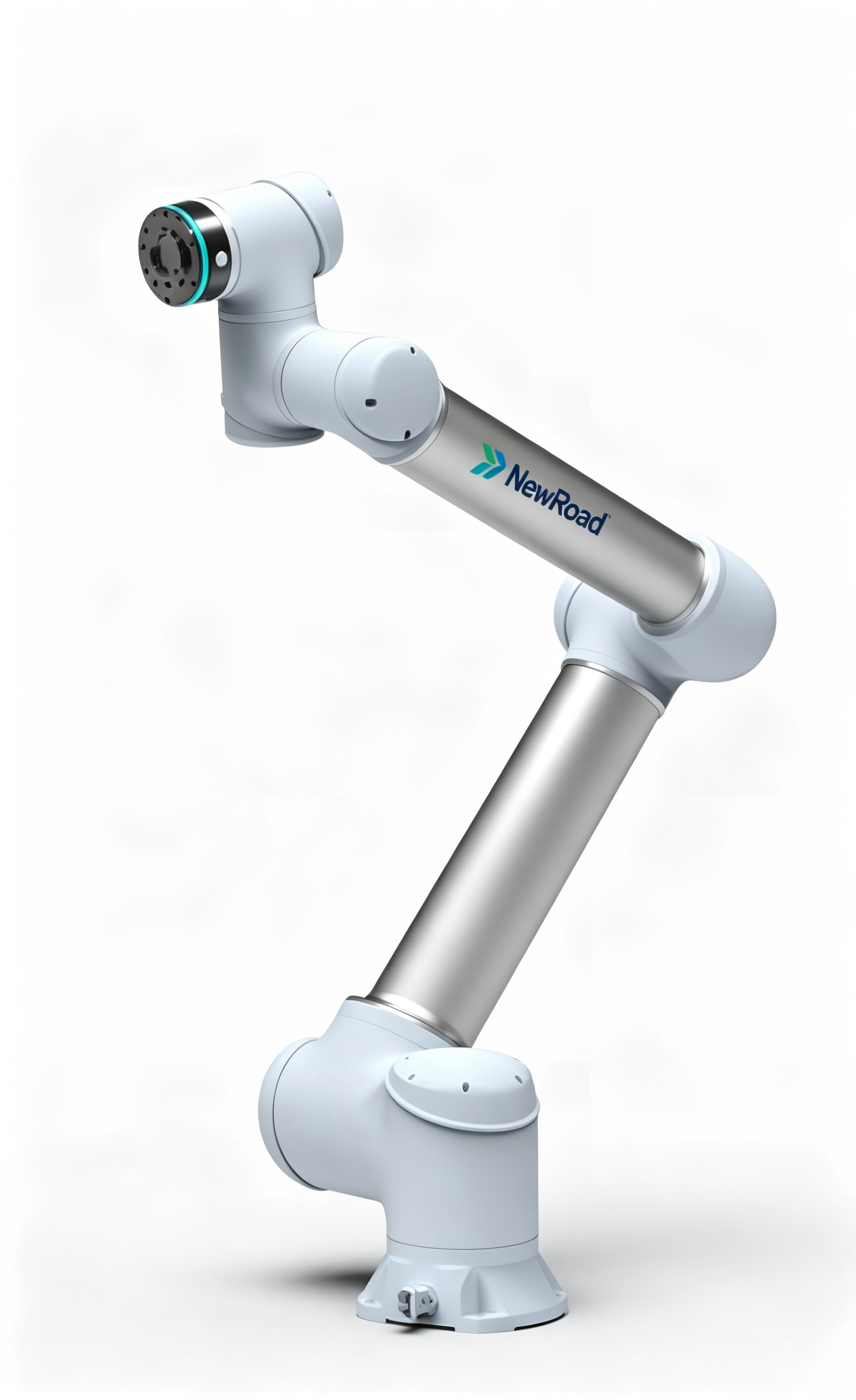

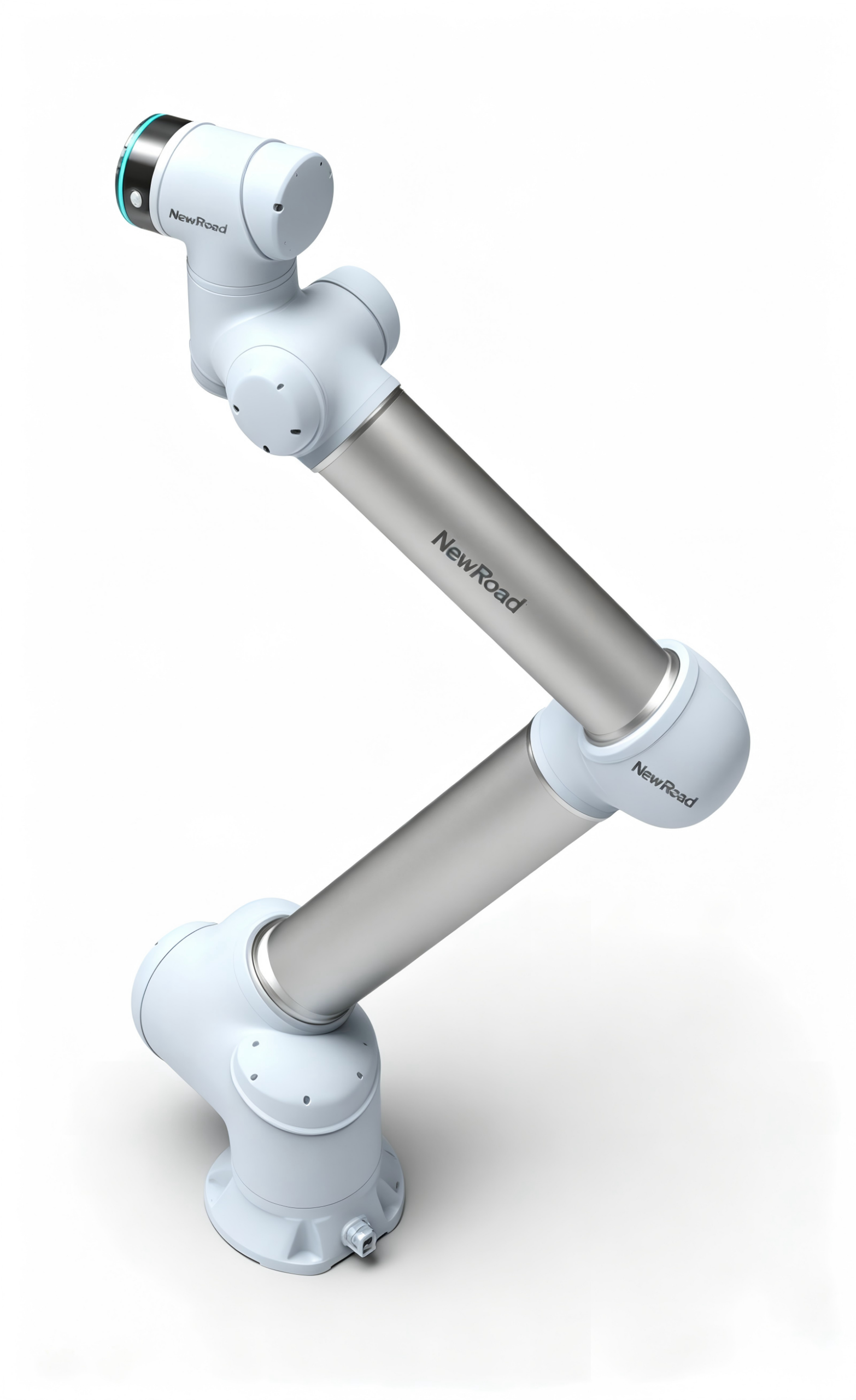

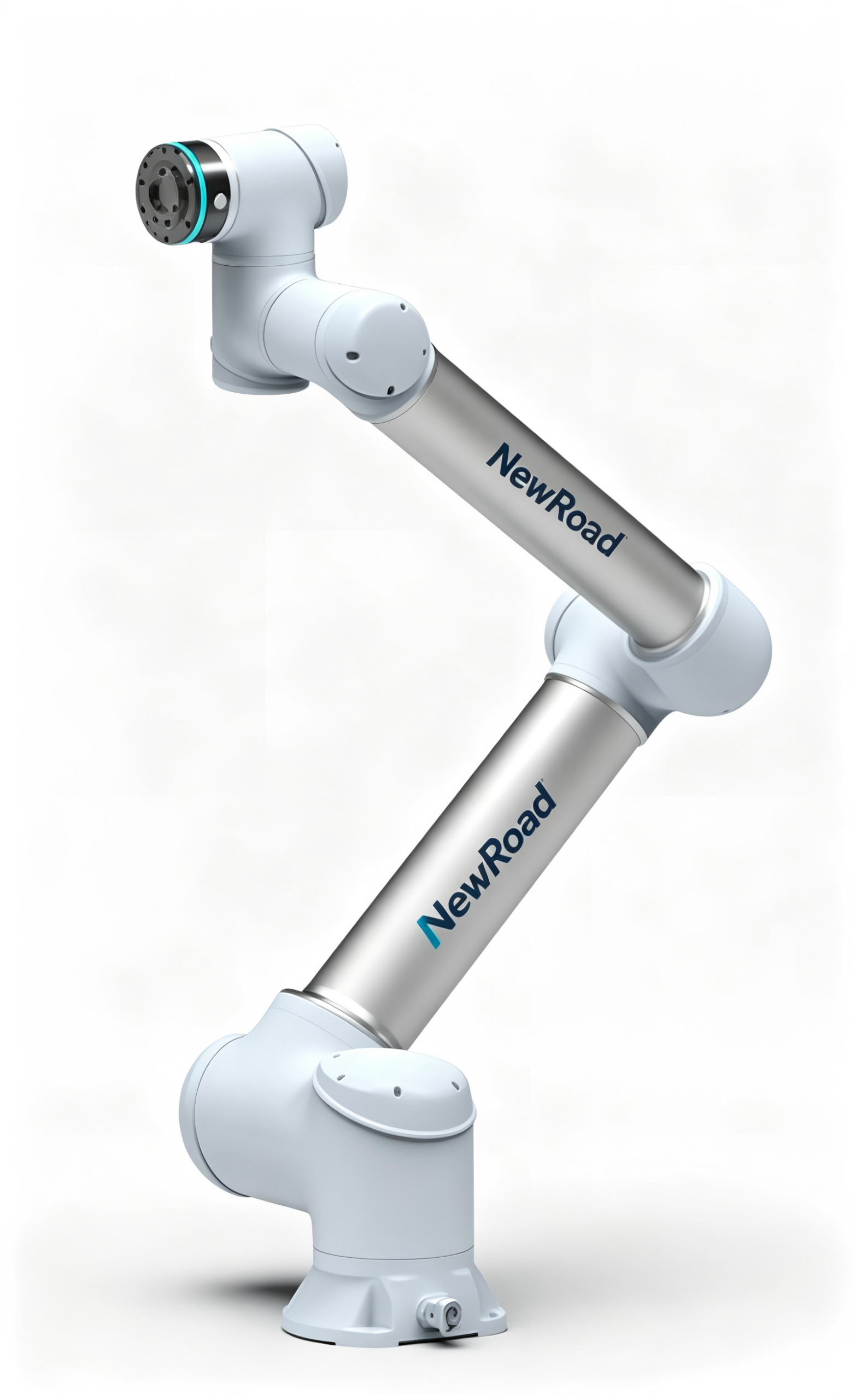

GCR10-1300 6-Axis Collaborative Robot

Product Overview

The GCR10-1300 is a high-performance 10kg-payload 6-axis collaborative robot, designed to deliver exceptional precision, extended reach, and robust environmental adaptability. It combines flexible operation with stable performance, enabling safe human-robot collaboration without protective fencing. Ideal for retrofitting small-to-medium production lines, it is widely used in machine tending, precision assembly, welding, grinding, and material handling applications.

Core Advantages

  1. Ultra-High Precision Performance

    With a repeat positioning accuracy of ±0.03mm, the robot ensures smooth and consistent motion trajectories, meeting the stringent requirements of precision assembly, screw fastening, and dimensional inspection processes, significantly improving product pass rates.

  2. High-Speed, High-Efficiency Productivity

    Boasting a peak end-effector speed of 3.8m/s and a linear speed of 1.5m/s, combined with a 1300mm wide working radius, it covers a large operating area in a single cycle, effectively reducing process time and boosting overall production efficiency.

  3. Adaptable to Harsh Environments

    Available with IP54/IP65 dual protection ratings, the robot is resistant to dust, oil mist, and splashing water, ensuring stable operation in complex environments such as welding, spraying, and grinding, enhancing equipment durability.

  4. Intelligent & Safe Collaboration

    Equipped with a professional safety system featuring sensitive collision detection and intuitive hand-guided teaching. It enables safe human-robot coexistence without the need for costly safety fencing.

  5. Flexible Integration & Expansion

    Compatible with major industrial communication protocols including Profinet, EtherNet/IP, and Modbus, allowing quick integration with vision systems, AGVs, and industrial PLCs to build a unified automated workstation. The robot supports mounting in any orientation, offering maximum layout flexibility.

  6. Low Power Consumption & Long-Lasting Operation

    With a rated power consumption as low as 400W, it delivers energy-efficient performance. Operating stably in temperatures from -10°C to 50°C, it ensures continuous production in both high and low-temperature workshops.

Specifications

Item Specification
Model GCR10-1300
Rated Payload 10 kg
Max. Reach 1300 mm
Repeat Positioning Accuracy ±0.03 mm
Max. TCP Speed 3.8 m/s
Max. Linear Speed 1.5 m/s
Number of Axes 6
Protection Rating IP54 / IP65
Rated Power Consumption 400 W
Mounting Orientation Any angle
Operating Temperature -10°C ~ 50°C
Tool Flange GB/T14468.1-50-4-M6
Communication Protocols TCP/IP, Modbus/TCP, Profinet, EtherNet/IP

Axis Motion Parameters

Axis J1 J2 J3 J4 J5 J6
Motion Range ±360° ±360° ±360° ±360° ±360° ±360°
Max. Speed 180°/s 180°/s 225°/s 225°/s 225°/s 225°/s

Accessories

DC15S Control Cabinet

  • Input Voltage: 200–240VAC / 100–200VAC
  • Rated Output: 48V @ 600W
  • Weight: 13.6 kg
  • Protection Rating: IP44
  • Noise Level: ≤ 55 dB
  • Interfaces: CAN, RS485, LAN, EtherCAT; 16DI / 16DO

Teach Pendant

  • Display: 10.4″ Capacitive Touch Screen (800×600)
  • Protection Rating: IP54
  • Weight: 1.3 kg
  • Experience: Intuitive interface for simple programming and fast commissioning





Typical Applications

Machine Tending, Precision Parts Assembly, Metal Welding, Gluing & Sealing, Product Quality Inspection, Screw Fastening, Material Handling & Sorting, Surface Spraying, Workpiece Grinding & Polishing
