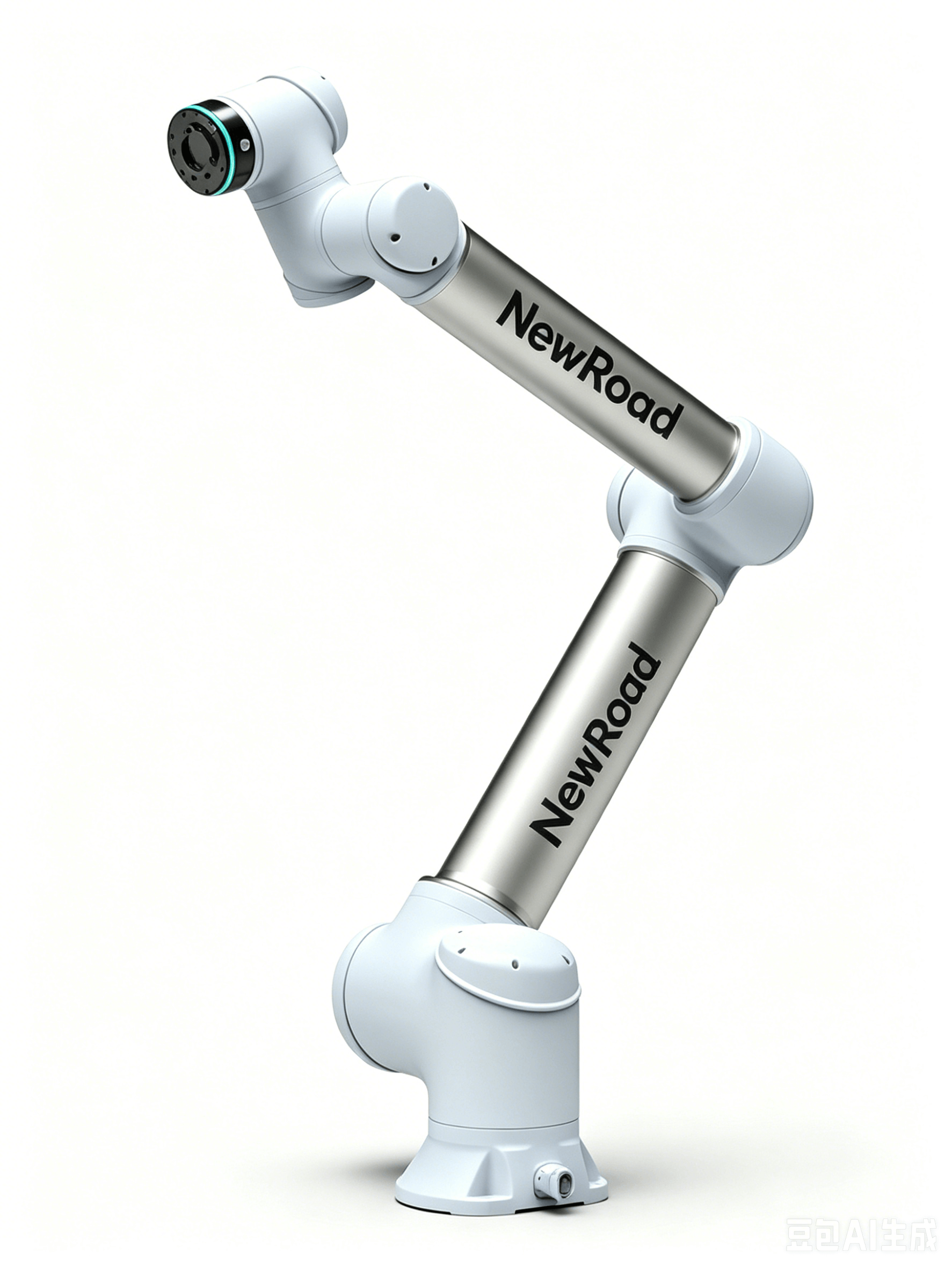

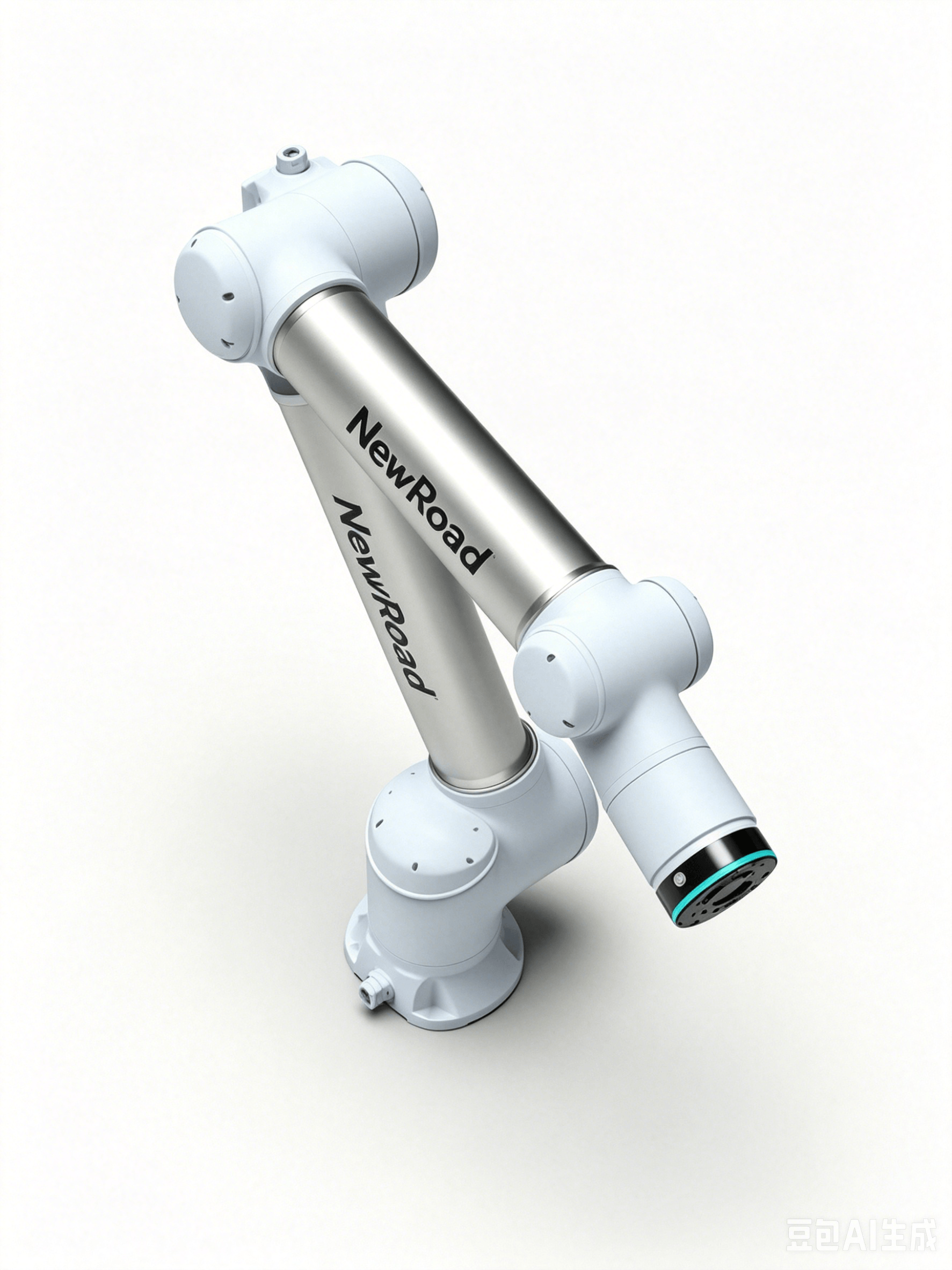

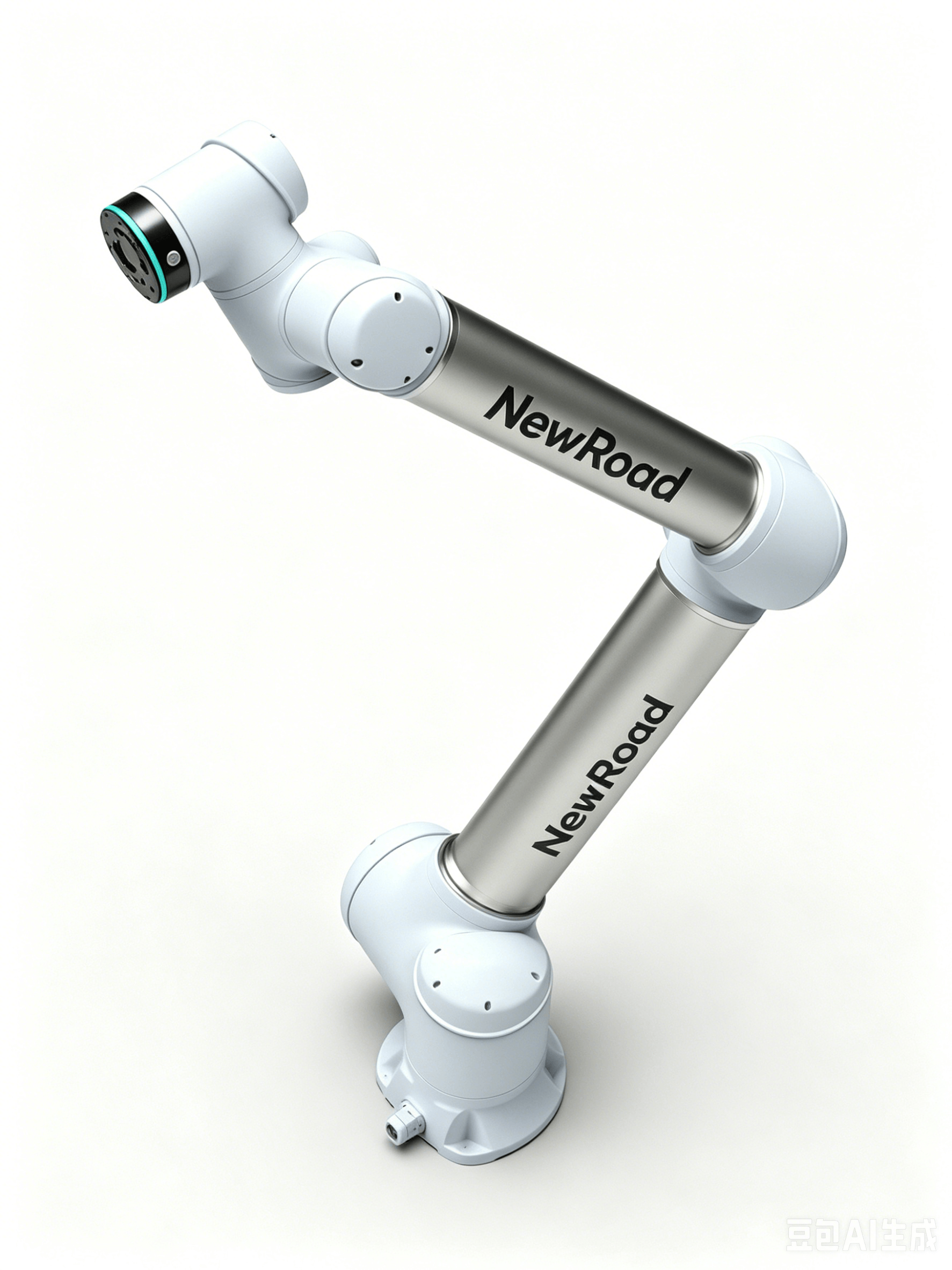

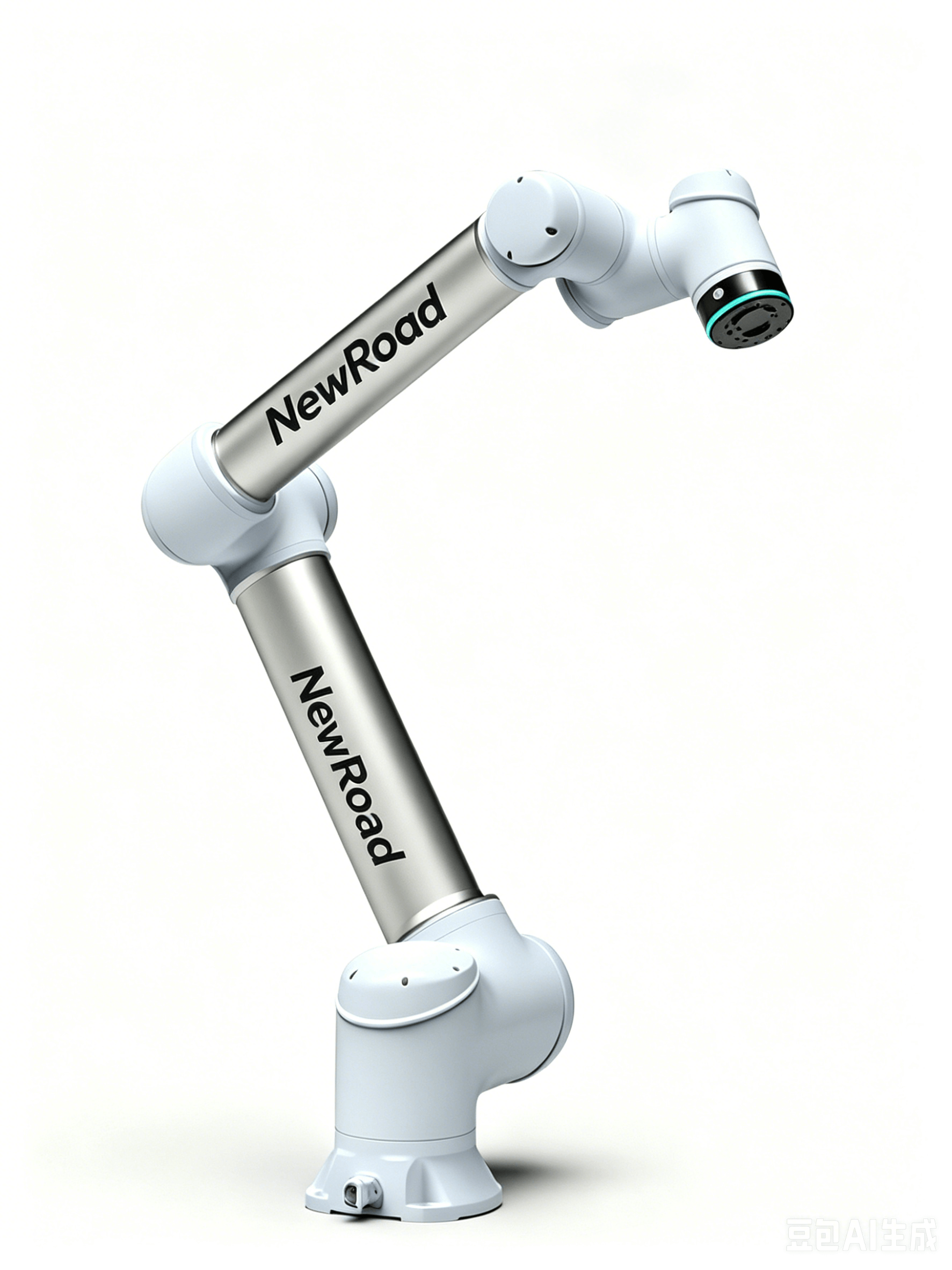

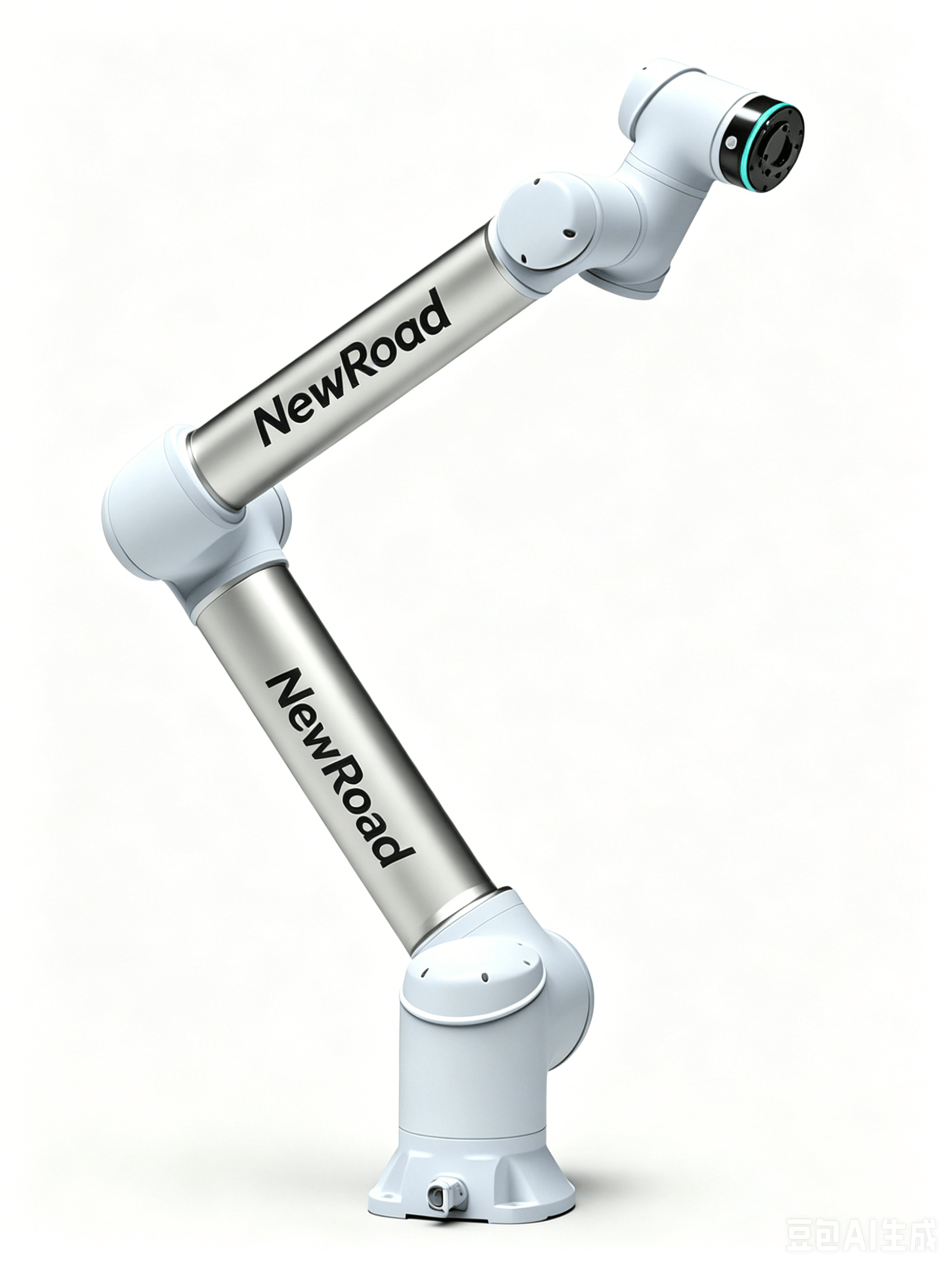

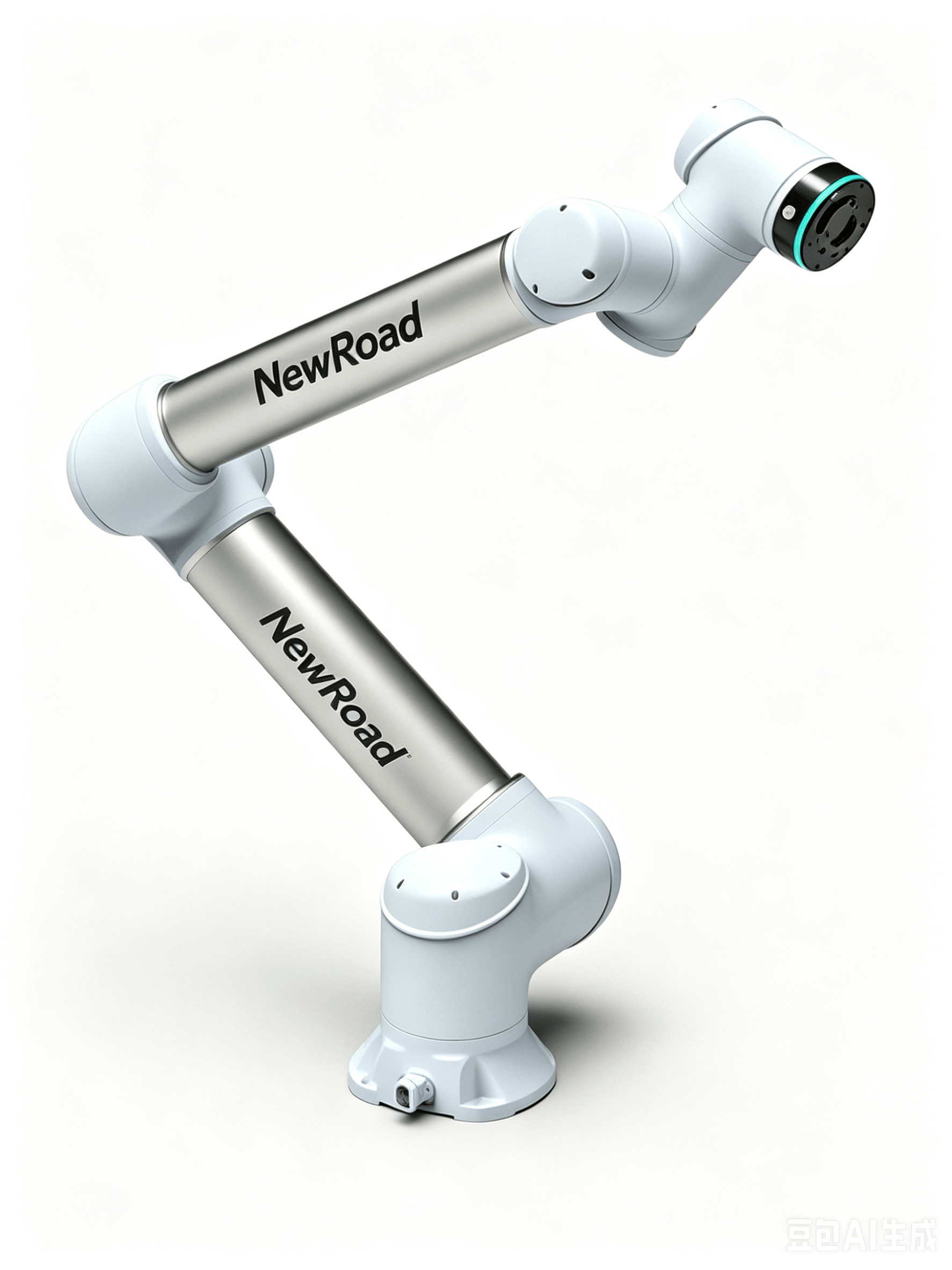

GCR12-1300 6-Axis Collaborative Robot
Product Overview
Core Advantages
-
Barrier-Free Safe Collaboration
Equipped with high-sensitivity collision detection, the robot stops instantly upon contact. Operators can work side by side safely, cutting workshop space occupation and renovation expenses.
-
Powerful 12kg Load Capacity
Rated payload reaches 12kg, perfectly suited for heavy workpiece handling, bulky component assembly and heavy-duty processing tasks.
-
Superior Positioning Precision
Repetitive positioning accuracy stands at ±0.03mm with steady motion, fully satisfying stringent precision manufacturing criteria.
-
Broad Flexible Working Range
Maximum working radius of 1300mm delivers ample operating space. Flexible posture adaptation fits complex workstation layout demands.
-
Effortless Hand-Guided Teaching
Intuitive drag-to-teach mode eliminates complex programming. Trajectory setup and on-site commissioning can be completed efficiently.
-
Reliable Industrial Durability
IP54 dust and splash resistant rating guarantees stable operation amid dusty, oily and splashing working conditions like welding and polishing workshops.
-
Versatile Mounting Options
Support floor, wall and ceiling installation, facilitating flexible layout adaptation for various production sites.
Technical Specifications
| Item | Parameter |
|---|---|
| Model | GCR12-1300 |
| Axis Number | 6 |
| Rated Payload | 12 kg |
| Maximum Reach | 1300 mm |
| Repeat Positioning Accuracy | ±0.03 mm |
| Protection Grade | IP54 |
| Operating Temperature | -10℃ ~ 50℃ |
| Installation Form | Floor / Wall / Ceiling Mounting |
Joint Motion Data
| Joint | Rotation Range | Maximum Speed |
|---|---|---|
| J1 | ±360° | 180°/s |
| J2 | ±360° | 180°/s |
| J3 | ±360° | 225°/s |
| J4 | ±360° | 225°/s |
| J5 | ±360° | 225°/s |
| J6 | ±360° | 225°/s |
