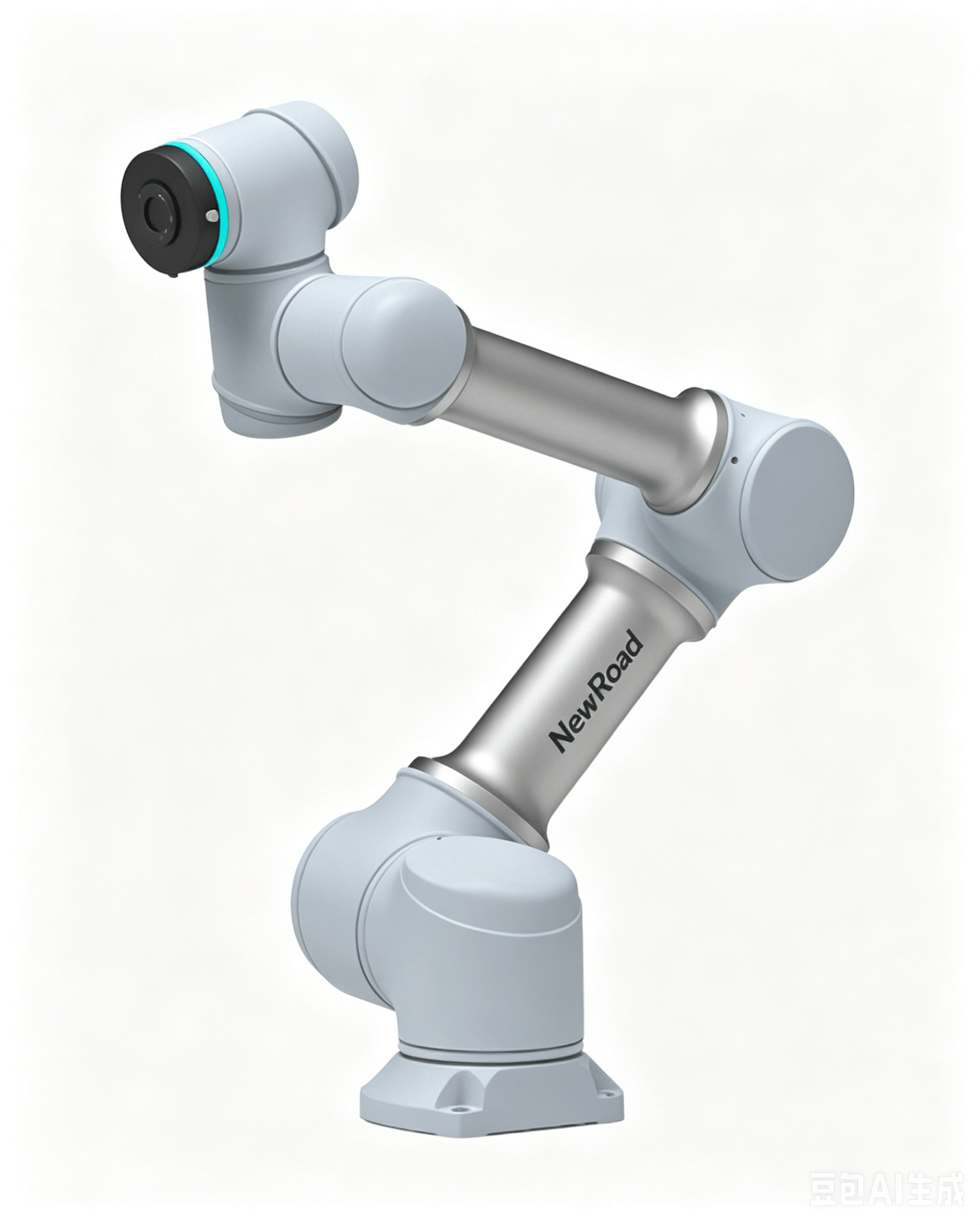

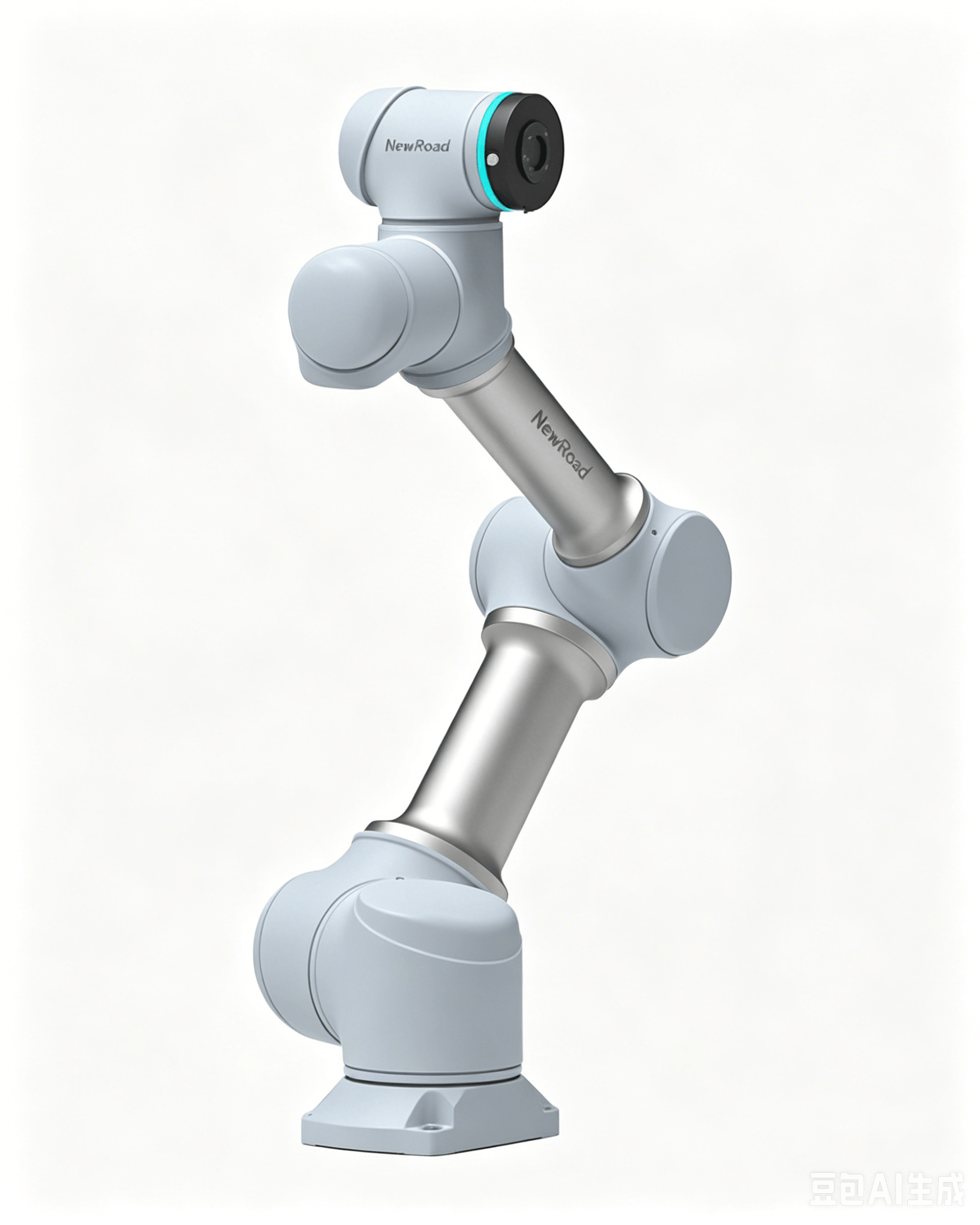

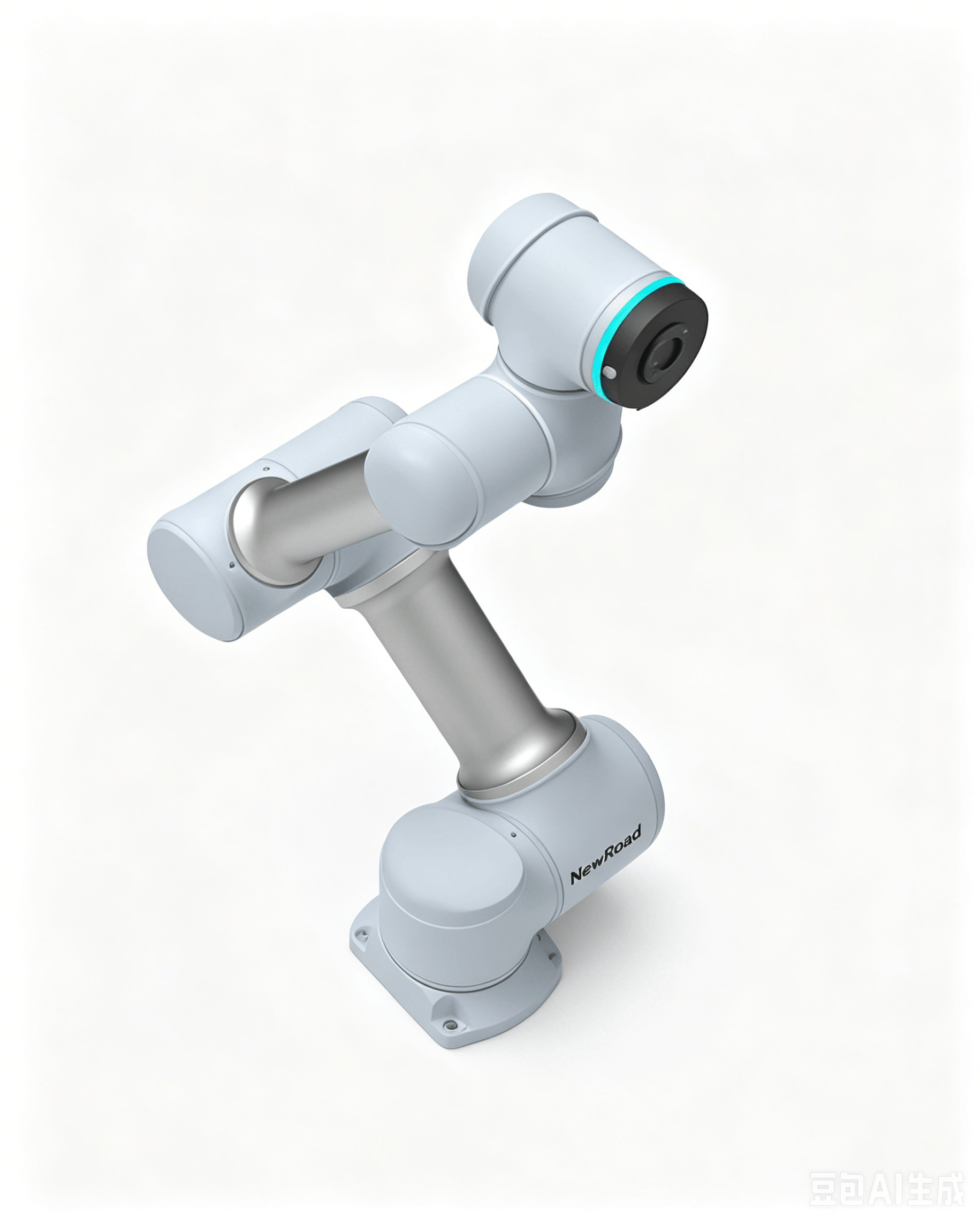

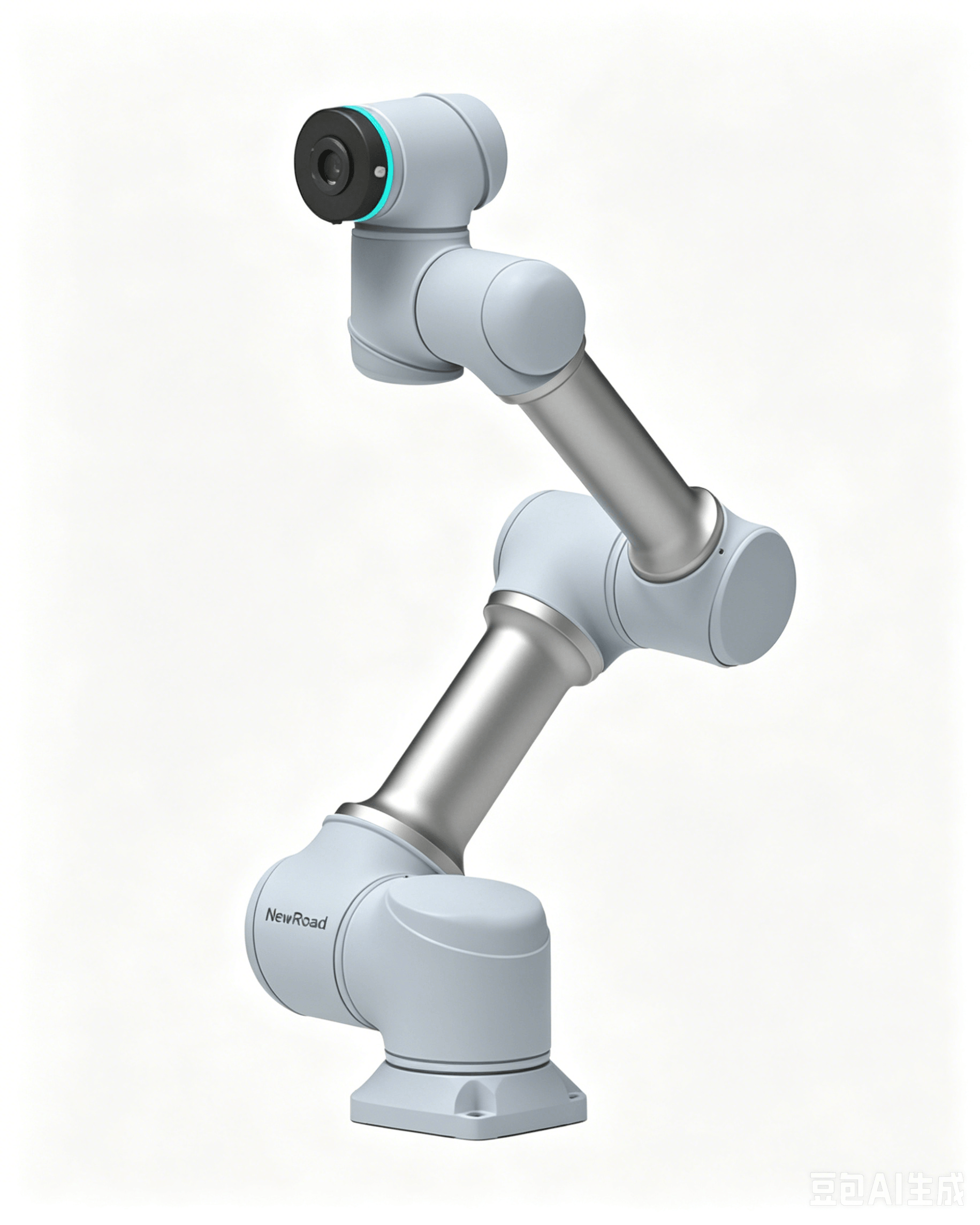

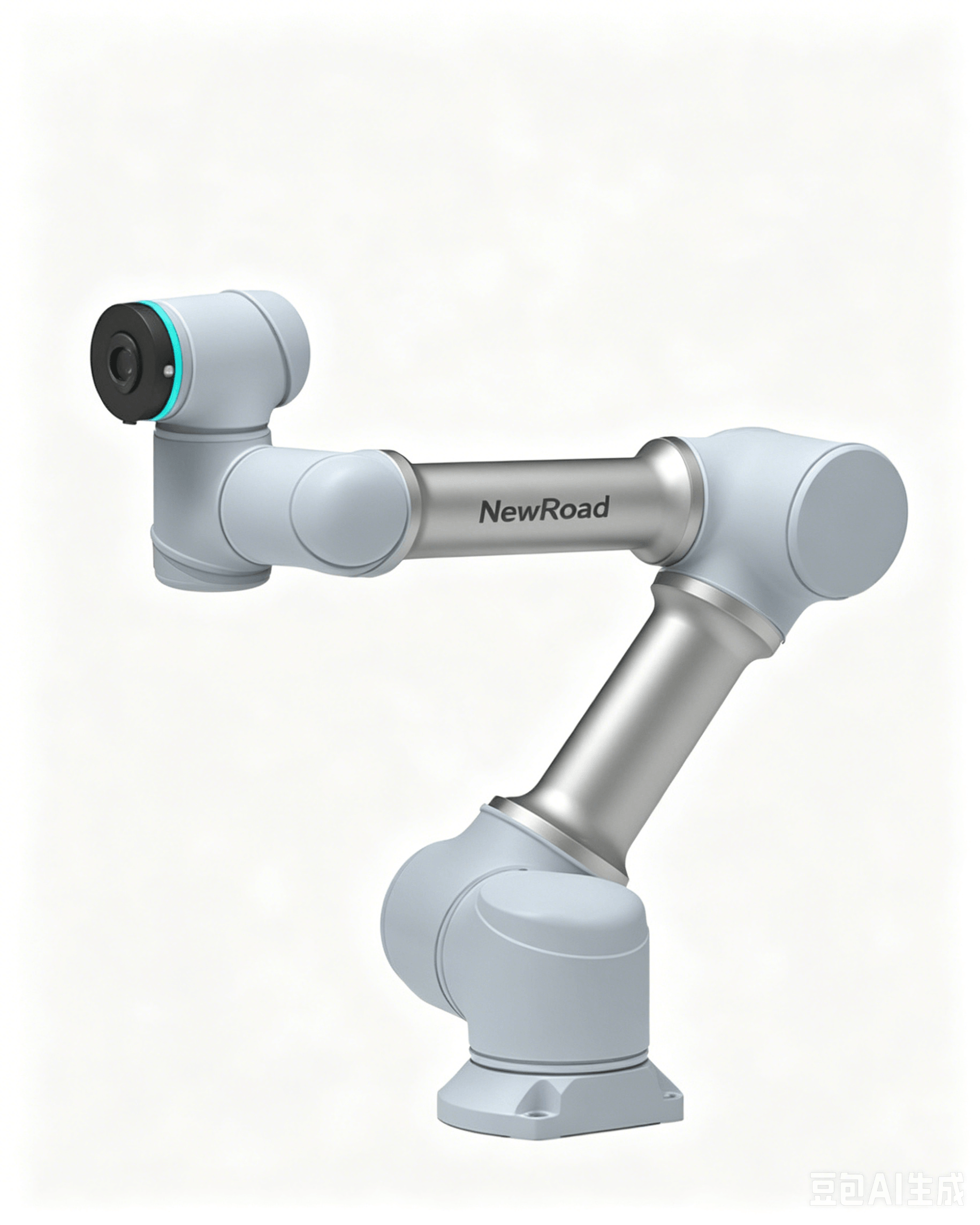

GCR16-960 6-Axis Collaborative Robot
Product Profile
Engineered for heavy-duty collaborative operations, the GCR16-960 delivers outstanding load capacity, superior motion accuracy and reliable operational safety. It enables unrestricted human-robot interaction without safety barriers, perfectly matching demanding industrial automation requirements.
Core Performance Highlights
Robust Load Capacity
Rated payload reaches 16kg, capable of handling heavy workpieces and performing heavy assembly tasks, ideal for high-load production scenarios.
Premium Motion Precision
Repetitive positioning accuracy maintains ±0.03mm. Stable and fluent movement ensures consistent processing quality for high-precision manufacturing.
Compact Working Envelope
960mm maximum reach realizes flexible operation within confined workspace, adapting well to compact production station layout.
Intelligent Safety Design
High-sensitive collision detection triggers instant stop upon contact risk. Safe co-working mode cuts facility investment and floor occupation effectively.
Intuitive Hand Guidance Programming
Drag-and-teach operation simplifies trajectory setting. No complex programming required, greatly shortening on-site commission cycle.
Outstanding Environmental Adaptability
IP54/IP65 dual protection grades resist dust, oil mist and water splash. Steady running guaranteed under harsh workshop working conditions.
Flexible Multi-directional Mounting
Supports floor, wall and overhead installation. Flexible layout solutions fit diversified production line space designs.
Technical Data
| Parameter | Specification |
|---|---|
| Model | GCR16-960 |
| Number of Axes | 6 |
| Rated Payload | 16 kg |
| Maximum Reach | 960 mm |
| Repeat Positioning Accuracy | ±0.03 mm |
| Protection Class | IP54 / IP65 |
| Maximum TCP Speed | 3.0 m/s |
| Maximum Linear Speed | 1.5 m/s |
| Rated Power Consumption | 400 W |
| Operating Temperature | -10°C ~ 50°C |
| Installation Mode | Omni-directional Mounting |
| Communication Protocol | TCP/IP, Modbus/TCP, Profinet, EtherNet/IP |
Joint Kinematics
| Axis | Rotation Range | Maximum Angular Speed |
|---|---|---|
| J1 | ±360° | 180°/s |
| J2 | ±360° | 180°/s |
| J3 | ±360° | 225°/s |
| J4 | ±360° | 225°/s |
| J5 | ±360° | 225°/s |
| J6 | ±360° | 225°/s |
Control System Configuration
DC15S Control Cabinet
Input Voltage: 100-240V AC
Rated Output: 48V 600W
Protection Rating: IP44
Noise Level: ≤55dB
Rich I/O and industrial bus interfaces
Handheld Teach Pendant
10.4-inch high-definition capacitive touch display
Ergonomic design, easy parameter setting and program editing
Application Spectrum
Machine loading & unloading, metal grinding and polishing, adhesive dispensing, precision component assembly, screw tightening, workpiece inspection, material handling, surface spraying
Brand: NewRoad
