GCR25-1800 Collaborative Robot
Product Overview

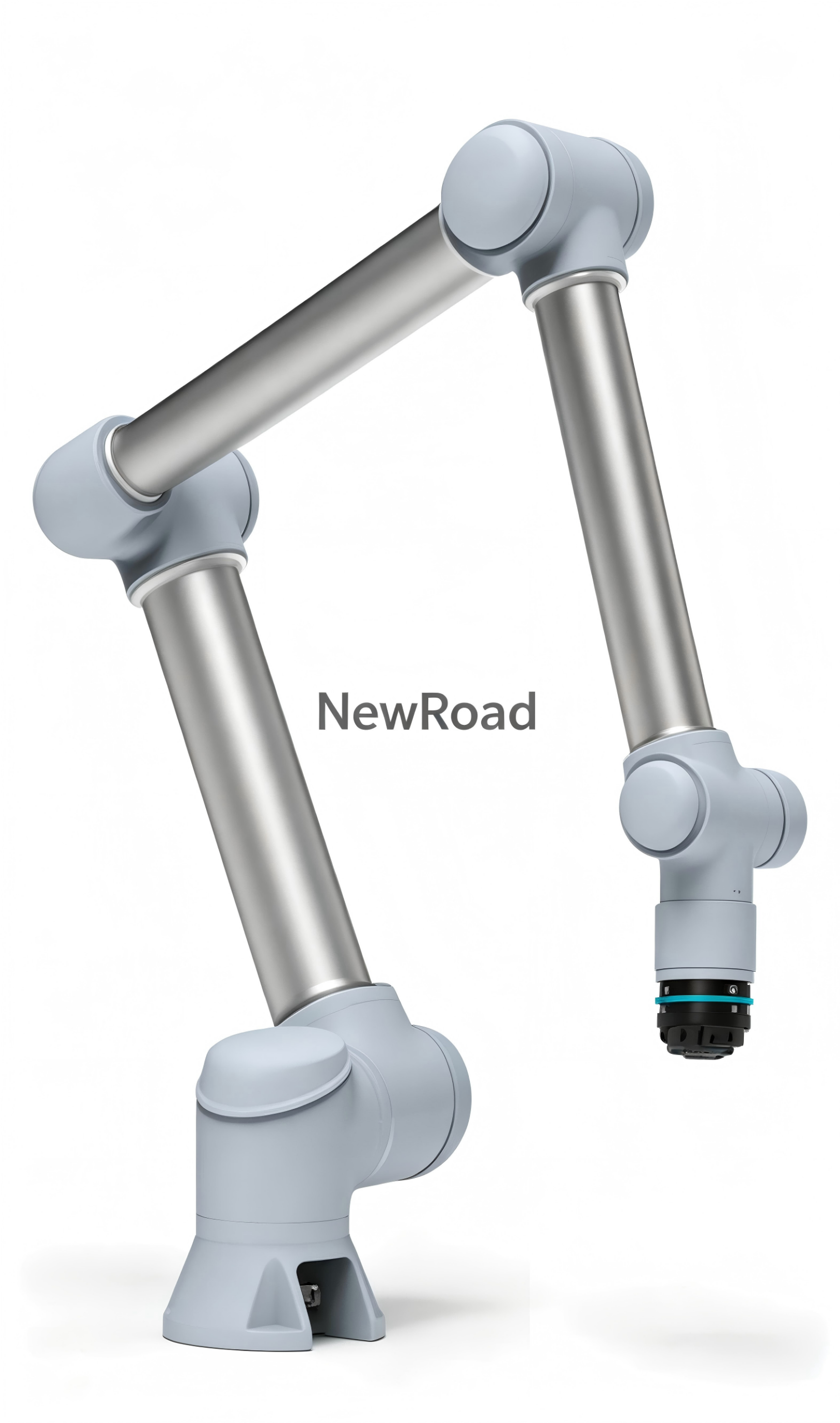

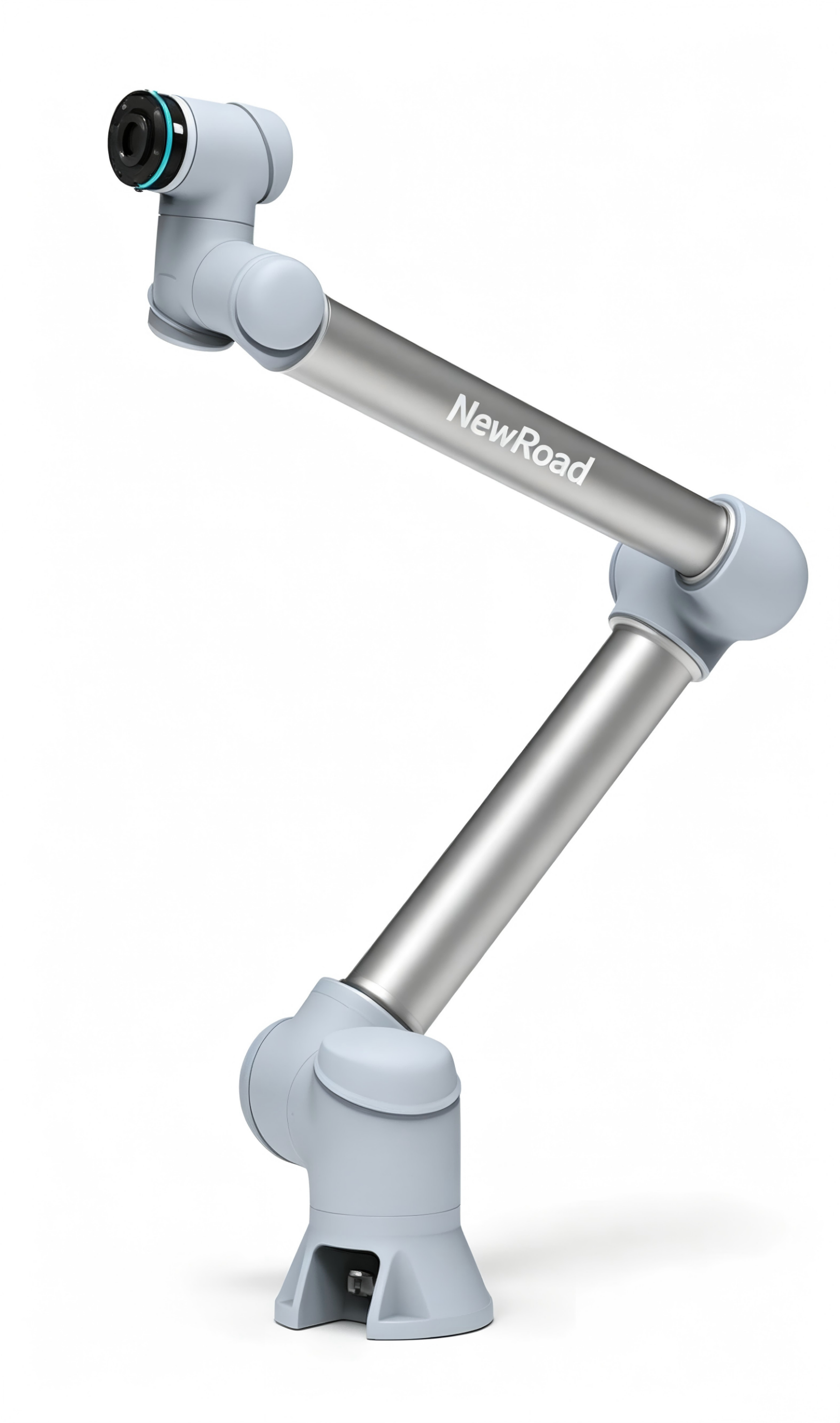

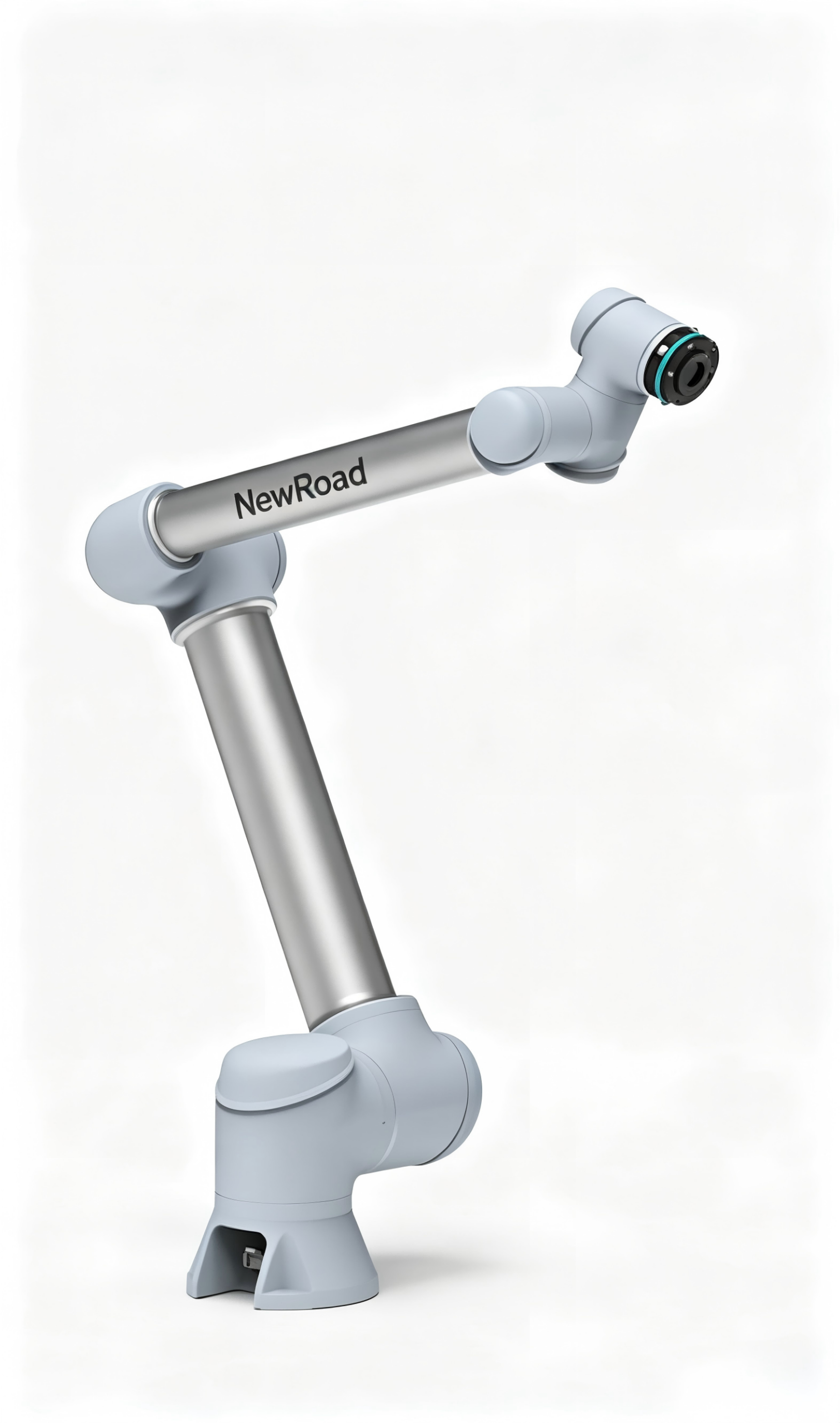

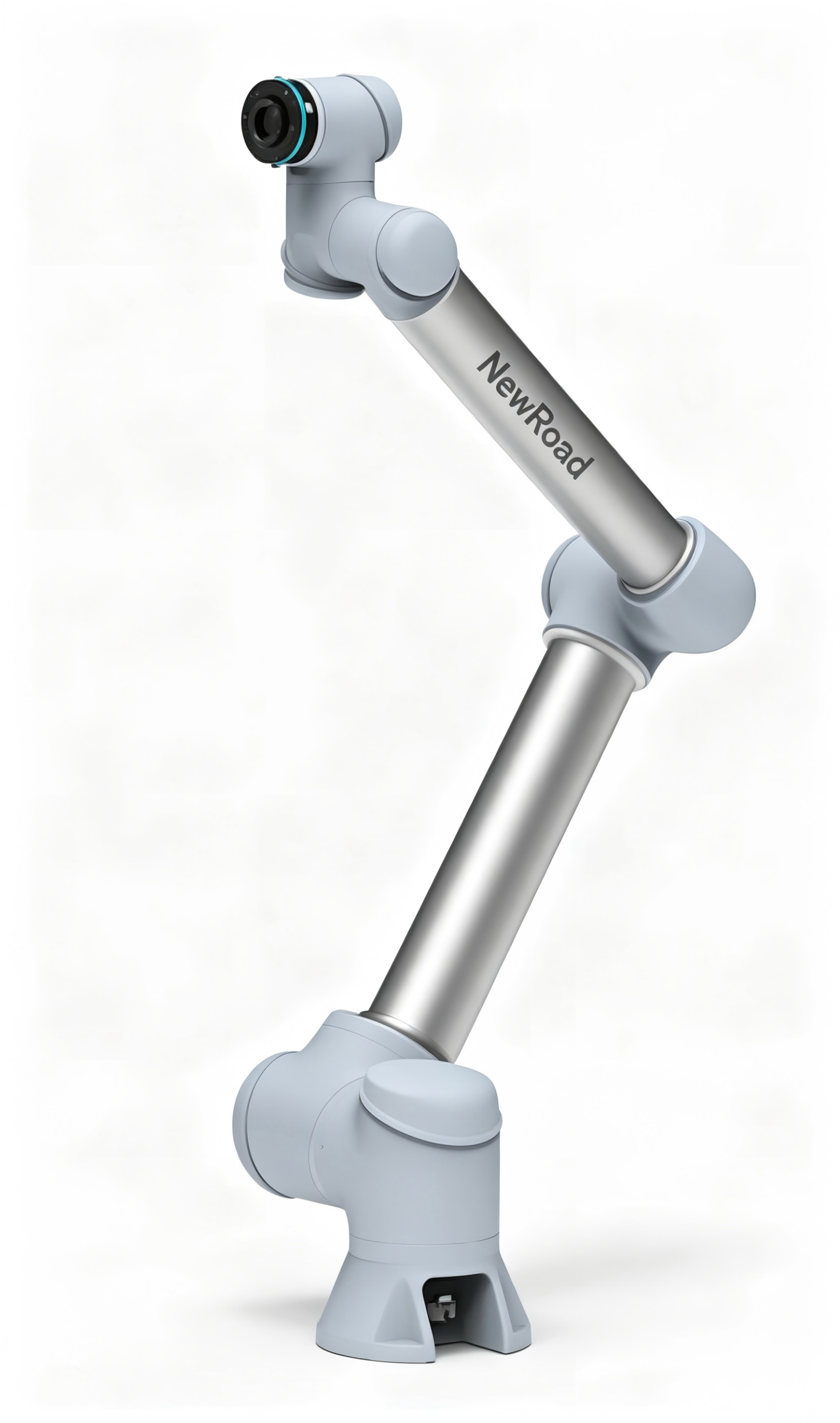

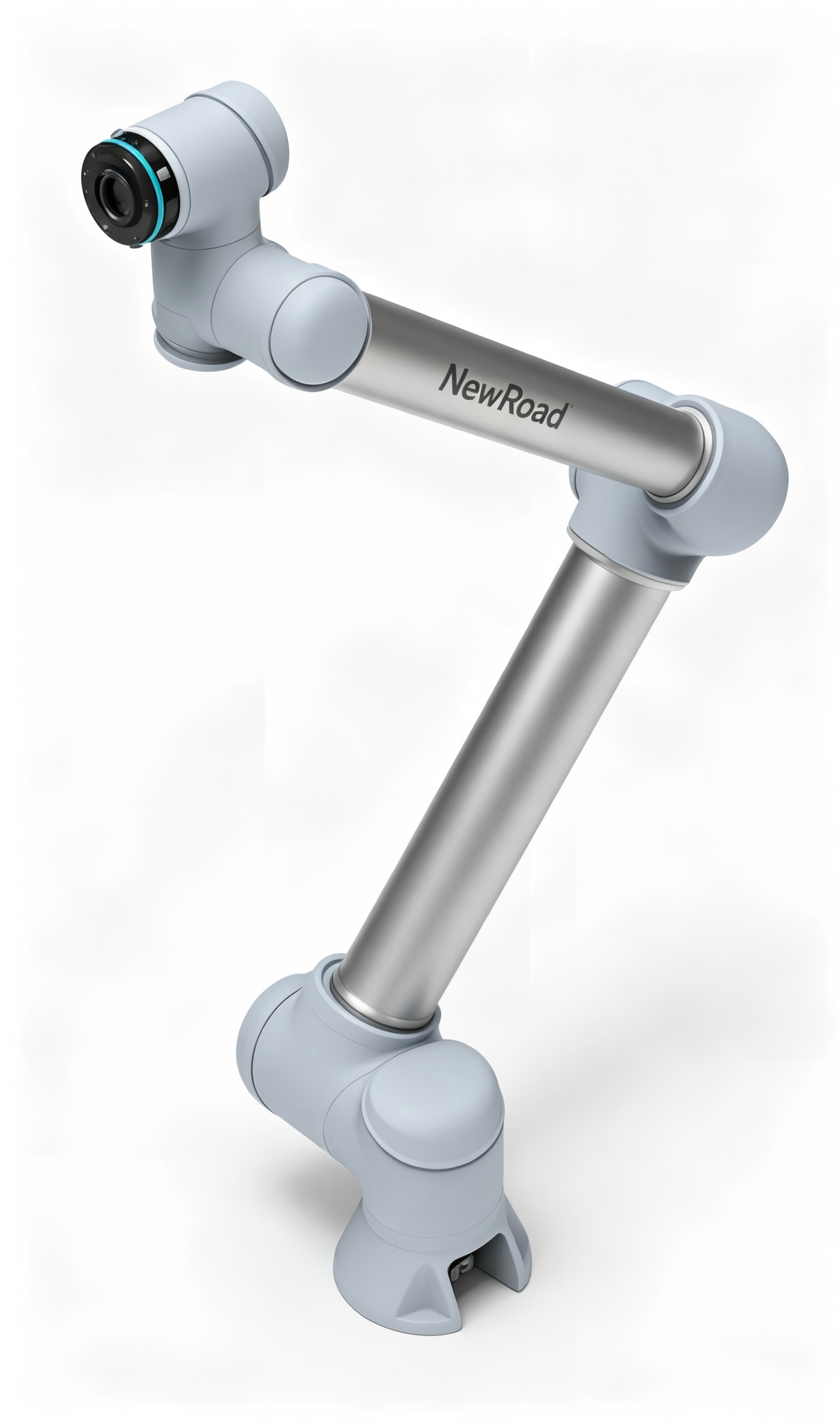

The NewRoad GCR25-1800 is a high-performance 6-axis collaborative robot, engineered for heavy-duty industrial applications. It delivers a 25 kg payload paired with an industry-leading 1800 mm reach, making it ideal for large-scale handling, assembly, and material processing tasks. The sleek single-tube arm features NewRoad branding, and the system supports safe human-robot collaboration without safety fences, ensuring high productivity in diverse production environments.
Core Advantages
| Feature | Key Benefit |
|---|---|
| 25 kg High Payload + 1800 mm Long Reach | Handles heavy components while covering a large work envelope, reducing the need for multiple stations and optimizing floor space. |
| ±0.05 mm Repeatability | Ensures precise alignment for assembly, fitting, and quality-critical tasks. |
| Safe Human-Robot Collaboration | Certified safety functions enable direct interaction with workers, eliminating the need for bulky safety barriers. |
| High Dynamic Performance | Max TCP speed of 2.5 m/s (linear speed up to 1.5 m/s) delivers fast cycle times for high-throughput production. |
| Industrial-Grade Durability | IP54-rated body (IP65 wrist optional) ensures reliable operation in dusty, humid workshop conditions. |
| Flexible Integration | Supports multiple communication protocols (TCP/IP, Modbus/TCP, Profinet, Ethernet/IP) and works seamlessly with vision systems, suction grippers, and other end-effectors. |
Technical Specifications
| Parameter | GCR25-1800 |
|---|---|
| Model | GCR25-1800 |
| Degrees of Freedom | 6 |
| Rated Payload | 25 kg |
| Maximum Reach | 1800 mm |
| Repeat Positioning Accuracy | ±0.05 mm |
| Max TCP Speed | 2.5 m/s |
| Max Linear Speed | 1.5 m/s |
| Protection Class | IP54 (body) / IP65 (wrist optional) |
| Typical Power Consumption | 600 W |
| Mounting | Floor / Wall / Ceiling (any orientation) |
| Operating Temperature | 10 °C ~ 50 °C |
| Storage Temperature | -40 °C ~ 55 °C |
| Weight | 61 kg |
Primary Applications
- Automotive Manufacturing: Heavy component assembly, glass handling, wheel installation, and dispensing.
- Logistics & Warehousing: High-speed palletizing, box handling, and loading/unloading of heavy materials.
- General Industry: Machine tending, material handling, and finished goods stacking.
- 3C & Electronics: Large chassis assembly and heavy module insertion.
Visual Style
- Clean Industrial Aesthetic: Minimalist design with high-contrast product renders, highlighting the single-tube arm and NewRoad branding.
- Multi-Angle Showcases: 6+ different poses and side views to demonstrate the robot’s full range of motion and compact footprint.
- Focus on Functionality: Emphasizes performance metrics and real-world use cases, avoiding over-marketing language.
