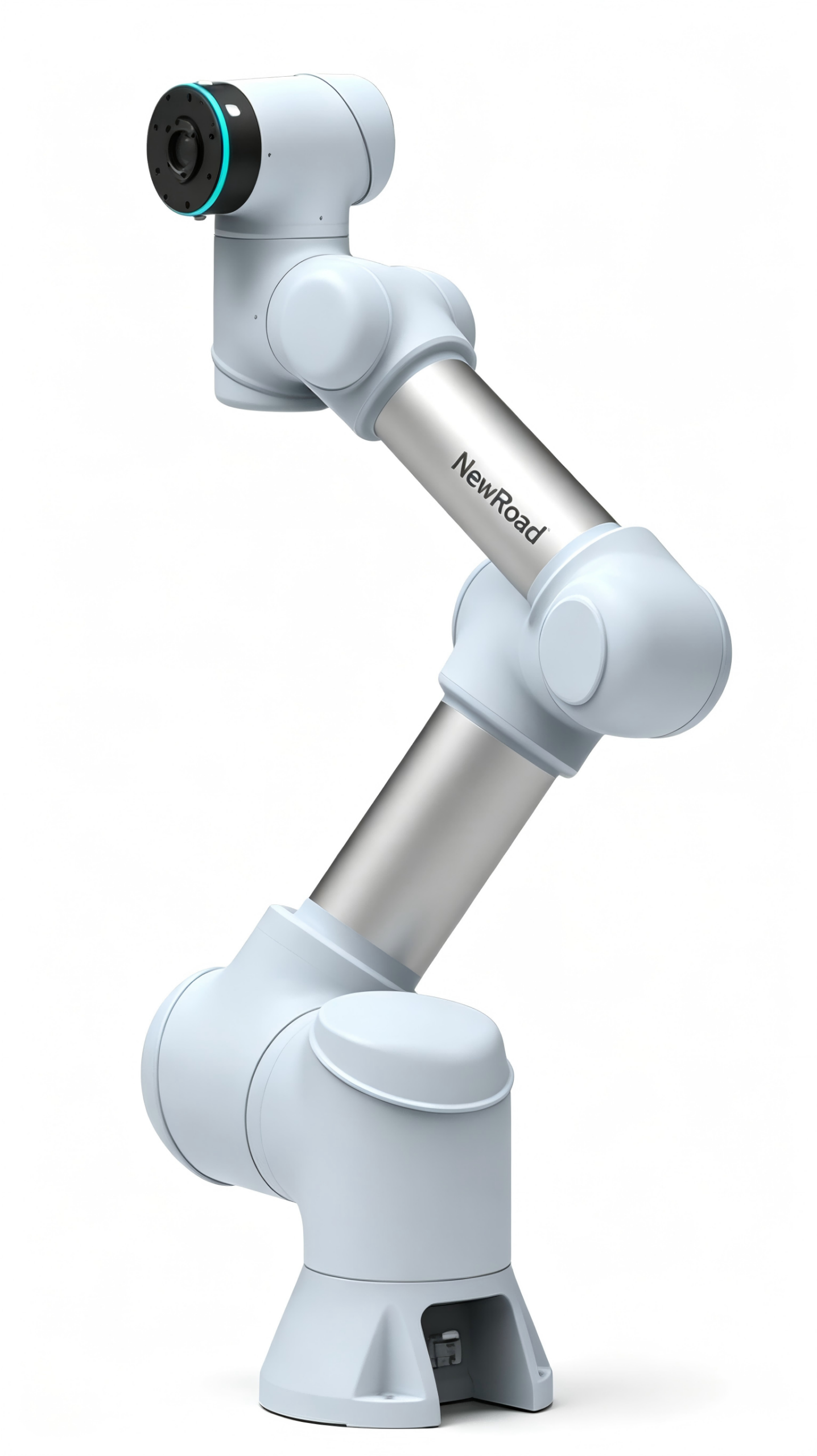

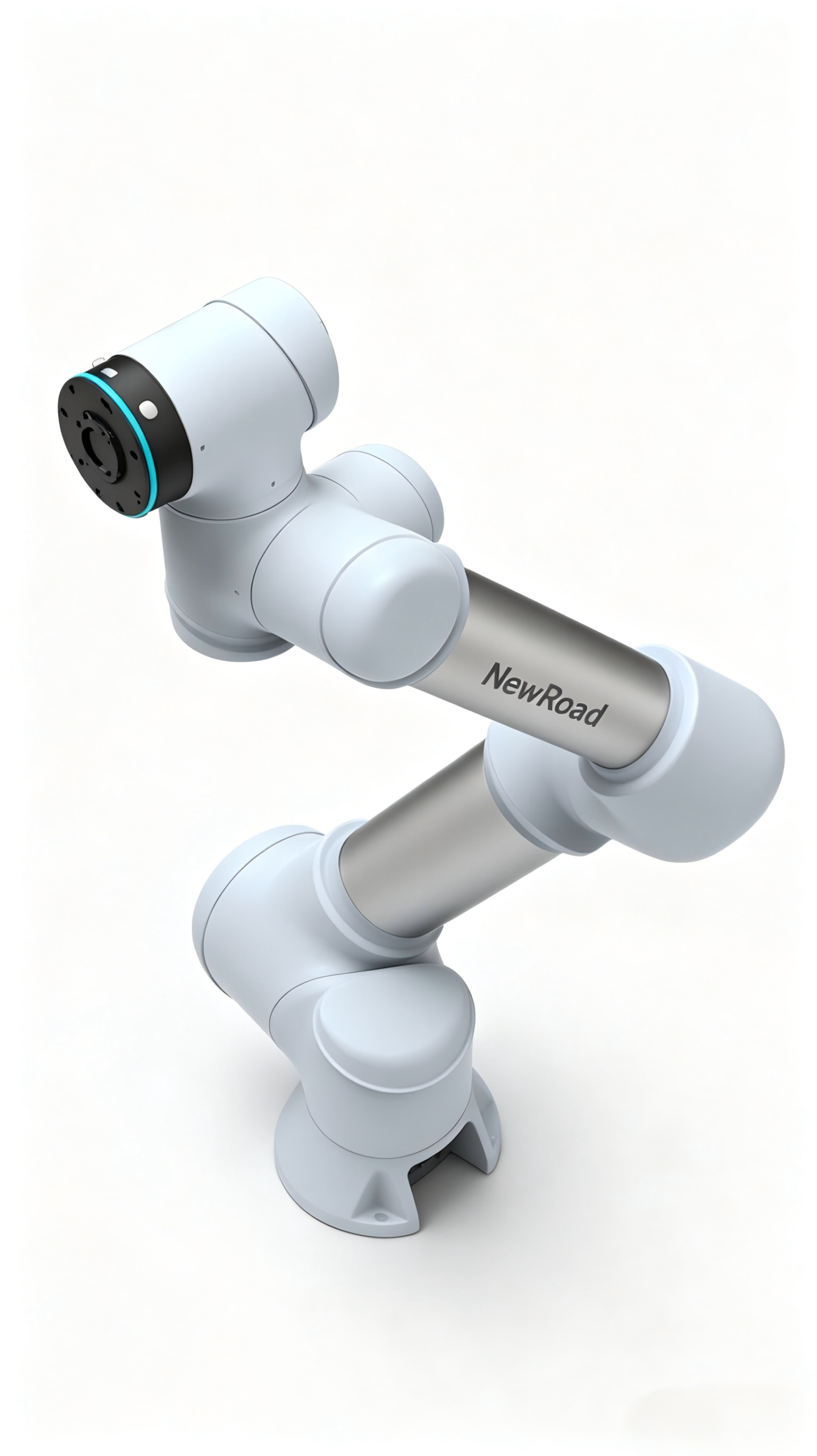

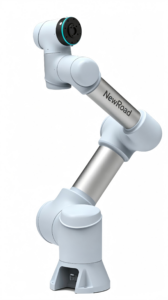

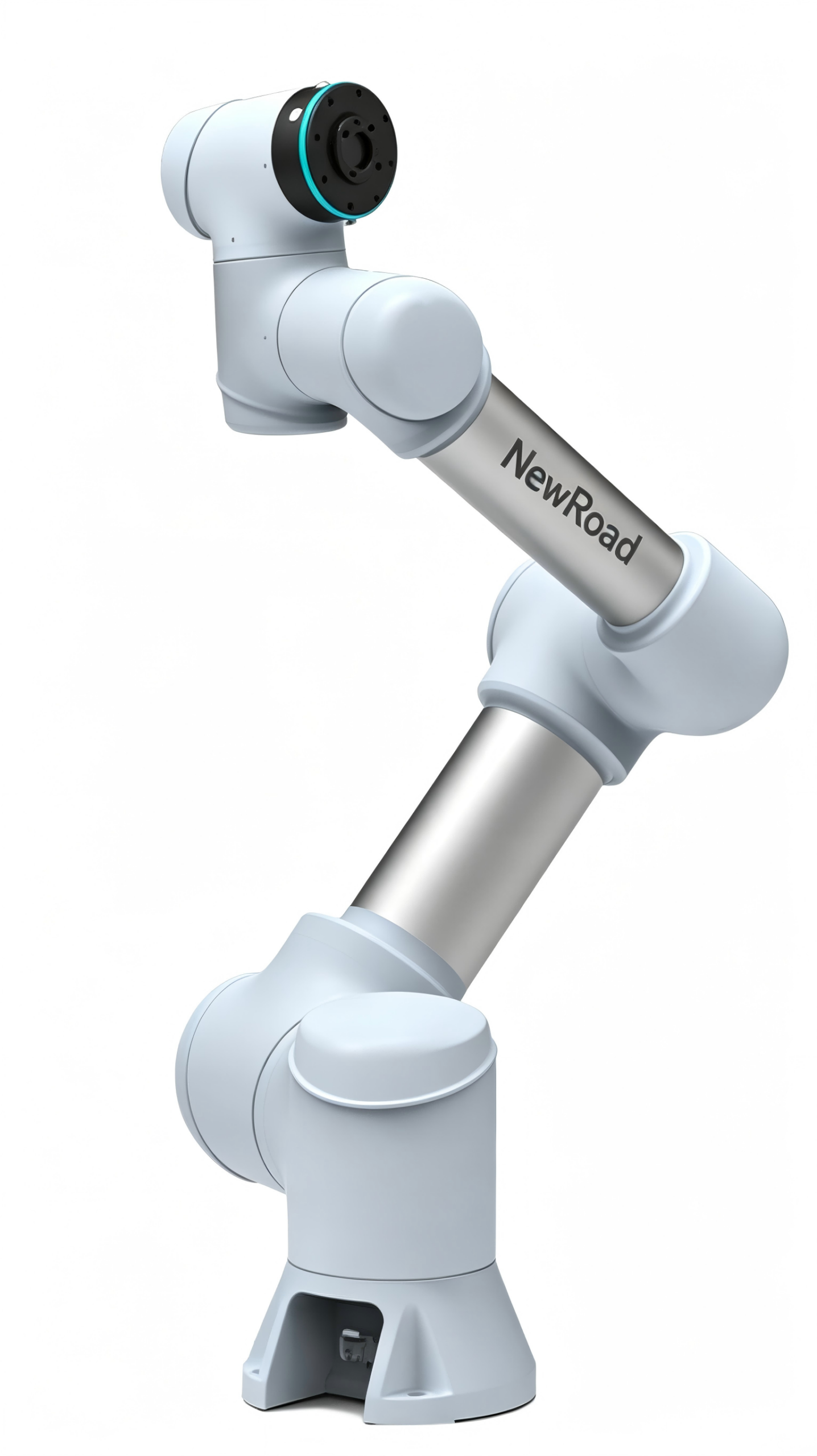

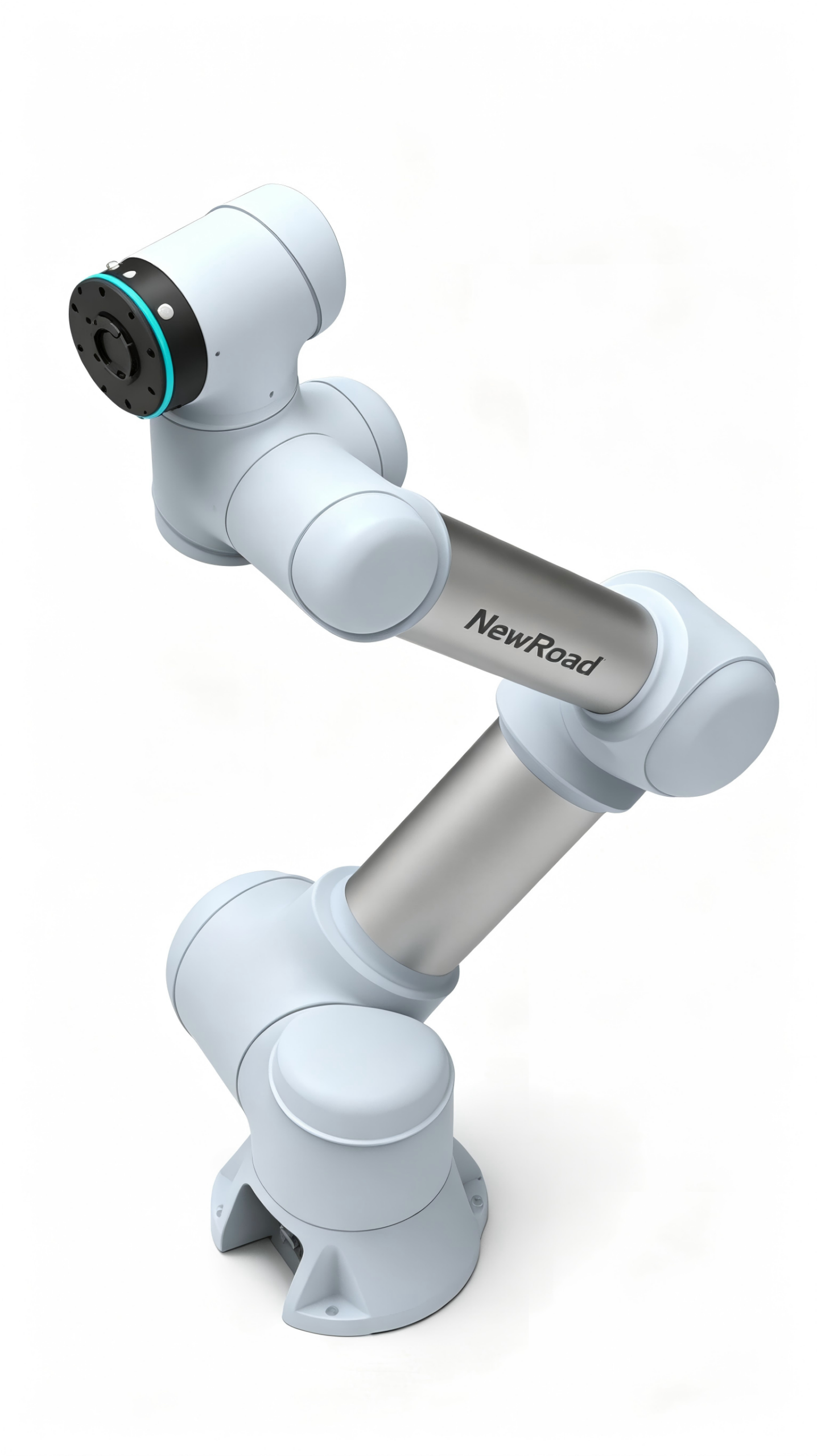

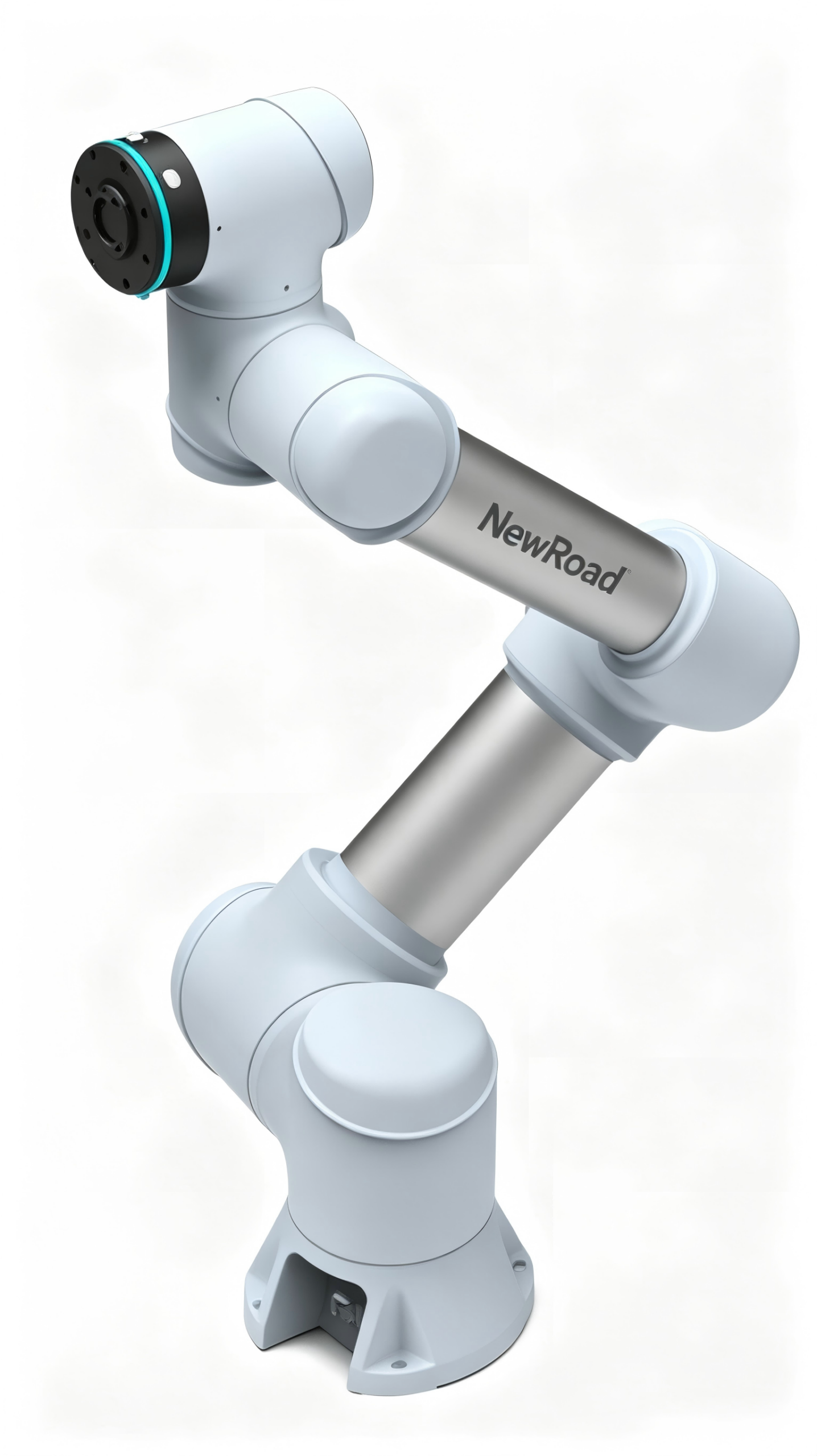

GCR30-1100
30kg High Payload Collaborative Robot | 1100mm Working Radius
Compact 6-axis collaborative robot with super heavy load capacity. Support fence-free human-robot collaboration, ideal for heavy workpiece handling, machine tending and heavy assembly tasks.
Product Introduction
The NewRoad GCR30-1100 is a high-performance 6-axis collaborative robot tailored for heavy-duty industrial scenarios. It combines 30kg large payload and 1100mm working reach with a compact body, perfectly adapting to narrow stations and existing production lines without large-scale renovation.Equipped with full set of certified safety functions and ±0.05mm high repeat positioning accuracy, it realizes safe human-robot co-working with no safety fences required. IP54 standard protection and stable operation performance ensure long-term reliable work in various complex workshop environments.
Core Advantages
Super Heavy Load & Compact Structure
30kg Rated Payload
Strong load capacity meets the handling demand of heavy workpieces. Compact body occupies less space, flexible to deploy in limited working areas and old production lines.
Certified Safety Collaboration
Fence-Free Operation
16 sets of TUV certified safety functions, built-in collision detection and manual guiding. Operators can work alongside the robot safely, saving cost of safety barriers.
High Precision & Fast Operation
±0.05mm Repeat Accuracy
Excellent motion performance and fast joint speed ensure stable and efficient cycle time. Guarantees precise positioning for assembly, loading and fitting processes.
Industrial Durability
Dust & Splash Resistance
Standard IP54 protection for robot body, optional IP65 protection for wrist. Adaptable to machining, grinding and other harsh industrial working conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | GCR30-1100 |
| Degrees of Freedom | 6 Axes |
| Rated Payload | 30 kg |
| Maximum Reach | 1100 mm |
| Repeat Positioning Accuracy | ±0.05 mm |
| Maximum TCP Speed | 2.0 m/s |
| Maximum Linear Speed | 1.0 m/s |
| Protection Class | IP54 (Body) / IP65 (Wrist, Optional) |
| Joint Rotation Range | J1-J6: ±360°; J3: ±160° |
| Max Joint Speed | J1/J2: 120°/s
J3: 180°/s J4/J5/J6: 225°/s |
| Communication Protocol | TCP/IP, Modbus/TCP, Profinet, Ethernet/IP |
| Power Supply | 100~240 VAC |
| Average Power Consumption | 600 W |
| Installation Mode | Floor / Wall / Ceiling |
| Operating Temperature | 10 °C ~ 50 °C |
Application Scenarios
- Machine Tending
Automatic loading and unloading for CNC machine, lathe, milling machine and other processing equipment.
- Heavy Parts Assembly
Assembly of automotive parts, motors, gearboxes and large mechanical components.
- Material Handling & Palletizing
Transfer and stacking of heavy boxes, workpieces and finished products.
- Metal Processing
Grinding, deburring and polishing of metal workpieces.
- General Automation
Fixture replacement, tool handling and workshop material transportation.
