Compact High‑Speed Picking & Sorting Robot
Product Overview

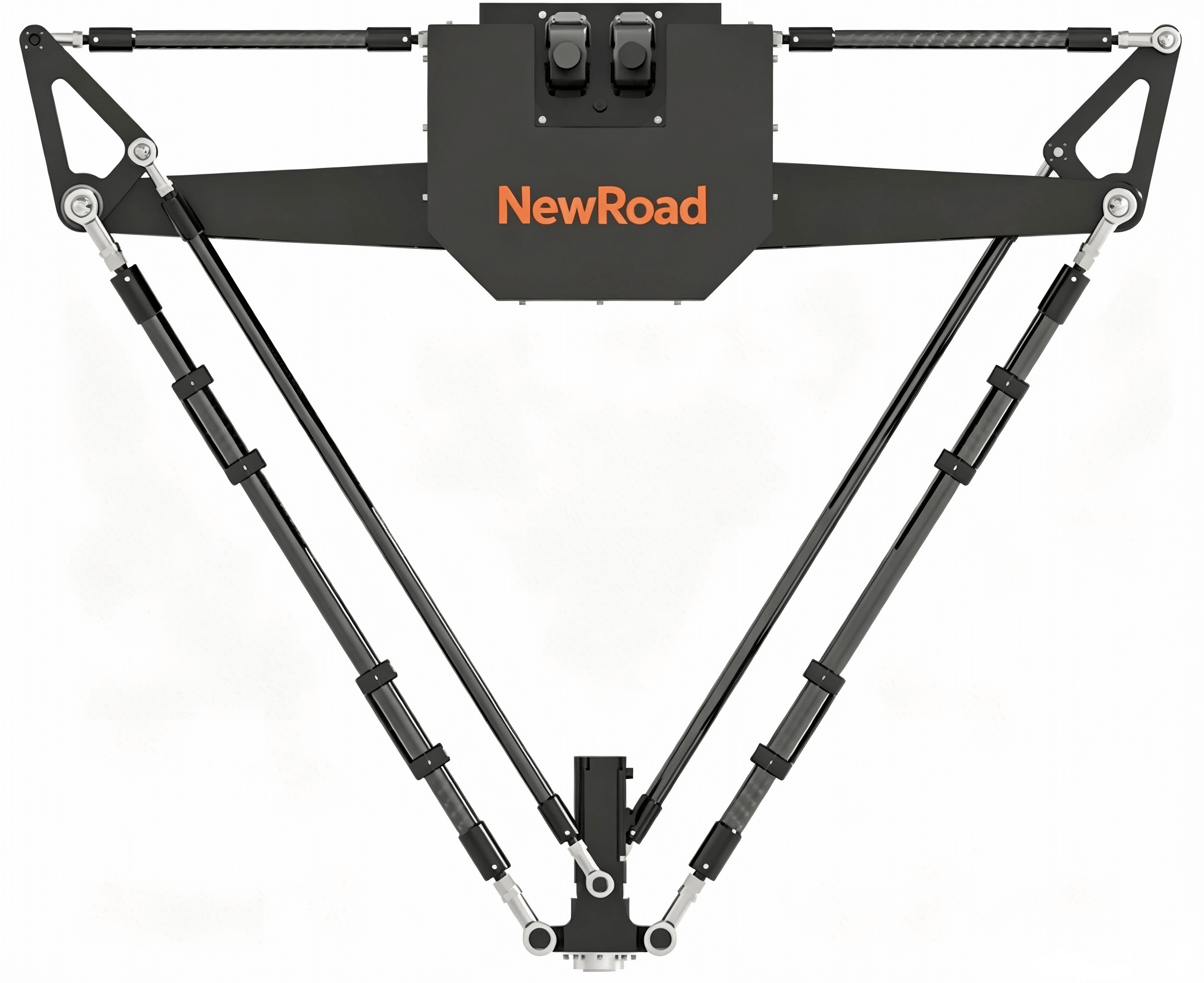

NewRoad BAT-580A is a 3/4‑axis high‑speed Delta parallel robot optimized for light‑payload, high‑frequency picking, sorting, and packing tasks. Rebranded from Robotphoenix’s proven BAT-580A platform and marked with the NewRoad logo on its body, this robot features a compact parallel structure, overhead installation, and exceptional dynamic performance. It is ideal for food & beverage, pharmaceuticals, 3C electronics, and daily chemicals where speed, precision, and space efficiency are critical.
With a 580 mm working diameter, ±0.08 mm repeatability, and a top speed of 10 m/s, the BAT-580A delivers up to 100 cycles per minute, easily replacing repetitive manual labor, boosting line efficiency by up to 40%, and ensuring consistent product quality. The integrated NewRoad VisionPower system enables real‑time conveyor tracking and random picking, supporting 2D/3D guidance, error‑proofing, and full traceability.
Key Features
- Ultra‑Compact & Fast: 580 mm reach, 10 m/s max speed, 150 m/s² acceleration; ideal for tight production spaces.
- High Precision: ±0.08 mm repeatability; 4th‑axis angular accuracy ±0.05° for micro‑assembly.
- Lightweight & Stiff: Carbon fiber arms + aluminum alloy base; total weight 55 kg for easy mounting.
- Space‑Saving Ceiling Mount: Minimal floor footprint; seamless integration with existing conveyors.
- NewRoad Vision Integration: Native VisionPower compatibility; fast setup without complex coding.
- Industrial‑Grade Durability: IP65 protection; dust/water resistant for harsh or cleanroom environments.
- Easy Programming: Intuitive teach pendant; PLCopen‑compliant commands for quick deployment.
Technical Specifications (BAT-580A)
| Item | Specification |
|---|---|
| Structure | 4‑axis Delta (3T1R) |
| Rated Payload | 3 kg (max 6 kg) |
| Working Diameter | 580 mm |
| Repeatability | ±0.08 mm |
| Max Speed | 10 m/s |
| Max Acceleration | 150 m/s² |
| Protection Grade | IP65 |
| Communication | Ethernet TCP/IP, Modbus |
| Power Supply | 220 V / 50 Hz |
| Weight | 55 kg |
| Certification | CE, ISO |
Applications
- Food & Packaging: High‑speed sorting, picking, and cartoning of snacks, candies, and baked goods.
- Pharmaceuticals: Blister packing, vial handling, and precise labeling in cleanrooms.
- 3C Electronics: Picking and assembly of connectors, chips, and tiny components.
- Daily Chemicals: Bottle/cap handling, box packing for cosmetics and toiletries.
Why Choose NewRoad BAT-580A?
As a professional industrial robot manufacturer, NewRoad provides one‑stop automation solutions including robots, vision systems, and custom end‑effectors. The BAT-580A offers:
- Cost‑Effective: Competitive pricing with fast ROI; reduces labor costs and waste.
- Fast Deployment: Pre‑configured templates; commissioning in 1–2 days.
- Low Maintenance: Modular design; minimal wear, easy part replacement.
- Reliable Support: 24/7 technical support, on‑site training, and remote diagnostics.
NewRoad – Empower Your Production with Intelligent Robotics
