Product Introduction

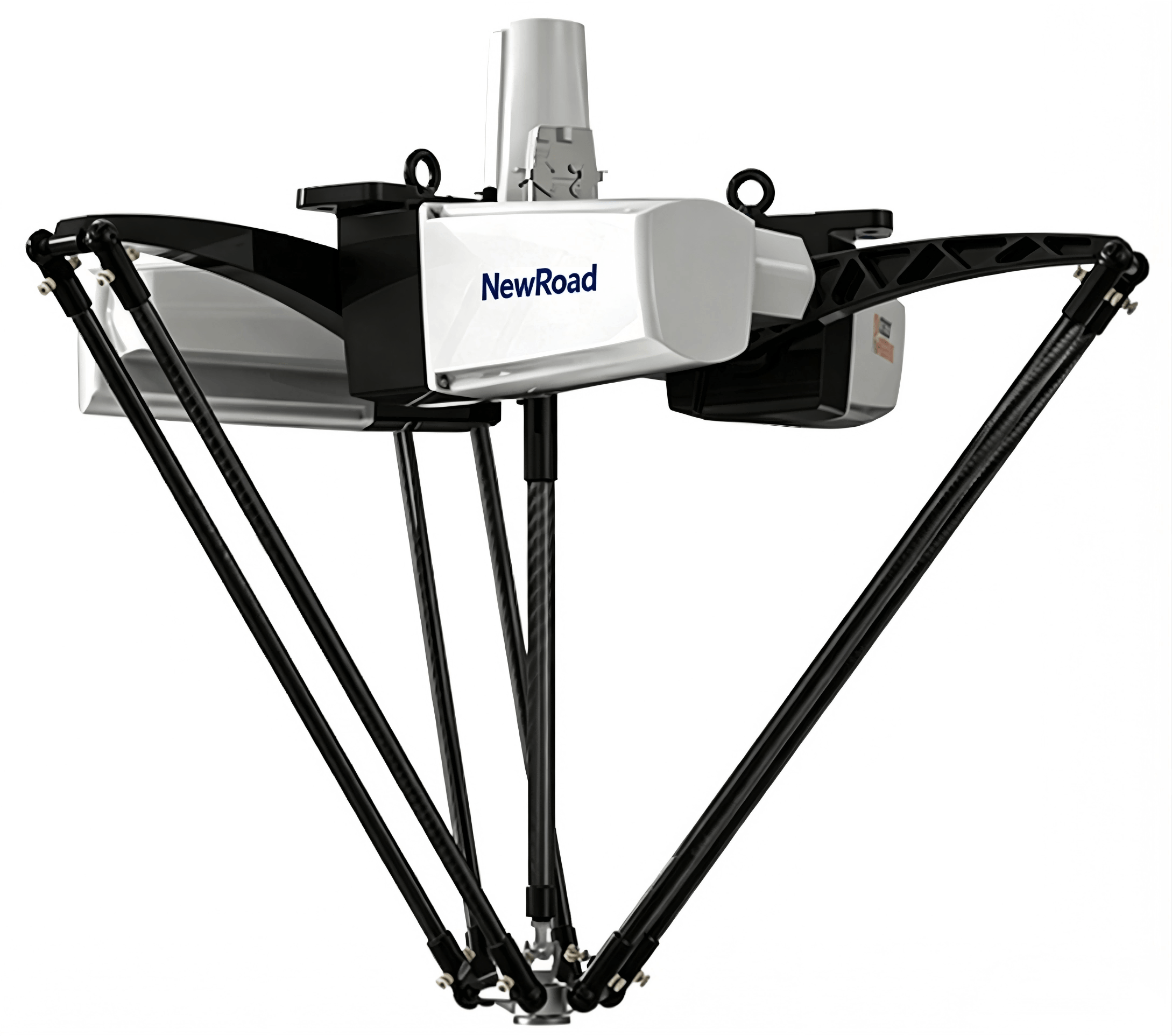

The Bat1300-S6 is a high-performance 4-axis delta parallel robot in the NewRoad Bat series, designed for medium-to-large workspace, high-speed, and medium-load production scenarios. It features an overhead installation that saves floor space and integrates seamlessly with high-speed packaging lines, large sorting conveyors, and automated assembly workstations. The robot body is marked with a dark blue NewRoad logo, embodying a professional and streamlined industrial aesthetic.
Engineered with high-rigidity aluminum alloy and carbon fiber composite materials, the Bat1300-S6 delivers exceptional structural stability, ultra-fast motion response, and reliable continuous operation. It excels in high-precision positioning and high-cycle repetitive tasks, making it ideal for food & beverage, pharmaceuticals, daily chemicals, 3C electronics, and logistics sorting industries. Typical applications include product sorting, rapid packaging, loading/unloading, cartoning, and assembly. It serves as a high-efficiency alternative to manual labor in medium-to-large automated lines, significantly boosting productivity, ensuring consistent quality, and enabling cost-effective automation upgrades.
Core Advantages
- Large Workspace & Strong Load Capacity：With a 1300mm working diameter and 6kg rated load (14kg peak)>, it covers a broad operational area and handles heavier payloads than compact delta models, suiting medium-to-large production layouts.
- Ultra-High Speed & Acceleration：Max speed reaches 10m/s, and acceleration up to 150m/s²>, enabling a standard cycle time of 0.32s (25/305/25 stroke, full load)>, perfect for high-volume, high-speed lines.
- High Precision & Stability：Linear repeat positioning accuracy is ±0.08mm, and 4-axis angular repeat accuracy is ±0.2°>, ensuring precise handling of small and medium-sized workpieces. Its robust mechanical design supports 20,000 hours of maintenance-free operation36氪>.
- Reliable Operation in Harsh Environments：Operates stably at 0°C–45°C and 5%–95% RH (non-condensing). IP54 protection resists dust and water splashes, suitable for food, pharmaceutical, and industrial environments.
- Excellent Compatibility & Expandability：Equipped with rich digital I/O and multiple communication ports, supporting Modbus-RTU/TCP, EtherCAT protocols. It can be seamlessly integrated with vision systems, PLCs, and other automation equipment for flexible, customized production.
- High Efficiency & Cost Savings：Powered by 3-phase 380V AC with 6kW rated power>, it balances high performance with energy efficiency, reducing long-term operational costs.
Technical Specifications
| Item | Detailed Parameter |
|---|---|
| Model | Bat1300-S6 |
| Number of Axes | 4 axes |
| Installation Method | Overhead mounting |
| Rated / Maximum Payload | 6kg / 14kg> |
| Working Space Diameter | 1300mm> |
| Overall Weight | 98kg> |
| Linear Repeat Positioning Accuracy | ±0.08mm> |
| Four-axis Angular Repeat Positioning Accuracy | ±0.2°> |
| Maximum Speed | 10m/s> |
| Maximum Acceleration | 150m/s²> |
| Cycle Time (25/305/25 stroke, rated load) | 0.32s> |
| Power Supply | 3-phase AC 380V±10%, 50/60Hz> |
| Rated Power | 6kW> |
| Operating Temperature | 0°C ~ 45°C |
| Relative Humidity | 5% ~ 95% (non-condensing) |
| Protection Grade | IP54 |
| Digital I/O Interface | 16 general digital input & output channels |
| External Ports | 2 × Ethernet, 1 × USB, 1 × RS232/RS485, 1 × EtherCAT |
| Supported Communication Protocols | Modbus-RTU, Modbus-TCP, EtherCAT |
| Safety Configuration | Emergency stop, over-load protection, motion monitoring |
Application Scenarios
The NewRoad Bat1300-S6 is tailored for medium-to-large scale, high-speed, and medium-load automation lines.
- Food & Beverage: High-speed sorting, packaging, and cartoning of snacks, bottled drinks, and packaged foods.
- Pharmaceuticals: Handling and boxing of blister packs, vials, and medical devices.
- Daily Chemicals: Packaging and loading of cosmetics, detergents, and personal care products.
- 3C Electronics: Assembly and sorting of medium-sized electronic components and modules.
- Logistics & E-commerce: High-speed sorting and picking of parcels and products in distribution centers.
Service Instructions
NewRoad provides full lifecycle services including pre-sales consultation, on-site installation, operation training, and after-sales maintenance. We support customized development for special working conditions, interface adaptation, and process integration. Our professional technical team ensures stable and efficient operation of your equipment, helping you build intelligent, high-yield production lines.
