Product Introduction

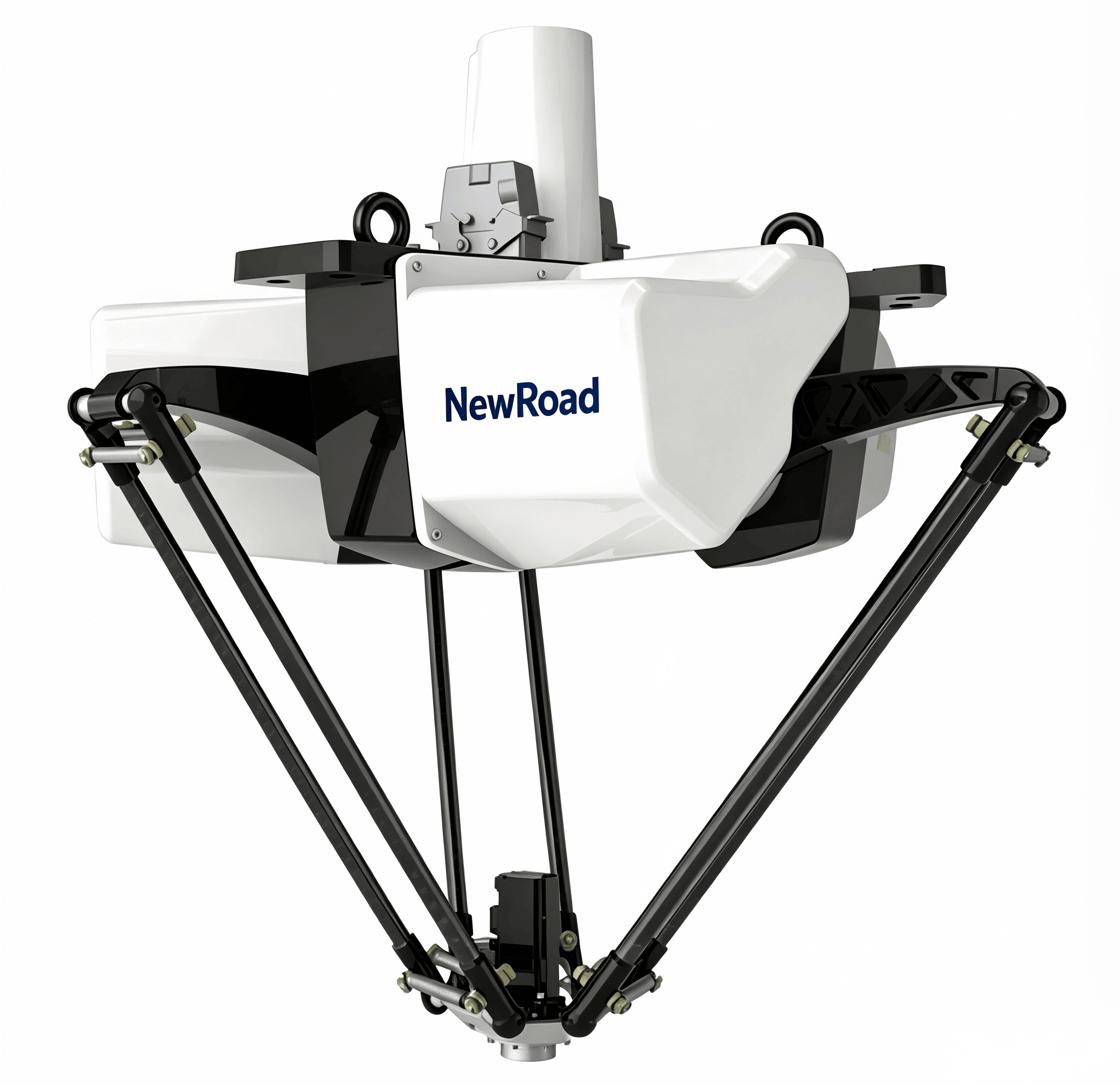

Belonging to the premium Bat series, the NewRoad Bat600M-S3 is a professional 4-axis delta parallel robot engineered for modern automated production lines. Adopting a mature overhead mounting structure, it fully saves valuable factory floor space and achieves seamless integration with diverse assembly lines. The robot is branded with the dark blue NewRoad logo, showcasing a sleek industrial appearance alongside robust mechanical rigidity and outstanding dynamic responsiveness.
Delivering exceptional motion accuracy, this robot maintains ultra-stable positioning performance during continuous operation. It executes rapid cyclic movements smoothly, perfectly catering to high-frequency repetitive tasks on production lines. Widely adopted across electronics, food processing, pharmaceuticals, daily chemicals, logistics and new energy sectors, it takes charge of core operational procedures including sorting, material handling, machine loading and unloading, cartoning and glue dispensing. By replacing intensive manual labor, this robot effectively boosts overall productivity, stabilizes product quality and cuts long-term operational costs for manufacturing enterprises.
Core Strengths
Speed and precision define the core competitiveness of the Bat600M-S3. Optimized mechanical structure and drive system enable it to complete rapid pick-and-place actions within an extremely short cycle time under different working strokes and load conditions, delivering remarkable operational efficiency for high-volume production. Its superior positioning performance ensures every movement is accurate and consistent, which is essential for sophisticated processing and precise material placement requirements.
Designed for reliable industrial operation, the robot features excellent environmental adaptability. It runs steadily in a wide range of temperature and humidity conditions, and its IP54 protection level offers reliable defense against common dust and water splashes in regular workshops. Equipped with comprehensive safety configurations including real-time operational monitoring and emergency stop functions, as well as EMC shielding design, it avoids electromagnetic interference and guarantees safe and stable collaboration with surrounding production equipment. The lightweight and compact body simplifies on-site installation, commissioning and daily maintenance, greatly reducing the difficulty of equipment deployment.
In terms of expandability and compatibility, the robot is fitted with abundant configurable digital interfaces and multiple universal physical ports. It supports mainstream industrial communication protocols, enabling easy connection and smooth data interaction with vision systems, PLC controllers and other peripheral automation devices. This strong compatibility allows flexible configuration to match diversified production demands and facilitates the construction of customized automated production solutions.
Technical Specifications
| Item | Parameter |
|---|---|
| Model | Bat600M-S3 |
| Number of Axes | 4 axes |
| Installation Method | Overhead mounting |
| Rated Payload | 3 kg |
| Maximum Payload | 10 kg |
| Working Space Diameter | 600 mm |
| Overall Weight | 69 kg |
| Linear Repeat Positioning Accuracy | ±0.05 mm |
| Four-axis Angular Repeat Positioning Accuracy | ±0.05 ° |
| Cycle Time (25/305/25 stroke, 0.1 kg) | 0.27 s |
| Cycle Time (25/305/25 stroke, 1 kg) | 0.29 s |
| Cycle Time (25/305/25 stroke, 3 kg) | 0.35 s |
| Cycle Time (90/400/90 stroke, 0.1 kg) | 0.35 s |
| Cycle Time (90/400/90 stroke, 1 kg) | 0.37 s |
| Cycle Time (90/400/90 stroke, 3 kg) | 0.42 s |
| Power Supply | Three-phase AC 380V±10%, 50/60Hz |
| Rated Power | 3.3 kW |
| Operating Temperature | 0 °C ~ 45 °C |
| Relative Humidity | 5% ~ 95% |
| Protection Grade | IP54 |
| Electromagnetic Compatibility | EMC shielding |
| Safety Features | Operation monitoring, emergency stop |
| Digital I/O | 4 configurable DI/DO; 8 general DI/DO (expandable to extra 8 channels); 2 encoder inputs |
| External Ports | 2 × Ethernet, 2 × USB, 1 × RS232/RS485, 1 × Ethercat |
| Supported Communication Protocols | Modbus-RTU, Modbus-TCP, Socket |
Application Scenarios
The NewRoad Bat600M-S3 features strong versatility to fit multiple industrial application scenarios. In the electronics industry, it excels at sorting, picking and assembly of miniature electronic components. For food and pharmaceutical production with strict hygiene standards, it performs automatic sorting, packaging and material handling reliably. Within daily chemical and new energy industries, it realizes automated loading, unloading, cartoning and glue dispensing for finished products and components. It also serves as an ideal automation device for material classification and distribution on logistics sorting lines.
Service Notice
We provide flexible customized services for circuit layouts and interface configurations to meet personalized on-site demands. NewRoad delivers full-lifecycle professional support, covering equipment installation guidance, operator training, regular maintenance and remote technical troubleshooting. We strive to supply high-performance, durable robotic equipment and considerate after-sales services, helping all partners accomplish intelligent transformation and upgrading of production lines.
