Product Introduction

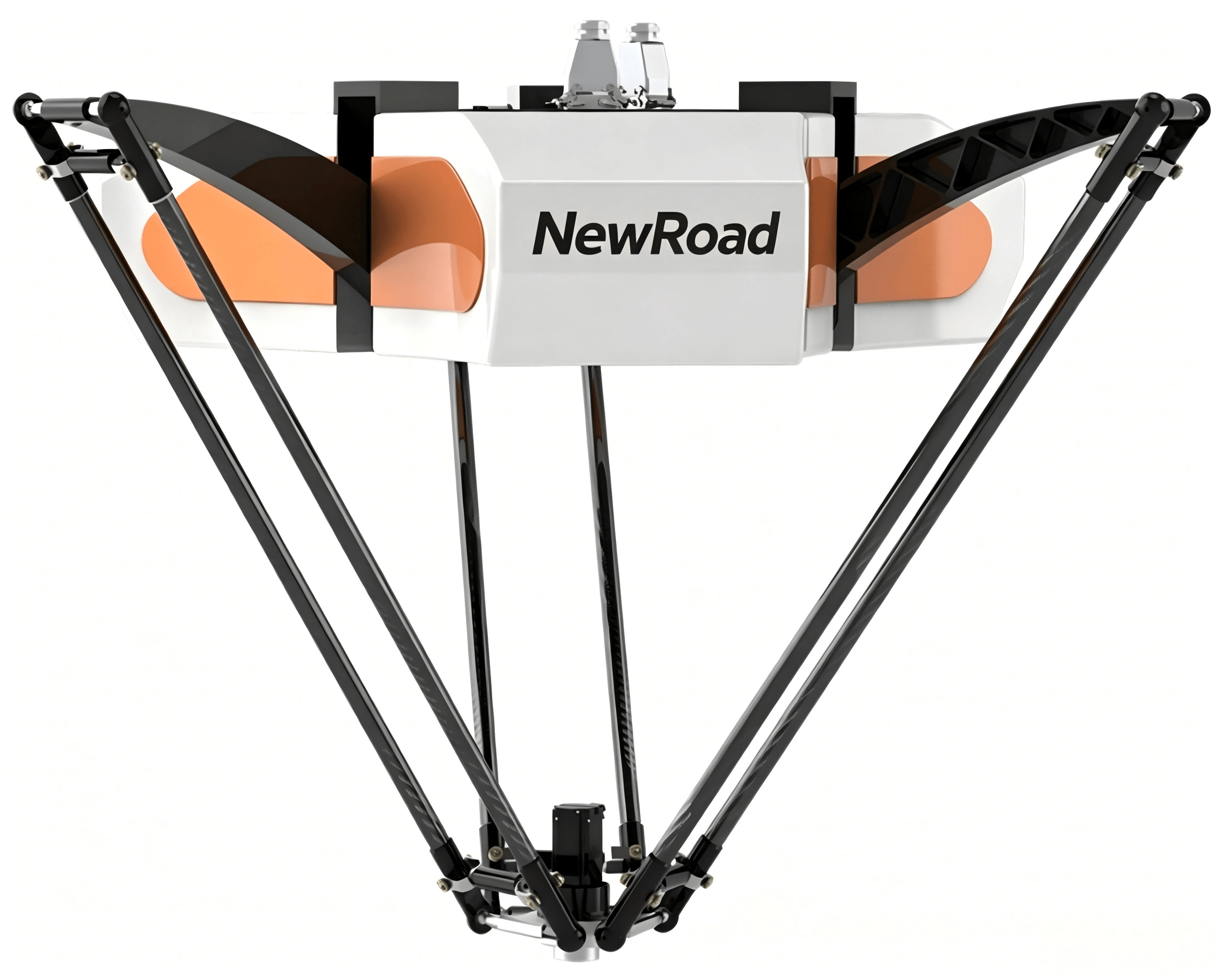

The Bat800M‑E3 is a compact, high‑speed 4‑axis delta parallel robot in the NewRoad Bat series, built for small‑to‑medium workspace, ultra‑fast cycle, light‑to‑medium load production lines. It adopts overhead installation to save floor space, ideal for high‑speed packaging, sorting, and assembly in tight layouts. The robot body features a dark blue NewRoad logo, delivering a clean, professional industrial look.
Constructed with high‑rigidity aluminum alloy and lightweight carbon fiber, the Bat800M‑E3 combines structural rigidity with ultra‑fast motion response. It excels in high‑precision, high‑cycle tasks, making it perfect for food & beverage, pharmaceuticals, daily chemicals, 3C electronics, and logistics sorting. Typical uses include sorting, packaging, cartoning, and small‑part assembly, offering a reliable, efficient alternative to manual labor in compact automated lines.
Core Advantages
- Compact Footprint & Efficient Workspace：800mm working diameter with a lightweight 62kg body, fitting small workcells while maintaining a broad operational range.
- Ultra‑High Speed & Agile Acceleration：Max speed 10m/s, acceleration up to 150m/s², with a standard cycle time of 0.30s (25/305/25 stroke, full load) for high‑volume lines.
- High Precision & Long‑Term Stability：Linear repeat positioning accuracy ±0.08mm, 4‑axis angular repeat accuracy ±0.2°; designed for 20,000 hours maintenance‑free operation.
- Harsh Environment Adaptability：Operates reliably at 0°C–45°C, 5%–95% RH (non‑condensing); IP54 protection resists dust and splashing water, suitable for food and pharmaceutical environments.
- Flexible Integration & Expandability：Rich digital I/O and Ethernet/USB/RS232 ports support Modbus‑RTU/TCP, EtherCAT; easily connects to vision systems and PLCs for customized automation.
- Energy‑Efficient Operation：2.7kW rated power (3‑phase 380V AC) balances high performance with low energy consumption, cutting long‑term costs.
Technical Specifications
| Item | Detailed Parameter |
|---|---|
| Model | Bat800M‑E3 |
| Number of Axes | 4 axes |

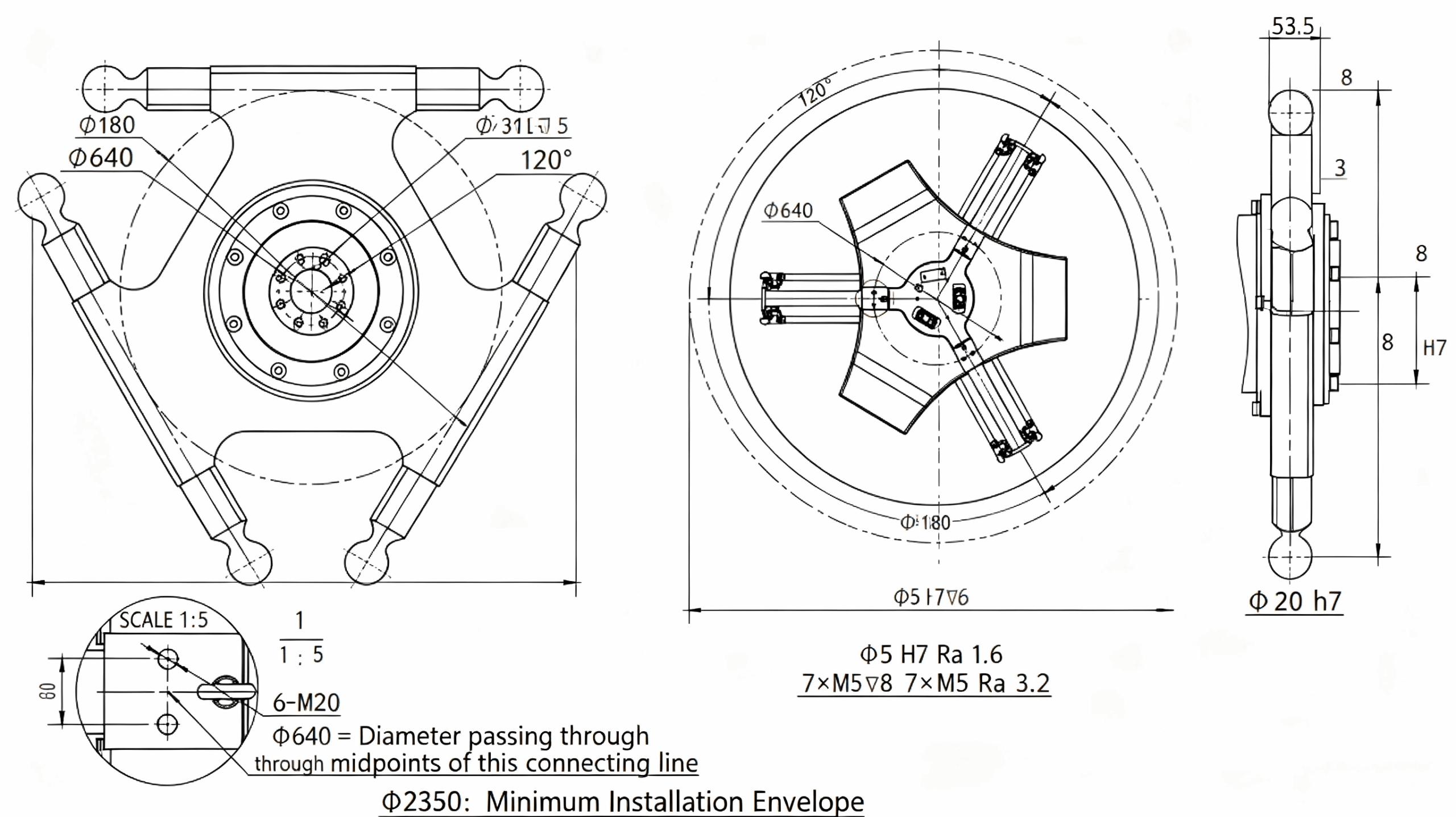

| Installation Method | Overhead mounting |
| Rated / Maximum Payload | 3kg / 10kg |

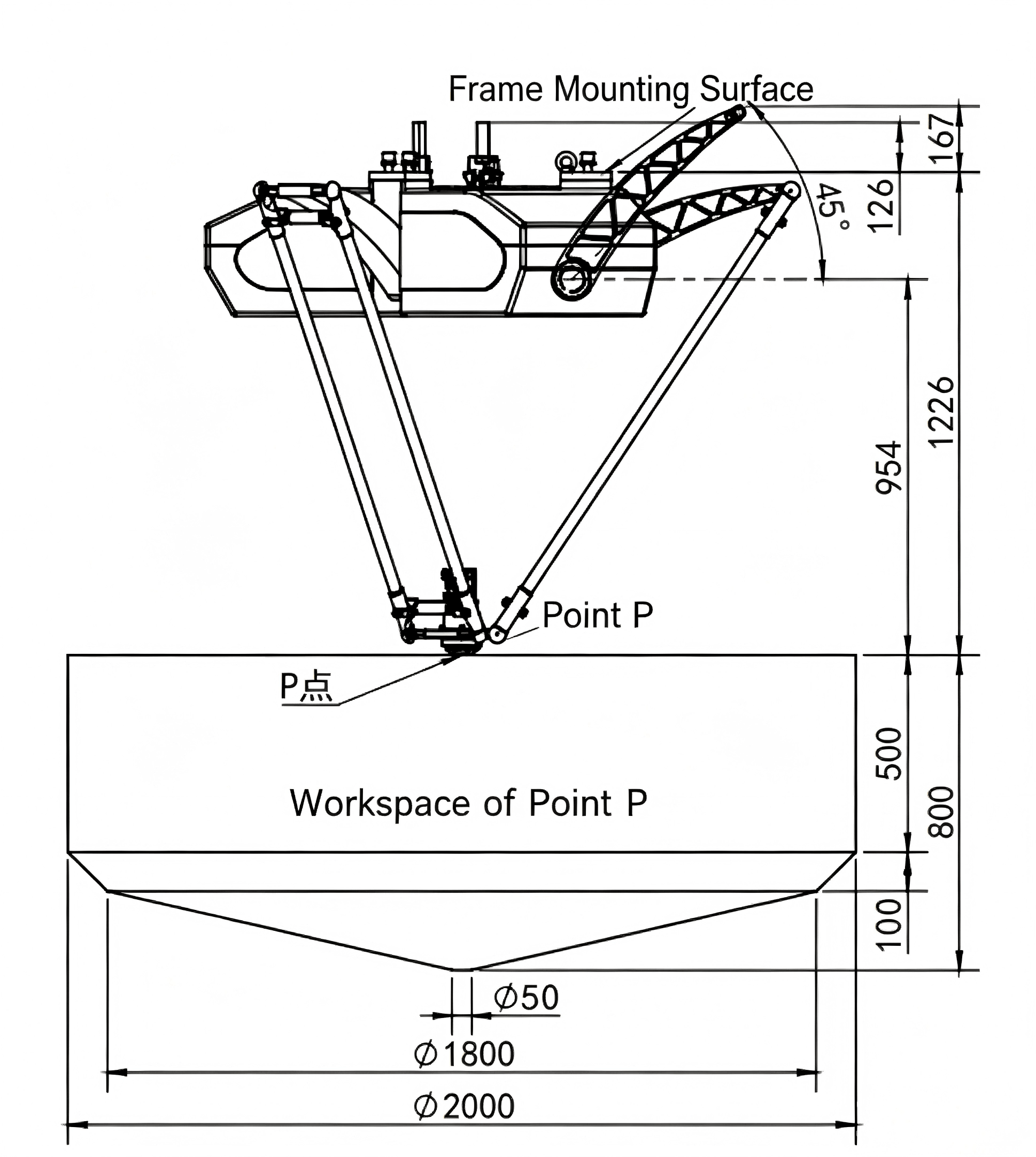

| Working Space Diameter | 800mm |
| Overall Weight | 62kg |
| Linear Repeat Positioning Accuracy | ±0.08mm |
| Four‑axis Angular Repeat Positioning Accuracy | ±0.2° |
| Maximum Speed | 10m/s |
| Maximum Acceleration | 150m/s² |
| Cycle Time (25/305/25 stroke, rated load) | 0.30s |
| Power Supply | 3‑phase AC 380V±10%, 50/60Hz |
| Rated Power | 2.7kW |
| Operating Temperature | 0°C ~ 45°C |
| Relative Humidity | 5% ~ 95% (non‑condensing) |
| Protection Grade | IP54 |
| Digital I/O Interface | 16‑channel general digital input/output |
| External Ports | 2 × Ethernet, 1 × USB, 1 × RS232/RS485, 1 × EtherCAT |
| Supported Communication Protocols | Modbus‑RTU, Modbus‑TCP, EtherCAT |
| Safety Configuration | Emergency stop, overload protection, motion monitoring |
Application Scenarios
The NewRoad Bat800M‑E3 is optimized for compact, high‑speed, light‑load automation:
- Food & Beverage: High‑speed sorting, packaging, and cartoning of snacks, bottled drinks, and packaged foods.
- Pharmaceuticals: Handling and boxing of blister packs, vials, and medical devices.
- Daily Chemicals: Packaging and loading of cosmetics, detergents, and personal care products.
- 3C Electronics: Assembly and sorting of medium‑sized electronic components and modules.
- Logistics & E‑commerce: High‑speed sorting and picking of parcels and products in distribution centers.
Service Instructions
NewRoad provides full‑lifecycle services including pre‑sales consultation, on‑site installation, operation training, and after‑sales maintenance. We support customized development for special working conditions, interface adaptation, and process integration. Our professional technical team ensures stable and efficient operation of your equipment, helping you build intelligent, high‑yield production lines.
