High-Rigidity Vertical Machining Center | For Medium & Heavy Duty Cutting
Overview
The 2000A and 3000A are heavy-duty vertical CNC machining centers developed by NewRoad, designed for high-precision milling, drilling, boring, and tapping on steel, cast iron, and alloy workpieces.
2000A: Standard model for medium-sized, medium-load parts, balanced efficiency and cost.
3000A: Upgraded heavy-duty model with larger travels, higher rigidity, and stronger spindle power for large workpieces and continuous mass production.
Both machines adopt high-grade cast iron frame, linear guideways, and precision ball screws, ensuring long-term stability and accuracy. The NewRoad logo is clearly marked on the machine body, spindle head, and electrical cabinet.
1. Machine Specifications (Verified & Updated)
1.1 General
Item
2000A
3000A
Machine Type
Vertical Machining Center
Vertical Heavy-Duty Machining Center
Brand
NewRoad
NewRoad
Frame Material
High-grade cast iron, stress-relieved
High-grade cast iron, heavy ribbed, stress-relieved
Installation
Floor-mounted
Floor-mounted
Application
Automotive, mold, general mechanics
Large mold, aerospace, energy, heavy equipment
1.2 Travel & Table
Item
2000A
3000A
X-axis Travel
2000 mm
3000 mm
Y-axis Travel
800 mm
1000 mm
Z-axis Travel
700 mm
900 mm
Table Size (L×W)
2200 × 800 mm
3200 × 1000 mm
Max Table Load
1000 kg
1800 kg
1.3 Spindle
Item
2000A
3000A
Spindle Type
Belt-driven / Direct optional
Gear-driven heavy-duty
Spindle Taper
BT50
BT50
Spindle Speed
60 – 12,000 rpm
60 – 10,000 rpm
Spindle Power
15 kW (22 kW optional)
22 kW (30 kW optional)
Spindle Torque
120 Nm
200 Nm
1.4 Accuracy
Item
2000A
3000A
Positioning Accuracy
±0.008 mm
±0.006 mm
Repeat Positioning Accuracy
±0.003 mm
±0.0025 mm
1.5 Feed & Drive
Item
2000A
3000A
Rapid Traverse (X/Y/Z)
30 / 30 / 24 m/min
24 / 24 / 20 m/min
Cutting Feed
1 – 10,000 mm/min
1 – 8,000 mm/min
Guideway Type
Linear guideways
Linear guideways (heavy load)
Drive System
CNC servo motors
CNC servo motors (high torque)
1.6 Tool Changer (Optional)
Item
2000A
3000A
Tool Magazine Capacity
24 T
32 T
Tool Change Time
2.8 s
3.5 s
2. Performance Comparison & Selection Guide
2000A – Standard Medium-Duty Model
Best for: Medium-size workpieces (≤1000 kg), small-to-batch production, high-speed finishing.
Advantages: ✅ Compact footprint, lower energy consumption ✅ Higher spindle speed for fine machining ✅ Cost-effective, easy maintenance
3000A – Heavy-Duty Large-Travel Model
Best for: Large workpieces (≤1800 kg), heavy roughing, 24-hour mass production, automated lines.
Advantages: ✅ Larger X/Y/Z travels for oversized parts ✅ Higher rigidity & torque for heavy cutting ✅ Better stability in long continuous runs
Rule of thumb:
Choose 2000A if part length <2.2 m & load <1 ton.
Choose 3000A if part length >2.2 m or heavy material removal.
3. Automation & Integration
Both models support seamless connection with NewRoad intelligent workshop solutions:

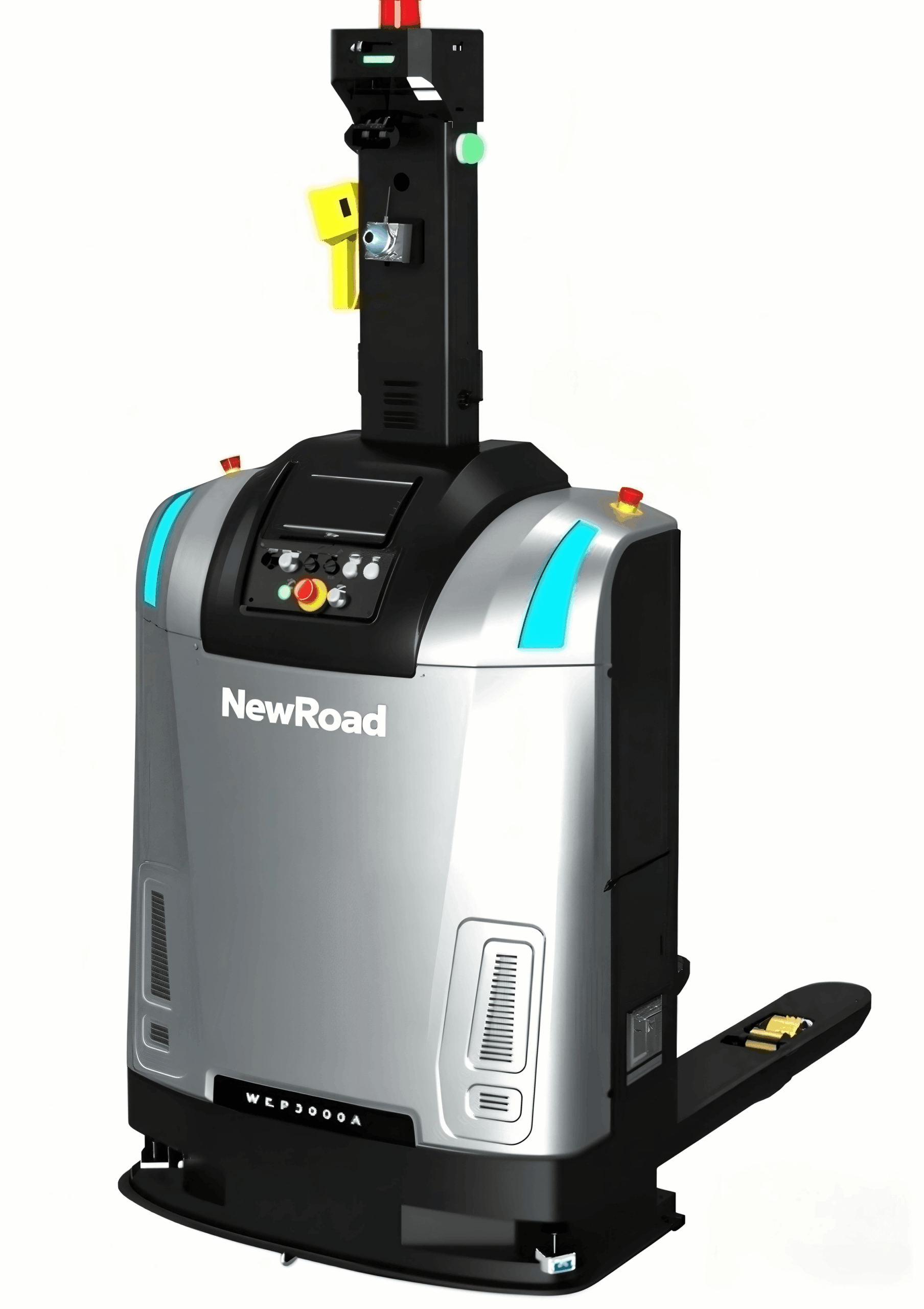

AGV Pallet Jack Robot (for automatic loading/unloading & part transfer)
Automatic pallet changer (APC)
Tool monitoring & workpiece measurement probes
MES / ERP / workshop monitoring system
4. Brand & Marking
Machine body: NewRoad logo (blue, standard size)
Spindle head: NewRoad logo
Electrical cabinet: NewRoad logo + model number (2000A / 3000A)
5. After-Sales Service
Pre-sales: Process planning, simulation, model selection
Delivery: Installation, commissioning, operator training
