NewRoad HC-S6-C Single Flat Platform Mobile Collaborative Robot
HC-S6-C Single Deck Mobile Cobot Robot | NewRoad Robotics
Slogan：Compact Single Flat Loading Platform｜SLAM+QR Dual Navigation｜Flexible On-site Deployment｜Fence-free HRC Operation

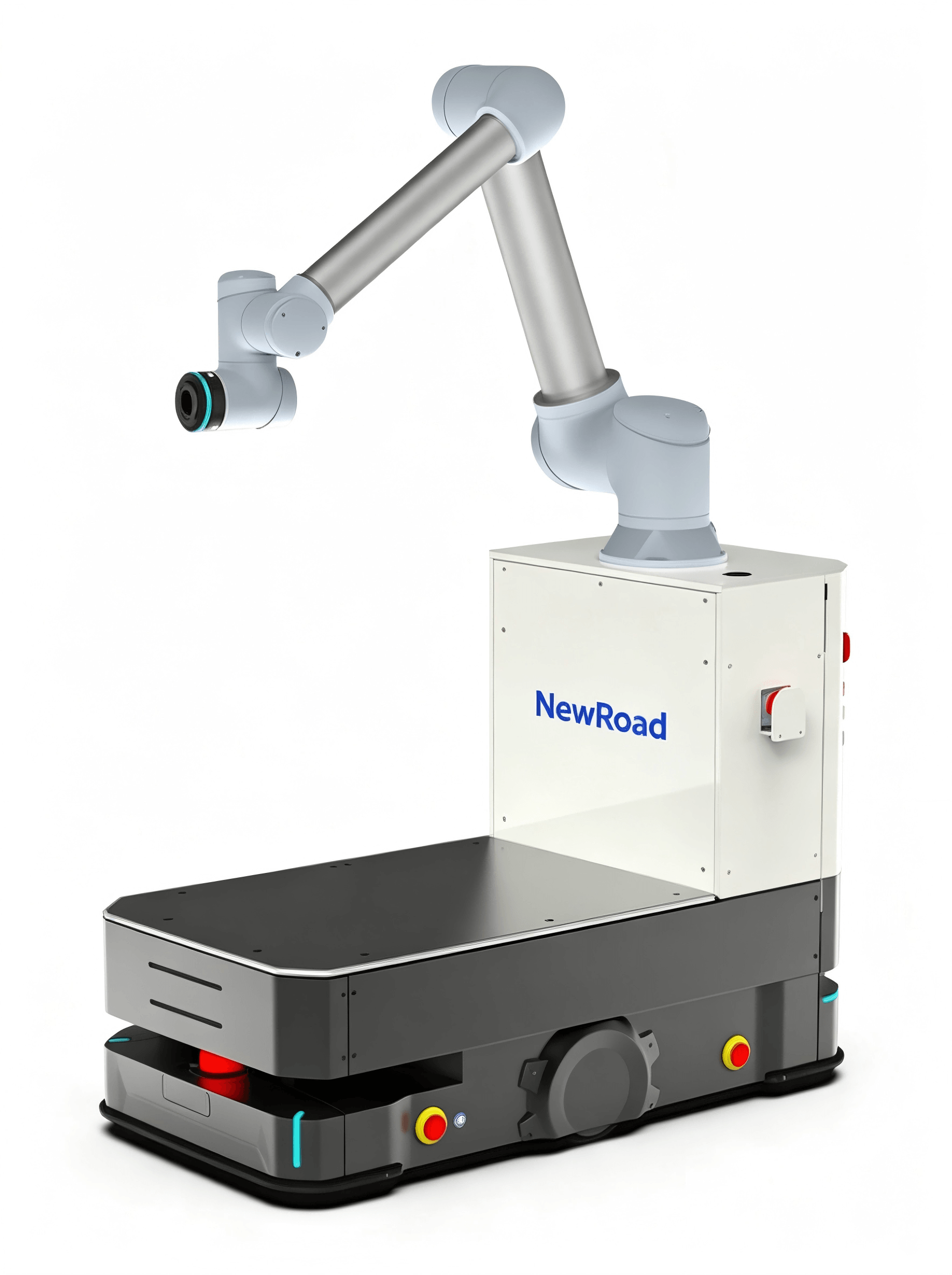

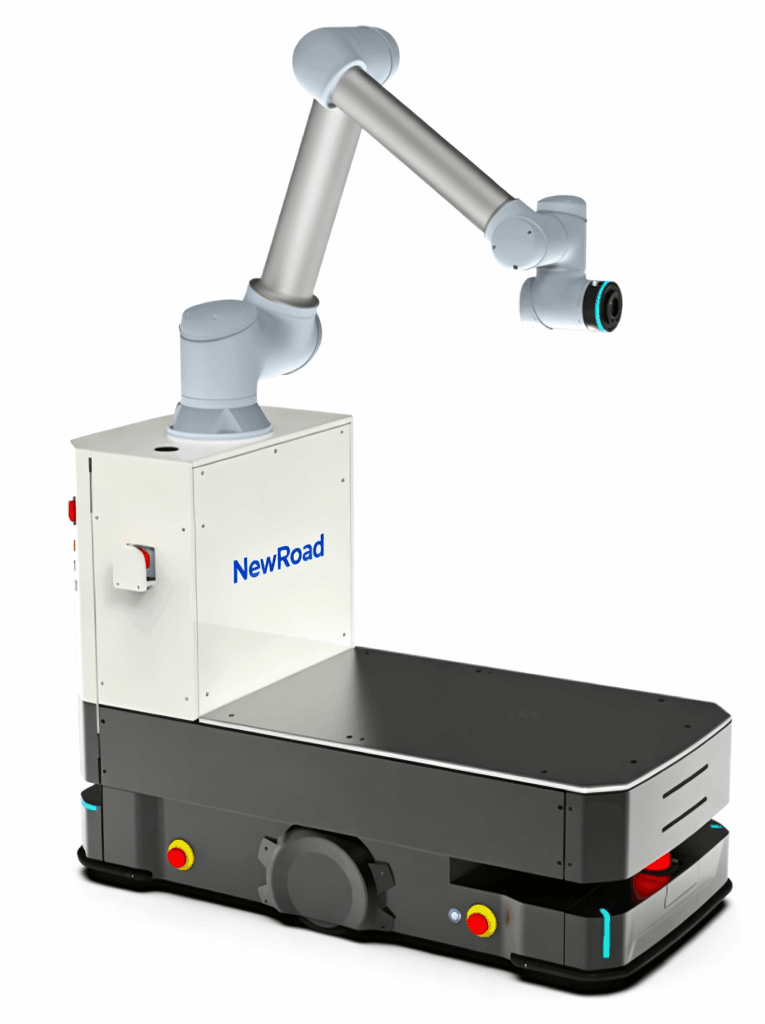

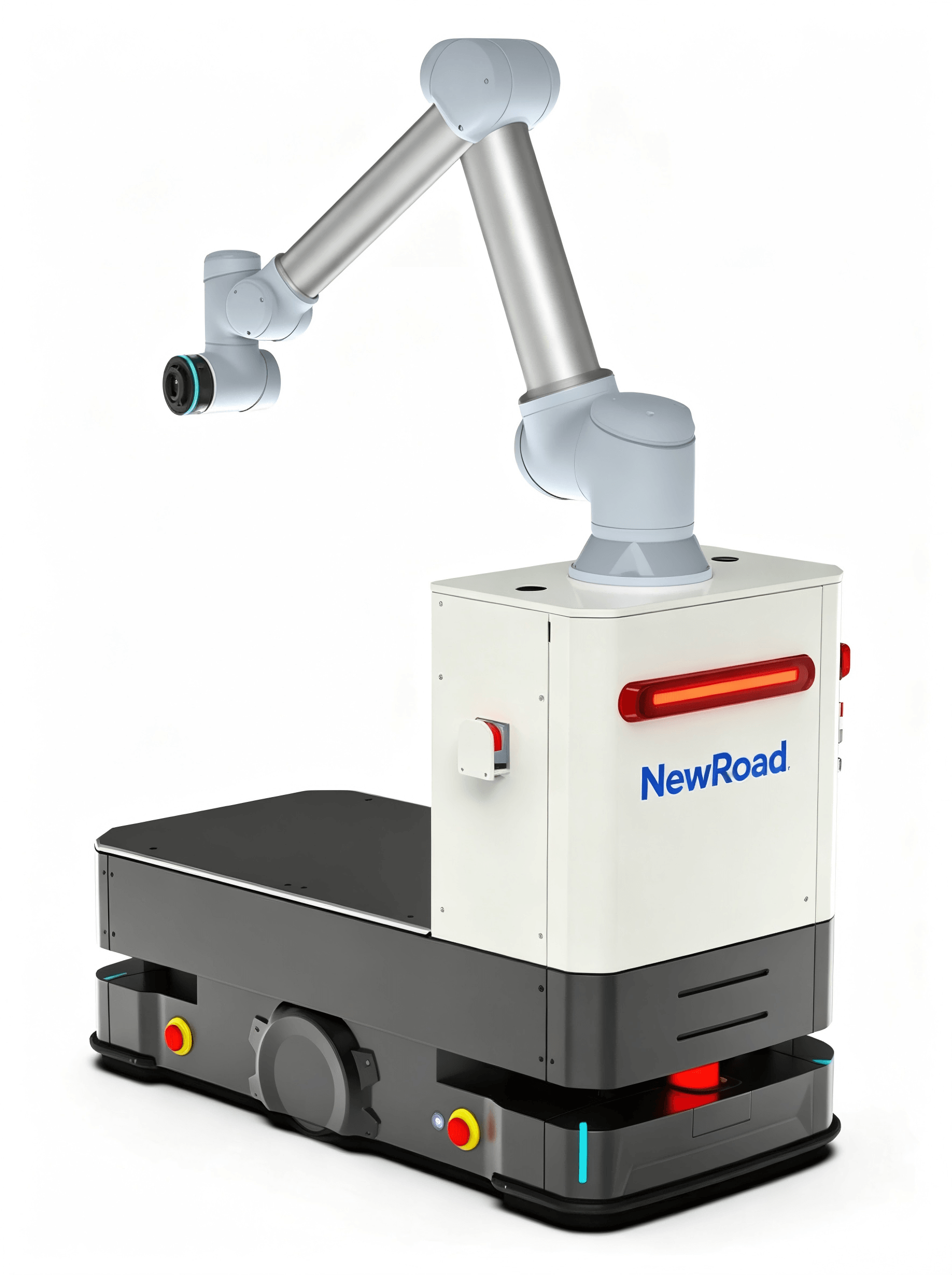

NewRoad HC-S6-C is a cost-effective single flat-platform mobile composite robot, integrating differential drive AGV chassis and modular 6-axis collaborative robotic arm. Designed for conventional workshop raw material feeding, finished product collection and station-to-station part transfer, this compact AMR solves the cost waste of oversized robots for simple handling tasks, widely deployed in CNC processing, auto component assembly, 3C electronics and general precision manufacturing lines.
Four Core Product Advantages
1. Compact Single Flat Deck Design, Cost-Efficient Standard Handling
Adopts minimalist single flat bearing platform structure with smooth stainless steel cargo surface, neat and easy for material tray & workpiece placement. Compact whole-machine dimension reduces floor occupation; compared with multi-layer models, it cuts procurement cost for factories with simple one-type-material transfer demand, ideal for small&medium batch production lines with basic feeding & picking needs. Max platform load reaches 420kg to cover most standard industrial turnover tasks.
2. Dual-Mode Laser SLAM+QR Navigation, Rapid Shop Floor Layout
Equipped with laser SLAM & QR code dual positioning navigation system, no magnetic stripe or ground rail pre-burial required; engineers finish environment mapping within half a day for quick production line access. Repeat parking accuracy ±5mm position & ±1° angle, stable automatic docking with CNC machine mouth, assembly workstation and storage rack. Optional GCR5/GCR10/GCR20/GCR30 collaborative arms (5~30kg end payload) for light precision picking and medium-load workpiece handling separately.
3. Full Surround Multi-layer Safety, Fence-Free Human-Robot Co-work
Full set of industrial safety configuration: perimeter anti-collision safety bumper + 360° all-round safety laser scanner + distributed collision induction + multi-position physical emergency stop buttons (chassis & arm base). Passed TUV international safety certification; automatically decelerate & emergency stop once detecting workers or unexpected obstacles, realize man-machine mixed walking operation without isolation fence, save factory safety fence construction investment.
4. Diversified Charging & Open Industrial Interface, Easy System Docking
Three optional charging modes: automatic contact charging, wireless induction charging and quick battery swap to support 24/7 non-stop unmanned production. Reserved CAN/RS485/RJ45/USB multiple communication ports, compatible with CANOPEN & Modbus mainstream industrial protocols for seamless linkage with customer’s MES/WMS production management system. Drag-to-teach programming mode enables ordinary on-site operators to edit moving path & working procedures without coding knowledge.
Technical Specification Table
| Items | Parameters |
|---|---|
| Overall Dimension | Standard 1280×760×860mm |
| Carrying Structure | Single flat stainless steel platform |
| Max Platform Total Load | 420kg |
| Optional Cobot Arm | GCR5/GCR10/GCR20/GCR30 |
| Arm End Payload | 5kg /10kg /20kg /30kg |
| Navigation Type | Laser SLAM + QR Code Dual Navigation |
| Parking Precision | ±5mm(L), ±1°(A) |
| Drive Mode | Differential Drive |
| Charging Option | Contact Auto-Charging / Wireless Charging / Quick Battery Swap |
| Safety Standard | Full Edge Bumper + Omni Laser + Multi-Point E-Stop |
| Supported Protocols | CANOPEN, Modbus |
| Working Temp | -10℃~45℃ Indoor Only |
| Optional Upgrade | Class100/1000 Cleanroom Coating, 2D/3D Vision Module |
Core Application Scenarios
1. CNC Machine Cluster Automatic Feeding & Collecting
Circulate between grouped CNC equipment, transport raw blanks into machine fixtures and carry finished machined parts out after processing; replace manual trolley back-and-forth conveying to lower repetitive labor cost.
2. 3C Electronic Assembly Line Parts Distribution
Deliver standardized electronic components from centralized material warehouse to each scattered assembly station, fit small-batch multi-SKU flexible production mode of consumer electronics factories.
3. Auto Parts Workshop Line-side Replenishment
Realize regular raw material replenishment from warehouse to assembly line, finish finished auto fittings backflow to finished goods storage area, optimize lean logistics inside automobile manufacturing workshop.
4. Standard Pharmaceutical Factory Normal Material Transit
Standard version for non-high-clean pharmaceutical workshop’s raw medicine box & consumable turnover; customized clean coating version available for dust-free production environment.
Product Selection & Customization Guide
- Arm Payload Selection: GCR5/GCR10 for tiny precision component grabbing; GCR20/GCR30 for heavy auto parts & metal workpiece handling.
- Environment Customization: Add dust-proof clean coating for pharmaceutical/semiconductor cleanroom per requirement.
- Function Expansion: Install optional vision positioning module for unordered bin picking and barcode scanner for material information traceability.
About NewRoad Robotics
NewRoad focuses on independent R&D and manufacturing of mobile collaborative robots, all core control and drive components self-developed. Full-series products acquire IEC61508 & TUV international safety certifications. We provide one-stop full lifecycle service including pre-sales production layout planning, on-site installation commissioning and lifelong after-sales maintenance for global manufacturing clients.
