NewRoad｜HC-S6-B Multi-layer Platform Mobile Collaborative Robot
HC-S6-B Multi-storage Tray Mobile Cobot | NewRoad Robotics
Multi-layer Carrying Platform · SLAM+QR Dual Navigation · On-board Storage Design · All-round Safety HRC

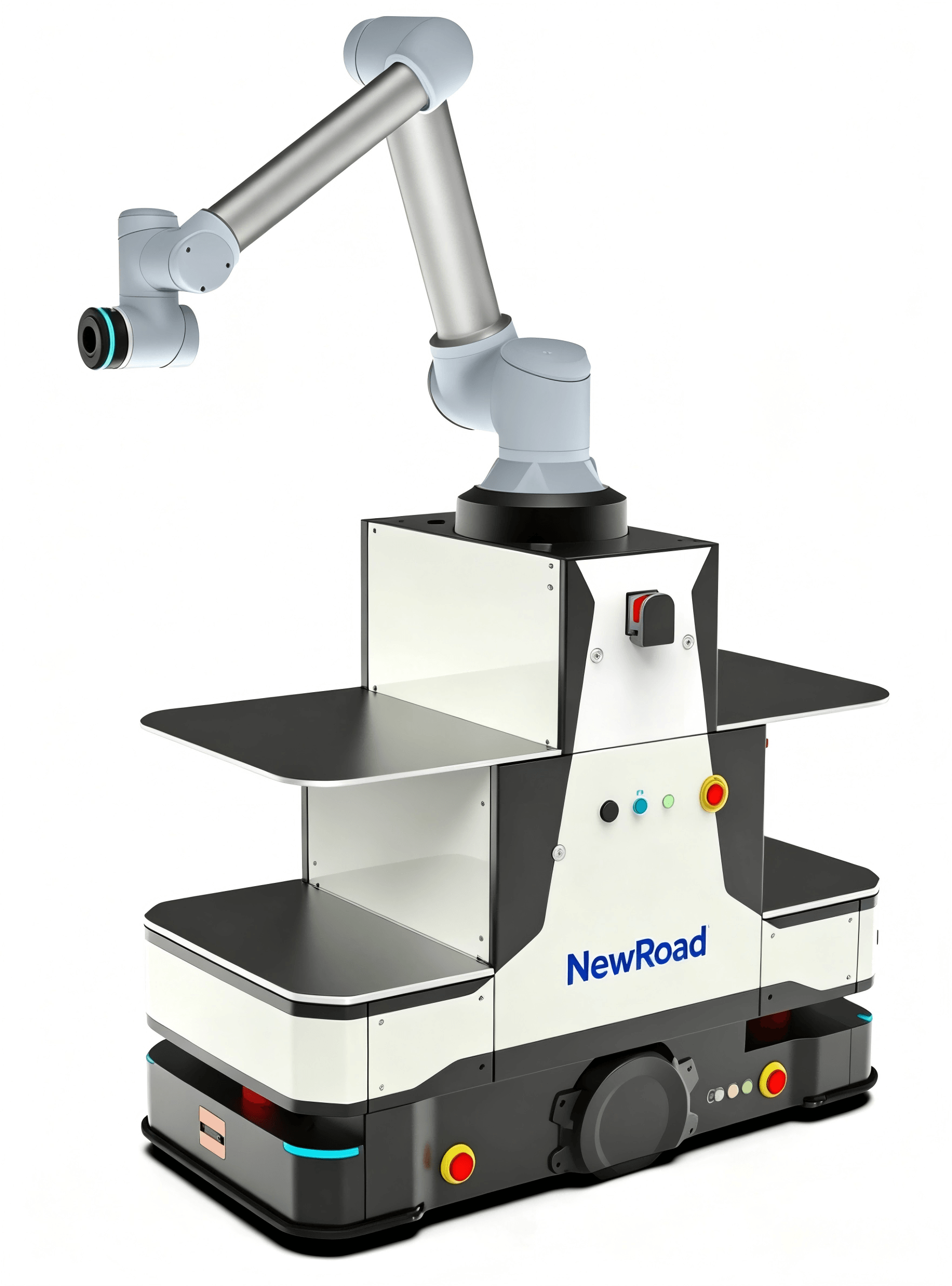

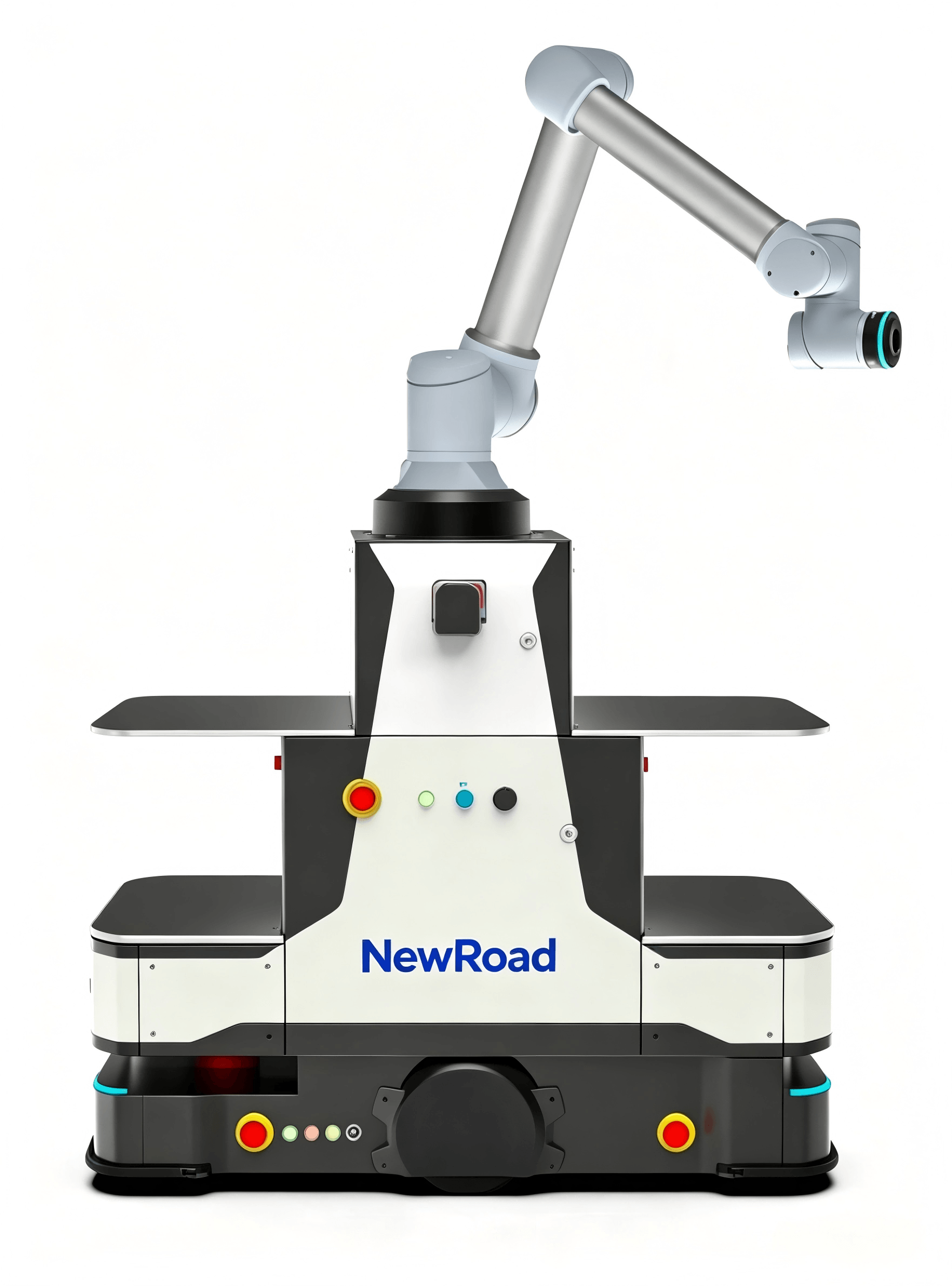

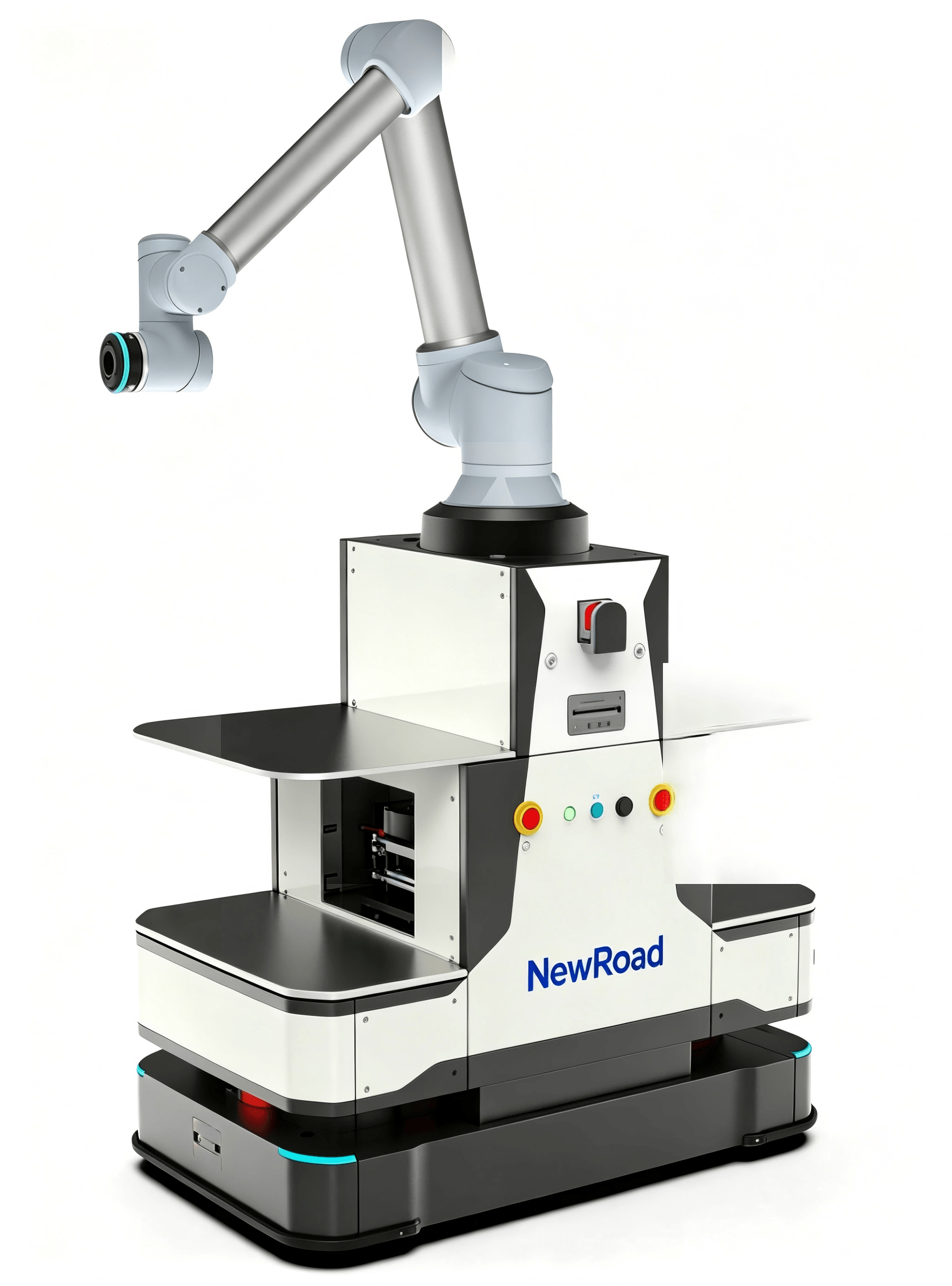

NewRoad HC-S6-B composite mobile robot is a customized warehousing & feeding integrated AMR with built-in multi-layer material tray platform, combining autonomous mobile chassis + 6-axis modular collaborative manipulator. Specially developed for frequent multi-batch raw material feeding, semi-finished goods turnover and finished parts collection, it solves the pain point of traditional AGV with single-layer limited load capacity, widely used in CNC workshop, auto parts assembly, 3C electronics processing and precision medical production lines.
Four Core Advantages
1. Unique Multi-layer Split Platform Design, Large-Capacity On-board Storage
Different from ordinary flat chassis mobile robots, HC-S6-B is equipped with independent multi-layer separated bearing trays, classified placement for raw blanks, semi-finished products and finished workpieces separately. One single robot replaces multiple trolleys, realizing one-time multi-task round-trip feeding & receiving, greatly cutting workshop transport frequency and waiting downtime. The tray structure is detachable and customizable in layer number & bearing area, adapting different size of material boxes and fixtures.
2. Dual Navigation Technology, Stable Precision Docking
Adopts laser SLAM + QR code dual-mode positioning navigation, no magnetic strip/ground rail laying required, rapid site mapping deployment within hours. Repeated parking precision ±5mm in position, ±1° in angle, ensuring accurate docking with machine tool inlet/outlet and production line stations; the collaborative arm optional from 5kg~30kg end payload, matches precision picking and medium-heavy workpiece handling demands.
3. Full-perimeter Multi-level Safety Protection, Fence-free Human-machine Collaboration
Full-body safety configuration: surrounding anti-collision safety bumper + 360° safety laser scanner + distributed collision sensor + physical emergency stop buttons distributed on chassis and arm base, certified by international TUV safety standard. Automatically decelerate and emergency stop when detecting workers or obstacles nearby, allowing mixed walking operation between staff and robot without safety isolation fence, saving factory renovation cost.
4. Flexible Charging + Open Industrial Interface, Easy System Integration
Support automatic contact charging, wireless charging and quick battery swap three charging modes to realize 24h uninterrupted unmanned running; abundant reserved CAN/RS485/RJ45/USB communication ports, compatible with CANOPEN, Modbus mainstream industrial protocols, seamlessly connected with factory MES/WMS production management system. Adopt drag-to-teach programming mode, field operators can complete path editing and task setting without professional programming foundation.
Technical Parameter Table
| Parameter Item | Specification |
|---|---|
| Whole machine dimension | Customized based on platform layout, standard size 1320×820×910mm |
| Platform structure | Detachable multi-layer split storage tray (layers customizable) |
| Max total platform load | 520kg |
| Optional collaborative arm | GCR5/GCR10/GCR20/GCR30 |
| Arm end payload | 5kg/10kg/20kg/30kg |
| Navigation mode | Laser SLAM + QR code dual navigation |
| Parking precision | ±5mm position, ±1° angle |
| Driving type | Differential/omnidirectional optional |
| Charging mode | Contact auto-charging / wireless charging / quick battery swap |
| Safety configuration | Full edge safety bumper + omnidirectional laser + multi-point E-stop |
| Communication protocol | CANOPEN, Modbus |
| Working environment | -10℃~45℃, indoor use |
| Optional upgrade | Class100/1000 cleanroom coating, 2D/3D vision positioning module |
Main Application Scenarios
1. CNC Lathe Cluster Automatic Feeding & Collection
For clustered CNC machining workshops, HC-S6-B multi-layer tray separately holds raw material and finished parts, autonomously circulates among dozens of machine tools, automatically load blank into fixture and pick processed finished products, cut manual trolley back-and-forth labor by over 40%.
2. 3C Electronics Multi-station Assembly Line Turnover
Small-batch multi-variety electronic component production: classified storage for spare parts on different layers of tray, robot automatically distributes accessories to each assembly station, realize flexible lean production.
3. Auto Parts Spare Parts Warehouse-to-line Distribution
Realize direct transfer from raw material warehouse to production line, multi-layer tray stores different specification auto fittings at once, improve material distribution efficiency of auto assembly workshop.
4. Pharmaceutical Cleanroom Material Transfer
Custom clean-grade model available for biological reagent and medical consumable factory, dust-free tray structure avoids product pollution, meet high-standard sterile production requirements.
Selection & Custom Instruction
- Layer Custom: 2~5 layers tray optional according to material quantity and box size;
- Payload Match: Light tiny parts select 5kg/10kg arm, large heavy auto fittings prefer 20kg/30kg arm;
- Environment Upgrade: Dust-proof coating for cleanroom, optional vision module for automatic positioning picking.
About NewRoad Robotics
NewRoad devotes to independent R&D and production of mobile collaborative composite robots, all core drive and control components self-developed, full range products pass international IEC61508 & TUV safety certification. We provide pre-sales production layout planning, on-site installation debugging and lifelong after-sales full-set service, serving automated manufacturing enterprises worldwide.
