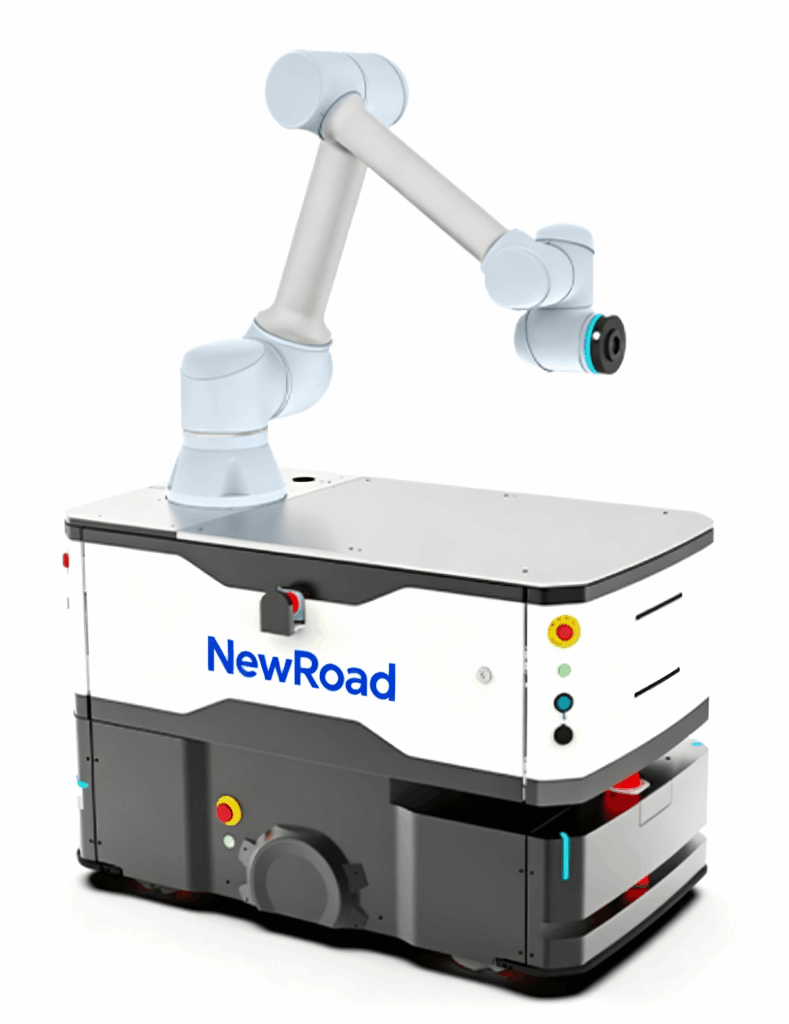

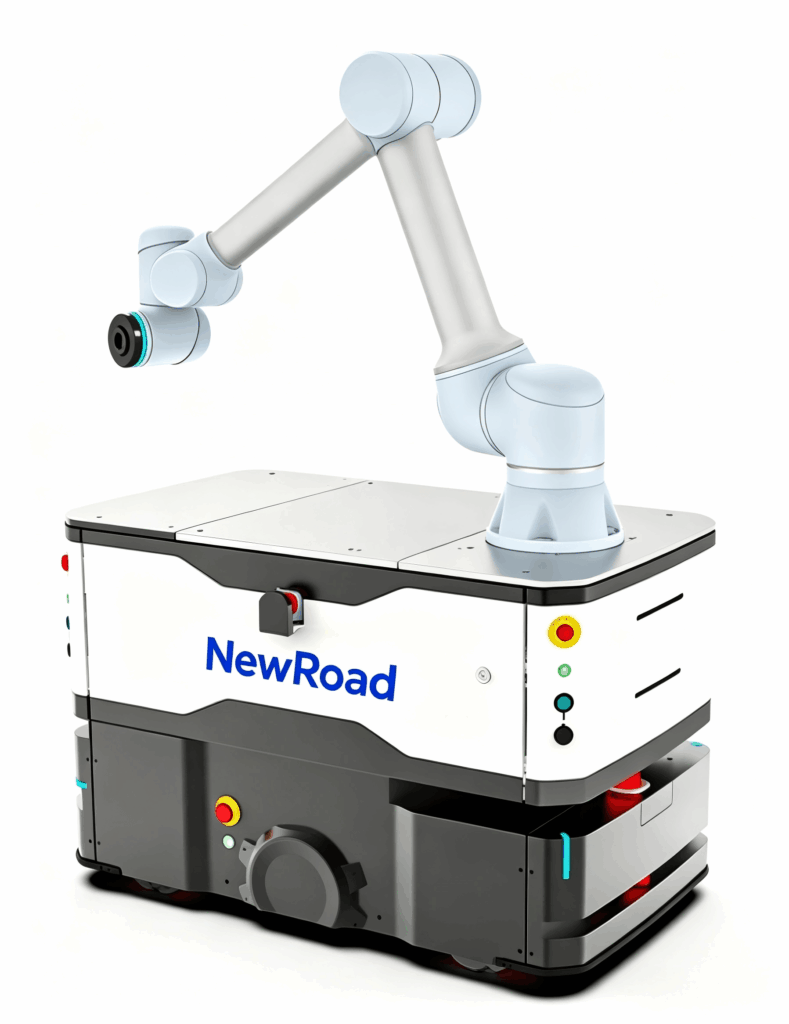

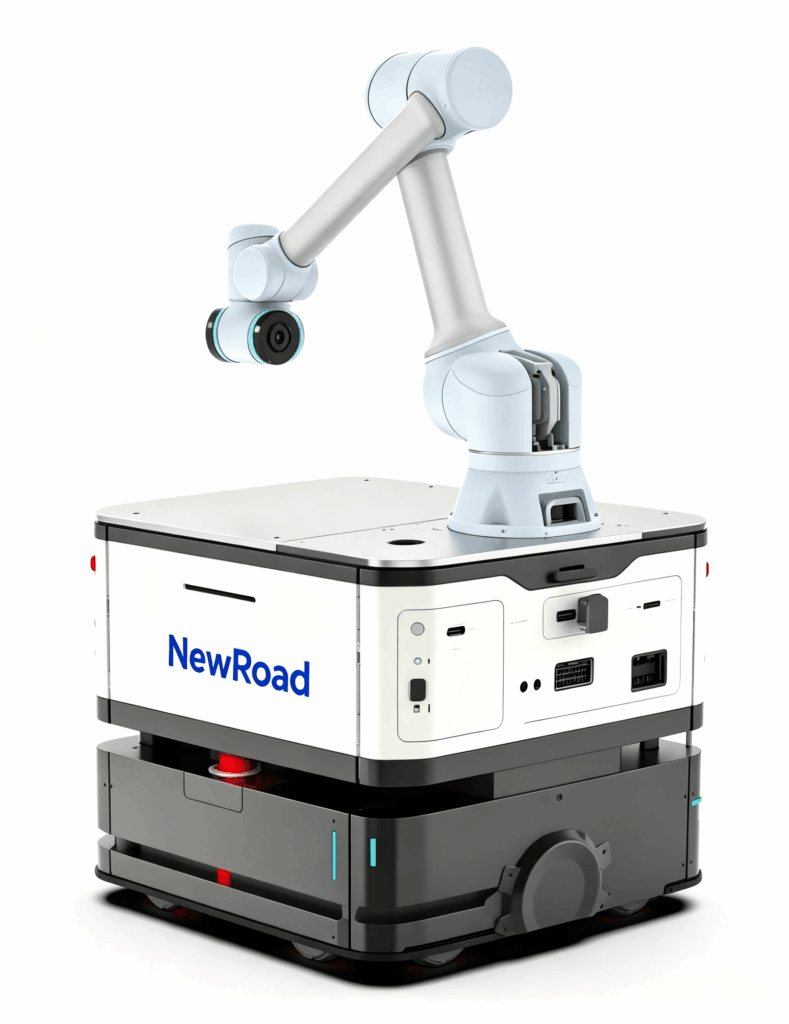

NewRoad HC-X6-B Omni-Directional Mobile Collaborative Composite Robot
HC-X6-B Mecanum Wheel Mobile Cobot AMR | NewRoad Robotics
Slogan: Full-Perimeter Safety Protection | Hand-Guided Teaching | Triple Charging Options | Dual-Mode SLAM+QR Navigation
NewRoad HC-X6-B integrated composite robot combines Mecanum omnidirectional chassis and modular collaborative robotic arm, breaking the limitation of fixed workstation robots. It realizes integrated flexible automation: autonomous moving, picking, machine loading/unloading, palletizing and inline inspection. Widely deployed in 3C electronics, auto parts, precision medical and semiconductor cleanroom intelligent manufacturing.
Core Advantages
1. Omni-Directional Mecanum Driving, Compact Space Accessibility
Equipped with full Mecanum wheel drive, zero turning radius for in-place rotation, lateral & diagonal movement. Minimum passage width only 1000mm; 45mm ground clearance, 10mm obstacle climbing, 80mm trench crossing and max 5° gradient climbing to adapt factory floor grooves and slight height difference. Chassis dimension: 1250×700×800mm with max platform load 470kg, maximizing workshop space utilization.
2. Dual Navigation System, High Repeat Position Accuracy
Laser SLAM + QR code dual navigation, no magnetic tape or ground rail required for fast on-site mapping and deployment. Overall positioning tolerance ±0.3mm; parking accuracy ±5mm linear, ±1° angular. Optional collaborative arms: GCR5/GCR10/GCR20/GCR30 with 5~30kg payload for precision assembling, inline testing and heavy-duty palletizing.
3. Full-Range Multi-Layer Safety Design for HRC Operation
Four-level safety configuration: safety bumper, multi-channel safety laser scanner, full-body collision detection + emergency stop button with TUV certified safety control system. No safety fence required for human-robot mixed working; automatic deceleration & emergency halt when obstacles detected, compliant with global industrial collaborative safety standards for clean & mixed production lines.
4. Triple Charging & Open Industrial Interface for Easy Integration
- Three available charging modes: auto contact charging, wireless inductive charging & quick battery swap, manual/automatic switchable for non-stop 7×24h production.
- Rich onboard ports: CAN, RS485, RS232, RJ45 Ethernet, USB; compatible with CANOPEN, Modbus mainstream industrial protocols for seamless connection with MES/WMS production management system.
- Integrated teach pendant with start/pause/reset/teaching buttons, drag-to-program enables quick parameter setting without professional coding skills.
Technical Specification Table
| Item | Parameter |
|---|---|
| Overall Dimension | 1250700800mm |
| Comprehensive Position Precision | ±0.3mm |
| Max Chassis Platform Load | 470kg |
| Optional Cobot Arm | GCR5 / GCR10 / GCR20 / GCR30 |
| End Effector Payload | 5kg / 10kg / 20kg / 30kg |
| Drive Type | Mecanum Omni-directional, Zero Turning Radius |
| Minimum Access Width | 1000mm |
| Standard Moving Speed | ≤0.8m/s |
| Turning Speed | ≤0.5m/s |
| Max Obstacle Surmount | 10mm |
| Max Crossable Trench | 80mm |
| Ground Clearance | 45mm |
| Max Climbing Slope | ≤5° |
| Parking Accuracy | ±5mm position, ±1° angle |
| Charging Solution | Contact / Wireless / Quick Swap |
| Safety Equipment | Safety Bumper + Safety Laser + Collision Sensor + E-Stop |
| Communication Interface | CAN, RS485, RS232, RJ45, USB |
| Supported Protocols | CANOPEN, Modbus |
| Working Temp | -10℃ ~ 45℃ |
| Ambient Humidity | 5%~95%RH non-condensing |
| Application Environment | Indoor Only |
| Cleanroom Grade | Standard / Class 6 (1,000) / Class5 (100) Customizable |
Application Industries & Cases
1. CNC & Production Line Loading & Unloading
Auto parts & 3C electronics workshop: autonomously transfer raw blanks and finished goods between warehouse and CNC equipment, replace repetitive manual handling, avoid product scratch and boost production efficiency by over 30%.
2. Automatic Warehouse Palletizing & Depalletizing
Match with GCR20/GCR30 heavy payload cobot for carton stacking/ destacking, flexible pattern switching for multi-size containers to realize unmanned warehouse workflow.
3. In-Line Automatic Visual Inspection
Install optional 2D/3D vision module for patrol sampling, dimension & appearance inspection of precision components and medical consumables; rapid program switching fits multi-SKU small-batch flexible production.
4. High-Grade Cleanroom Material Handling
Custom clean version available for pharmaceutical & semiconductor clean workshop, contamination-free delivery of wafer, medical reagent and precision spare parts.
Selection & Customization Guide
- Payload Selection: GCR5(5kg) for precision testing; GCR10/GCR20 for medium component assembly; GCR30(30kg) for heavy palletizing & large-size fitting.
- Cleanroom Customization: Class 1000 / Class100 dust-proof coating on request for sterile & dust-free workshop.
- Optional Upgrade: Vision camera, force torque sensor, barcode scanner, secondary development available to dock customer’s exclusive production system.
About NewRoad Robotics
NewRoad focuses on R&D and manufacture of collaborative robots & mobile composite AMRs for intelligent automation. All core components are self-developed with international safety certification including IEC61508 & TUV. We provide one-stop service: pre-sales layout planning, on-site installation & commissioning plus lifelong after-sales maintenance for global manufacturing clients.
