Product Introduction

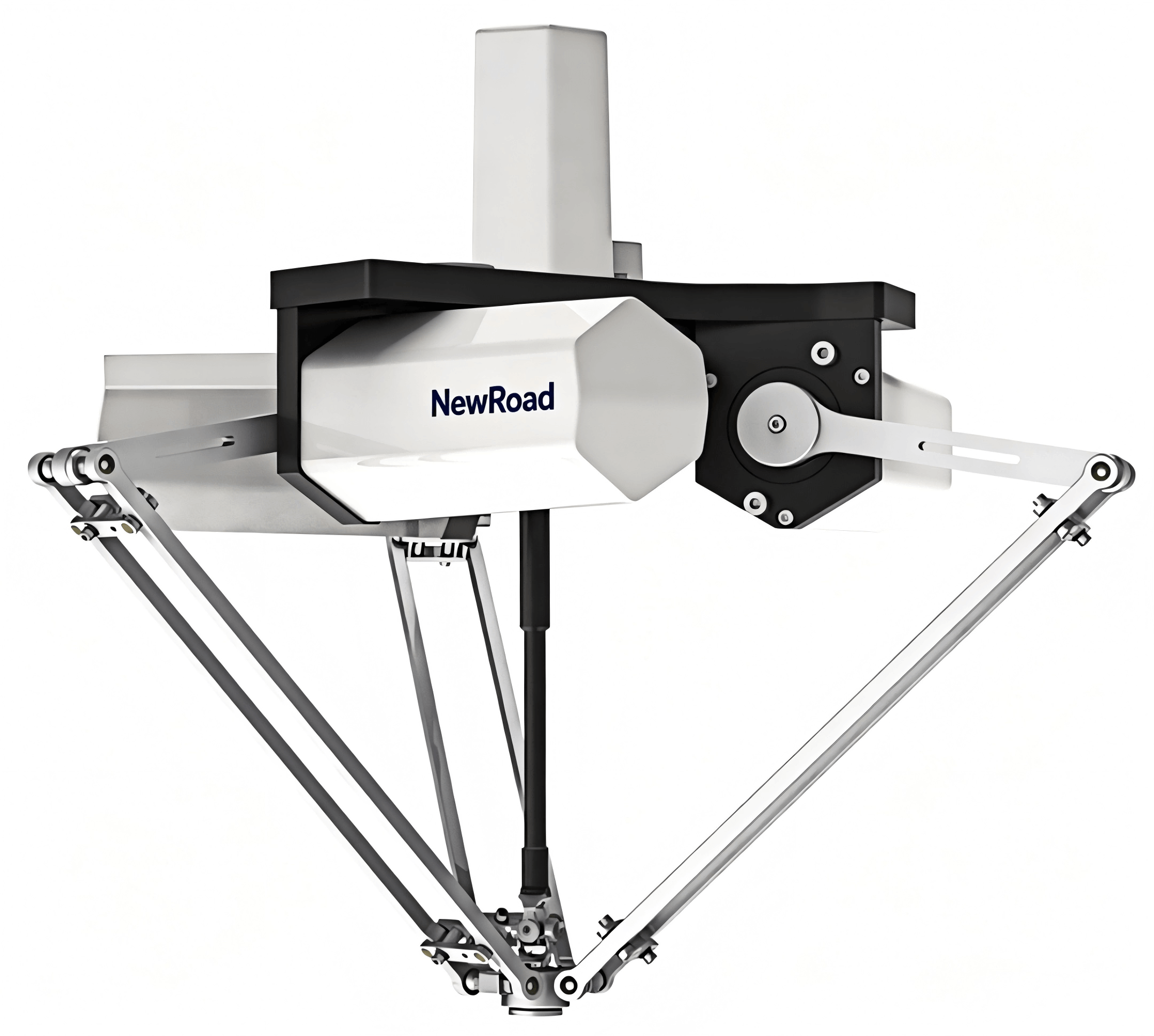

As a compact and lightweight model in the NewRoad Bat series, the Bat360-S1 4-axis delta parallel robot is tailored for narrow production spaces and ultra-high-speed light-load operating scenarios. It adopts a classic overhead mounting design, which takes up zero floor area and can be quickly matched with compact assembly lines, small conveyor belts and miniature automated workstations. The whole robot is printed with the dark blue NewRoad logo, presenting a concise and professional industrial style.
Built with optimized mechanical structures and drive components, this robot features agile movement, fast response and outstanding running stability. With excellent positioning accuracy and extremely short cycle time, it is fully competent for high-frequency repetitive operations. It is widely used in 3C electronics, food, pharmaceuticals, daily chemicals, precision logistics and other industries to complete small-part sorting, rapid handling, loading and unloading, cartoning and precision gluing tasks. As an optimal substitute for manual work in compact production lines, it effectively improves operational efficiency, stabilizes product yield and helps enterprises realize low-cost automation upgrading.
Core Advantages
Ultra-small size and light weight are the prominent features of Bat360-S1. The total weight is only 25kg, making installation, disassembly and position adjustment extremely convenient. Its 360mm working diameter perfectly adapts to small-scale production units and narrow workshop layouts, breaking the space limitation of traditional large robots.
This model delivers top-tier high-speed performance in light-load conditions. Under the standard 25/305/25 stroke, the cycle time is merely 0.25s for a 0.1kg payload and 0.3s for a 1kg payload, meeting the stringent efficiency requirements of high-speed continuous production. Equipped with high-precision transmission parts, it achieves a linear repeat positioning accuracy of ±0.05mm and four-axis angular repeat positioning accuracy of ±0.1°, ensuring precise positioning for tiny workpieces and fine processing.
In terms of operation reliability, the robot works stably in the ambient temperature of 0°C to 45°C and relative humidity ranging from 5% to 95%. The IP54 protection grade effectively resists dust and splashing water in conventional production workshops. It is equipped with complete safety mechanisms including real-time operation monitoring and emergency stop function, and adopts EMC shielding technology to prevent electromagnetic interference with surrounding equipment, ensuring long-term safe and stable operation.
In terms of expandability and compatibility, the robot is equipped with complete digital I/O ports and abundant physical interfaces, and supports multiple mainstream industrial communication protocols. It can be seamlessly connected with vision systems, PLC and other peripheral automation equipment, supporting flexible function expansion and customized linkage control to meet diverse production process demands. In addition, it adopts single-phase 220V power supply, which is easy to access and saves power transformation costs for workshops.
Technical Specifications
| Item | Detailed Parameter |
|---|---|
| Model | Bat360-S1 |
| Number of Axes | 4 axes |
| Installation Method | Overhead mounting |
| Rated / Maximum Payload | 1 kg |
| Working Space Diameter | 360 mm |
| Overall Weight | 25 kg |
| Linear Repeat Positioning Accuracy | ±0.05 mm |
| Four-axis Angular Repeat Positioning Accuracy | ±0.1 ° |
| Cycle Time (25/305/25 stroke, 0.1 kg) | 0.25 s |
| Cycle Time (25/305/25 stroke, 1 kg) | 0.30 s |
| Power Supply | Single-phase AC 220V±10%, 50/60Hz |
| Rated Power | 0.85 kW |
| Operating Temperature | 0 °C ~ 45 °C |
| Relative Humidity | 5% ~ 95% |
| Protection Grade | IP54 |
| Electromagnetic Compatibility | EMC shielding |
| Safety Configuration | Operation monitoring, emergency stop function |
| Digital I/O Interface | 12 general digital input & output channels, 2 encoder input channels |
| External Ports | 2 × Ethernet, 1 × USB, 1 × RS232/RS485, 1 × Ethercat |
| Supported Communication Protocols | Modbus-RTU, Modbus-TCP, Socket |
Application Scenarios
The NewRoad Bat360-S1 is specially designed for compact automated production lines and light-load high-speed working conditions. In the 3C electronics industry, it is mainly used for sorting, picking and assembly of micro electronic components. In food and pharmaceutical industries, it completes rapid sorting and packaging of small packaged products. For daily chemical production, it undertakes handling and cartoning of miniature finished products. Meanwhile, it is also widely applied to precision logistics sorting and small workpiece gluing processes, providing efficient and reliable automation solutions for space-limited production sites.
Service Instructions
NewRoad provides comprehensive pre-sales consultation, on-site installation guidance, equipment operation training and after-sales maintenance services. If you have customized requirements for interface matching and process linkage, please contact our professional technical team for tailored solutions. We adhere to reliable product quality and thoughtful full-lifecycle services to help every customer build efficient and stable intelligent production lines.
