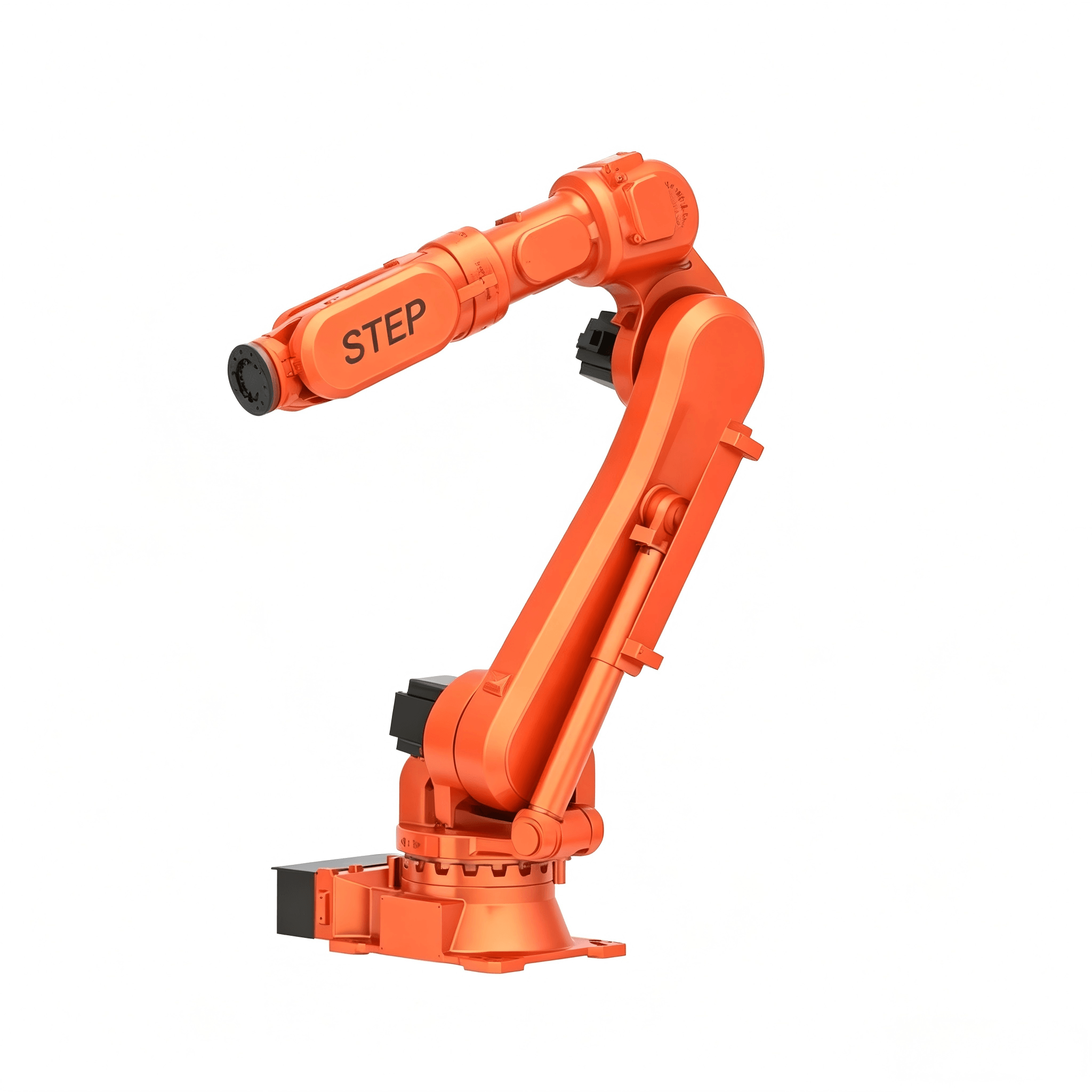

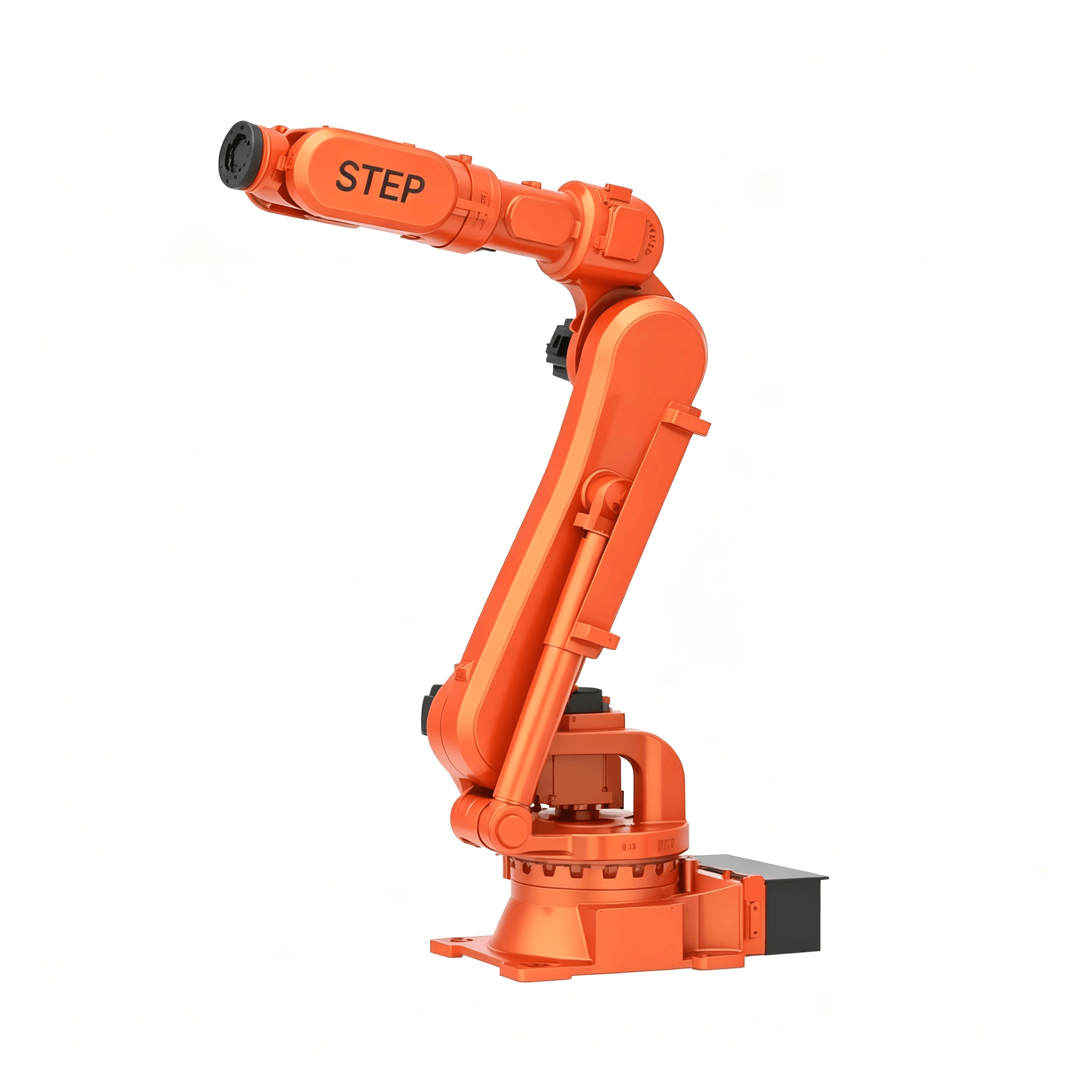

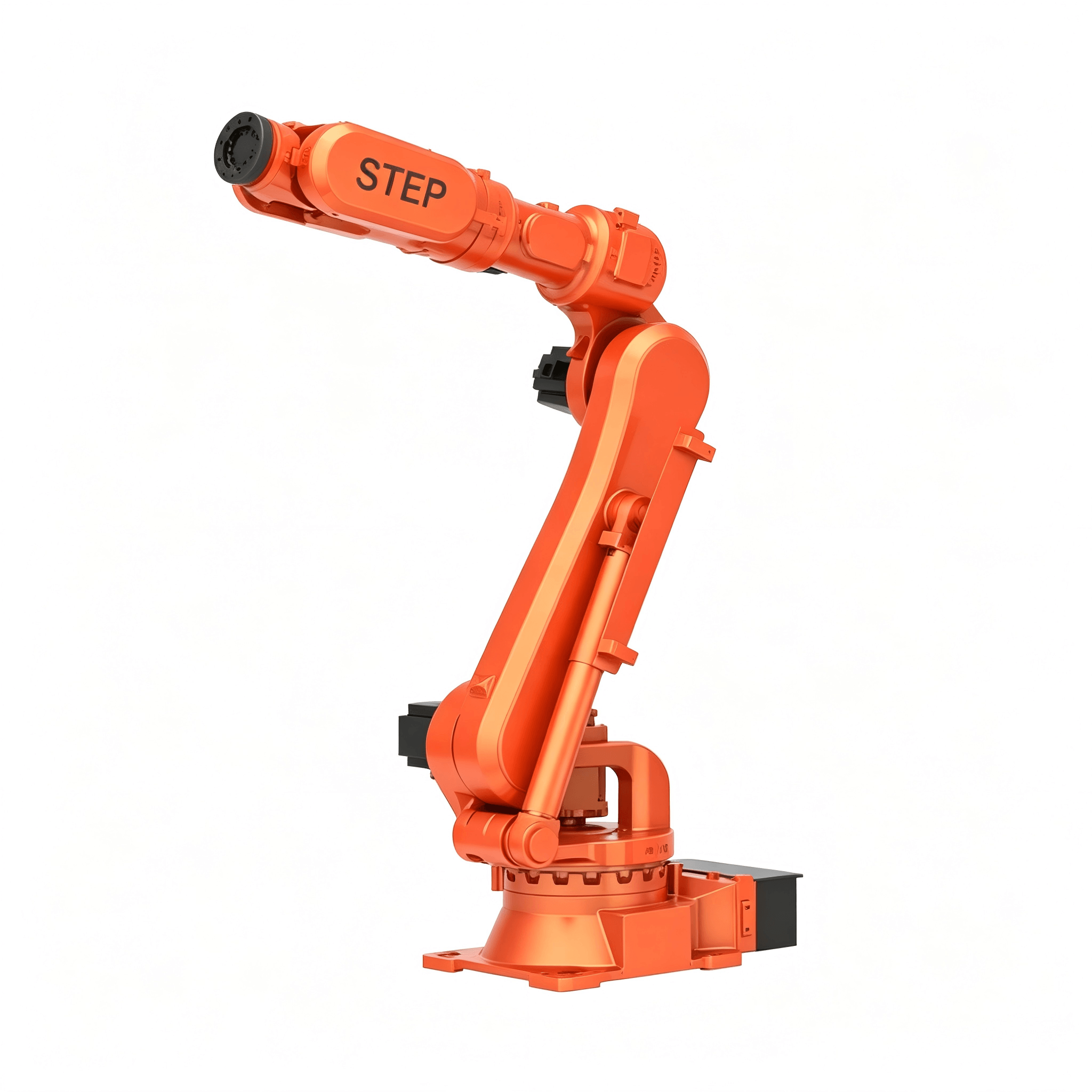

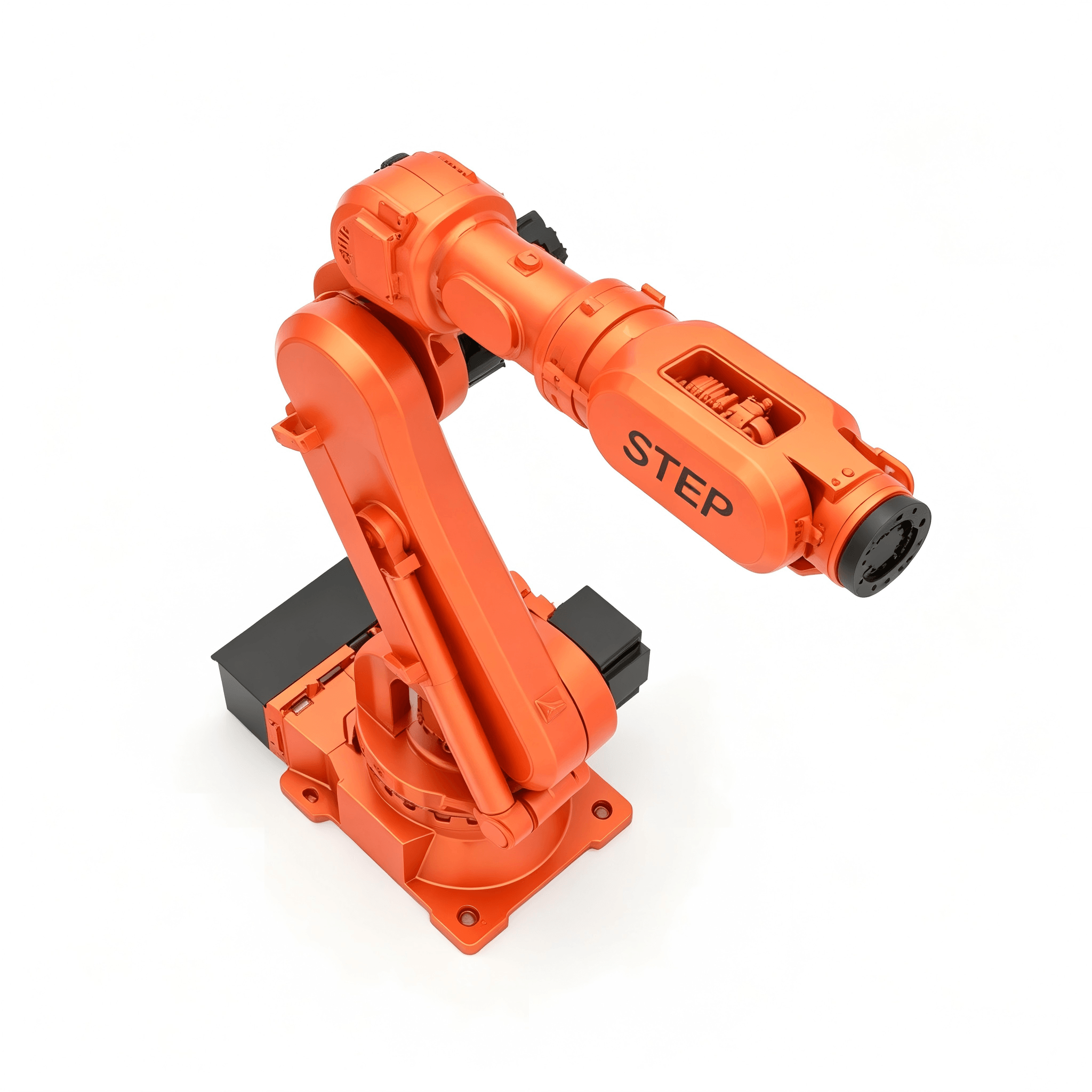

SR175/2700 6-Axis Industrial Robot
Product Overview
The SR175/2700 is a heavy-duty 6-axis vertical articulated industrial robot, engineered for demanding material handling, machine tending, and high-load applications. With a 175kg payload, 2701mm maximum reach, and IP65 protection, it delivers exceptional performance, reliability, and precision in harsh industrial environments.
Core Features
✅ High Load & Reach: 175kg rated wrist payload with a 2701mm working radius, ideal for heavy material handling, palletizing, and large-scale machine tending.
✅ Superior Environmental Protection: IP65-rated body withstands dust, moisture, and washdown conditions, suitable for harsh manufacturing environments.
✅ High Precision Control: ±0.06mm repeat positioning accuracy ensures consistent quality and reliable performance in precision tasks.
✅ High Torque & Inertia Capacity: Designed with high joint torque and inertia ratings to handle large, heavy workpieces and complex trajectories.
✅ Low Noise Operation: ≤80dB(A) noise level ensures a safer, more comfortable working environment.
Technical Specifications
| Item | Parameter |
|---|---|
| Model | SR175/2700 |
| Structure | Vertical multi-joint (6-axis) |
| Drive System | AC servo drive |
| Max Working Radius | 2701 mm |
| Repeat Positioning Accuracy | ±0.06 mm |
| Rated Wrist Payload | 175 kg |
| Robot Mass | 1100 kg |
| IP Rating | Body: IP65 |
| Mounting Type | Floor-mounted |
| Noise Level | ≤80 dB(A) |
| Typical Applications | Material handling, machine loading/unloading |
Joint Speed
| Axis | Max Speed |
|---|---|
| J1 | 125°/s |
| J2 | 115°/s |
| J3 | 120°/s |
| J4 | 190°/s |
| J5 | 185°/s |
| J6 | 250°/s |
Motion Range
| Axis | Motion Range |
|---|---|
| J1 | ±183° |
| J2 | +85° ~ -60° |
| J3 | +80° ~ -130° |
| J4 | ±220° |
| J5 | ±125° |
| J6 | ±360° |
Load Capacity
| Axis | Allowable Torque | Allowable Inertia |
|---|---|---|
| J4 | 1380 N·m | 228 kg·m² |
| J5 | 1380 N·m | 228 kg·m² |
| J6 | 735 N·m | 196 kg·m² |
Utility & Environment
| Item | Specification |
|---|---|
| Air Line Configuration | 2-Φ12mm |
| Built-in Signal Cable | 16-core |
| Operating Temperature | 0~45°C |
| Humidity | ≤75% RH (short-term 95% RH, no condensation) |
| Vibration Resistance | ≤0.5G (4.9m/s²) |
Typical Applications
- Heavy Material Handling: Moving and stacking large, heavy workpieces in warehouses and production lines.

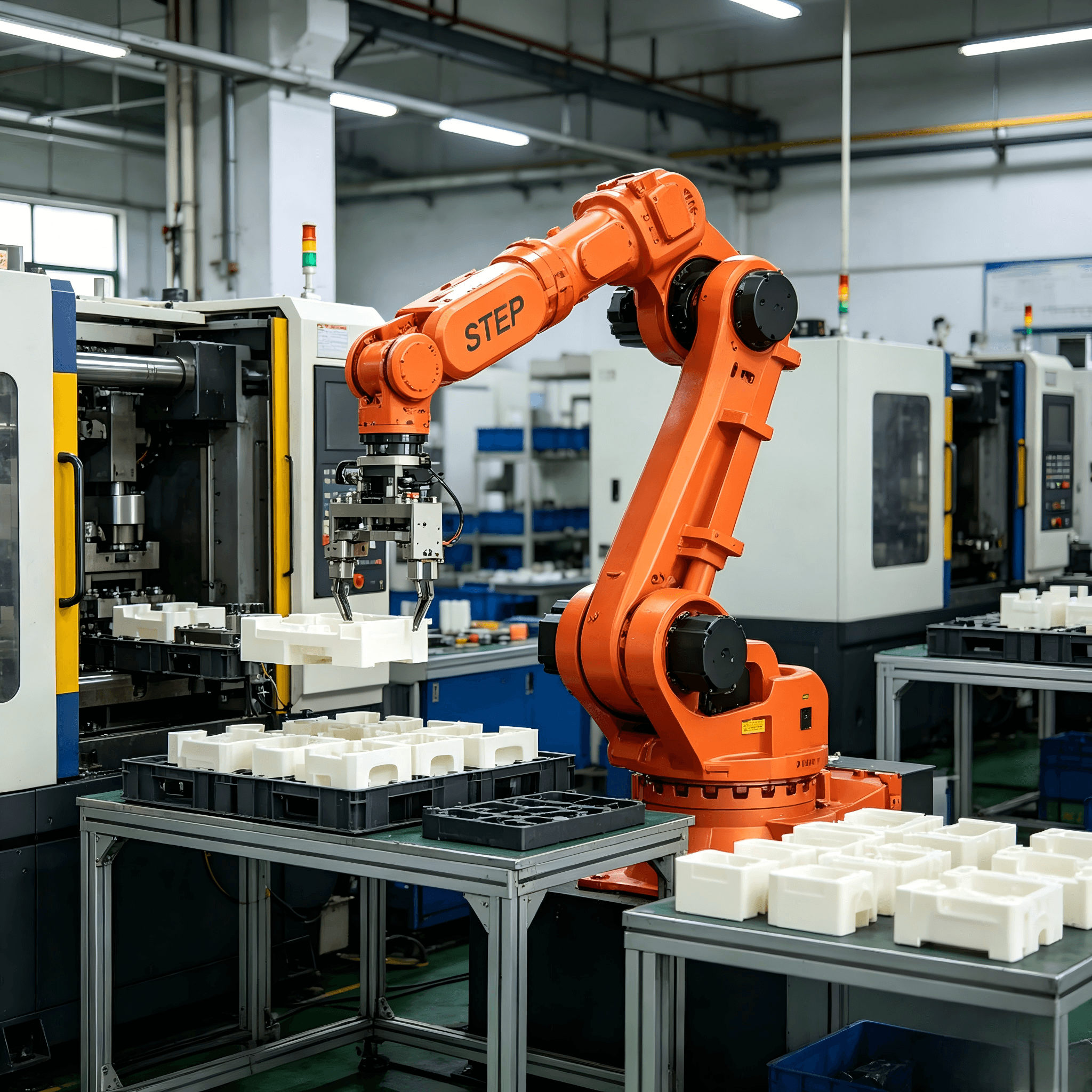

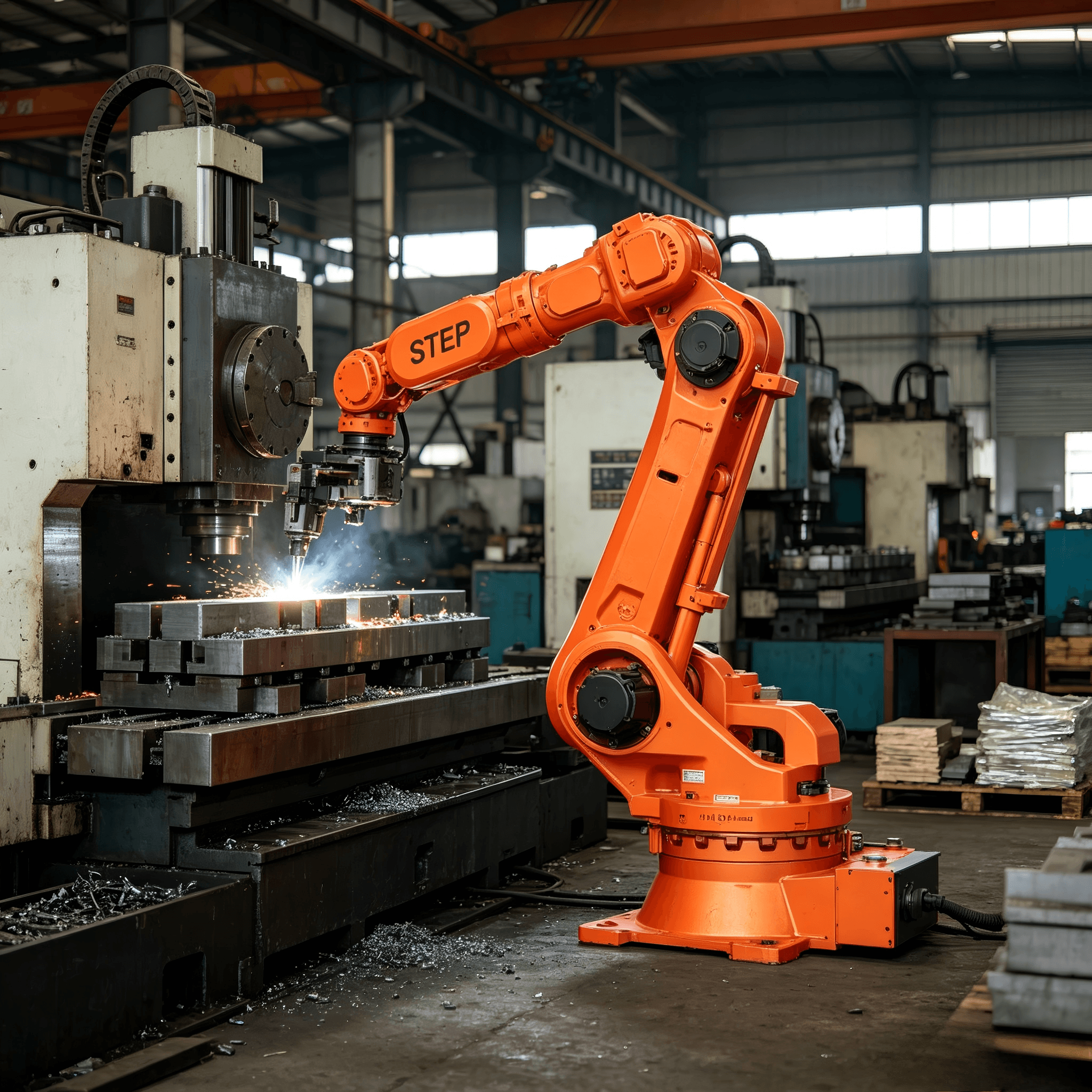

- Machine Loading & Unloading: Loading/unloading CNC machines, presses, and forming equipment with heavy parts.
- Palletizing & Depalletizing: High-load palletizing of heavy crates, drums, and large components.
- Foundry & Forging: Handling hot, heavy castings and forgings in harsh foundry environments (thanks to IP65 protection).
Why Choose the SR175/2700?
- Extreme Load Capacity: 175kg payload and high joint torque ratings enable handling of heavy, bulky workpieces.
- IP65 Protection: Dust-tight and water-resistant design ensures reliable operation in harsh industrial conditions, including washdown environments.
- Large Working Envelope: 2701mm reach provides extended coverage for large work cells, reducing the need for multiple robots.
- High Stability & Durability: Robust mechanical construction and low vibration performance ensure long service life and minimal maintenance.
