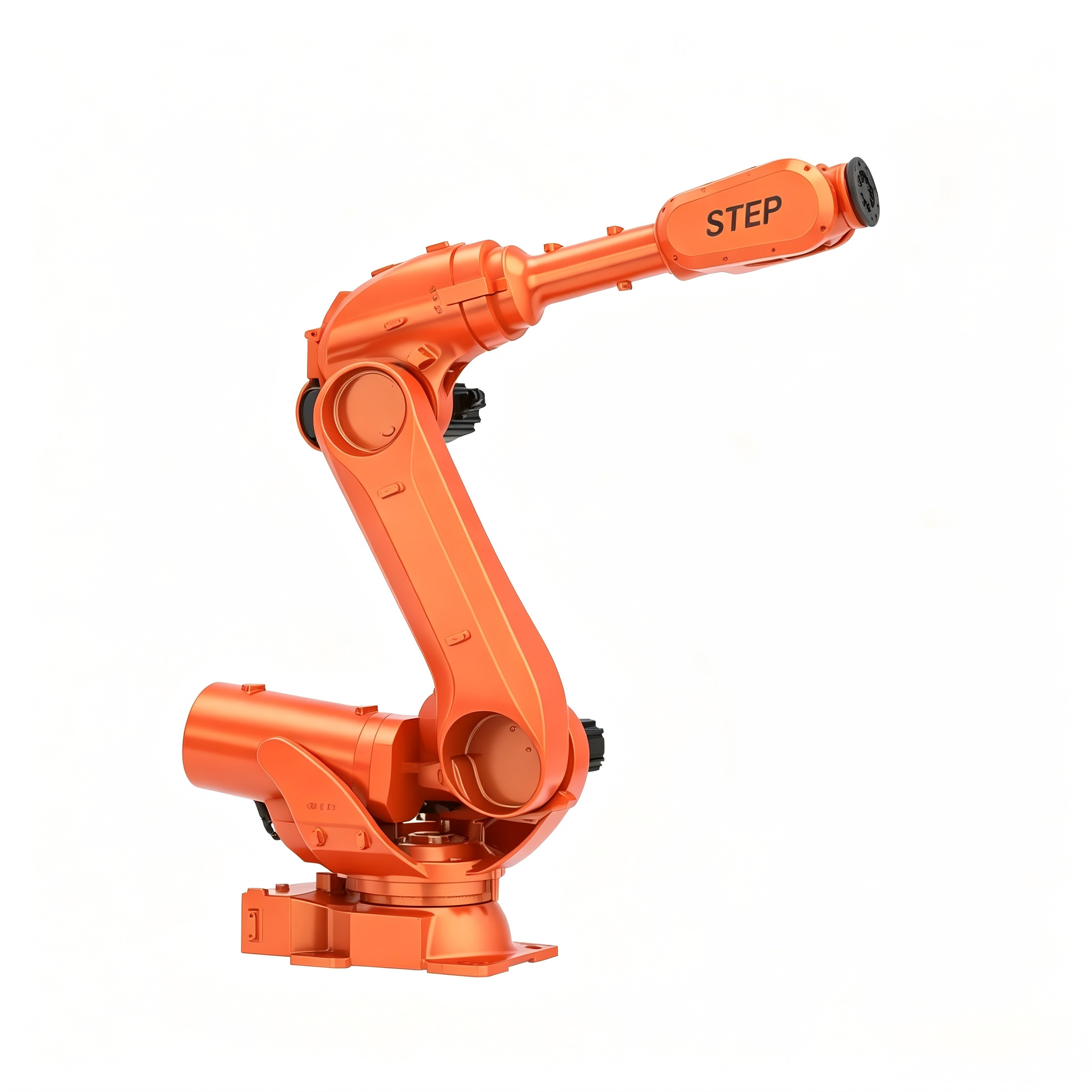

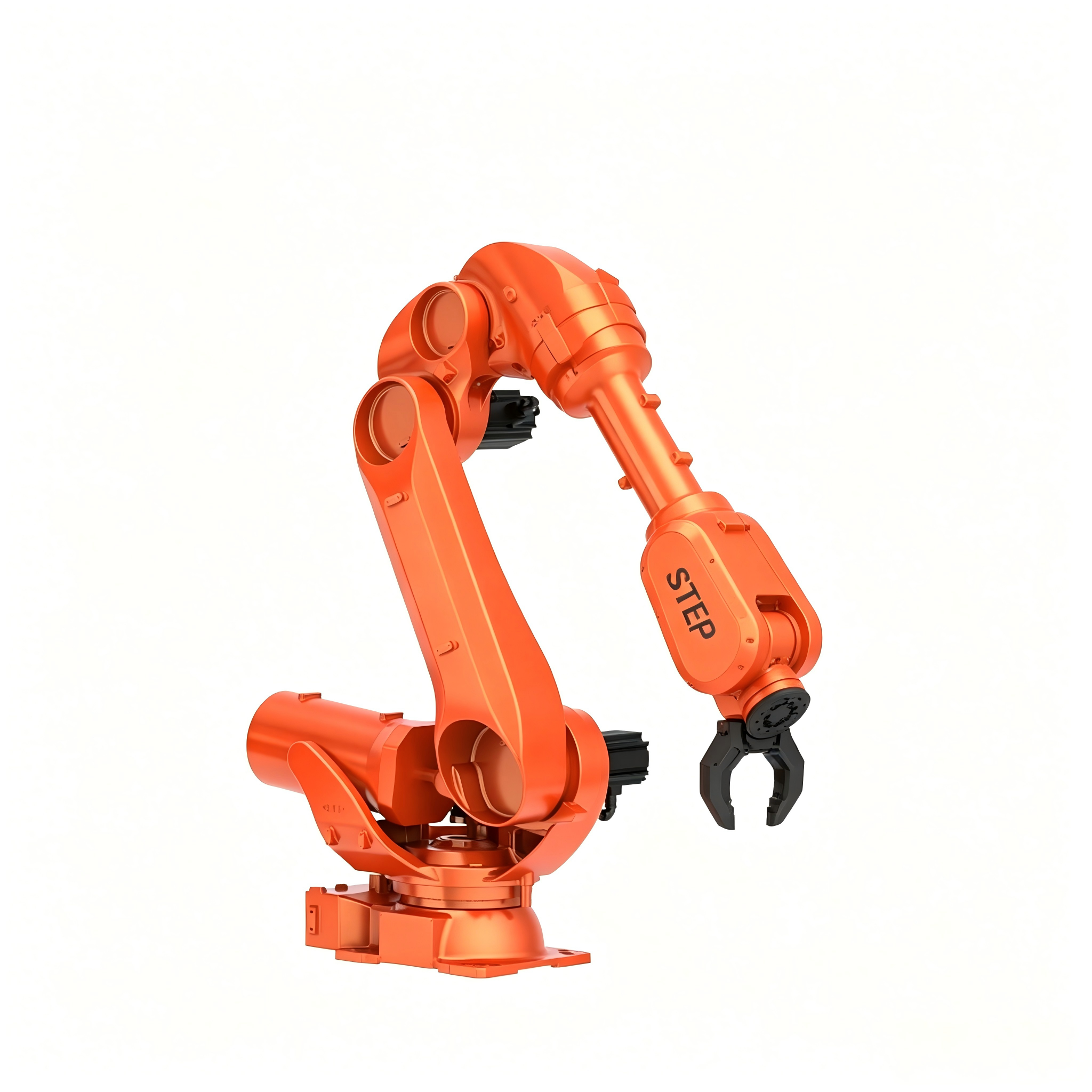

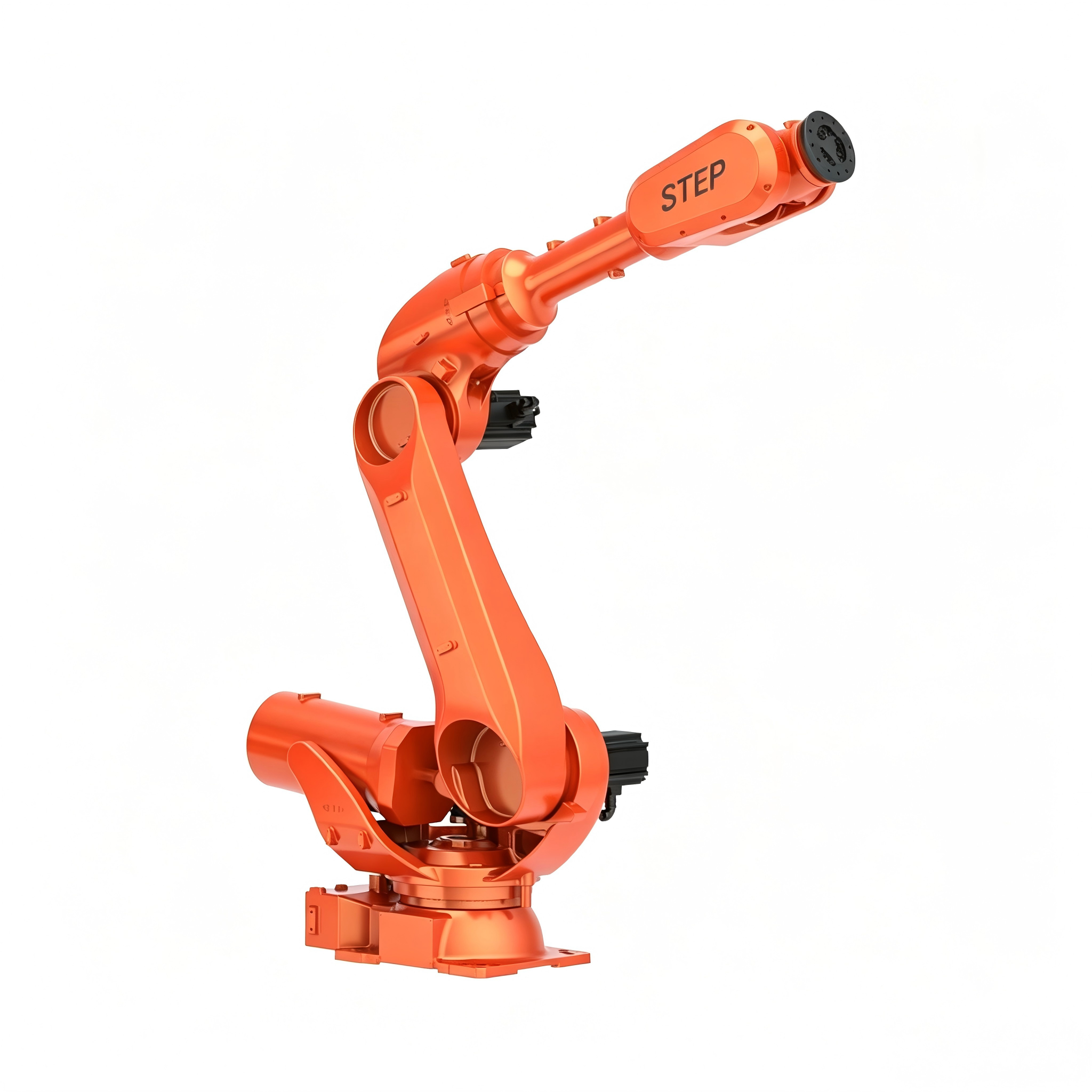

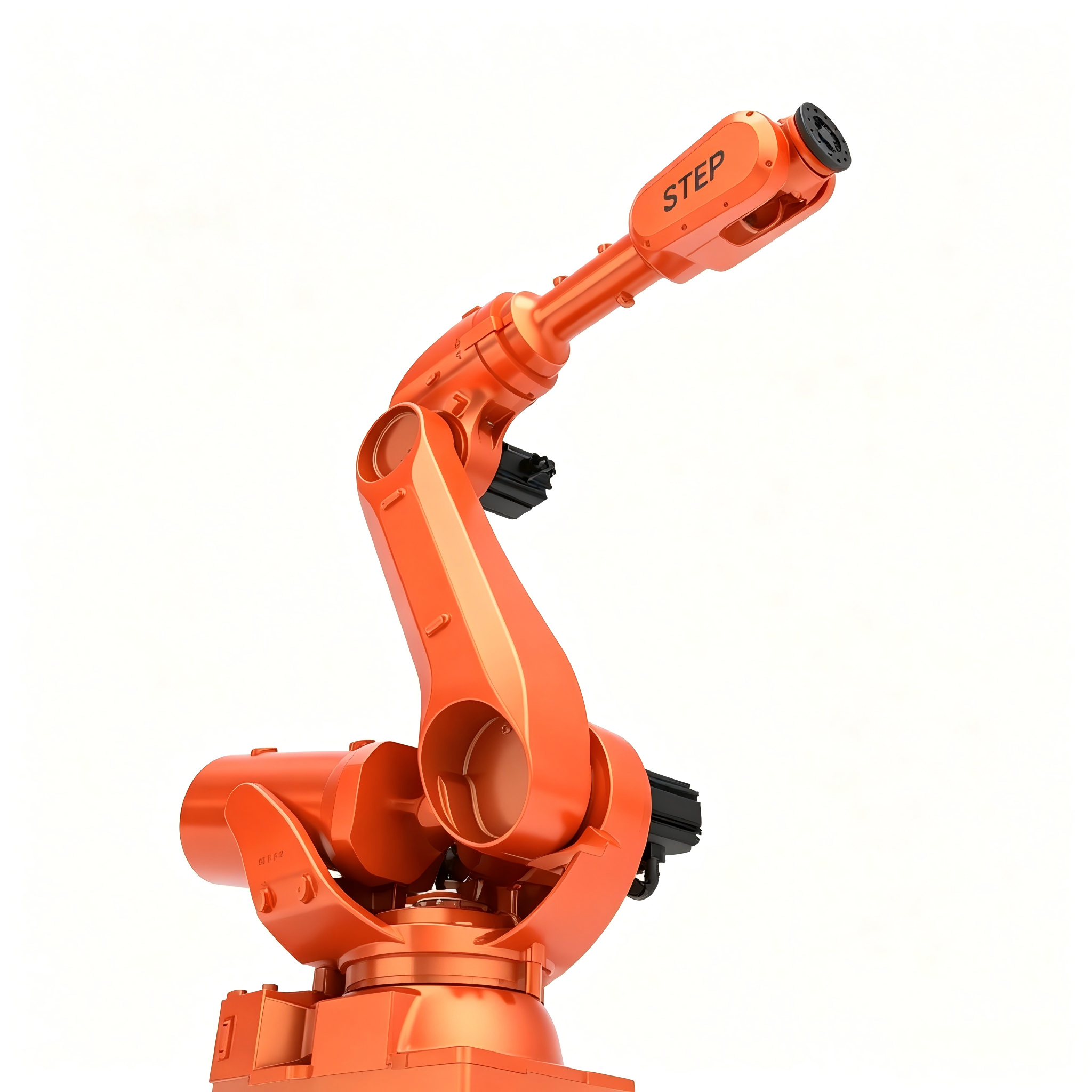

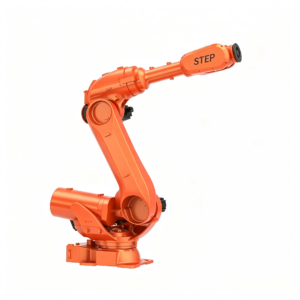

SR280/3200 6-Axis Ultra-Heavy-Duty Industrial Robot
Product Overview
Core Features
✅ 280kg Ultra-High Payload: Industry-leading wrist payload capacity, ideal for handling heavy automotive assemblies, large castings, and bulky components.
✅ 3203mm Extended Reach: The longest reach in its class, providing coverage for large work cells and eliminating the need for complex fixturing or multiple robots.
✅ Tiered IP Protection: IP54-rated body with IP65-rated wrist, ensuring reliable operation in dusty environments and during washdown procedures.
✅ Precision Control: ±0.1mm repeat positioning accuracy ensures consistent performance for pick-and-place and machine tending operations.
✅ High Torque & Inertia Capacity: Designed with high joint torque and inertia ratings to handle heavy, unbalanced loads.
✅ Low Noise Operation: ≤80dB(A) noise level ensures a safer, more comfortable working environment.
Technical Specifications
| Item | Parameter |
|---|---|
| Model | SR280/3200 |
| Structure | Vertical multi-joint (6-axis) |
| Drive System | AC servo drive |
| Max Working Radius | 3203 mm |
| Repeat Positioning Accuracy | ±0.1 mm |
| Rated Wrist Payload | 280 kg |
| Robot Mass | Approx. 1650 kg |
| IP Rating | Body: IP54; Wrist: IP65 |
| Mounting Type | Floor-mounted |
| Noise Level | ≤80 dB(A) |
| Typical Applications | Material handling, machine loading/unloading |
Joint Speed
| Axis | Max Speed |
|---|---|
| J1 | 110°/s |
| J2 | 100°/s |
| J3 | 100°/s |
| J4 | 170°/s |
| J5 | 145°/s |
| J6 | 200°/s |
Motion Range
| Axis | Motion Range |
|---|---|
| J1 | ±180° |
| J2 | +85° ~ -60° |
| J3 | +80° ~ -85° |
| J4 | ±220° |
| J5 | ±125° |
| J6 | ±360° |
Load Capacity
| Axis | Allowable Torque | Allowable Inertia |
|---|---|---|
| J4 | 1727 N·m | 215 kg·m² |
| J5 | 1727 N·m | 215 kg·m² |
| J6 | 950 N·m | 140 kg·m² |
Utility & Environment
| Item | Specification |
|---|---|
| Air Line Configuration | 2-Φ12mm |
| Built-in Signal Cable | 16-core |
| Operating Temperature | 0~45°C |
| Humidity | ≤75% RH (short-term 95% RH, no condensation) |
| Vibration Resistance | ≤0.5G (4.9m/s²) |
Typical Applications

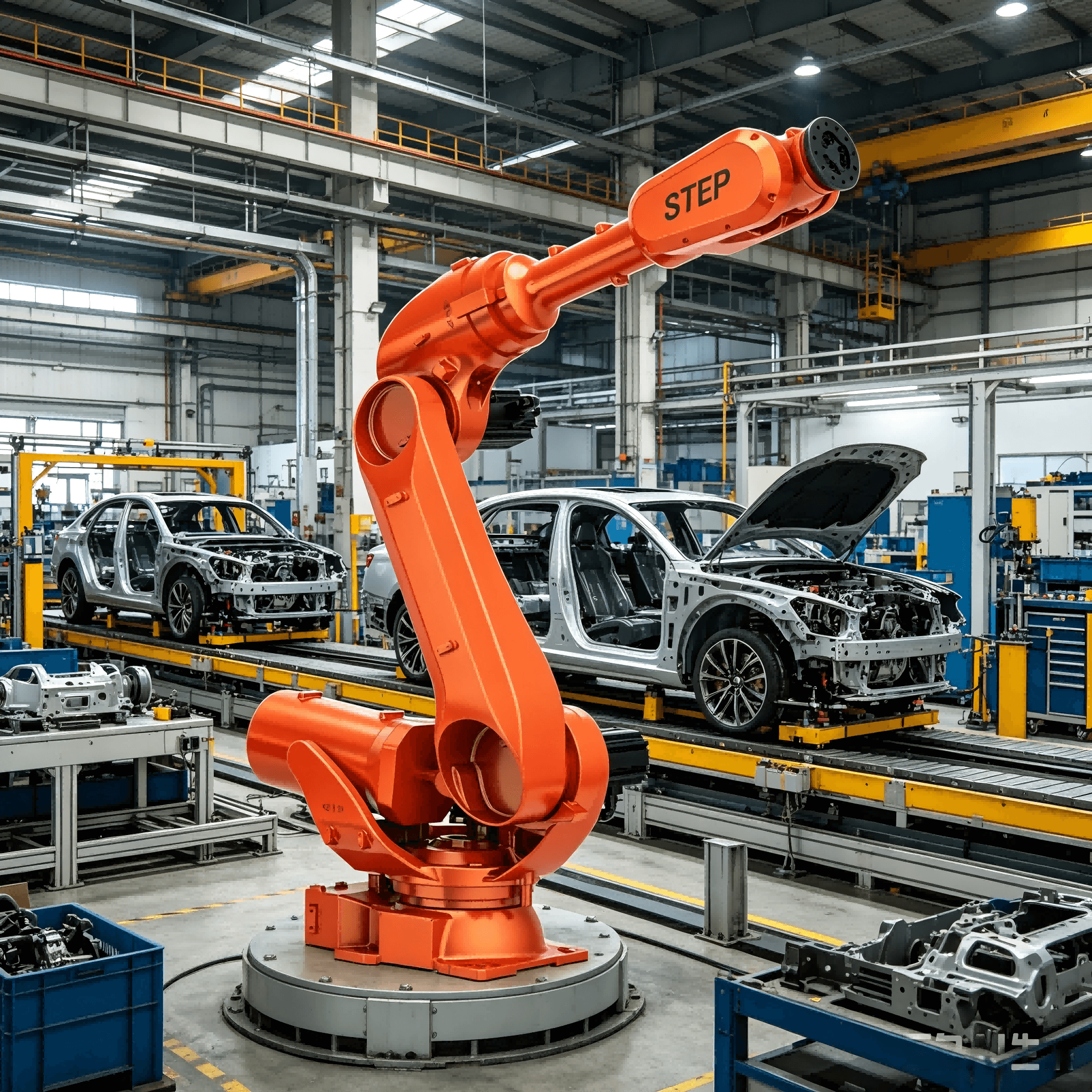

- Heavy Automotive Assembly Handling: Moving large vehicle components, subframes, and powertrain assemblies in automotive manufacturing.
- Machine Loading & Unloading: Tending large CNC machines, presses, and forming equipment with heavy castings and forgings.
- Foundry & Forging: Handling heavy castings and forgings in foundry environments, leveraging the IP65 wrist for washdown cleaning.

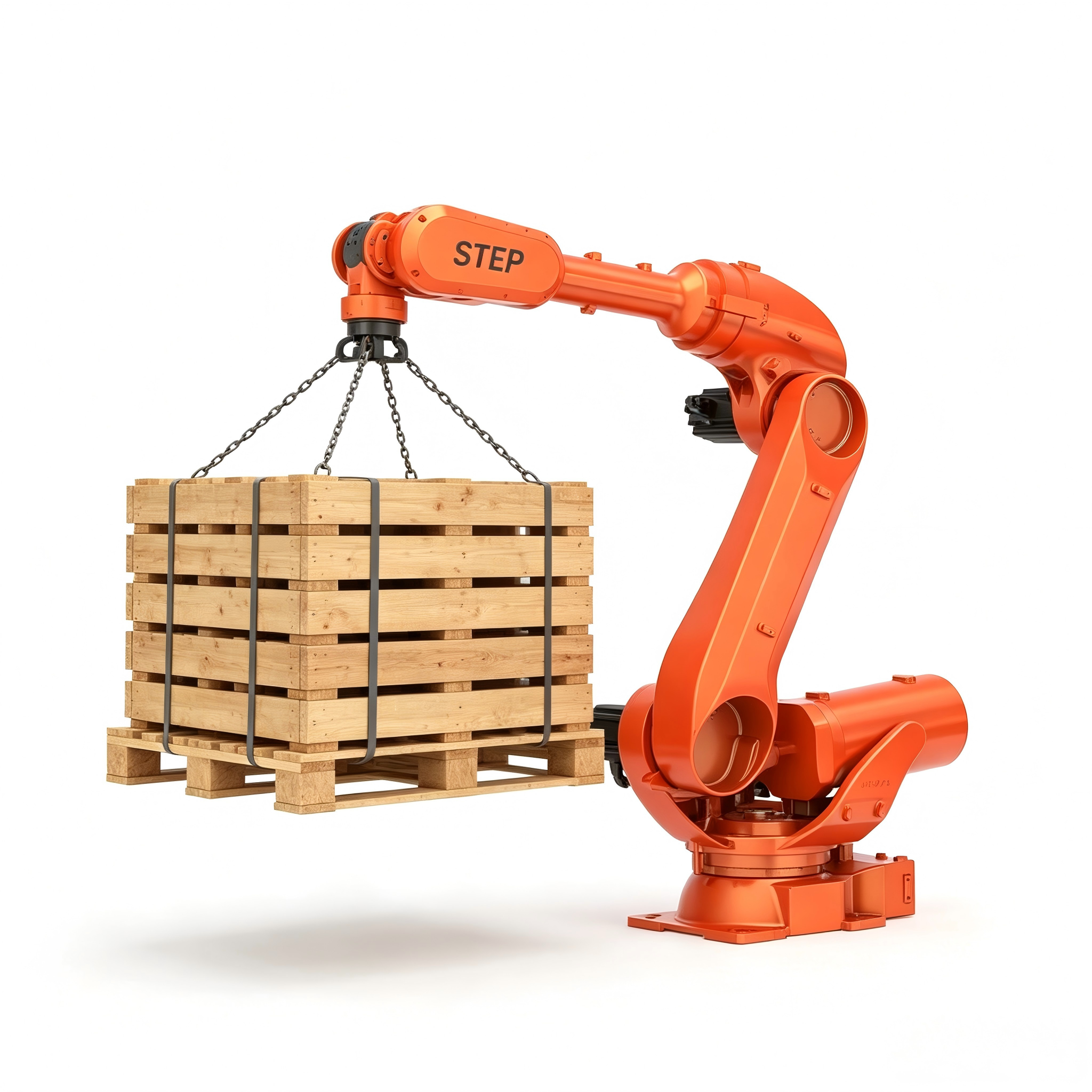

- Logistics & Palletizing: High-load palletizing of heavy crates, drums, and large industrial components.
Why Choose the SR280/3200?
- Unmatched Payload & Ultra-Long Reach: The combination of 280kg payload and 3203mm reach allows you to tackle applications that would otherwise require multiple robots or custom solutions.
- Robust Environmental Protection: The IP65-rated wrist is designed to withstand moisture and debris, making it suitable for environments with washdown procedures or high dust levels.
- Optimized for Large Work Cells: Its extended reach minimizes the need for complex conveyor systems or multiple robot stations, streamlining your production line.
- Proven Heavy-Duty Reliability: Built with high-strength materials and robust joint mechanics to handle the rigors of continuous heavy-load operation.
