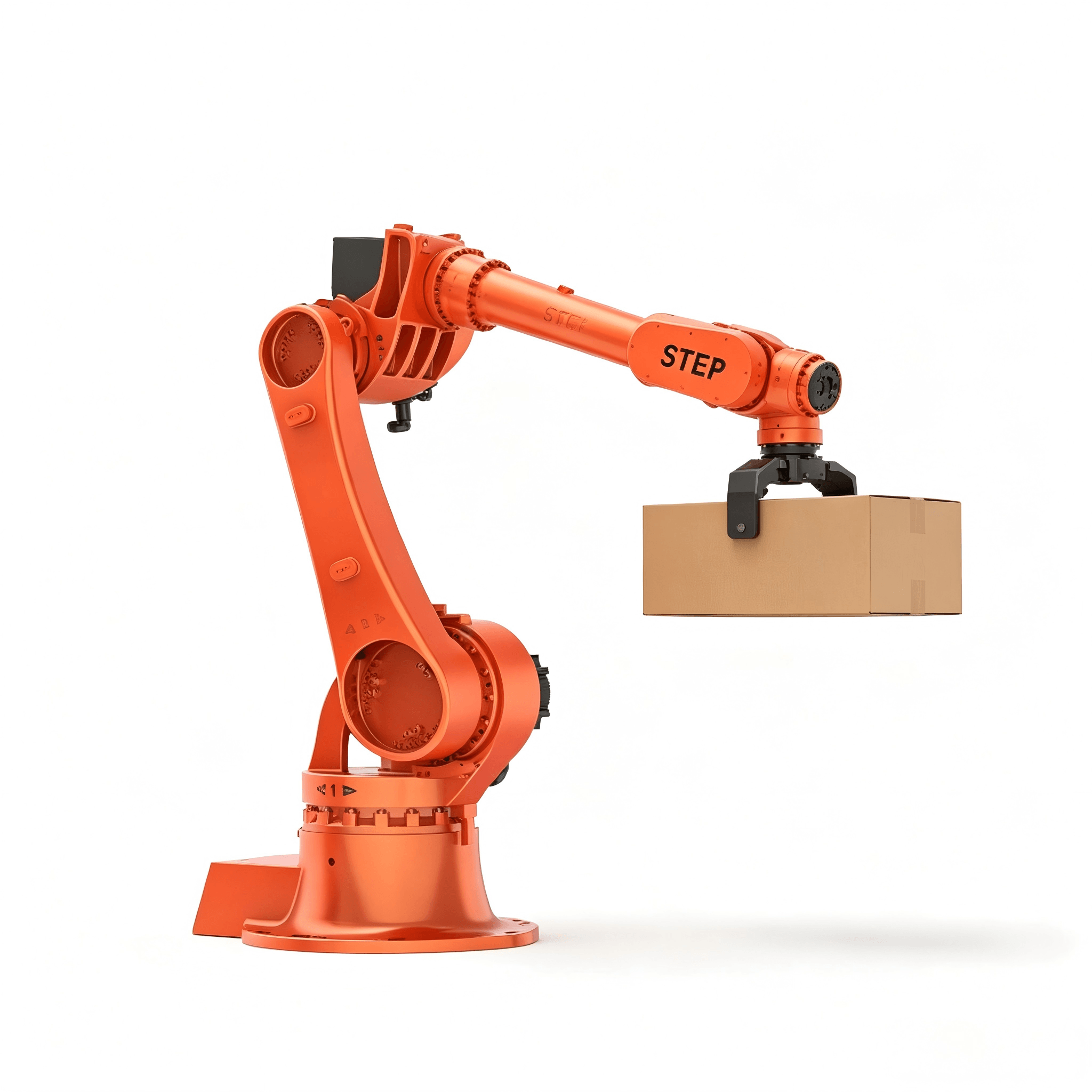

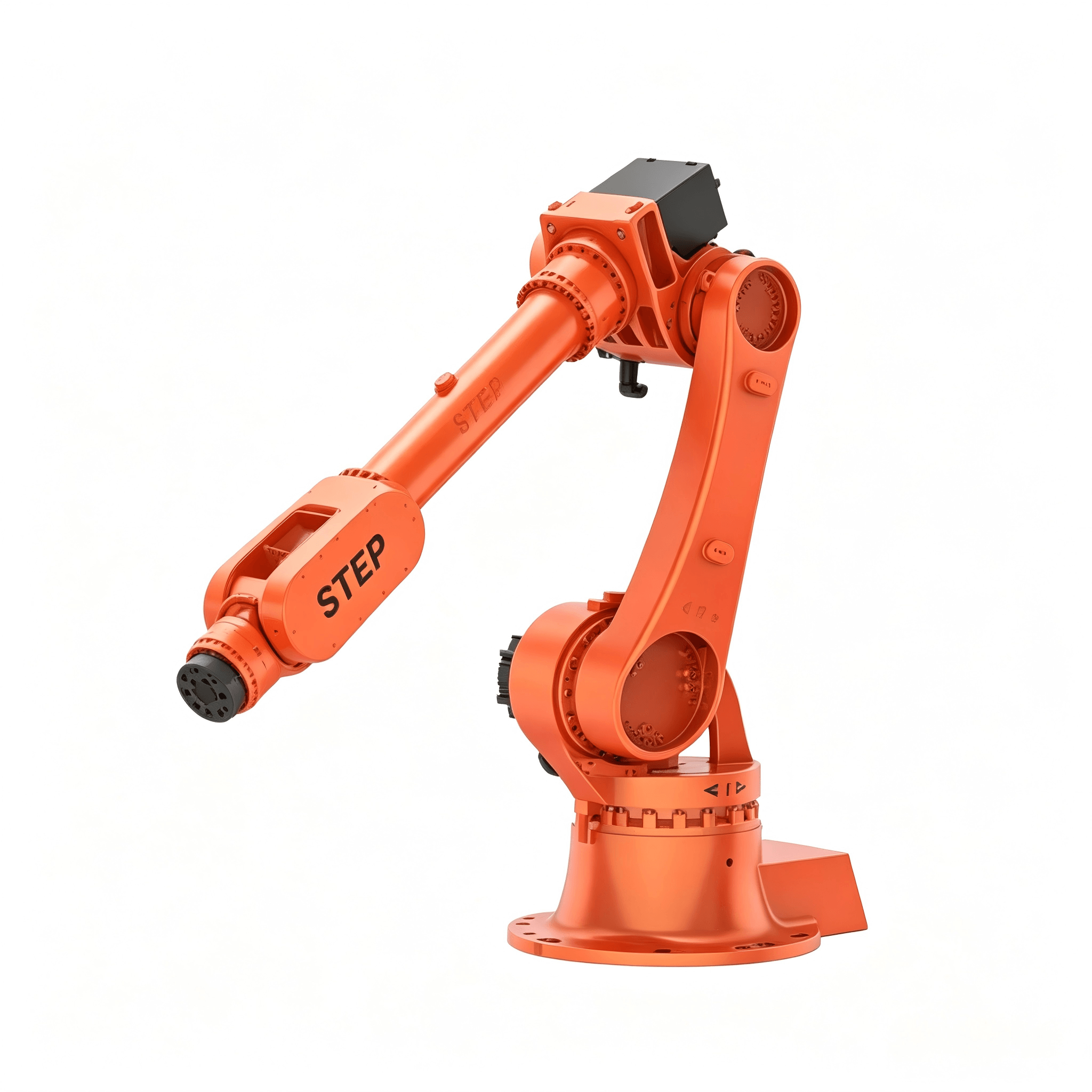

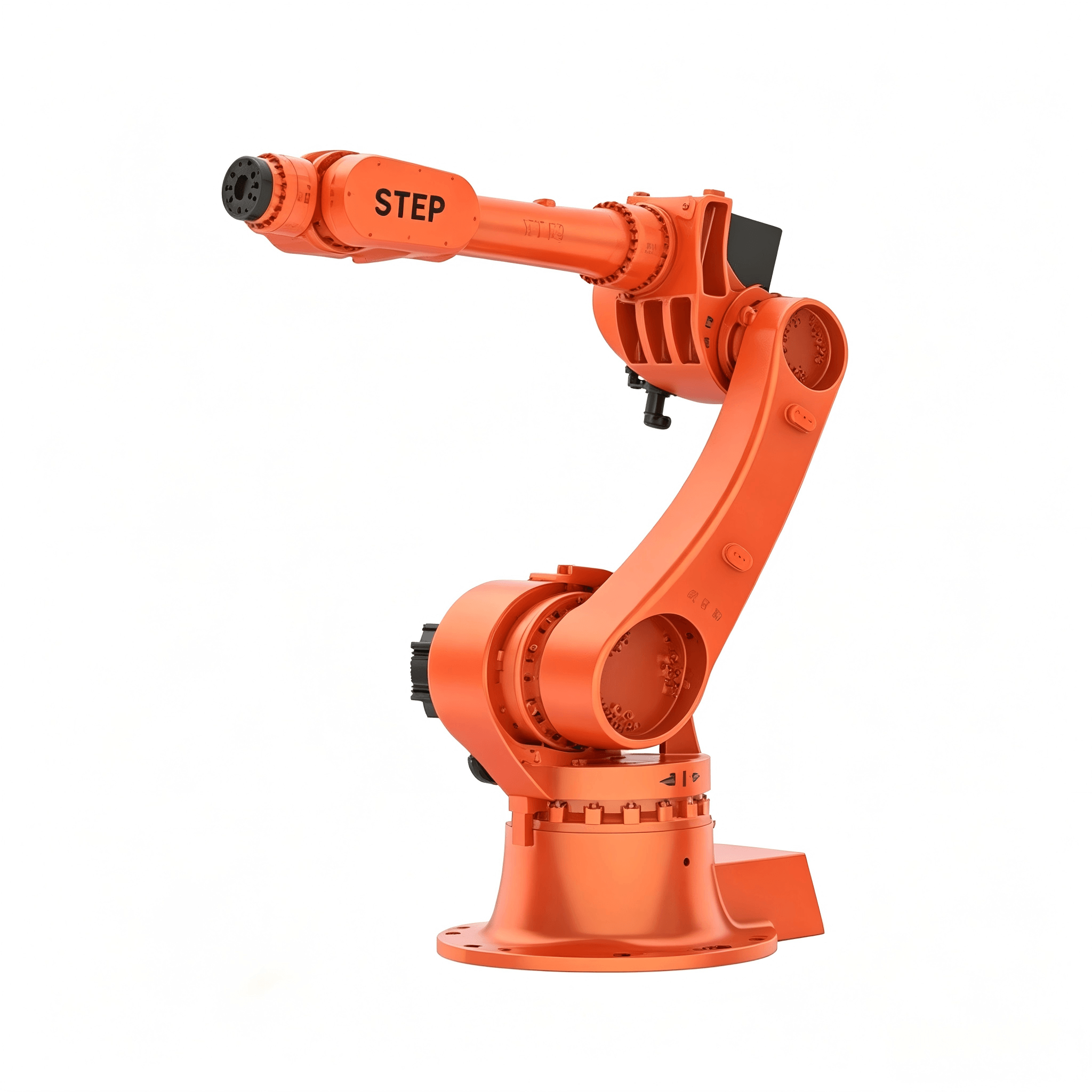

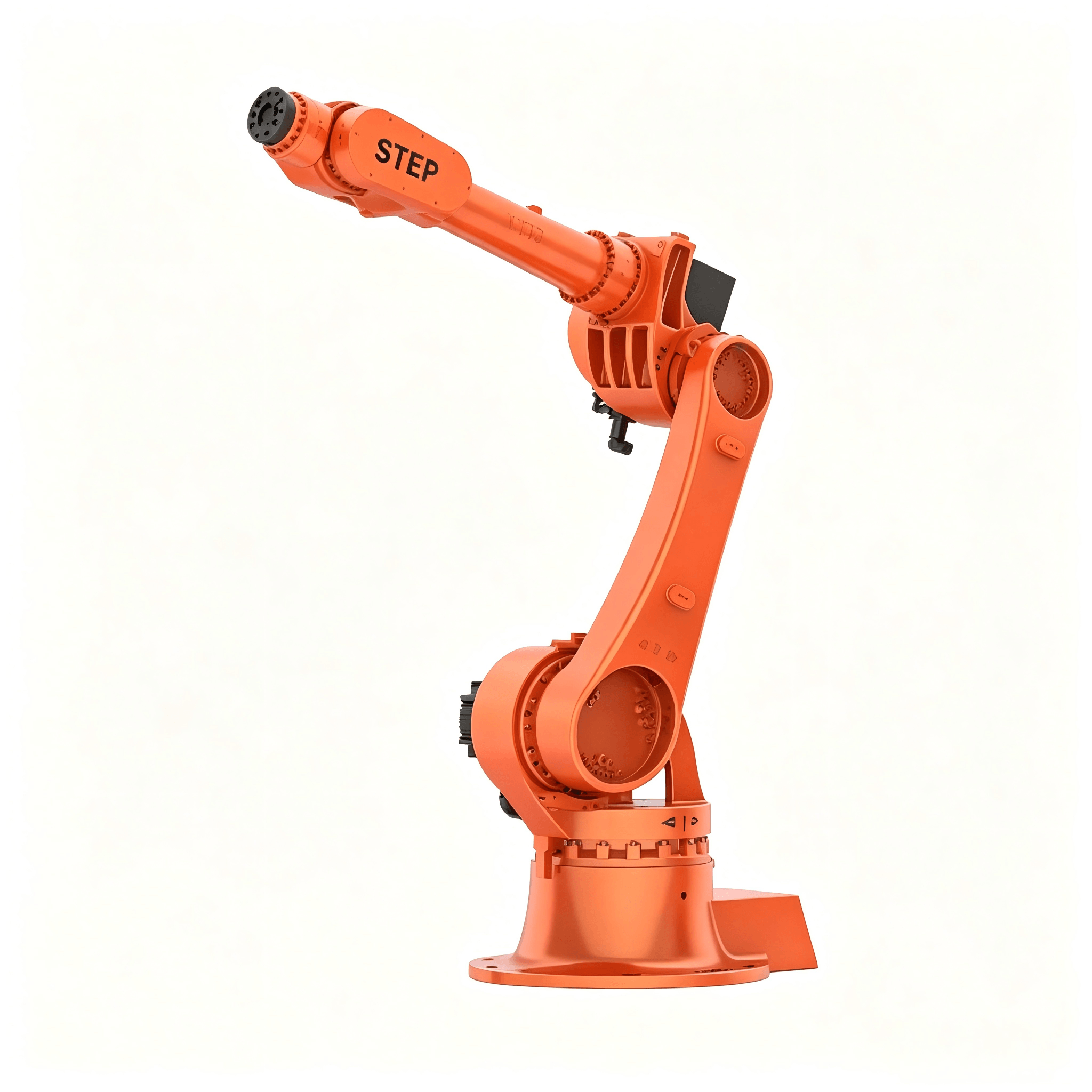

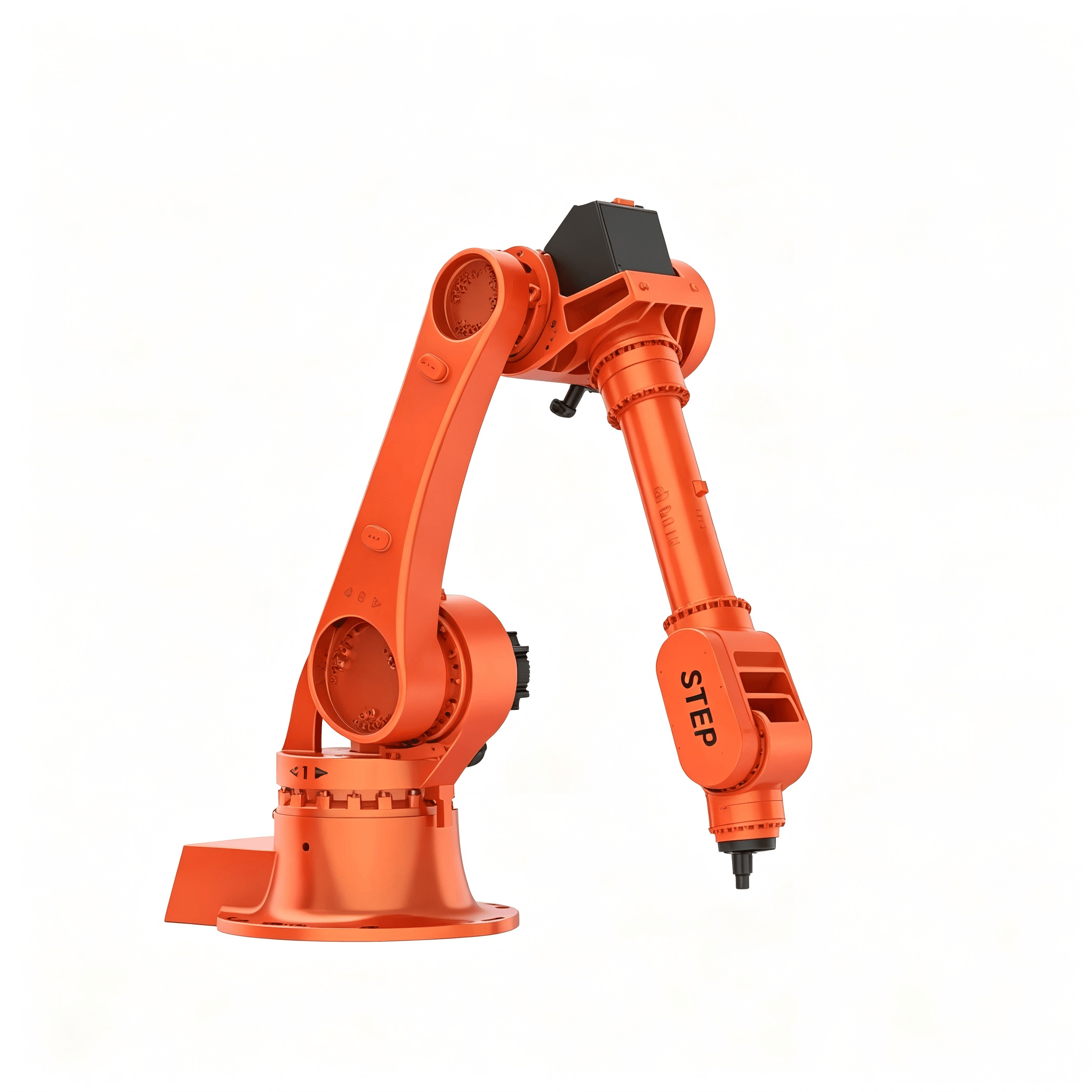

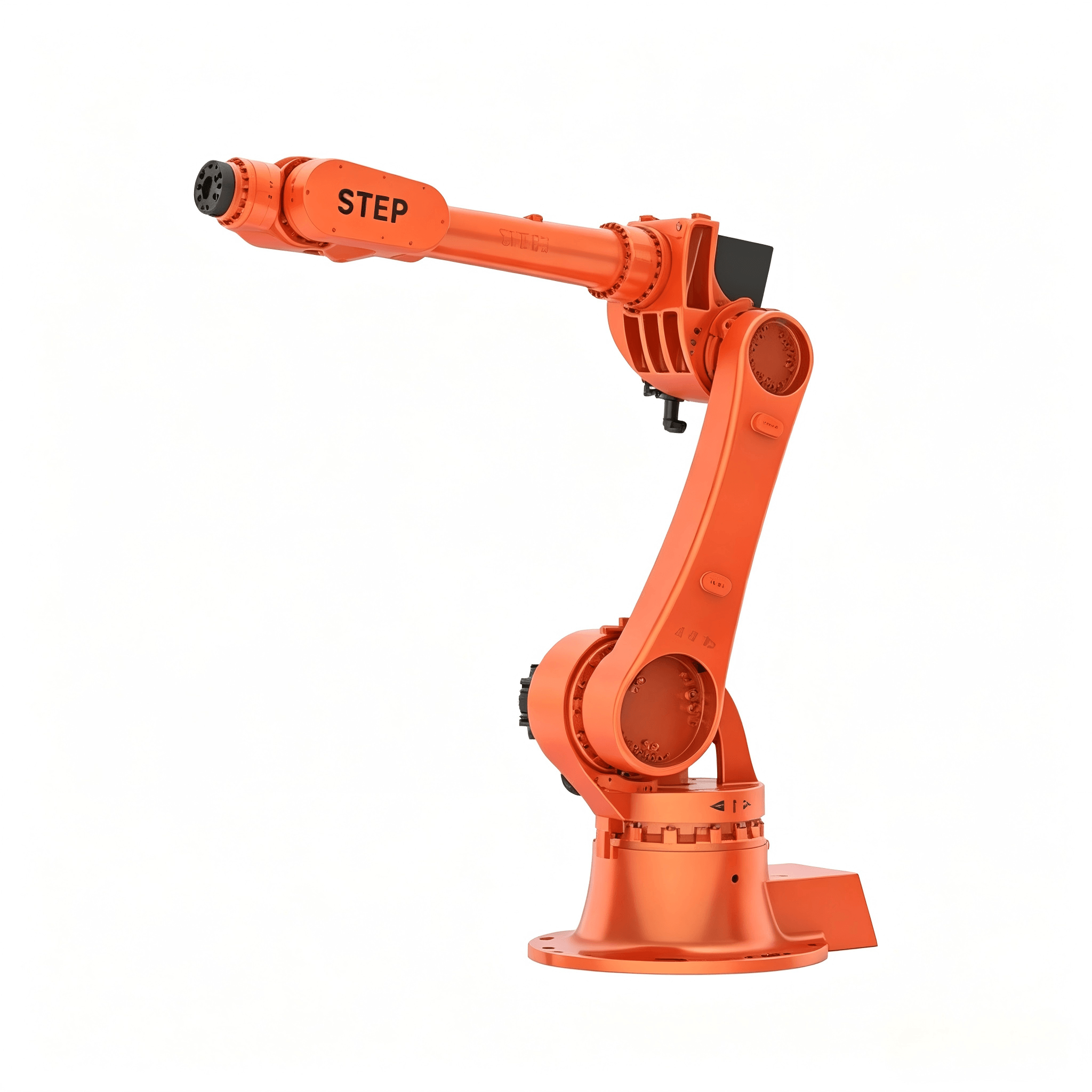

STEP SR70/2180 6-Axis Industrial Robot | Heavy-Duty Long-Reach Automation Expert
Core Highlights
1. Heavy Payload & Long Reach for Large Workpiece Operations
- 70kg rated payload designed for heavy workpiece handling and machine tending, meeting the needs of automotive parts, large castings, and other heavy-duty applications.
- 2180.5mm maximum reach covers long-distance workstation layouts, reducing production line modification costs and adapting to large machining centers, stamping lines, and palletizing lines.
- ±0.06mm repeatability ensures stable precision even under heavy loads, guaranteeing consistent process alignment.
- IP54 body protection + IP65 wrist protection for reliable operation in high-dust and oil mist workshops, lowering maintenance costs.
2. High-Performance Joint Design for Stable Heavy-Duty Operation
- AC servo drives for all joints, with J4-J5 joints supporting 294N·m high torque, offering strong impact resistance and adapting to start-stop conditions of heavy workpieces.
- Maximum joint speed up to 350°/s, enabling smooth, jitter-free movements under heavy loads for faster cycle times.
- Integrated 1-Φ12mm air pipe + 16-core signal lines reduce external cable wear and simplify on-site commissioning.
- Floor-mounted installation ensures structural stability, suitable for docking with heavy equipment.
3. Industrial-Grade Durability to Reduce Operational Costs
- 570kg high-rigidity body with excellent vibration resistance, eliminating jitter during heavy-duty operation for extended service life.
- Wide operating temperature range (0~45℃) adapts to most domestic workshop conditions without additional temperature control modifications.
- Low-noise design (≤80dB(A)) improves workshop working conditions and reduces occupational health risks.
- Multi-bus communication compatibility allows seamless integration with PLCs, CNC machines, palletizers, and other mainstream industrial devices.
Core Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SR70/2180 |
| Structure | 6-axis vertical articulated |
| Max Working Radius | 2180.5mm |
| Repeatability | ±0.06mm |
| Max Wrist Payload | 70kg |
| Robot Weight | 570kg |
| IP Rating | Body: IP54; Wrist: IP65 |
| Installation | Floor-mounted |
| Operating Environment | 0~45℃; Humidity ≤75%RH (95%RH short-term, non-condensing); Vibration ≤0.5G |
| Max Joint Speed | J1:175°/s; J2:170°/s; J3:178°/s; J4:260°/s; J5:255°/s; J6:350°/s |
Typical Applications
1. Large CNC Machine Tending Perfectly suited for large CNC lathes and gantry machining centers, enabling automatic loading of heavy blanks and unloading of finished parts. Supports 24/7 operation to solve the pain points of low efficiency and high safety risks in manual handling, significantly improving equipment utilization.
2. Automotive Parts Handling & Assembly Adapted for the transfer and assembly of heavy workpieces such as engine blocks and chassis components. The 70kg payload + 2180mm reach covers workstations in automotive welding and assembly lines, with high-torque joints offering strong impact resistance for complex conditions.
3. Heavy Workpiece Palletizing & Warehousing Supports palletizing and depalletizing of heavy workpieces. The long reach covers multiple pallet rows, replacing manual labor for high-load repetitive tasks, reducing labor costs and injury risks, and improving warehousing and logistics efficiency.
Why Choose the SR70/2180?
Heavy-duty universal solution: 70kg payload + 2180.5mm reach meets core needs of heavy automation scenarios. Industrial-grade high-rigidity quality: STEP’s self-developed servo and control systems adapt to complex domestic heavy-duty production environments for reliable performance. Low-barrier integration: Modular design and user-friendly commissioning interface allow quick integration into existing lines without major modifications. Full lifecycle support: Comprehensive after-sales and technical services reduce concerns about heavy-duty automation upgrades.
