Product Overview

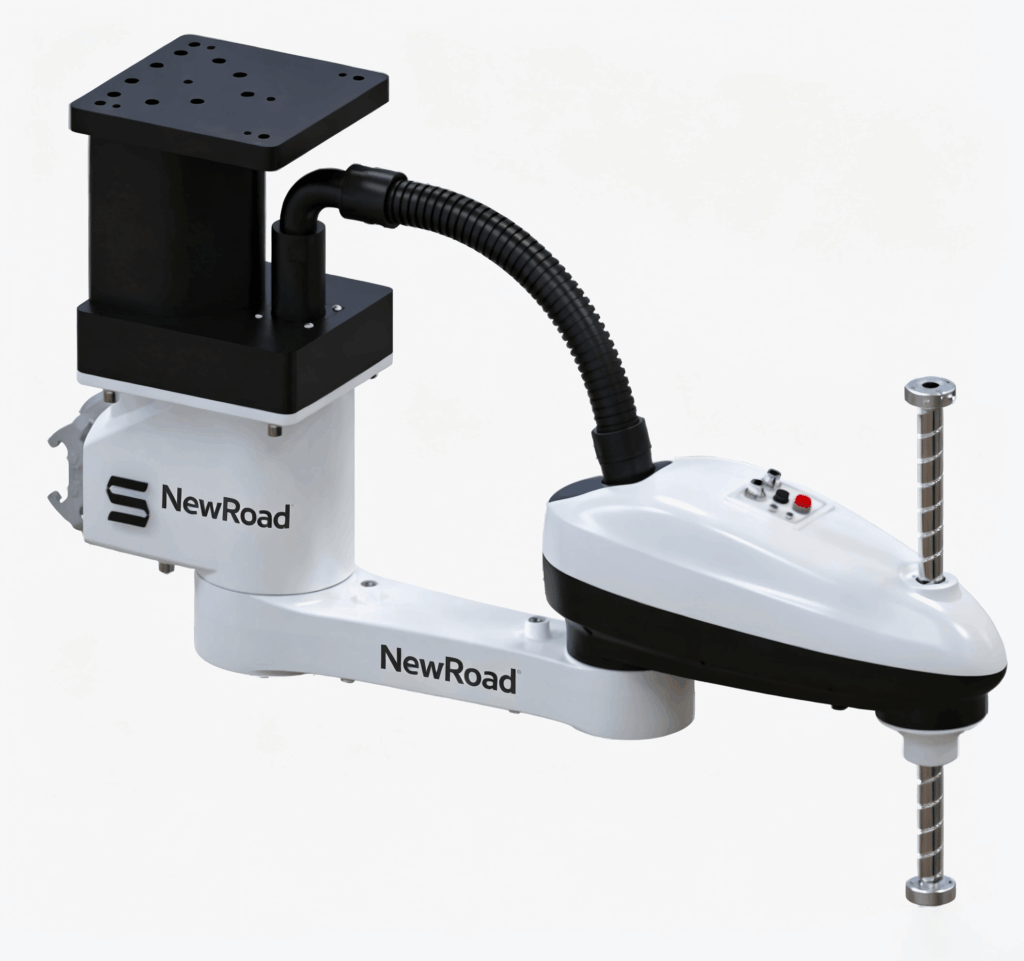

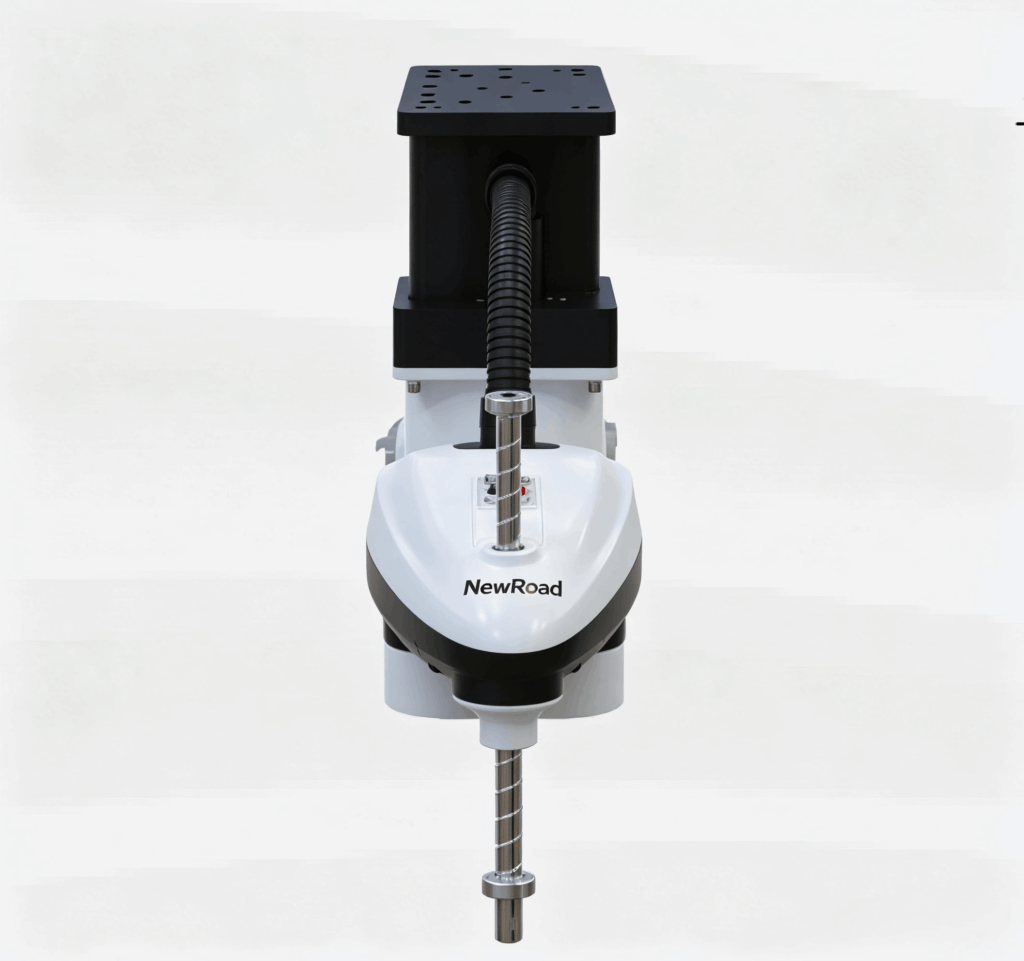

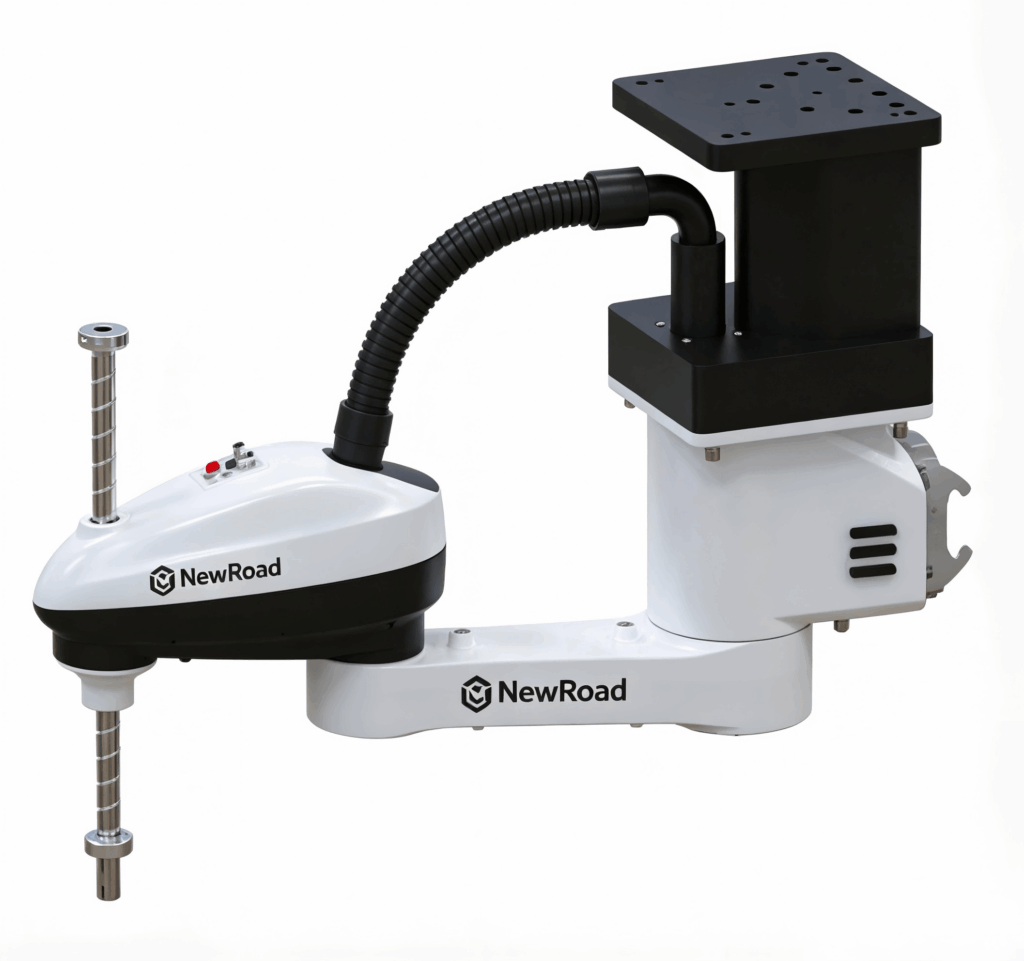

SCR006-600INV is an inverted mounting type 4-axis SCARA industrial robot from NewRoad, specially engineered for upside-down installation on overhead frames, gantry fixtures and automated top-mounted equipment.
With 600mm maximum working reach and upgraded load capacity, it is widely applied in upside-down pick-and-place, precision screw locking, dispensing, component insertion and automated assembly for 3C electronics, home appliances and precision hardware industries.
Only 17kg compact body weight with inverted structural design saves valuable workspace below the workstation; 3kg rated load / 6kg peak payload balances high load capacity and flexible movement, perfectly matching overhead automation production layout requirements.
Core Technical Parameters
| Specification Item | Parameter Data |
|---|---|
| Robot Model | SCR006-600INV (4-Axis Inverted SCARA Robot) |
| Total Axes | 4 Axes |
| Maximum Reach | 600mm |
| Rated / Max Payload | 3kg / 6kg |
| Rated / Max Allowable Inertia | 0.01kg·m² / 0.12kg·m² |
| Repeat Position Accuracy | Axis1&2: ±0.02mm; Axis3(Lifting): ±0.01mm; Axis4(Rotation): ±0.01° |
| Max Single Axis Speed | Axis1:450°/sec, Axis2:720°/sec, Axis3:1000mm/sec, Axis4:2000°/sec |
| Working Stroke | Axis1: ±120°, Axis2: ±115°, Axis3 vertical stroke:220mm, Axis4:360° unlimited rotation |
| Mounting Type | Inverted overhead bracket installation |
| Robot Net Weight | 17kg |
| Power Consumption | 0.8KW |
| Working Ambient | Temp:0~+45℃; Humidity:20~80%RH(non-condensing); Vibration＜4.9M |
Product Structural & Design Advantages
1 Unique Inverted Mount Base Design
Custom inverted base structure with standardized mounting holes and precision locating structure. The top mounting plate can be directly fixed on gantry beam, overhead fixture and equipment top plate without extra customized support frame, greatly simplifying overhead automation layout.
2 Optimized Robotic Arm Body
Modular white-black appearance with NewRoad logo on side housing, wear-resistant industrial coating adapting complex factory environment;
External flexible corrugated conduit integrates air pipe & control cable, effectively avoid wire winding, abrasion and aging to extend service life;
Robot head equipped with quick pneumatic connectors + emergency stop button, standard lead screw output at end for fast replacement of gripper, screw tightening head, dispensing valve and other custom end toolings.
3 Wide Omnidirectional Working Range
Circular motion coverage realizes full-angle operation within 600mm arm span, the radial working range meets long-distance cross-station pick & place; inverted layout leaves bottom space free for conveyor, fixture and workpiece arrangement, ideal for upper feeding & lower processing production lines.
Core Performance Features
- High Precision Positioning: Sub-millimeter repeat accuracy ensures stable performance on precision assembly, micro dispensing and tiny part inspection procedures.
- Strong Payload Capacity: Peak 6kg load realizes heavy small workpiece handling, outstanding among same-class inverted SCARA robots.
- High-speed Stable Operation: Optimized servo speed configuration improves production beat for high-volume automated assembly lines, replacing manual work to boost efficiency by 35%~85%.
- Space-saving Inverted Layout: Installed overhead to release ground workspace, suitable for compact automated production cells and multi-station continuous processing.
- Wide Environment Adaptability: Stable running under normal industrial temperature & humidity, available for slightly dusty non-condensing workshop environment.
Main Application Fields
- 3C Electronic Manufacturing: Upside-down PCB plug-in, mobile phone parts screw fastening, camera module dispensing & sorting;
- Small Home Appliance Assembly: Plastic component press-fit, switch parts assembling, finished product unloading from below conveyor;
- Precision Hardware Processing: Mini metal part upside-down feeding, tapping auxiliary handling, small hardware stacking;
- Custom Automated Equipment: Overhead robot for gantry automation line, inverted automatic screw machine, top-mounted desktop test equipment.
Selection Advantage & After-sales Support
Product Selection Advantages
Standard mass-produced inverted SCARA model with mature mechanical structure, short delivery lead time and low failure rate;
Support customized end effector and control program, compatible with mainstream PLC and dedicated robot controller for seamless docking with existing automation systems;
Low-power 0.8KW design reduces long-term operational power cost vs manual labor.
After-sales Service
NewRoad supplies professional installation guidance, on-site programming training and 1-year whole-machine warranty. Our engineering team provides customized automation layout solution from model selection to whole-line implementation。
