Product Overview
The SCR003-400 is a compact 4-axis SCARA industrial robot under the NewRoad brand. Built with proven 4-joint serial mechanical structure, it is specially developed for precision working processes including 3C electronic assembly, screw tightening, small-part handling, component insertion & inspection, and precision dispensing.
With ultra-lightweight 13kg body weight and space-saving footprint, paired with 400mm maximum reach and multi-degree-of-freedom movement, this robot balances outstanding positioning accuracy and flexible motion, ideal for production line retrofitting and single workstation automation upgrade.
Technical Specifications
| Item | Specification |
|---|---|
| Model | SCR003-400 (4-Axis SCARA Robot) |
| Total Axes | 4 (2 horizontal rotary axes + Z-axis vertical lifting + end effector rotation) |
| Maximum Reach | 400mm |
| Rated Load / Peak Load | 1kg / 3kg |
| Rated / Max Allowable Inertia | 0.005kg·m² / 0.05kg·m² |
| Repeat Positioning Accuracy | Axis1&2: ±0.01mm; Axis3(Lifting): ±0.01mm; Axis4(Rotation): ±0.01° |
| Max Axis Speed | Axis1&2:720°/sec; Axis3(Lifting):1000mm/sec; Axis4:2500°/sec |
| Working Stroke | Axis1:±132°, Axis2:±141°, Axis3:170mm vertical travel, Axis4:360° continuous rotation |
| Robot Net Weight | 13kg |
| Power Consumption | 0.7KW |
| Operating Environment | Temperature:0~+45℃; Humidity:20~80%RH(Non-condensing); Vibration: below 4.9M/S² |
Structural Design & Product Advantages
Standardized Compact Base Mounting

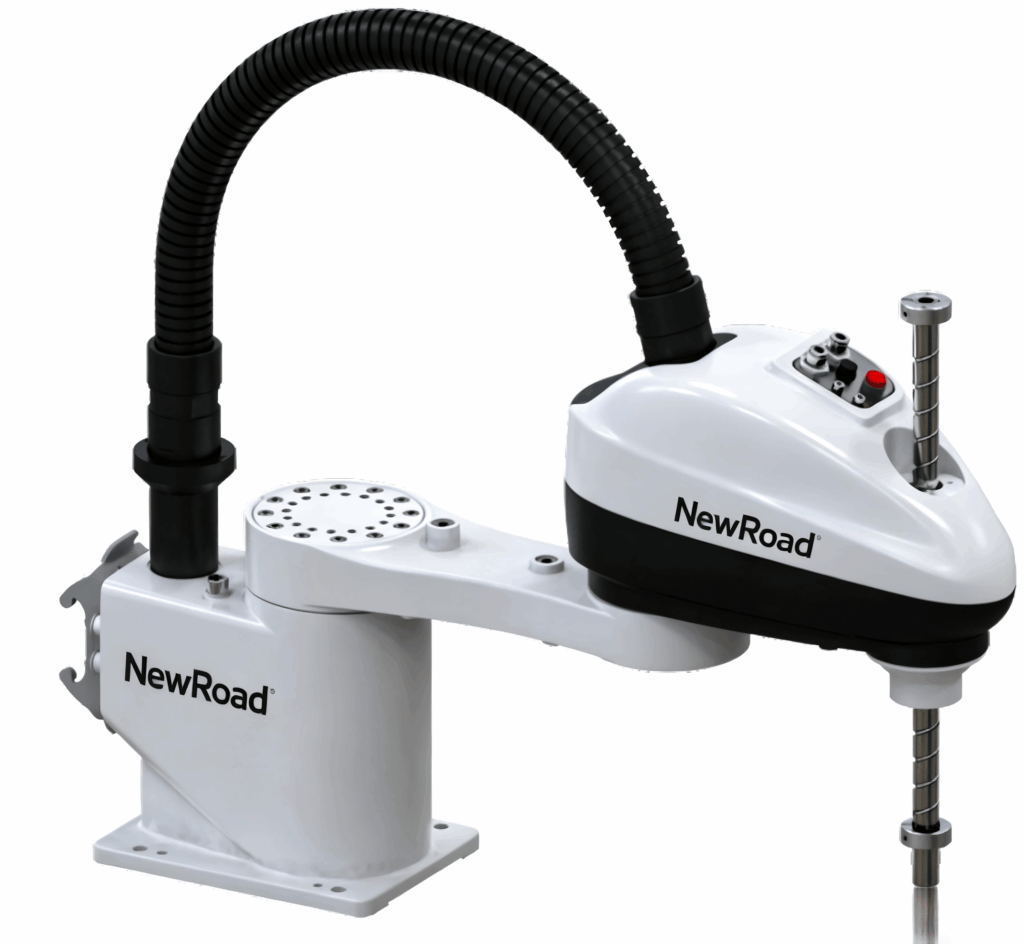

The base is pre-machined with standard mounting holes, supporting floor or bracket installation. Precision stop shoulder at position A and locating pin holes at position B ensure high-precision installation without customized heavy foundation, enabling quick assembly on tooling tables and automation frames.
Optimized Robotic Arm Body

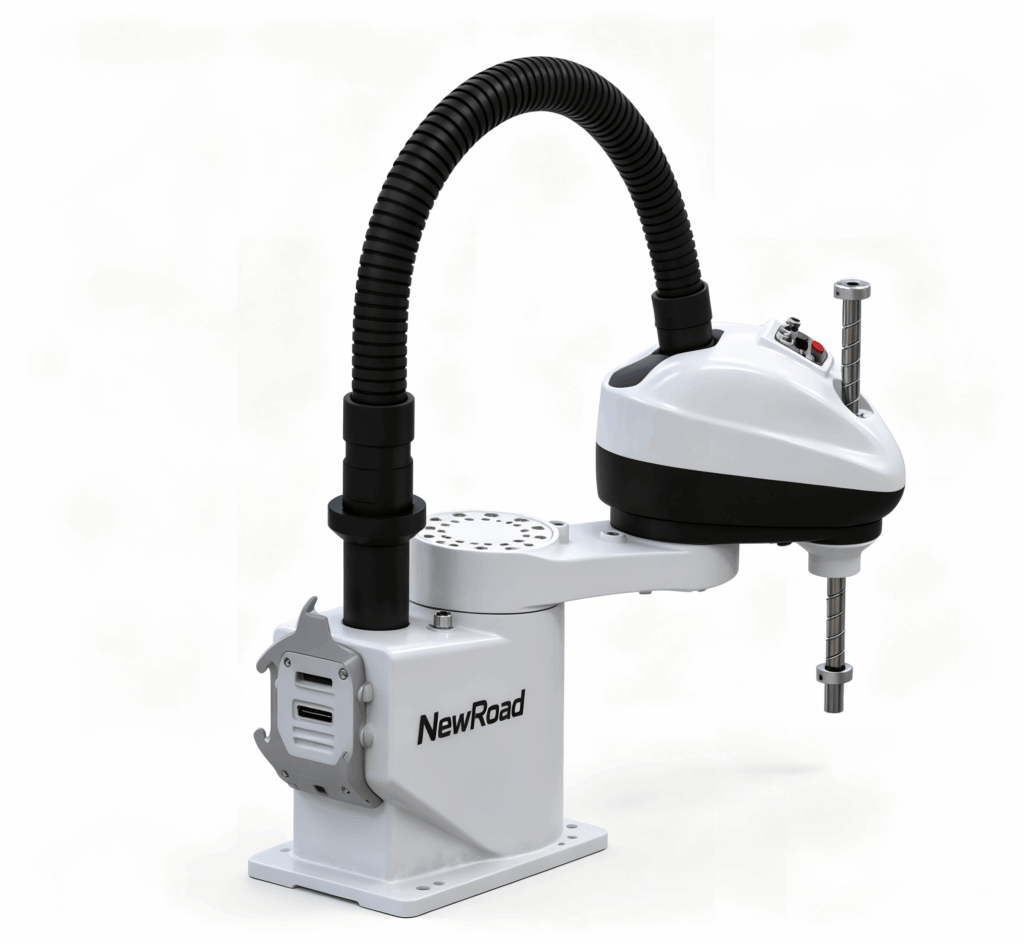

- Black & white modular body with NewRoad logo printed on side casing for brand identification, durable industrial coating for workshop environment.
- Integrated flexible corrugated cable duct protects internal cables & air tubes from abrasion and tangling to extend service life.

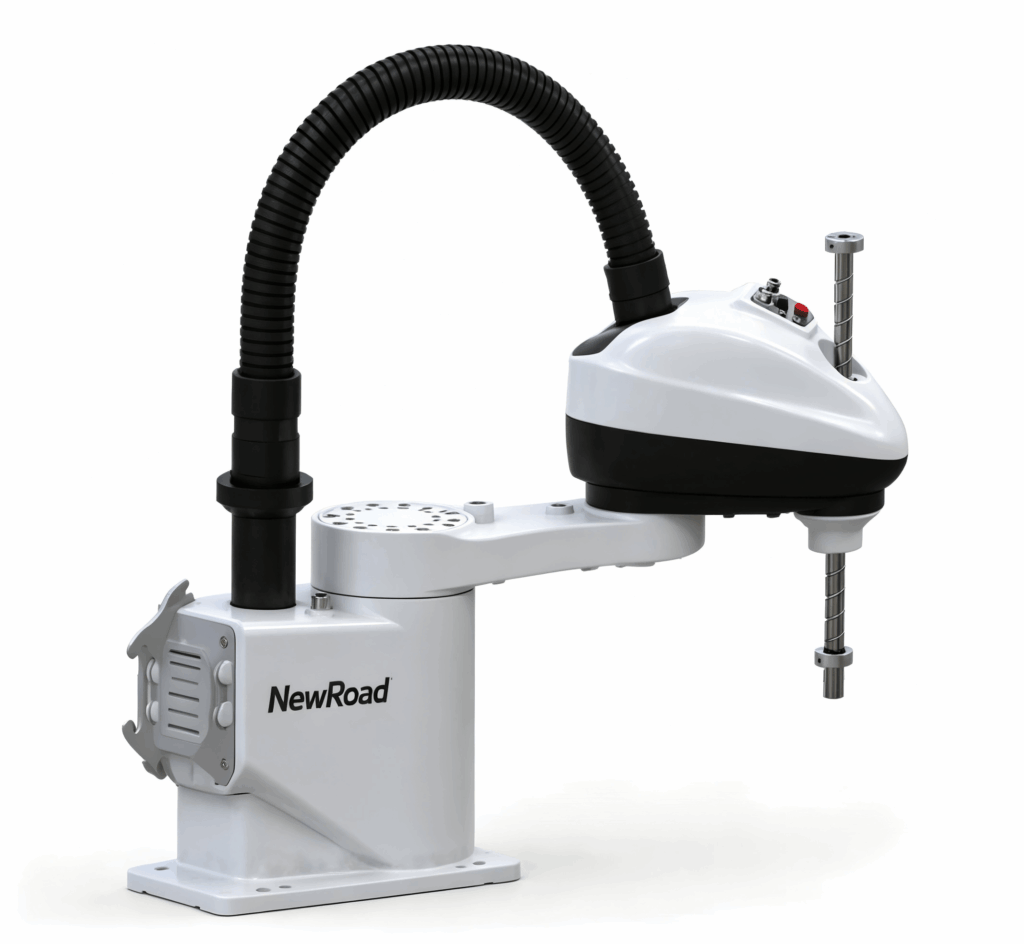

- Top-mounted quick pneumatic ports + emergency stop button; standard lead screw output shaft at end for fast swapping of grippers, screw tightening heads, dispensing valves and other customized end toolings.
Large Coverage Working Envelope
The circular motion range delivers up to 415.4mm maximum horizontal radius with full omnidirectional working space, enabling multi-angle pick & place even inside narrow confined workstations, breaking travel limitations of traditional manipulators.
Key Performance Highlights
- Ultra-high Repeat Accuracy: Micron-level ±0.01mm positioning meets strict requirements of precision component assembly, micro-volume dispensing and high-precision inspection.
- Lightweight & High Load Ratio: Only 13kg self-weight but supports max 3kg payload, reducing frame load cost and compatible with desktop-size automated equipment.
- High-speed Cycle Efficiency: High-speed independent axis operation accelerates screw locking and sorting cycle, improving production capacity by 30%~80% after manual replacement.
- Wide Environmental Compatibility: Stable operation in standard industrial workshops with broad temperature & humidity tolerance, suitable for slightly dusty & moist production environment without extra protective housing.
Typical Application Industries
- 3C Electronics: PCB insertion, cellphone component screw fastening, glue dispensing, micro-component sorting & palletizing
- Small Home Appliance: Switch fitting assembly, plastic part pressing, finished-product feeding & unloading
- Precision Hardware: Tiny hardware handling, tapping auxiliary operation, mini-part stacking
- Custom Automation Equipment: Integrated manipulator for automatic screw machines, desktop dispensers and bench-top testing machines
Selection Benefits & After-sales Service
Selection Advantages
- Mass-produced standard model with short lead time, mature mechanical structure and low failure rate.
- Customizable end effector and control solution, compatible with PLC and dedicated robot controller for seamless connection to existing production system.
- Low 0.7KW power consumption cuts long-term electricity cost vs manual labor.
After-sales Support
NewRoad provides on-site installation guidance, operator programming training and 1-year full machine warranty. Our technical team offers customized automation layout solution from model selection to project implementation.
