Product Overview
The SCR010-900 is a heavy-load four-axis SCARA industrial robot developed under the NewRoad brand. Featuring a maximum working reach of 900mm, rated payload of 5kg and peak load up to 10kg, this large-stroke SCARA robot is designed for heavy-component picking, automated assembly, bulk screw fastening and material handling in automotive spare parts, home appliance manufacturing, large-size 3C products and precision hardware industries.
With mature four-joint mechanical structure and 41kg solid body design, it delivers outstanding rigidity and stable high-load operation; floor-mounted standard base simplifies installation on workshop workbenches and automation frames to realize large-radius cross-station automated production.
Core Technical Specification Table
| Specification Items | Technical Parameters |
|---|---|
| Robot Model | SCR010-900 (4-Axis SCARA Robot) |
| Total Axes | 4 Axes |
| Maximum Working Reach | 900mm |
| Rated / Max Payload | 5kg / 10kg |
| Repeat Position Accuracy | Axis1+Axis2: ±0.02mm; Axis3(Lifting): ±0.01mm; Axis4(Rotation): ±0.01° |
| Max Single Axis Speed | Axis1:300°/sec; Axis2:375°/sec; Axis3(Lifting):1041mm/sec; Axis4:1500°/sec |
| Working Stroke Range | Axis1: ±125°; Axis2: ±150°; Axis3 vertical lift:200mm; Axis4:360° full continuous rotation |
| Mounting Method | Floor & support bracket installation |
| Robot Net Weight | 41kg |
| Rated Power Consumption | 1.55kW |
| Working Environment | Temp:0~+45℃; Humidity:20~80%RH(Non-condensing); Vibration ≤4.9M/S² |
Structural Design & Product Advantages
1 Standardized Heavy-duty Base Installation
Precision machined base with A-position mechanical stop shoulder and B-position standard pin hole layout. Pre-drilled positioning holes ensure accurate locking onto equipment frames and ground support without customized auxiliary brackets, improving installation efficiency for heavy-load automation lines.

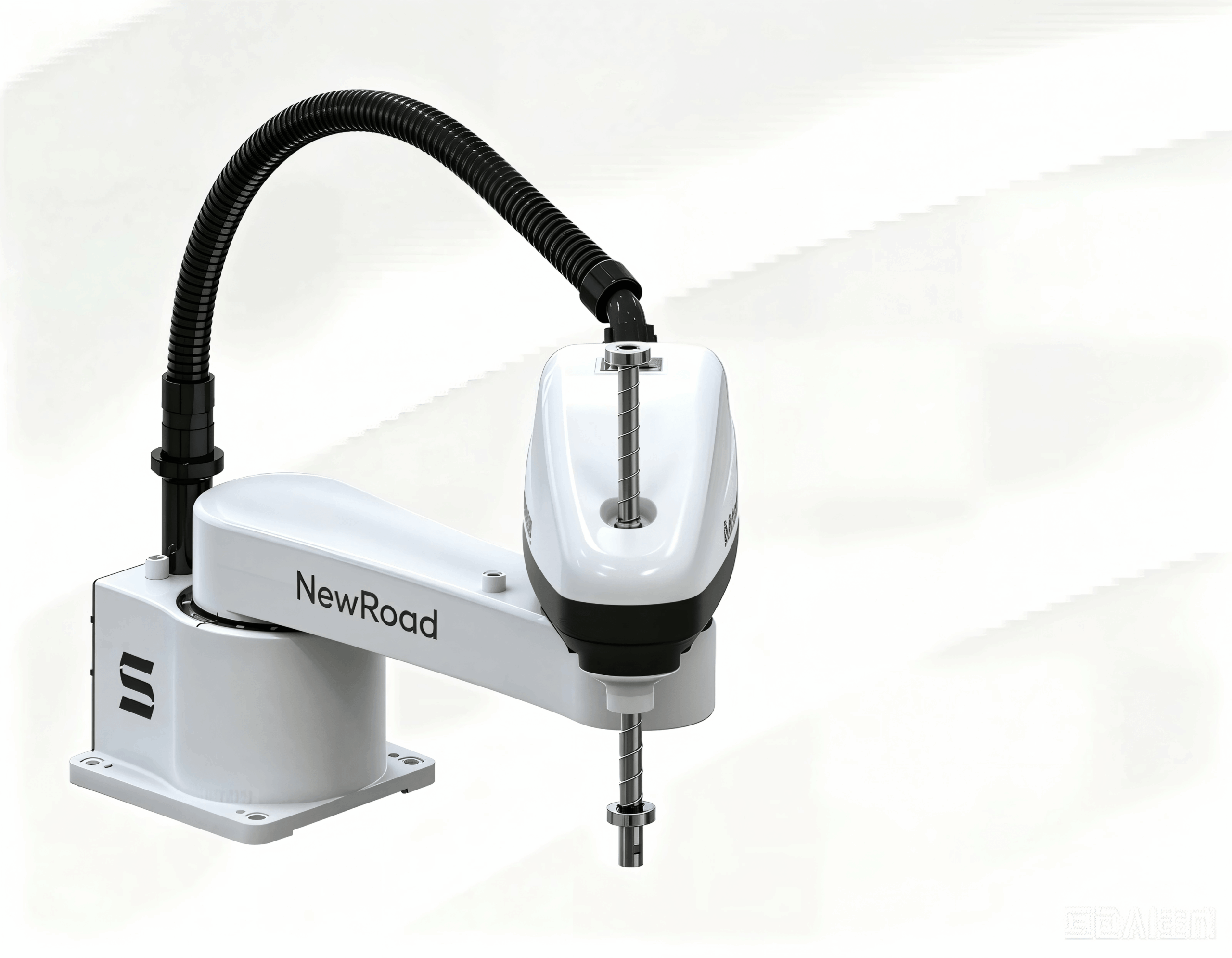

2 Optimized Robotic Arm Appearance & Wiring
- Classic white-black modular housing with NewRoad brand logo printed on side of robot head, anti-scratch industrial coating to adapt harsh factory workshop environment.
- Curved corrugated flexible conduit centrally integrates air hoses and control cables, preventing cable abrasion, twisting and damage to extend component service life.
- Robot top equipped with quick pneumatic interface and emergency stop button; standard threaded output spindle at the end effector for quick swapping of heavy-duty grippers, locking tools and dispensing fixtures.
3 Ultra-large Circular Working Envelope
The radial motion diagram shows wide circular coverage with max radius over 900mm, enabling long-distance cross-station pick & place. Large stroke design perfectly matches long-span conveyor lines and multi-station continuous assembly requirements.
Key Performance Advantages
- Heavy Load Bearing Capacity: Up to 10kg peak payload stands out among same-spec SCARA robots, suitable for bulky heavy workpiece feeding & blanking.
- High Precision Stable Locating: Micron-grade repeat positioning accuracy guarantees consistent precision for large-part assembling and precision processing procedures.
- Rigid & Durable Body: 41kg solid cast structure effectively suppresses vibration during high-speed heavy-load operation to improve production stability.
- High-efficiency Running Performance: Balanced servo speed configuration shortens production cycle, replacing manual labor to raise workshop productivity by 40%~90%.
- Excellent Environmental Adaptability: Stable continuous operation under normal industrial temperature and humidity, compatible with slightly dusty non-condensing production workshops.
Main Application Industries
- Automotive Component Production: Plastic shell assembly, metal fittings locking, engine small parts loading/unloading;
- Large Home Appliance Manufacturing: Air-conditioner/washing machine internal component assembly, shell screw tightening;
- Large-size 3C Electronics: Power supply casing assembly, large PCB plug-in and finished product sorting;
- Precision Hardware & Non-standard Automation: Heavy metal stamping part handling, customized large-scale automated testing equipment built-in manipulator.
Selection Benefits & After-sales Service
Selection Advantages
- Standard mass-production model with proven mechanical structure, stable quality and short delivery cycle, low long-term maintenance cost.
- Customizable end-of-arm tooling and control program, compatible with mainstream PLC and dedicated robot controllers to seamlessly connect existing production control system.
- Mature power control design reduces energy consumption during long-term continuous production.
After-sales Support
NewRoad provides complete installation guidance, on-site operator programming training and 1-year full machine warranty. Our professional engineering team supplies customized automation layout solution from model selection to whole production line construction.
