1. Product Overview
SCR010-800PTR is a dedicated 3-axis SCARA screwdriving robot under NewRoad brand, specially customized for automatic screw fastening processes. With 800mm maximum working reach, 5kg rated load and peak payload up to 10kg, it is tailor-made for high-efficiency automatic lock-screw operation in home appliances, automotive spare parts, large-size 3C electronics and plastic assembly industries.
Simplified 3-axis mechanical structure (2 horizontal rotary axes + vertical lifting axis) focuses fully on screw locking workflow; compact 38kg rigid body and floor-mounted base save installation space, perfectly matching desktop lock screw machines and full-automatic locking production lines.
2. Core Technical Parameters
| Parameter Item | Specification Data |
|---|---|
| Model | SCR010-800PTR (3-Axis SCARA Screw Lock Robot) |
| Total Axes | 3 Axes (Axis1+Axis2 horizontal rotation + Axis3 vertical lifting) |
| Maximum Reach | 800mm |
| Rated / Max Payload | 5kg / 10kg |
| Repeat Position Accuracy | Axis1+Axis2: ±0.015mm; Axis3(Lifting): ±0.025mm |
| Max Axis Speed | Axis1:375°/sec; Axis2:600°/sec; Axis3:1000mm/sec |
| Working Stroke | Axis1:±130°, Axis2:±130°, Axis3 vertical travel:120mm |
| Mounting Type | Floor / bracket fixed installation |
| Robot Net Weight | 38kg |
| Power Consumption | 1.35kW |
| Working Ambient | Temperature:0~+45℃; Humidity:20~80%RH(Non-condensing); Vibration ≤4.9M/S² |
3. Structural Design & Product Advantages
3.1 Specialized Base & Flange Mounting Structure
Standardized base mounting hole layout shown in Detail B, pre-machined locating pin holes enable quick locking on equipment frame and workbench without customized auxiliary fixture; dedicated end flange size is reserved for direct installation of automatic screwdriver head, eliminating extra transition fixture and simplifying screwdriver assembly.
3.2 Optimized Arm Body for Screw Lock Application

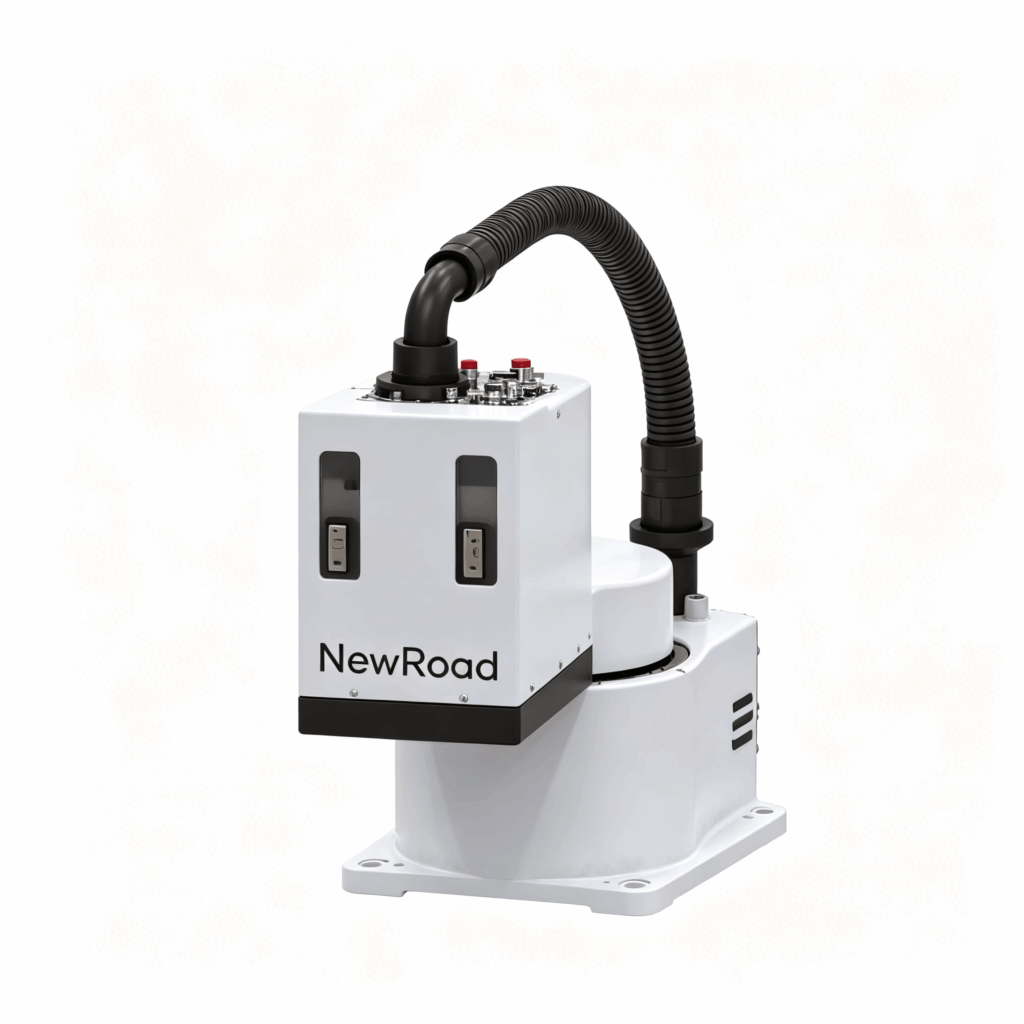

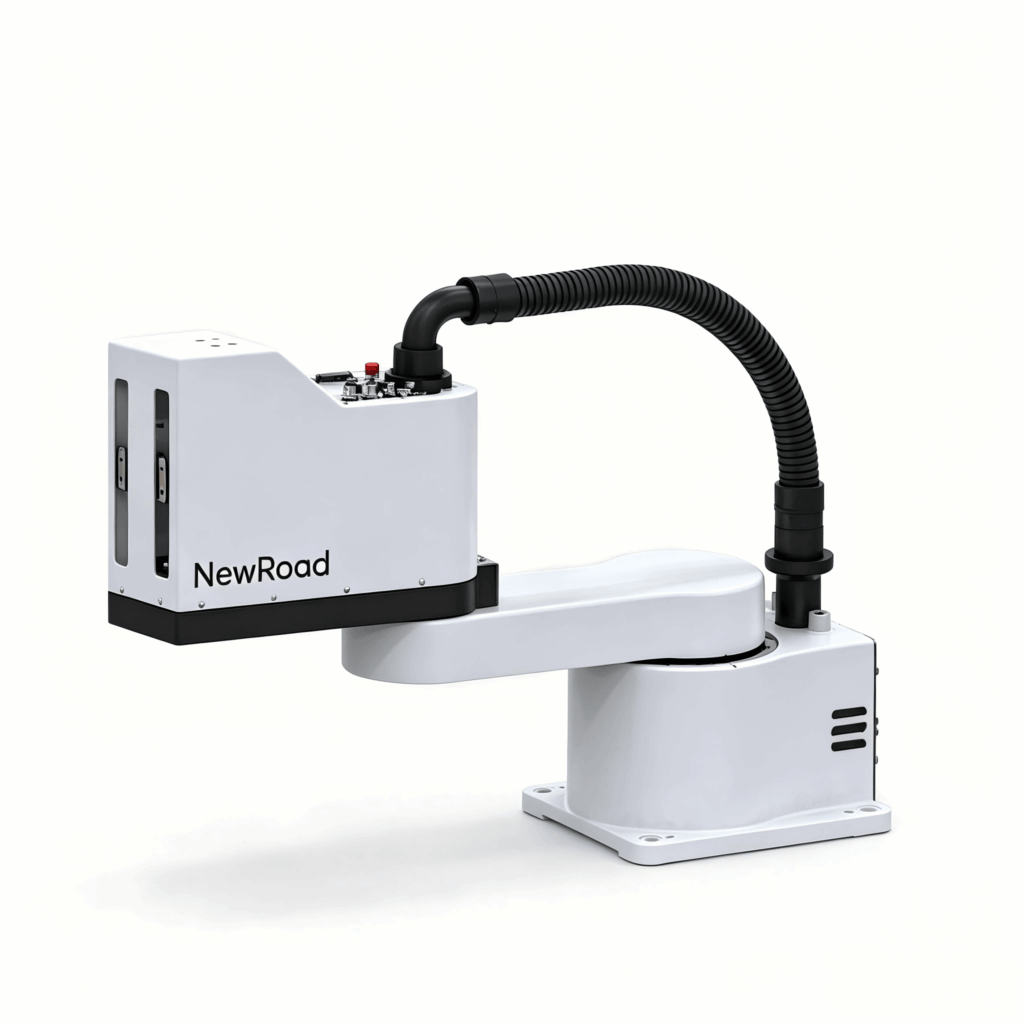

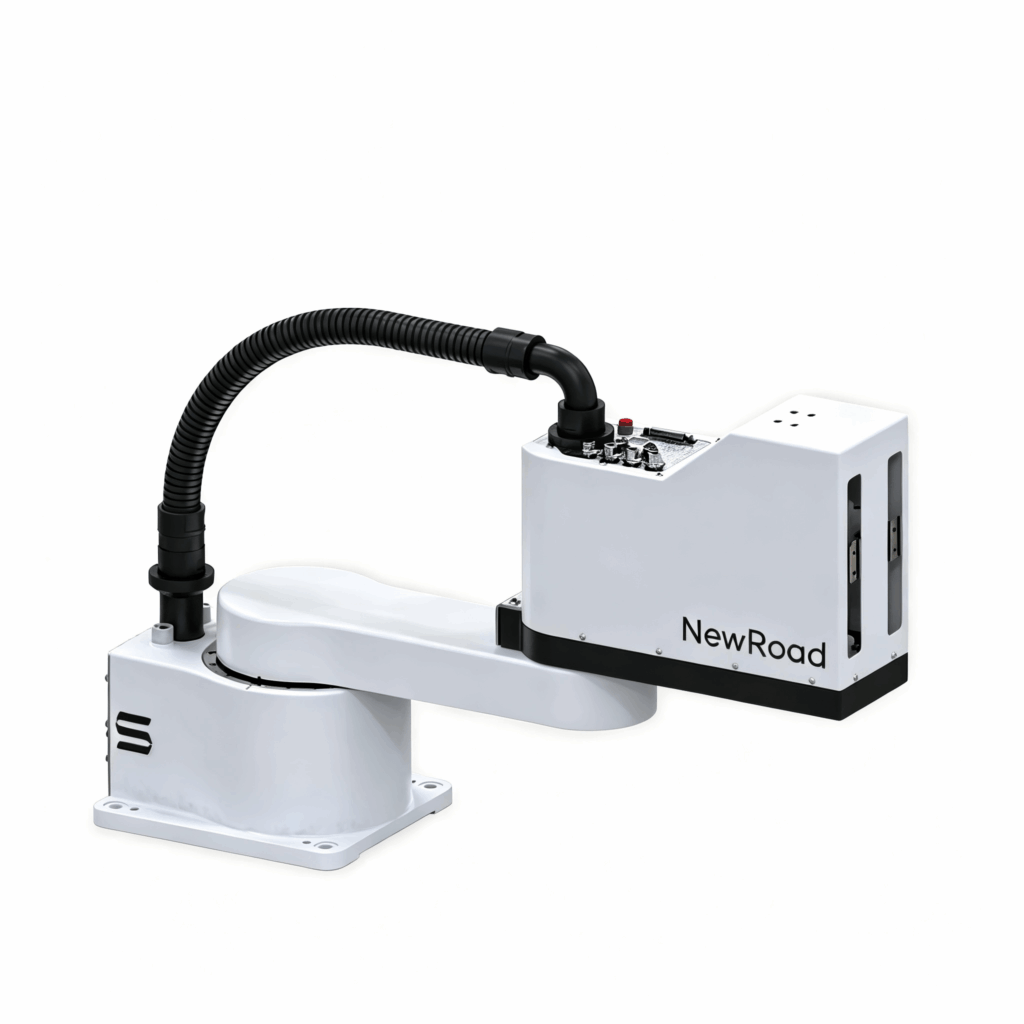

- Industrial grey-white modular casing with NewRoad LOGO printed on side of robot head, scratch-resistant coating adapts long-term continuous workshop operation.
- Integrated corrugated cable conduit neatly wraps internal air pipes and control wires, effectively avoiding cable abrasion and knotting during frequent reciprocating locking movement, extending service life of internal components.
- Compact head structure reserves standard interface for screw feeder connection, seamlessly matching automatic screw feeding machine to realize full-automatic feeding & locking.
3.3 Wide Circular Working Coverage
The yellow range diagram shows full-angle circular working radius up to 800mm, wide horizontal moving range can cover multi-hole layout of large workpieces; perfect for multi-position continuous screw tightening on single station or cross-conveyor locking task.
4. Core Performance Highlights
- Professional for Screw Locking: Three-axis simplified structure optimizes motion logic specially for lock-screw path, less redundant action to improve locking beat and productivity.
- High Precision Positioning: Ultra-precise ±0.015mm horizontal repeat accuracy ensures accurate alignment with screw holes, greatly reducing screw sliding and missing locking rate.
- Strong Heavy-load Capacity: Max 10kg load supports installation of large torque screwdriver, applicable for big-size & high-torque screw fastening on large plastic and metal workpieces.
- High-speed Stable Operation: Optimized axis speed improves continuous locking efficiency, replacing manual operation to raise production capacity by 45%~95%.
- Compact Space Layout: 38kg moderate weight allows installation on small desktop automatic lock screw equipment, flexible for limited-space automation upgrading.
5. Typical Application Fields
- Home Appliance Assembly: Air conditioner, washing machine, fan shell automatic screw locking for inner fittings and outer casing;
- Automotive Component: Plastic auto parts, small motor housing screw fastening;
- Large 3C Electronics: Power supply, large adapter, industrial controller casing screw assembly;
- Plastic & Precision Hardware: Large plastic injection molding part locking, hardware accessory automatic screwing.
6. Selection Advantages & After-sales Service
Product Selection Benefits
- Special-purpose mass-produced lock-screw SCARA model with mature mechanical structure, low failure rate for long-time uninterrupted production.
- Compatible with all mainstream automatic screw feeders and PLC control system, convenient to integrate into existing automation production line.
- Energy-saving 1.35kW power design lowers daily running cost compared with manual labor.
After-sales Support
NewRoad provides professional installation guidance, programming training for operators and 1-year full machine warranty. Our technical team customizes whole lock-screw automation solution from model selection to equipment integration.
